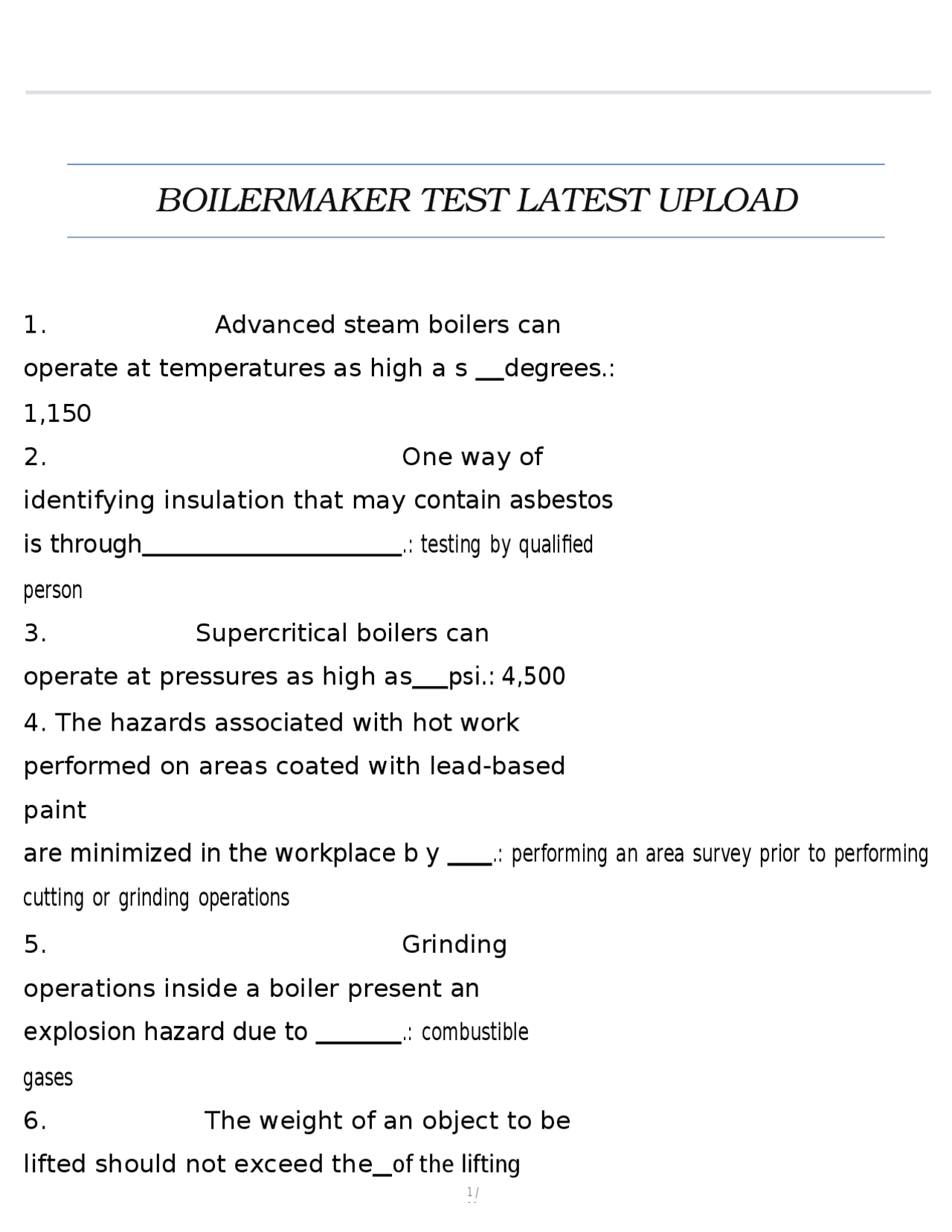

BOILERMAKER TEST LATEST UPLOAD
1. Advanced steam boilers can
operate at temperatures as high a s degrees.:
1,150
2. One way of
identifying insulation that may
contain asbestos
is through
.:
testing
by
qualified
person
3. Supercritical boilers can
operate at pressures as high as
psi.: 4,500
4. The hazards associated with hot work
performed on areas coated with lead-based
paint
are minimized in the workplace b y
.:
performing
an
area
survey
prior
to
performing
cutting
or
grinding
operations
5. Grinding
operations inside a boiler present
an
explosion hazard due to
.:
combustible
gases
6. The weight of an object to be
lifted should not exceed the
of the lifting
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download BOILERMAKER TEST LATEST UPLOAD and more Exams Advanced Education in PDF only on Docsity!

1 /

BOILERMAKER TEST LATEST UPLOAD

  1. Advanced steam boilers can operate at temperatures as high a s degrees.: 1,
  2. One way of identifying insulation that may contain asbestos is through .: testing by qualified person
  3. Supercritical boilers can operate at pressures as high as psi.: 4,
  4. The hazards associated with hot work performed on areas coated with lead-based paint are minimized in the workplace b y .: performing an area survey prior to performing cutting or grinding operations
  5. Grinding operations inside a boiler present an explosion hazard due to .: combustible gases
  6. The weight of an object to be lifted should not exceed the of the lifting

2 / equipment.: safe working load

  1. The term that means asbestos insulation is easily crumbled into fibers that become airborne is .: friability
  2. One of the places on a boiler where asbestos may be found is .: door seals
  3. Before entering a confined space, a worker should .: inspect the space's shoring and support
  4. A boilermaker working at extreme heights must follow safety precautions not only to prevent falls but also to prevent causing : injury to personnel working below from falling objects
  5. When welding with shielding gas, extra ventilation is needed due to the fact that the gas used .: is heavier than air and collects in low areas
  6. When working at heights, must be worn.: a safety hamess
  7. Suspended scaffolds are particularly useful when working on .: boiler interiors

4 / .: not hold the pipe firmly

  1. Larger sizes of pipe should be held using a(n) .: chain vise
  2. A torpedo level differs from a framing level in that it .: is shorter
  3. The protractor head on a combination square is used to .: lay out various angles
  4. The device used to hold a pipe flange onto a pipe for welding is known as a(n) .: flange welding clamp
  5. A Hi-Lo gauge is used to .: check for pipe joint misalignment
  6. When using a hacksaw, the finest cut can be achieved when using a .: 32 blade pitch
  7. The device used to remove a broken piece of pipe or fitting is known as a(n) .: easy-out
  8. The device used to cut internal threads on a plate is known as a(n) .: pipe tap
  9. The device that allows multiple pneumatic tools to be operated from the same compressor is known as a .: manifold

5 /

  1. The pneumatic power tool used to lift and move heavy loads is known as a(n) .: tugger
  2. At many work sites, the proper voltage is not available to power all tools. To correct the problem, use a .: step- down transformer
  3. The device used when a perfectly perpendicular hole must be drilled into a surface is known as a(n) .: magnetic base drill
  4. The hydraulic tool used to reposition parts or lift heavy objects short distances is known as a .: porta-power
  5. A machine that receives its power from liquid pressure is said to be: Hydraulic
  6. A device that allows a tool to rotate in only one direction is a(n) : Ratchet
  7. A pneumatic winch used to move heavy objects is a(n) .: Tugger
  8. A ( n ) is a sharp, ragged edge of metal.: Burr
  9. The width of a circle is called the .: Diameter
  10. To line up two or more parts is to them.: Align

7 / must be at least cubic feet of air for each welder.: 10,

  1. A good safety practice is |: writing HOT on hot metal before leaving
  2. Cutting operations should never be performed without a in the area.: fire watch
  3. When pure oxygen is combined with fuel gases, the pure oxygen produces |: a high-temperature flame needed for flame cutting
  4. The smallest standard oxygen cylinder holds about cubic feet of oxygen.: 85
  5. Acety lene gas must be withdrawn from a cylinder at an hourly rate that does not exceed percent of the cylinder capacity.: 10
  6. Safety fuse plugs in the top and bottom of an acetylene cylinder are designed to .: release acetylene gas in the event of a fire
  7. Methyl acetylene propadiene (MAPP*) gas, a liquefied fuel used in oxyfuel cutting, bums at temperatures almost as high as acetylene and has the stability of .: propane
  8. The

8 / amount of liquefied gas remaining in a cylinder is determined by the of the cylinder.: weight

  1. The regulators used on fuel gas cylinders are often painted red and always have on a 11 connections.: left-hand threads
  2. The attachment on the top of a fuel gas cylinder that allows the gas to flow only in one direction is called a .: check valve
  3. The cutting tips used with liquefied fuel gases must have at least preheat holes.: six
  4. When lifting oxyfuel cutting cylinders, always use a(n) .: cylinder cage
  5. To avoid injury from dirt that may be lodged in the valve and regulator seat of a gas cylinder, always stand the valve when opening the valve to clear the regulator seat.: to the side of
  6. When clearing debris from new oxyfuel cutting equipment hoses, blow the hoses out with .: nitrogen
  7. The first step in selecting

10 / used to mark metal IS : Soapstone

  1. A flame burning with too much fuel is called : Carburizing flame
  2. A flame burning with too much oxygen is called .: Oxidizing flame
  3. When correct portions of fuel gas and oxygen are fed to a flame, the flame is said to be a(n) : Neutral flame
  4. When a thermal process is used for cutting, the material expelled from the kerf is called .: Dross
  5. When a flame burning back into the tip of a torch causes a high-pitched whistling sound condition is called .: Flashback
  6. When metal plate is penetrated with an oxyfuel cutting torch, the action is called a(n) : pierce
  7. On the edge of a cut, the lines resulting from the cutting oxygen steam into, through, and out ofthe metal are called .: Drag lines
