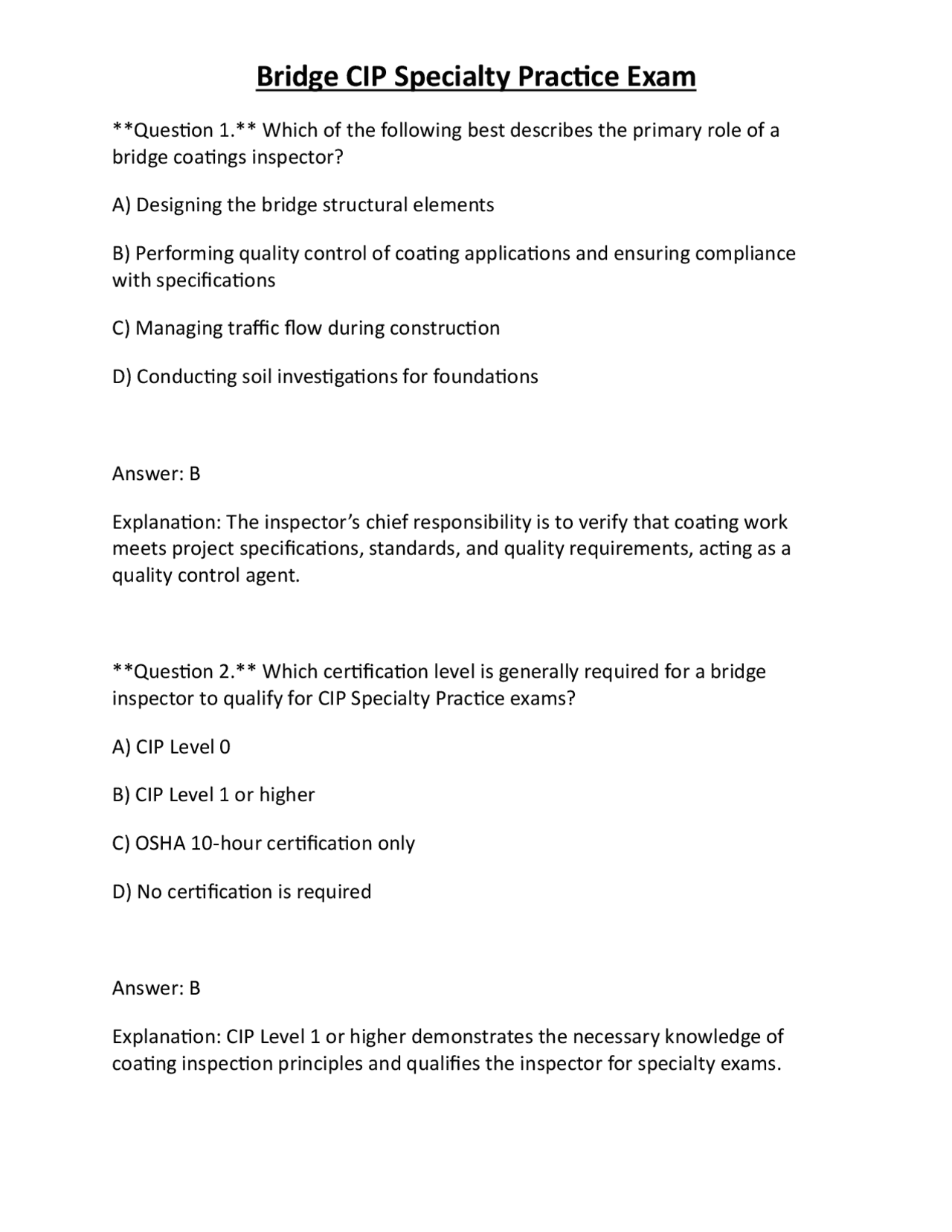

Question 1. Which of the following best describes the primary role of a bridge coatings inspector? A) Designing the bridge structural elements B) Performing quality control of coating applications and ensuring compliance with specifications C) Managing traffic flow during construction D) Conducting soil investigations for foundations Answer: B Explanation: The inspector’s chief responsibility is to verify that coating work meets project specifications, standards, and quality requirements, acting as a quality control agent. Question 2. Which certification level is generally required for a bridge inspector to qualify for CIP Specialty Practice exams? A) CIP Level 0 B) CIP Level 1 or higher C) OSHA 10‑hour certification only D) No certification is required Answer: B Explanation: CIP Level 1 or higher demonstrates the necessary knowledge of coating inspection principles and qualifies the inspector for specialty exams.
Question 3. In an inspection plan, which element is essential for ensuring the safety of traffic during coating work? A) Color selection of the topcoat B) Traffic control measures and signage C) Choice of blasting media D) Storage location of spare parts Answer: B Explanation: Traffic control measures protect motorists and workers; they are a critical component of the inspection plan for bridge projects. Question 4. Which document records daily observations, measurements, and any deviations from the coating specification? A) Project budget report B) Daily inspection report C) Structural analysis report D) Environmental impact statement Answer: B Explanation: The daily inspection report captures day‑to‑day activities, findings, and non‑conformances, serving as a primary record for the inspector.
Question 7. Which type of containment system uses a vacuum to prevent overspray from escaping the work area? A) Partial containment B) Full containment with negative pressure C) Open‑air spray booth D) Wet‑down containment Answer: B Explanation: Negative‑pressure (full) containment creates a vacuum that draws contaminants inward, preventing release to the environment. Question 8. According to SSPC Guide 6/NACE 6G198, which factor is NOT a primary consideration when selecting a containment system? A) Project budget B) Size of the work area C) Type of coating material D) Ambient temperature Answer: D Explanation: While temperature affects coating cure, it is not a primary factor in containment system selection, unlike budget, area size, and coating type.
Question 9. Which environmental condition most directly limits the allowable window for epoxy coating application? A) Wind speed exceeding 15 mph B) Ambient temperature below 40 °F (4 °C) C) Relative humidity above 90 % D) Presence of nearby vegetation Answer: B Explanation: Epoxy cure is temperature‑dependent; low ambient temperatures can prevent proper film formation, restricting the application window. Question 10. Which method is commonly used to test for soluble salts on a bridge steel surface? A) Visual inspection for rust B) X‑ray fluorescence (XRF) analysis C) Water‑soluble salt wipe test (ASTM G87) D) Ultrasonic thickness measurement Answer: C Explanation: The water‑soluble salt wipe test quantitatively measures chloride and sulfate residues that can cause coating failure.
Question 13. Which coating system typically serves as the first layer on a new steel bridge to provide cathodic protection? A) Polyurethane topcoat B) Zinc‑rich inorganic primer C) Acrylic seal coat D) Epoxy mid‑coat Answer: B Explanation: Zinc‑rich inorganic primers contain metallic zinc that offers sacrificial cathodic protection, essential as a primer on steel bridges. Question 14. What is the primary advantage of using a thermal spray (metallizing) coating on bridge components? A) Low cost compared to paint B) Rapid cure at ambient temperature C) Excellent corrosion resistance on high‑temperature surfaces D) Easy removal with water Answer: C Explanation: Thermal spray metallizing applies a metallic coating that provides superior corrosion resistance, especially on surfaces exposed to high temperatures.
Question 15. Which instrument is most suitable for measuring dry film thickness (DFT) on a bridge girder? A) Ultrasonic thickness gauge B) Magnetic induction gauge (e.g., Elcometer 456) C) Thermocouple probe D) Hand‑held torque wrench Answer: B Explanation: Magnetic induction gauges accurately measure DFT on ferrous substrates, making them ideal for bridge steel inspections. Question 16. In statistical sampling for bridge coating thickness, which method is recommended by SSPC PA 2? A. 100 % coverage inspection B. Random sampling of 5 % of total surface area C. Stratified sampling based on component geometry D. Visual inspection only Answer: C Explanation: Stratified sampling accounts for varying geometries (e.g., girders, beams, joints) to ensure representative thickness data across the bridge.
Question 19. What is the primary environmental concern when removing lead‑based paint from a historic bridge? A. Generation of excessive dust that can affect nearby traffic B. Release of lead particles into the air and water requiring containment and disposal per hazardous waste regulations C. Increased corrosion rates on underlying steel D. Damage to concrete abutments Answer: B Explanation: Lead‑based paint removal must be controlled to prevent lead contamination of air and water, requiring specialized containment and disposal procedures. Question 20. Which hazardous condition is most likely to be encountered when inspecting a bridge over a waterway during summer? A. Low ambient temperature affecting cure rates B. High wind speeds causing overspray drift into the water C. Presence of lead‑based paint on steel members D. Ice formation on the deck Answer: B Explanation: Summer conditions often include higher wind speeds that can carry overspray into the waterway, necessitating robust containment measures.
Question 21. Which of the following is NOT a typical inspection point for coating integrity on a bridge pier? A. Joint between pier cap and column B. Reinforcement bars within the concrete C. Bottom of the pier where water may collect D. Surface of the pier above the waterline Answer: B Explanation: Reinforcement bars are embedded in concrete and not directly inspected for coating integrity; the other locations are exposed surfaces requiring coating inspection. Question 22. Which SSPC standard defines the acceptance criteria for soluble salt content on steel surfaces? A. SSPC‑SP 5 (Cleaning by hand) B. SSPC‑SP 13 (Surface cleaning by hand) C. SSPC‑SP 14 (Soluble salt test) D. SSPC‑PA 2 (Statistical quality control) Answer: C Explanation: SSPC‑SP 14 outlines the procedures and acceptance limits for soluble salt testing on steel substrates.
Question 25. In bridge coating specifications, the term “dry film thickness tolerance” most commonly refers to: A. The allowable variation in coating thickness from the minimum to maximum specified values B. The time allowed for the coating to dry before re‑coating C. The temperature range for application D. The permissible deviation in color shade Answer: A Explanation: Tolerance defines the acceptable range (e.g., ±10 %) around the specified minimum and maximum DFT values. Question 26. Which of the following is a primary advantage of using a two‑component epoxy mid‑coat on bridge steel? A. Rapid flash‑off time at low temperatures B. Excellent chemical resistance and high adhesion to zinc‑rich primers C. Low cost compared to single‑component systems D. Ability to be applied in thick layers without sag Answer: B Explanation: Two‑component epoxy offers superior adhesion to primers and excellent resistance to chemicals and moisture, making it ideal for bridge steel.
Question 27. Which inspection technique is most appropriate for verifying the integrity of a bridge expansion joint sealant? A. Magnetic particle testing B. Visual inspection for cracks and voids, followed by tactile probing C. Ultrasonic thickness measurement of the steel D. Infrared thermography Answer: B Explanation: Expansion joint sealants are inspected visually for cracks, gaps, and deterioration, often supplemented with tactile probing to assess adhesion. Question 28. Which of the following statements best describes a “negative pressure” containment system? A. It uses positive airflow to push contaminants out of the work area. B. It relies on natural wind to disperse overspray. C. It creates a vacuum that draws contaminated air into a filtration unit, preventing release. D. It is only used for paint stripping, not coating application. Answer: C Explanation: Negative‑pressure containment pulls air inward, filtering it before release, thereby containing dust and overspray.
Question 31. Which document would you reference to determine the required surface cleanliness level for a bridge steel member before applying an epoxy system? A. AASHTO Load Rating Manual B. SSPC‑SP 10 (Near‑white blast cleaning) C. ASTM C150 (Portland cement) D. OSHA 1910.120 (Hazardous waste) Answer: B Explanation: SSPC‑SP 10 defines the surface cleanliness (near‑white metal) required for epoxy coating adhesion on steel. Question 32. In the context of bridge coating inspection, what does the term “macro‑roughness” refer to? A. The overall texture of the concrete deck surface B. Large‑scale surface irregularities (e.g., weld beads, mill scale) that affect coating adhesion C. The color variation in the topcoat D. The thickness of the primer layer Answer: B Explanation: Macro‑roughness describes visible, large‑scale surface features that can impede coating adhesion if not removed or smoothed.
Question 33. Which of the following is the most appropriate corrective action when a non‑conformance report (NCR) identifies insufficient surface profile on a bridge girder? A. Apply an additional coat of topcoat to compensate B. Re‑blast the affected area to achieve the specified profile, then re‑coat C. Document the issue and proceed with the next step D. Increase the curing time of the existing coating Answer: B Explanation: The correct remedy is to re‑prepare the surface to meet the required profile before re‑application, ensuring coating performance. Question 34. Which of the following environmental monitoring devices is essential for verifying that wind speed remains within allowable limits during spray application on a bridge? A. Thermocouple B. Anemometer C. Hygrometer D. Barometer Answer: B
Explanation: Solvent‑based coatings use organic solvents to dissolve resin, enabling spray application and rapid drying. Question 37. Which of the following is NOT a typical hazard associated with bridge coating work at height? A. Fall from scaffolding B. Exposure to lead dust from old paint removal C. Electrical shock from overhead power lines D. Chemical burns from concrete curing Answer: D Explanation: While concrete curing can produce heat, it is not a primary hazard for coating work at height; falls, lead exposure, and electrical hazards are more common. Question 38. Which SSPC standard defines the procedure for “dry‑film thickness measurement using magnetic induction”? A. SSPC‑PA 2 B. SSPC‑TF 3 C. SSPC‑QW 1 D. SSPC‑FM 4 Answer: B
Explanation: SSPC‑TF 3 provides guidelines for magnetic induction DFT measurement, ensuring consistent and accurate results. Question 39. When performing a water‑jet cleaning operation on a bridge deck, which parameter is most critical to verify before commencing coating? A. Water temperature B. Jet pressure and flow rate to achieve the required surface cleanliness (e.g., SSPC‑SP 6) C. Color of the water D. Length of the hose Answer: B Explanation: Proper jet pressure and flow are essential to remove contaminants and achieve the surface cleanliness level required for coating adhesion. Question 40. Which of the following failure modes is most directly linked to the use of an incompatible primer‑topcoat system on a bridge? A. Rust creep B. Delamination at the primer‑topcoat interface C. UV chalking of the topcoat D. Cracking due to temperature fluctuations Answer: B
