Specialty Exam

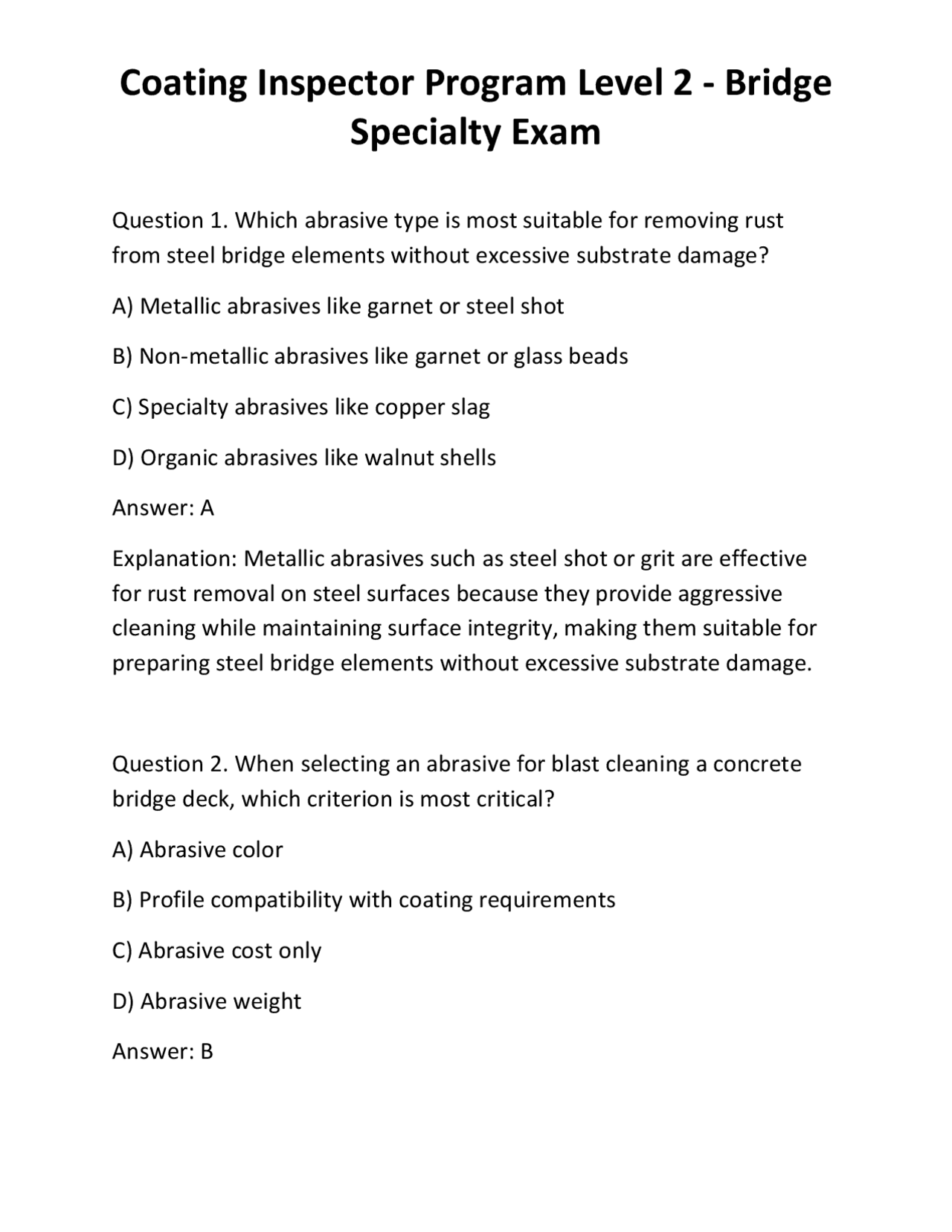

Question 1. Which abrasive type is most suitable for removing rust from steel bridge elements without excessive substrate damage? A) Metallic abrasives like garnet or steel shot B) Non-metallic abrasives like garnet or glass beads C) Specialty abrasives like copper slag D) Organic abrasives like walnut shells Answer: A Explanation: Metallic abrasives such as steel shot or grit are effective for rust removal on steel surfaces because they provide aggressive cleaning while maintaining surface integrity, making them suitable for preparing steel bridge elements without excessive substrate damage. Question 2. When selecting an abrasive for blast cleaning a concrete bridge deck, which criterion is most critical? A) Abrasive color B) Profile compatibility with coating requirements C) Abrasive cost only D) Abrasive weight Answer: B
Specialty Exam
Explanation: The key criterion is profile compatibility, as the abrasive must produce the desired surface profile (e.g., SSPC-SP 10/NACE No. 2) for optimal coating adhesion on concrete surfaces, ensuring long-term durability. Question 3. Which nozzle type is generally preferred for achieving a uniform profile on complex bridge geometries? A) Straight bore nozzle B) Wide-angle or multi-jet nozzle C) Flat jet nozzle D) Hollow cone nozzle Answer: B Explanation: Wide-angle or multi-jet nozzles provide more consistent coverage and help achieve uniform abrasive flow over complex geometries, which is essential for effective surface preparation on intricate bridge features. Question 4. What is a common troubleshooting step if streaking or shadowing occurs during abrasive blasting? A) Increase abrasive flow rate B) Adjust nozzle angle and distance
Specialty Exam
A) Vacuuming with HEPA filters B) Water washing C) Only blowing compressed air D) Chemical solvent wipe Answer: A Explanation: Vacuuming with HEPA filters effectively removes dust and fine abrasive particles from complex and delicate bridge components, ensuring a clean surface for coating. Question 7. SSPC-SP 11 is primarily used for which surface cleaning purpose on bridges? A) Light hand tool cleaning B) Power tool cleaning at SSPC-SP 3 level C) Power tool cleaning to near white metal (SSPC-SP 11) D) Waterjetting to SSPC-SP 12 level Answer: C Explanation: SSPC-SP 11 specifies power tool cleaning to near white metal, removing corrosion products and providing a clean, profile-ready surface suitable for coatings on bridges.
Specialty Exam
Question 8. For spot touch-ups on bridge coatings, which hand tool cleaning standard is most appropriate? A) SSPC-SP 2 (Hand Tool Cleaning) B) SSPC-SP 8 (Power Tool Cleaning) C) SSPC-SP 15 (Industrial Blast Cleaning) D) SSPC-SP 5 (White Metal Blast Cleaning) Answer: A Explanation: SSPC-SP 2 indicates hand tool cleaning, suitable for minor touch-ups or spot cleaning in sensitive or difficult-to-access bridge areas. Question 9. Waterjetting at ultra-high pressure (UHP) is typically used for what purpose on bridges? A) Removing thick coatings and rust without damaging underlying substrate B) Applying protective coatings C) Painting bridge surfaces D) Applying chemical cleaning agents Answer: A
Specialty Exam
D) The chemical’s smell Answer: B Explanation: Proper handling and disposal according to SDS (Safety Data Sheet) guidelines are critical to ensure safety for personnel and environmental protection during chemical cleaning. Question 12. SSPC-SP 1 is primarily used for which cleaning purpose? A) Heavy blast cleaning B) Initial solvent cleaning or degreasing of surfaces C) Power tool cleaning D) Waterjetting to near white metal Answer: B Explanation: SSPC-SP 1 specifies solvent cleaning to remove oil, grease, and other soluble contaminants, serving as a pre-cleaning step before abrasive blast cleaning. Question 13. Which instrument is most suitable for measuring the surface profile on a bridge’s steel element? A) Digital thermometer B) Replica tape or stylus profilometer
Specialty Exam
C) pH meter D) Moisture meter Answer: B Explanation: Replica tape or stylus profilometers accurately measure surface roughness and profile, which are critical for ensuring proper coating adhesion on steel bridge components. Question 14. Why is it important to accurately interpret surface profile readings on bridge substrates? A) To determine the color of the coating B) To ensure proper coating adhesion and performance C) To calculate the total weight of the structure D) To decide the type of paint thinner to use Answer: B Explanation: Correct interpretation of surface profile readings ensures that the prepared surface meets specifications for coating adhesion, durability, and long-term performance.
Specialty Exam
Explanation: Full enclosure with negative pressure ventilation effectively contains overspray, reduces environmental impact, and complies with regulations in sensitive urban environments. Question 17. Which coating system is best suited for high-traffic bridge decks exposed to chemical spills and abrasion? A) Organic zinc primer followed by urethane topcoat B) Inorganic zinc primer with epoxy intermediate and urethane topcoat C) Single coat latex paint D) Water-based primer with latex topcoat Answer: B Explanation: A multi-layer system like inorganic zinc primer, epoxy intermediate, and urethane topcoat provides excellent corrosion resistance, abrasion, and chemical spill protection suitable for high- traffic bridge decks. Question 18. Which property is most desirable in an inorganic zinc primer used on bridge steel surfaces? A) Fast recoat time and high galvanic protection B) Flexibility and low adhesion
Specialty Exam
C) High VOC content D) Transparency and glossiness Answer: A Explanation: Inorganic zinc primers offer galvanic corrosion protection and fast recoat times, making them ideal for structural steel in bridge applications. Question 19. When applying a multi-coat coating system on a bridge, why is it critical to observe the re-coat window? A) To prevent color mismatch B) To ensure proper intercoat adhesion and avoid coating failure C) To reduce total drying time unnecessarily D) To increase the number of coats applied Answer: B Explanation: The re-coat window ensures that subsequent coats bond properly; exceeding it can cause poor adhesion, delamination, or coating failure. Question 20. Which spray application method is most suitable for applying thick coating layers on large bridge surfaces?
Specialty Exam
Question 22. Why is calibration of DFT gauges important before use on bridge coatings? A) To match the coating color B) To ensure measurement accuracy and compliance with specifications C) To adjust for temperature variations only D) To calibrate the coating’s adhesion Answer: B Explanation: Proper calibration guarantees that measurements are accurate, ensuring the coating thickness meets project specifications and performance requirements. Question 23. During quality control, what indicates a coating defect such as holiday or holiday hole? A) Uniform surface appearance B) Localized discontinuity detectable by holiday detection methods C) Perfect adhesion test results D) Smooth surface finish Answer: B
Specialty Exam
Explanation: Holiday detection methods reveal discontinuities like holiday holes, which are areas where coatings are absent or compromised, risking corrosion. Question 24. Which adhesion testing method is most suitable for assessing the bond strength of coatings on bridge steel? A) Pull-off adhesion test B) Holiday detection C) Visual inspection only D) Moisture analysis Answer: A Explanation: The pull-off adhesion test quantitatively measures the bond strength of the coating to the substrate, providing critical data for assessing coating integrity. Question 25. In holiday detection, what setting is typically used for high-voltage spark testing? A) 1-5 volts B) 100-200 volts C) 10,000-15,000 volts
Specialty Exam
A) The color of the coating B) The substrate material and coating type C) The ambient temperature only D) The type of personal protective equipment used Answer: B Explanation: Adhesion results depend on substrate and coating compatibility; understanding these factors helps assess coating performance accurately. Question 28. What is a common cause of coating failure on bridges related to environmental exposure? A) Proper surface preparation B) Excessive surface profile C) Salt exposure leading to corrosion under insulation D) Correct coating thickness Answer: C Explanation: Salt exposure can cause corrosion under insulation or within coatings, leading to delamination and coating failure if not properly protected.
Specialty Exam
Question 29. Which NDT method is advanced for detecting subsurface delamination in bridge coatings? A) Visual inspection B) Ultrasonic testing C) Holiday detection D) pH testing Answer: B Explanation: Ultrasonic testing can detect subsurface delamination or flaws within coatings, providing valuable information beyond surface inspections. Question 30. Which corrosion type is characterized by localized pitting and primarily affects steel bridge components? A) Uniform corrosion B) Pitting corrosion C) Crevice corrosion D) Galvanic corrosion Answer: B Explanation: Pitting corrosion causes localized, deep pits in steel, which can compromise structural integrity if not detected and mitigated.
Specialty Exam
Explanation: Expansion joints and similar components often have complex geometries and limited access, requiring specialized inspection and preparation methods. Question 33. Which nondestructive testing method is most useful for assessing moisture intrusion behind coatings on bridge steel? A) Visual inspection only B) Infrared thermal imaging C) Holiday detection at low voltage D) Mechanical pull-off test Answer: B Explanation: Infrared thermal imaging detects temperature variations caused by moisture behind coatings, aiding in identifying areas of moisture ingress. Question 34. Which is a primary consideration when inspecting underwater bridge elements? A) Color matching of coatings B) Corrosion protection and coating adhesion in submerged environments
Specialty Exam
C) Coating gloss level D) Visual inspection from the water surface only Answer: B Explanation: Underwater elements require specialized coatings and inspection techniques to ensure corrosion protection and adhesion in submerged conditions. Question 35. Which advanced NDT method involves the use of thermal imaging to detect moisture or delamination? A) Magnetic particle testing B) Ultrasonic testing C) Infrared thermography D) Radiography Answer: C Explanation: Infrared thermography detects temperature differences caused by moisture or delamination within coatings, providing a non- invasive inspection method. Question 36. What is the primary goal of corrosion protection strategies such as using inorganic zinc primers on bridge steel?
