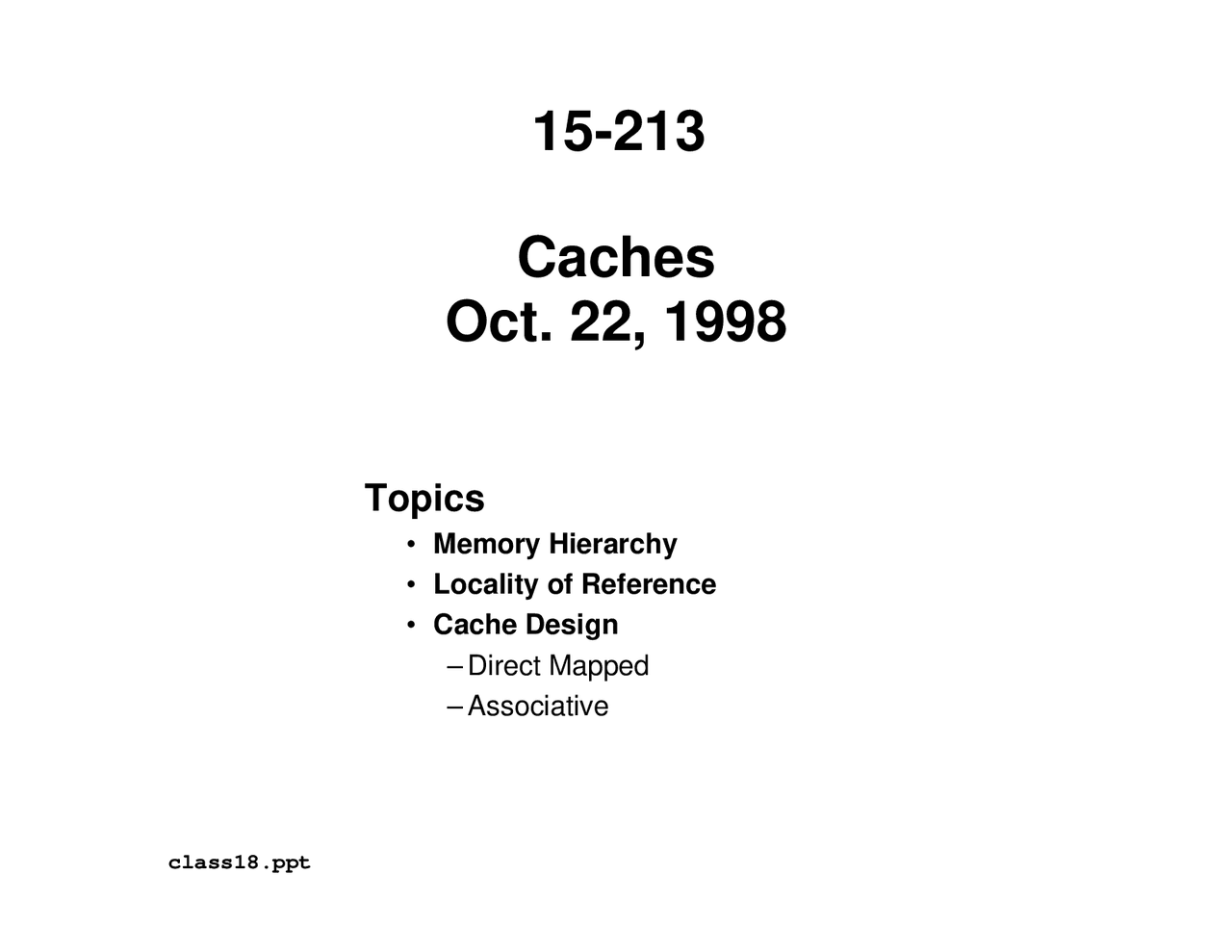

Topics

• Memory Hierarchy
• Locality of Reference
• Cache Design
  • Direct Mapped
  • Associative

Caches

Oct. 22, 1998

class18.ppt

Computer System

diskDisk diskDisk

Memory-I/O bus

Processor

Cache

Memory

I/O

controller

I/O

controller

I/O

controller

Display Network

interrupt

Alpha 21164 Chip Photo

Microprocessor Report 9/12/

Caches:

L1 data L1 instruction L2 unified TLB Branch history

Alpha 21164 Chip Caches

Caches:

L1 data L1 instruction L2 unified TLB Branch history

Right Half L

Right Half L

L I n s t r.

L Data

L Tags

L3 Control

Caching: The Basic Idea

Main Memory

• Stores words A–Z in example

Cache

• Stores subset of the words 4 in example
• Organized in blocks
  • Multiple words
  • To exploit spatial locality

Access

• Word must be in cache for processor to access

Big, Slow Memory

A B C • • • Y Z

Small, Fast Cache A B G H

Processor

Basic Idea (Cont.)

Maintaining Cache

• Every time processor performs load or store, bring block containing word into cache - May need to evict existing block
• Subsequent loads or stores to any word in block performed within cache

A

B

G

H

Initial A B C D

Read C A B C D

Y

Z

G

H

Read D Read Z

Cache holds 2 blocks Each with 2 words

Load block C+D into cache “Cache miss”

Word already in cache “Cache hit”

Load block Y+Z into cache Evict oldest entry

Design Issues for Caches

Key Questions

• Where should a block be placed in the cache? (block placement)
• How is a block found in the cache? (block identification)
• Which block should be replaced on a miss? (block replacement)
• What happens on a write? (write strategy)

Constraints

• Design must be very simple
  • Hardware realization
  • All decision making within nanosecond time scale
• Want to optimize performance for “typical” programs
  • Do extensive benchmarking and simulations
  • Many subtle engineering trade-offs

Direct-Mapped Caches

Simplest Design

• Given memory block has unique cache location

Parameters

• Block size B = 2b
  • Number of bytes in each block
  • Typically 2X–8X word size
• Number of Sets S = 2s
  • Number of blocks cache can hold
• Total Cache Size = BS = 2b+s*

Physical Address

• Address used to reference main memory
• n bits to reference N = 2n^ total bytes
• Partition into fields
  • Offset: Lower b bits indicate which byte within block
  • Set: Next s bits indicate how to locate block within cache
  • Tag: Identifies this block when in cache

n-bit Physical Address t s b

tag set index offset

Direct-Mapped Cache Tag Matching

Identifying Block

• Must have tag match high order bits of address
• Must have Valid = 1 Tag Valid^0 1 • • •^ B–

Selected Set:

t s b

tag set index offset Physical Address

• Lower bits of address select byte or word within cache block

Direct Mapped Cache Simulation

N=16 byte addresses B=2 bytes/block S=4 sets E= entry/set Address trace (reads): 0 [0000] 1 [0001] 13 [1101] 8 [1000] 0 [0000] 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111

x

t=1 s=2 b= xx x

1 0 m[1] m[0]

v tag data

0 [0000] (miss)

1 0 m[1] m[0]

v tag data

1 1 m[13] m[12]

13 [1101] (miss)

1 1 m[9] m[8]

v tag data

8 [1000] (miss)

1 0 m[1] m[0]

v tag data

1 1 m[13] m[12]

0 [0000] (miss)

Direct Mapped Cache Implementation

(DECStation 3100)

tag

31 30 29 .................. 19 18 17 16 15 14 13 .................. 5 4 3 2 1 0 set (^) offsetbyte

valid tag (16 bits) data (32 bits)

data

hit

16,384 sets

Properties of Direct Mapped Caches

Strength

• Minimal control hardware overhead
• Simple design
• (Relatively) easy to make fast

Weakness

• Vulnerable to thrashing
• Two heavily used blocks have same cache index
• Repeatedly evict one to make room for other

Cache Block

Thrashing Example

• Access one element from each array per iteration

x[1]

x[0]

x[1020]

x[3]

x[2]

x[1021] x[1022] x[1023]

y[1]

y[0]

y[1020]

y[3]

y[2]

y[1021] y[1022] y[1023]

Cache Block

Cache Block

Cache Block

Cache Block

Cache Block

Cache Block

x[1]

x[0]

x[3]

x[2]

y[1]

y[0]

y[3]

y[2]

Cache Block

Thrashing Example: Good Case

Access Sequence

• Read x[0]
  • x[0], x[1], x[2], x[3] loaded
• Read y[0]
  • y[0], y[1], y[2], y[3] loaded
• Read x[1]
  • Hit
• Read y[1]
  • Hit
• • • •
• 2 misses / 8 reads

Analysis

• x[i] and y[i] map to different cache blocks
• Miss rate = 25%
  • Two memory accesses / iteration
  • On every 4th iteration have two misses

Timing

• 10 cycle loop time
• 28 cycles / cache miss
• Average time / iteration = 10 + 0.25 * 2 * 28
