Catenary Length

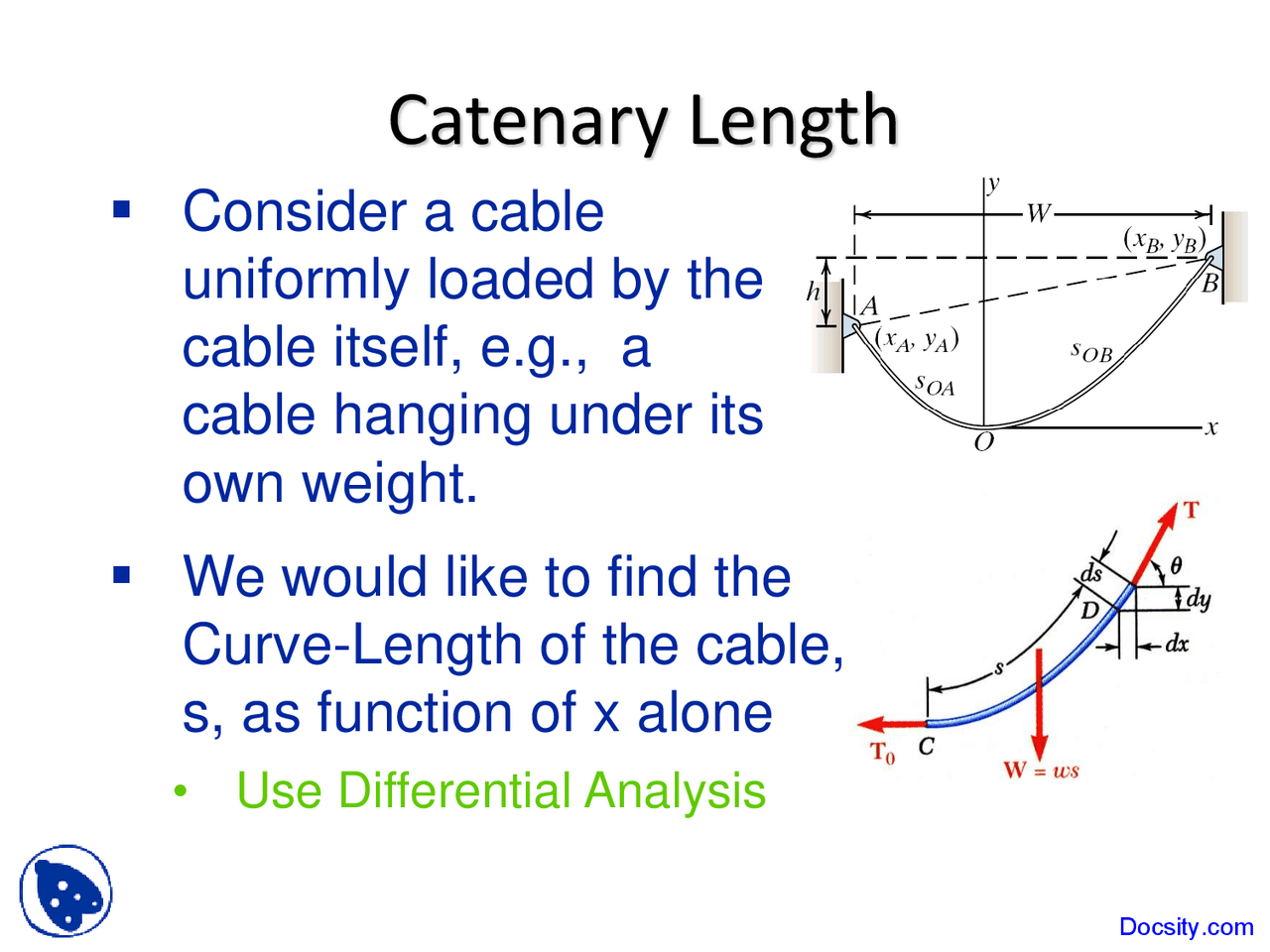

Consider a cable
uniformly loaded by the
cable itself, e.g., a
cable hanging under its
own weight.
We would like to find the
Curve-Length of the cable,
s, as function of x alone
- Use Differential Analysis
Next, relate
horizontal distance,
x, to cable-length s
dx ds cos
Then
Recall Trig ID:
ds dx dx
sec
cos
1
sec 1 tan
• Now Eliminate θ
From Differential
Diagram note:
dx
dy
tan
Sub Out tan θ in the definite Integral for L :
dx
dx
dy
L dx
x b
x a
x b
x a
1 tan 1
• Finally
yO
Now in the Case of
Prob10-
for 0 50
x
x
y cosh
dx
dx
dy
L
x b
x a
z z
dz
d
cosh sinh
An Analytical Soln
for L is possible as
But it’s a bit Tedious
so Let’s have
MATLAB do it
MATLAB Code
% Bruce Mayer, PE % ENGR25 * 03Jan % file = Prob10_25_Symbolic_Soln_0801.m % % Solve P10. % % Declare x, a, b as symbolic syms x a b % % Define Catenary y(x) y = 10*cosh((x-20)/10) % % Take dy/dx symbolically dydx = diff(y) % % Find L Symbolically L = int(sqrt(1+dydx^2),a,b) pretty(L) % % display L disp(' ') disp('DISPLAYING L(a,b) - HIT ANY KEY TO CONTINUE') disp(' ') pause % % calc L(0,50) anum = 0; bnum = 50; Lnum = double(int(sqrt(1+dydx^2),anum,bnum)); disp('L from 0 to 50 = ') disp(Lnum)
