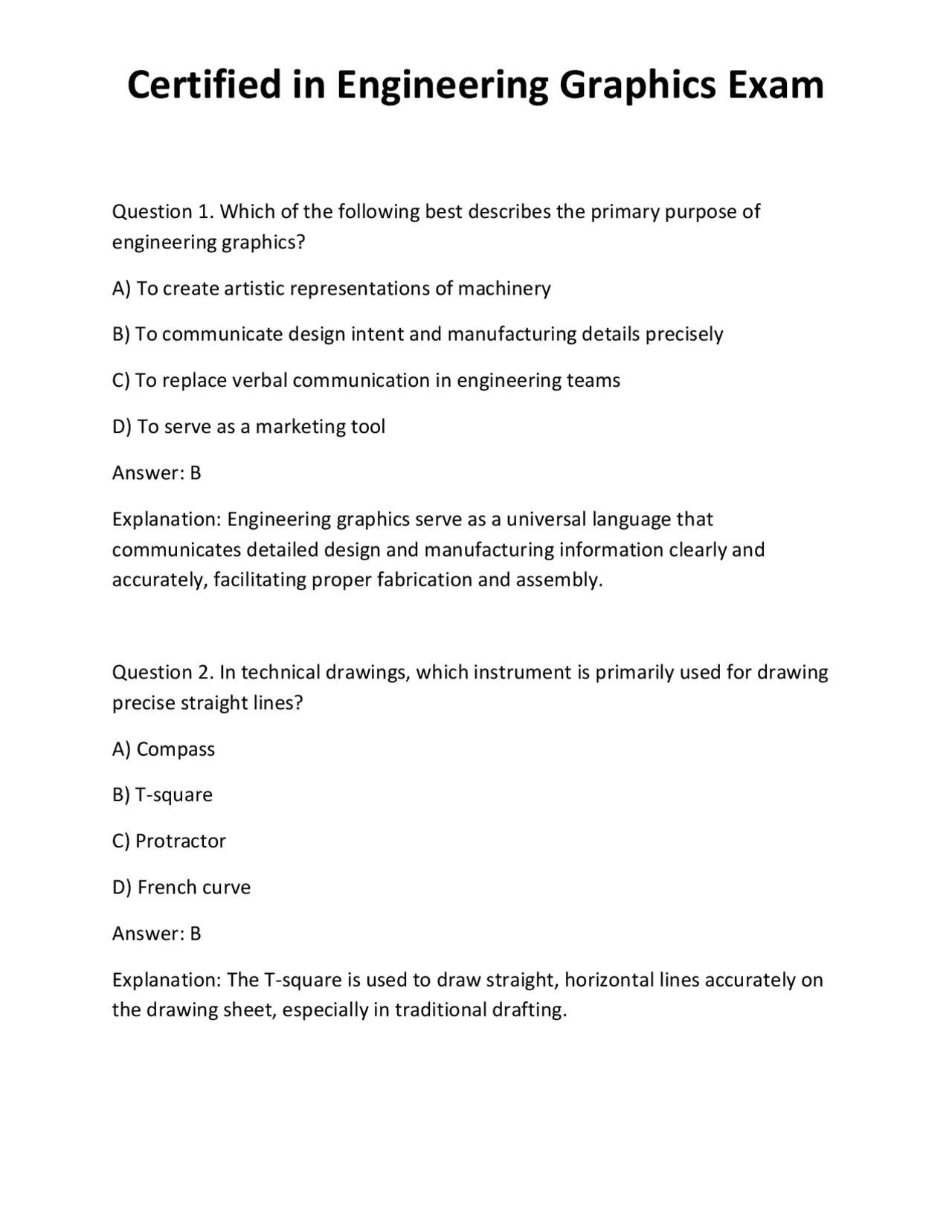

Certified in Engineering Graphics Exam
Question 1. Which of the following best describes the primary purpose of
engineering graphics?
A) To create artistic representations of machinery
B) To communicate design intent and manufacturing details precisely
C) To replace verbal communication in engineering teams
D) To serve as a marketing tool
Answer: B
Explanation: Engineering graphics serve as a universal language that
communicates detailed design and manufacturing information clearly and
accurately, facilitating proper fabrication and assembly.
Question 2. In technical drawings, which instrument is primarily used for drawing
precise straight lines?
A) Compass
B) T-square
C) Protractor
D) French curve
Answer: B
Explanation: The T-square is used to draw straight, horizontal lines accurately on
the drawing sheet, especially in traditional drafting.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34
pf35
pf36
pf37
pf38
pf39
pf3a
pf3b
pf3c
pf3d
pf3e
pf3f
pf40
pf41
pf42
pf43
pf44
pf45
pf46
pf47
pf48
pf49
pf4a
pf4b
pf4c
pf4d
pf4e
pf4f
pf50
pf51
pf52
pf53
pf54
pf55
pf56
pf57
pf58
pf59
pf5a
pf5b
pf5c
pf5d
pf5e
pf5f
pf60
pf61
pf62
pf63
pf64

Partial preview of the text

Download Certified in Engineering Graphics Exam and more Exams Technology in PDF only on Docsity!

Question 1. Which of the following best describes the primary purpose of engineering graphics? A) To create artistic representations of machinery B) To communicate design intent and manufacturing details precisely C) To replace verbal communication in engineering teams D) To serve as a marketing tool Answer: B Explanation: Engineering graphics serve as a universal language that communicates detailed design and manufacturing information clearly and accurately, facilitating proper fabrication and assembly. Question 2. In technical drawings, which instrument is primarily used for drawing precise straight lines? A) Compass B) T-square C) Protractor D) French curve Answer: B Explanation: The T-square is used to draw straight, horizontal lines accurately on the drawing sheet, especially in traditional drafting.

Question 3. Which of the following is a standard sheet size according to ISO A series? A) A B) B C) C D) D Answer: A Explanation: A0 is the largest sheet size in the ISO A series, commonly used for technical drawings requiring large formats. Question 4. What is the primary content of a title block in a technical drawing? A) The drawing scale only B) The detailed internal features of the object C) Identification details such as project name, drawing number, date, and author D) Material specifications only Answer: C Explanation: The title block contains essential identification information including project name, drawing number, date, scale, and the drafter's details, ensuring proper document control. Question 5. Which scale is used when an object is drawn at a reduced size to fit on a drawing sheet? A) Full scale

Answer: B Explanation: The front view is chosen as the most representative and informative view of the object, serving as the basis for projecting other views. Question 8. What is the main difference between first-angle and third-angle projection? A) The projection planes are swapped in the two systems B) First-angle is used only for electrical drawings C) Third-angle is an obsolete system D) They are identical in principle Answer: A Explanation: In first-angle projection, the object is projected onto the planes from the front, whereas in third-angle projection, the object is projected onto the planes from behind, effectively swapping the positions of views. Question 9. Which view is typically placed directly above the front view in a standard orthographic drawing? A) Side view B) Isometric view C) Top view D) Sectional view Answer: C

Explanation: The top view is conventionally placed directly above the front view to maintain proper alignment and easy interpretation. Question 10. When creating a multi-view drawing, which of the following is essential for accurate projection? A) Using different scales for each view B) Maintaining proper alignment and projection lines C) Omitting hidden lines for clarity D) Drawing views randomly Answer: B Explanation: Proper alignment and projection lines ensure that corresponding features are correctly related across views, facilitating accurate interpretation. Question 11. Which of the following surfaces often requires an auxiliary view to display its true shape? A) Vertical flat surface B) Inclined or oblique surface C) Hidden internal surface D) External cylindrical surface Answer: B Explanation: Inclined or oblique surfaces are not shown in true shape in standard views and require auxiliary views for accurate representation.

B) Thick alternating line C) Chain line D) Continuous thick line Answer: D Explanation: A continuous thick line (often with arrows) is used to represent the cutting plane, clearly indicating where the object is sliced. Question 15. Which of the following best describes a revolved section? A) A cut view showing a component rotated 90 degrees B) A section where a part is rotated about an axis to show internal features C) A half cut of the object D) An external view of the object Answer: B Explanation: A revolved section shows a cut feature, such as a hole or slot, rotated about an axis to display its true shape in the sectional view. Question 16. What is the main purpose of an auxiliary view? A) To show the internal features of a complex assembly B) To display the true shape and size of inclined or oblique surfaces C) To highlight hidden features D) To provide a 3D perspective Answer: B

Explanation: Auxiliary views are projected from existing views to accurately depict the true shape and size of inclined or oblique surfaces. Question 17. Which of the following is NOT a typical type of auxiliary view? A) Primary auxiliary view B) Secondary auxiliary view C) Tertiary auxiliary view D) Isometric auxiliary view Answer: D Explanation: Isometric views are a different type of pictorial view, not classified as auxiliary views, which are projections to show true size and shape. Question 18. When creating an auxiliary view, which projection method is commonly used? A) Orthographic projection from the existing view B) Perspective projection C) Isometric projection D) Axonometric projection Answer: A Explanation: Auxiliary views are generated through orthographic projection from existing views, maintaining accurate geometric relationships.

B) Clear, unambiguous, and non-redundant information C) Using as many dimensions as possible D) Overlapping dimension lines for clarity Answer: B Explanation: Effective dimensioning follows principles of clarity, proper placement, and avoiding redundancy to ensure accurate interpretation. Question 22. When dimensioning a hole's size, which of the following is most appropriate? A) Diameter symbol followed by the size (e.g., ⌀20) B) Radial dimension only C) Length of the hole D) The distance from the edge Answer: A Explanation: The diameter symbol (⌀) along with the size specifies the exact size of the hole, which is critical for manufacturing. Question 23. What is the primary purpose of tolerance in engineering drawings? A) To account for manufacturing variations B) To specify exact measurements C) To add decorative features D) To indicate material types

Answer: A Explanation: Tolerances specify acceptable limits of variation in dimensions, ensuring proper fit and function despite manufacturing imperfections. Question 24. Which type of fit allows for easy assembly and disassembly of parts? A) Clearance fit B) Interference fit C) Transition fit D) Tight fit Answer: A Explanation: Clearance fits provide space between parts, facilitating easy assembly and disassembly. Question 25. In tolerancing, what does the term "bilateral tolerance" imply? A) Tolerance applies only on one side of the nominal dimension B) Tolerance applies equally on both sides of the nominal dimension C) Tolerance is asymmetric D) Tolerance is not specified Answer: B Explanation: Bilateral tolerances allow variation in both directions—above and below the nominal size—ensuring flexibility in manufacturing.

B) The maximum size only C) The tolerances D) The maximum load capacity Answer: A Explanation: Limits specify the acceptable range of dimension variations, defining the maximum and minimum sizes a feature can have. Question 29. Which of the following is an example of a transition fit? A) A fit that allows some interference but can still be assembled with force B) A loose fit allowing easy movement C) An interference fit requiring force or heat to assemble D) A fit with no clearance or interference Answer: A Explanation: Transition fits are between clearance and interference fits, allowing for a slight interference or clearance depending on the specific tolerances. Question 30. When dimensioning a radius in a technical drawing, which symbol is used? A) R B) ⌀ C) Ø D) d

Answer: A Explanation: The letter R denotes the radius of a rounded edge or arc in a drawing. Question 31. Which line type is used to indicate the center of a circle or an arc? A) Hidden line B) Chain line C) Center line D) Cutting plane line Answer: C Explanation: Center lines are long and short dashed lines used to indicate the axes or centers of circles and arcs. Question 32. Which of the following best describes a broken-out section? A) Part of an object is "broken out" to reveal internal features without full sectioning B) A full cross-sectional view C) A view showing the object in exploded form D) A partial view of the exterior only Answer: A Explanation: Broken-out sections remove a small portion of the object to show internal details while keeping the rest of the object intact.

A) To cross over the object outlines B) To be outside the object boundaries and parallel to the extension lines C) To be placed randomly D) To overlay internal features Answer: B Explanation: Dimension lines are placed outside the object boundary, parallel to extension lines, to keep the drawing clear and readable. Question 36. Which of the following is NOT an acceptable practice in dimensioning? A) Avoiding overlapping dimensions B) Using chain dimensioning without proper control C) Placing dimensions for critical features near the feature D) Using consistent units throughout Answer: B Explanation: Chain dimensioning can lead to accumulated errors; it is better to control dimensions and avoid unnecessary chaining to maintain accuracy. Question 37. How should a diameter dimension be represented in a drawing? A) With a "D" symbol B) With a "⌀" symbol before the size C) With an "R" symbol

D) Without any special symbol Answer: B Explanation: The diameter symbol (⌀) precedes the size to clearly indicate that the dimension refers to a diameter. Question 38. What is the function of a datum feature in dimensioning? A) To serve as a reference point or line for measurements B) To specify the material of a part C) To indicate the finish of a surface D) To mark the location of holes Answer: A Explanation: Datum features provide a reference from which measurements are made, ensuring consistency in manufacturing and inspection. Question 39. Which of the following is true about unilateral tolerances? A) Tolerance applies equally in both directions from the nominal size B) Tolerance applies only in one direction, either above or below the nominal size C) Tolerance is not specified D) It is used only for angular dimensions Answer: B Explanation: Unilateral tolerances allow variation in only one direction, either positive or negative, from the nominal dimension.

A) Thin continuous line B) Thick line with arrows C) Dashed line D) Chain line Answer: B Explanation: A thick line with arrows indicates the cutting plane in sectional views, showing where the object is sliced. Question 43. Which of the following best describes a "removed section"? A) A sectional view taken from an auxiliary view B) A section that is "cut out" and shown separately to display internal features C) A partial external view D) An isometric view of the object Answer: B Explanation: Removed sections are separated from the main drawing to clearly show internal features that are difficult to interpret in standard views. Question 44. Which line type is used to represent center lines in technical drawings? A) Long dash, short dash B) Short dash, long dash, short dash C) Continuous thick line

D) Chain line Answer: B Explanation: Center lines are composed of alternating long and short dashes, indicating the center of circles, arcs, and symmetrical features. Question 45. When drawing an auxiliary view, what is the key step to ensure it shows the true shape of an inclined surface? A) Project the view directly from the main view B) Use a projection plane parallel to the inclined surface C) Draw the view from an isometric perspective D) Use a hidden line to represent the surface Answer: B Explanation: The auxiliary view is projected onto a plane parallel to the inclined surface, allowing it to be depicted in true shape and size. Question 46. In dimensioning, what is the significance of placing dimension lines outside the object outline? A) To avoid clutter and improve clarity B) To make the drawing look more complex C) To obscure the details D) To reduce the size of the drawing Answer: A
