Developer CLED Practice Exam

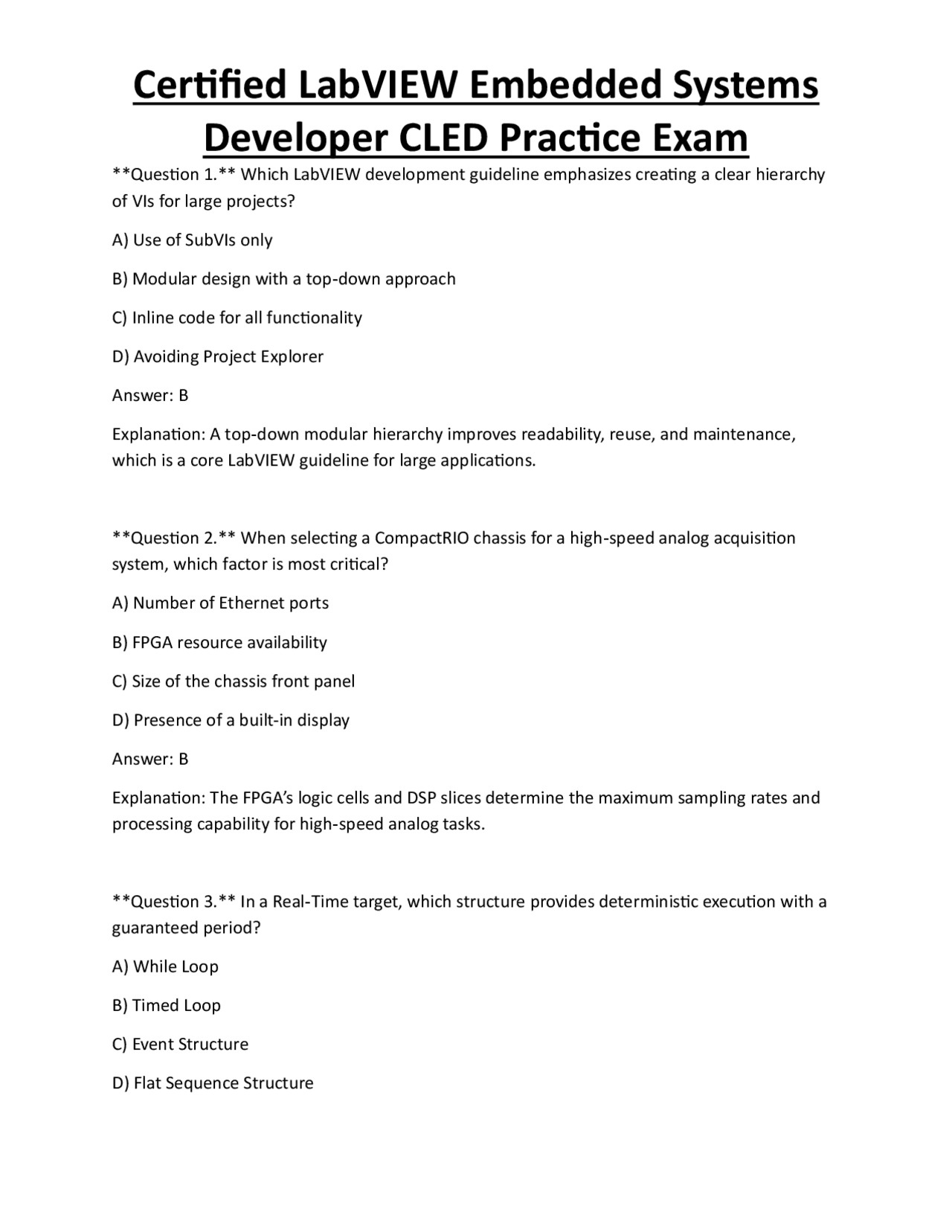

Question 1. Which LabVIEW development guideline emphasizes creating a clear hierarchy of VIs for large projects? A) Use of SubVIs only B) Modular design with a top‑down approach C) Inline code for all functionality D) Avoiding Project Explorer Answer: B Explanation: A top‑down modular hierarchy improves readability, reuse, and maintenance, which is a core LabVIEW guideline for large applications. Question 2. When selecting a CompactRIO chassis for a high‑speed analog acquisition system, which factor is most critical? A) Number of Ethernet ports B) FPGA resource availability C) Size of the chassis front panel D) Presence of a built-in display Answer: B Explanation: The FPGA’s logic cells and DSP slices determine the maximum sampling rates and processing capability for high‑speed analog tasks. Question 3. In a Real‑Time target, which structure provides deterministic execution with a guaranteed period? A) While Loop B) Timed Loop C) Event Structure D) Flat Sequence Structure
Developer CLED Practice Exam
Answer: B Explanation: Timed Loops are designed for deterministic timing, ensuring each iteration runs at the specified period. Question 4. Which communication mechanism on a Real‑Time target guarantees FIFO ordering and thread‑safe access without data loss? A) Notifier B) Queue C) Semaphore D) Rendezvous Answer: B Explanation: Queues preserve the order of posted elements and are thread‑safe, making them ideal for ordered data transfer. Question 5. What is the primary advantage of using the Queued Message Handler (QMH) design pattern in a LabVIEW embedded application? A) Reduces memory usage by eliminating queues B) Centralizes error handling and message routing C) Allows VIs to run without any synchronization D) Enables direct hardware access from the Host PC Answer: B Explanation: QMH provides a single place to receive, route, and handle messages, simplifying error handling and improving scalability. Question 6. Which of the following best describes the difference between a General‑Purpose OS and a Real‑Time OS?
Developer CLED Practice Exam
Explanation: An SCTL forces all loop operations to complete within one FPGA clock cycle, enabling maximum throughput. Question 9. In FPGA development, which resource is most likely to become a bottleneck when implementing many parallel DSP filters? A) FPGA SRAM blocks B) Logic cells (ALMs) C) User‑defined data types D) Front panel controls Answer: B Explanation: Each DSP filter consumes logic cells; extensive parallelism can exhaust ALMs before using other resources. Question 10. Which method is preferred for moving large blocks of data from the RT target to the FPGA with minimal CPU overhead? A) Shared Variable B) Network Stream C) DMA FIFO D) TCP/IP socket Answer: C Explanation: DMA FIFOs transfer data directly between memory spaces without CPU intervention, reducing overhead. Question 11. When using Network Streams between a Host PC and an RT target, what must be matched on both ends for successful communication? A) IP address only
Developer CLED Practice Exam
B) Stream name, element type, and element count C) Only the stream name D) Hostname and port number Answer: B Explanation: The stream name, data type, and element count must be identical on both sides to establish a compatible connection. Question 12. Which LabVIEW feature allows you to version control VIs and FPGA bitfiles directly from the Project Explorer? A) LabVIEW Git Integration B) Source Code Control (SCC) Provider C) VI Package Manager D) NI Package Manager Answer: B Explanation: The SCC Provider integrates with tools like Git, Subversion, or Perforce to manage versioning of all project files. Question 13. In a multi‑target system, which synchronization technique provides sub‑microsecond alignment of clocks across targets? A) NTP (Network Time Protocol) B) PTP/IEEE 1588 C) Simple UDP broadcast D) Manual time setting Answer: B Explanation: Precision Time Protocol (PTP) can synchronize clocks with sub‑microsecond accuracy, suitable for deterministic systems.
Developer CLED Practice Exam
Answer: B Explanation: Merging error clusters combines errors from parallel paths while preserving the first error, enabling proper propagation. Question 17. When deploying an FPGA bitfile to a target, which step must be performed before the bitfile can be used by the RT application? A) Copy the bitfile to the Host PC desktop B) Load the bitfile onto the FPGA using the “FPGA Load” VI C) Convert the bitfile to a DLL D) Rename the bitfile to *.vi Answer: B Explanation: The FPGA Load VI programs the FPGA with the compiled bitfile, making its resources available to the RT application. Question 18. Which LabVIEW data type is most efficient for transferring a stream of sensor samples from the RT target to the Host via Network Streams? A) Array of Clusters B. 2‑D String Array C) 1‑D Double Array D) Variant Answer: C Explanation: A simple 1‑D array of numeric data (e.g., doubles) minimizes overhead and matches the element type requirement of Network Streams. Question 19. In a Real‑Time application, which mechanism provides the lowest latency for a single‑bit flag shared between two VIs?
Developer CLED Practice Exam
A) Queue B) Notifier C) Shared Variable (Network‑published) D) Semaphore Answer: B Explanation: Notifiers are designed for low‑latency, one‑way signaling of small data like flags. Question 20. Which FPGA I/O node is used to directly interface with a C Series digital output module? A) Digital Output Node B) C Series I/O Node C) FPGA Register Node D) DMA FIFO Node Answer: B Explanation: The C Series I/O Node provides direct access to the configuration and data registers of C Series modules. Question 21. What is the effect of setting the “Pre‑allocate Memory” option on a DMA FIFO? A) Increases FIFO depth at runtime B) Allocates the FIFO buffer at compile time, reducing runtime allocation overhead C) Disables the FIFO’s ability to transfer data D) Forces the FIFO to use host memory only Answer: B Explanation: Pre‑allocating memory reserves the FIFO buffer during compilation, leading to deterministic performance.
Developer CLED Practice Exam
Answer: B Explanation: Critical sections use synchronization primitives like semaphores to ensure exclusive access to shared resources. Question 25. In the Actor Framework, what is the primary role of an “Actor”? A) To provide a graphical user interface B) To encapsulate state and behavior, communicating via messages C) To execute all VIs in parallel without coordination D) To manage hardware drivers only Answer: B Explanation: Actors encapsulate data and functionality, interacting with other actors through message passing, which promotes modularity. Question 26. Which tool can be used to profile CPU usage of a Real‑Time application on the target? A) LabVIEW Profiler (Real‑Time) B) FPGA Timing Analyzer C) NI System Configuration Utility D) LabVIEW Web Services Monitor Answer: A Explanation: The Real‑Time Profiler collects timing and CPU usage data from VIs executing on the RT target. Question 27. When designing a high‑speed closed‑loop controller on the FPGA, which loop architecture yields the shortest possible latency? A) Timed Loop on the RT target
Developer CLED Practice Exam
B) Single Cycle Timed Loop (SCTL) on the FPGA C) While Loop with a 1 ms delay on the RT target D) Event Structure on the Host PC Answer: B Explanation: An SCTL executes all operations in one clock cycle on the FPGA, minimizing loop latency. Question 28. Which of the following is a recommended practice for handling file corruption on a Real‑Time target? A) Write directly to the root directory without checksums B) Use a circular buffer with periodic file roll‑over and verify CRC on each write C) Disable file system caching D) Store all data in RAM only Answer: B Explanation: A circular buffer with CRC validation detects and mitigates corruption, ensuring data integrity. Question 29. What is the purpose of the “RT Target Configuration” utility? A) To compile FPGA bitfiles B) To set network settings, startup VIs, and system parameters on the RT target C) To design the front panel of the Host VI D) To create shared variables Answer: B Explanation: The RT Target Configuration tool allows configuration of network, startup applications, and other system settings.
Developer CLED Practice Exam
Answer: B Explanation: I/O timing constraints define setup and hold requirements for external signals relative to the FPGA clock. Question 33. Which LabVIEW feature enables you to embed existing C/C++ code into an FPGA design? A) Call Library Function Node B) IP Integration Node C) MathScript Node D) Inline Node Answer: B Explanation: IP Integration Nodes allow inclusion of pre‑compiled VHDL/Verilog or C/C++ IP blocks into the FPGA design. Question 34. When using a DMA FIFO to transfer data from the FPGA to the RT target, what must be done to avoid FIFO overflow? A) Increase the FIFO depth indefinitely B) Implement back‑pressure signaling from the RT consumer to the FPGA producer C) Disable DMA and use a Queue instead D) Write data at a slower rate than the FPGA generates it without any coordination Answer: B Explanation: Back‑pressure (e.g., a status flag) informs the FPGA when the RT side is ready, preventing overflow. Question 35. Which Real‑Time system service monitors the health of the target and can automatically restart a VI if it crashes?
Developer CLED Practice Exam
A) Watchdog Timer Service B) System Health Service (SHS) C) NI‑RT System Monitor D) Real‑Time Scheduler Answer: B Explanation: The System Health Service watches for VI crashes and can restart them according to configured policies. Question 36. In a multi‑target deployment, which technique is most effective for updating the FPGA bitfile without stopping the RT application? A) Reboot the entire CompactRIO system B) Use the “FPGA Reconfigure” VI to load a new bitfile at runtime C) Manually replace the .bit file on the host hard drive D) Update the bitfile via a shared variable Answer: B Explanation: The FPGA Reconfigure VI allows dynamic loading of a new bitfile while the RT application continues running. Question 37. Which LabVIEW structure is best suited for implementing a state machine that can transition between multiple operational modes? A) Flat Sequence Structure B) While Loop with a case structure inside C) Event Structure only D) Timed Loop with a shift register Answer: B
Developer CLED Practice Exam
B) Use HTTPS with authentication and code signing of the installer C) Disable all firewalls on the target during update D) Store the update file on a public USB drive Answer: B Explanation: HTTPS ensures encrypted transport, and code signing validates the authenticity of the update package. Question 41. In the Actor Framework, how are messages typically delivered to an actor? A) By directly calling the actor’s VI front panel controls B) Through the “Post Message” function, which enqueues the message in the actor’s mailbox C) Via shared variables that the actor monitors D) By writing to a global variable accessed by the actor Answer: B Explanation: “Post Message” places a message in the actor’s mailbox, where the actor processes it in order. Question 42. Which LabVIEW node allows you to read and write to a hardware register on an FPGA without using a dedicated I/O node? A) Write to Memory Node B) Register Access Node C) FPGA Register Node D) Memory Mapped I/O Node Answer: C Explanation: The FPGA Register Node provides low‑level access to FPGA registers defined in the project.
Developer CLED Practice Exam
Question 43. What is the effect of enabling “Deterministic Loop Timing” on a Timed Loop in a Real‑Time VI? A) The loop will run as fast as possible B) The loop will skip iterations if it falls behind schedule, maintaining timing guarantees C) The loop will pause the entire RT scheduler D) The loop will ignore any timing errors and continue Answer: B Explanation: Deterministic timing causes the loop to drop iterations when it cannot keep up, preserving overall timing constraints. Question 44. Which of the following best describes a “circular buffer” used for data logging on an RT target? A) A buffer that overwrites the oldest data when full, ensuring continuous logging B) A buffer that stops logging when full C) A buffer that only stores data in a FIFO order without overwriting D) A buffer that requires manual clearing before each write Answer: A Explanation: Circular buffers wrap around, overwriting old data, which is ideal for continuous logging without manual management. Question 45. When integrating a third‑party DLL into a Real‑Time application, what must be verified first? A) That the DLL is compiled for the RT target’s OS and architecture (e.g., 32‑bit Windows Embedded) B) That the DLL uses .NET Framework C) That the DLL is signed with a Microsoft certificate
Developer CLED Practice Exam
Question 48. Which of the following is a key consideration when selecting the FPGA clock frequency for a high‑speed control loop? A) Higher frequency always yields better performance, regardless of resource usage B) The clock must be a divisor of the RT processor’s clock C) The clock frequency must meet the loop’s timing requirements while staying within the FPGA’s timing closure limits D) Clock frequency is irrelevant for SCTL loops Answer: C Explanation: Clock selection balances required loop rates against timing closure and resource constraints. Question 49. What is the primary purpose of the “System Monitor” VI on a Real‑Time target? A) To edit the front panel of the Host VI remotely B) To provide real‑time diagnostics such as CPU load, memory usage, and temperature C) To compile FPGA bitfiles on the target D) To manage user authentication Answer: B Explanation: System Monitor reports vital system health metrics, aiding debugging and maintenance. Question 50. Which LabVIEW feature allows you to automatically generate a Windows installer that includes all necessary drivers for a CompactRIO system? A) Build Specification → Installer B) Project → Generate Installer C) NI Package Manager → Create Installer
Developer CLED Practice Exam
D) Application Builder → Driver Packager Answer: B Explanation: The “Generate Installer” wizard bundles the application, drivers, and configuration files into a single installer. Question 51. When using a Queue to transfer data between a high‑frequency producer and a low‑frequency consumer on the RT target, which setting helps prevent the producer from blocking? A) Set the queue size to 0 (infinite) B) Use the “Post Queue Element (No Wait)” option C) Decrease the producer’s priority below the consumer’s D) Enable “Allow Overwrite” on the queue Answer: B Explanation: “Post Queue Element (No Wait)” returns immediately if the queue is full, preventing the producer from blocking. Question 52. Which of the following best describes the role of a “Front Panel Control” on an FPGA VI? A) It directly updates a hardware register on the FPGA at runtime B) It is compiled into the FPGA bitfile but cannot be changed after deployment C) It provides a simulated UI on the Host PC only D) It is used to configure the RT target’s network settings Answer: B Explanation: Front panel controls on an FPGA VI become part of the compiled bitfile; their values are static unless exposed via DMA or FIFOs.
