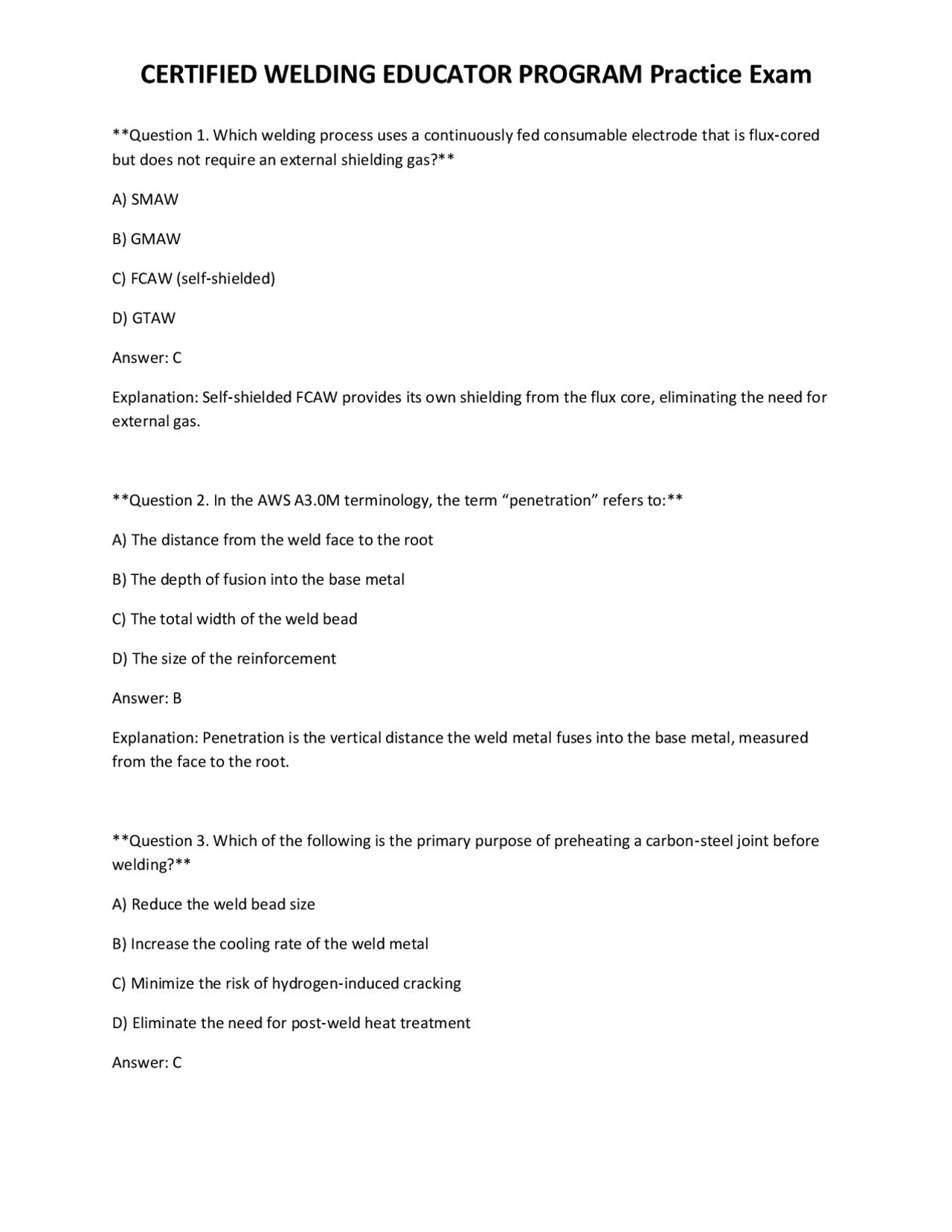

Question 1. Which welding process uses a continuously fed consumable electrode that is flux‑cored but does not require an external shielding gas? A) SMAW B) GMAW C) FCAW (self‑shielded) D) GTAW Answer: C Explanation: Self‑shielded FCAW provides its own shielding from the flux core, eliminating the need for external gas. Question 2. In the AWS A3.0M terminology, the term “penetration” refers to: A) The distance from the weld face to the root B) The depth of fusion into the base metal C) The total width of the weld bead D) The size of the reinforcement Answer: B Explanation: Penetration is the vertical distance the weld metal fuses into the base metal, measured from the face to the root. Question 3. Which of the following is the primary purpose of preheating a carbon‑steel joint before welding? A) Reduce the weld bead size B) Increase the cooling rate of the weld metal C) Minimize the risk of hydrogen‑induced cracking D) Eliminate the need for post‑weld heat treatment Answer: C
Explanation: Preheating lowers the cooling rate and reduces the likelihood of hydrogen cracking in carbon steels. Question 4. The heat‑affected zone (HAZ) is defined as: A) The area of the base metal that melts during welding B) The region where the base metal experiences temperatures above its transformation range but does not melt C) The zone of the weld metal that is completely solidified D) The area where the filler metal is deposited Answer: B Explanation: The HAZ is the portion of the base metal that is heated enough to alter its microstructure but not enough to melt. Question 5. According to OSHA, which PPE is mandatory for the welders performing SMAW in a confined space? A) Only safety glasses B) Welding helmet, fire‑resistant clothing, and respiratory protection C) Earplugs and hard hat only D) Work gloves and steel‑toe boots only Answer: B Explanation: Confined spaces require full PPE, including a welding helmet, fire‑resistant clothing, and appropriate respiratory protection. Question 6. In a welding procedure specification (WPS), which variable is considered essential and must be reproduced exactly for the procedure to be qualified? A) Electrode brand B) Welding position
B) Liquid penetrant testing (PT) C) Magnetic particle testing (MT) D) Radiographic testing (RT) Answer: D Explanation: Radiography provides a view of internal planar flaws oriented perpendicular to the X‑ray beam. Question 10. When reading a blueprint, the “Ø” symbol indicates: A) A radius dimension B) A hole or circular feature C) A weld size D) A fillet weld location Answer: B Explanation: The Ø symbol denotes a circular feature such as a hole or pipe diameter. Question 11. In GMAW, the term “short‑circuiting” refers to: A) The wire touching the workpiece, causing a momentary low voltage arc B) The shielding gas flow being too low C) The power source being turned off abruptly D) The wire feed speed being too high Answer: A Explanation: Short‑circuiting occurs when the wire contacts the workpiece, creating a low‑voltage arc before re‑establishing. Question 12. The primary advantage of using a pulse‑GMAW (GMAW‑P) over conventional GMAW is:
A) Higher deposition rates B) Better control of heat input, reducing distortion C) Elimination of shielding gas D) Ability to weld without a ground clamp Answer: B Explanation: Pulsed GMAW allows precise heat input control, which reduces distortion and improves bead appearance. Question 13. Which of the following gases is most commonly used as a shielding gas for GTAW of stainless steel? A) 100% CO₂ B) Argon‑helium mix (Ar‑He) C) Pure oxygen D) 75% Argon / 25% CO₂ Answer: B Explanation: Argon‑helium mixtures provide good arc stability and penetration for stainless‑steel GTAW. Question 14. A welder’s qualification test for a specific joint design is considered valid for how many years according to AWS D1.1? A) 1 year B) 2 years C) 5 years D) Unlimited, as long as the welder’s performance is satisfactory Answer: D Explanation: AWS D1.1 does not set a time limit; qualifications remain valid unless the welder’s performance deteriorates.
Question 18. The term “interpass temperature” refers to: A) The temperature of the welding machine’s power supply B) The temperature of the base metal between successive passes C) The temperature of the filler metal before deposition D) The ambient temperature in the welding area Answer: B Explanation: Interpass temperature is the temperature of the joint after a pass and before the next one is laid. Question 19. Which visual‑inspection tool is used to determine the weld bead’s reinforcement height? A) Fillet‑weld gauge B) Micrometer C) Ultrasonic flaw detector D) Magnetic particle yoke Answer: A Explanation: Fillet‑weld gauges are calibrated to measure reinforcement, throat size, and leg dimensions. Question 20. According to AWS D1.1, a lack of fusion that is longer than 1/8 in. on a fillet weld is considered: A) Acceptable if the weld passes a bend test B) A minor defect that can be repaired by grinding C) A rejectable defect D) Acceptable if it occurs on the root side only Answer: C
Explanation: D1.1 sets strict limits on lack of fusion; >1/8 in. is a rejectable condition. Question 21. Which welding process is best suited for joining thin sheet metal (≤ 1 mm) with minimal spatter? A) SMAW B) FCAW C) GMAW (short‑circuit) D) GTAW Answer: D Explanation: GTAW provides precise control and low spatter, ideal for thin sheet metal. Question 22. In a welding curriculum, Bloom’s taxonomy is used primarily to: A) Rank welding equipment by cost B) Structure learning objectives from simple to complex C) Determine the order of welding processes taught D) Allocate classroom time for each topic Answer: B Explanation: Bloom’s taxonomy helps educators design objectives that progress from knowledge to evaluation. Question 23. The most common cause of porosity in SMAW welds is: A) Excessive electrode angle B) Moisture in the electrode coating C) Too high welding voltage D) Low amperage setting Answer: B
Question 27. Which of the following is a primary advantage of using a dual‑shielded GTAW (hot‑wire) process? A) Higher deposition rates due to simultaneous heating of filler wire B) Elimination of shielding gas C) Ability to weld without a power source D) Reduced need for preheat on thick plates Answer: A Explanation: The hot‑wire technique pre‑heats the filler wire, increasing deposition rates. Question 28. The term “dilution” in welding refers to: A) The ratio of filler metal to base metal in the weld pool B) The amount of shielding gas mixed with ambient air C) The percentage of base metal that melts and mixes with the weld metal D) The reduction in weld bead size due to high travel speed Answer: C Explanation: Dilution quantifies how much base metal is incorporated into the weld metal. Question 29. In magnetic particle testing, the presence of which type of discontinuity is most easily detected? A) Subsurface cracks oriented parallel to the magnetic field B) Surface cracks oriented perpendicular to the magnetic field C) Porosity within the weld metal D) Lack of fusion at the root Answer: B
Explanation: Surface-breaking cracks perpendicular to the magnetic flux produce clear particle leakage patterns. Question 30. Which of the following statements about post‑weld heat treatment (PWHT) of carbon steel is correct? A) PWHT always increases tensile strength B) PWHT reduces residual stresses and improves toughness C) PWHT is unnecessary for any weld joint D) PWHT is only performed on stainless steel Answer: B Explanation: PWHT relieves residual stresses and can temper the microstructure, enhancing toughness. Question 31. When teaching a new welder to set up a GMAW machine, the first parameter they should adjust is: A) Wire feed speed B) Voltage setting C) Gas flow rate D) Travel speed Answer: C Explanation: Proper shielding gas flow is essential before adjusting other parameters to prevent porosity. Question 32. In a welding qualification test, the “test coupon” must be fabricated from the same material and thickness as the production part to ensure: A) Consistency of filler metal consumption B) Validity of the qualification for that specific material/thickness combination C) Faster test completion
D) The curriculum is taught in reverse order, starting with advanced topics Answer: A Explanation: A flipped classroom reverses traditional instruction, using pre‑class videos and in‑class hands‑on practice. Question 36. Which welding process is most suitable for underwater welding? A) SMAW with waterproof electrodes B) GMAW with dry‑shielded flux‑cored wire C) GTAW with helium shielding D) FCAW with self‑shielded wire Answer: A Explanation: SMAW with waterproof (hyper‑dry) electrodes is commonly used for wet underwater welding. Question 37. When interpreting an AWS welding symbol, the presence of a “contour” arrow indicates: A) The need for a back‑gouge B) The required weld profile (e.g., convex, concave) C) The welding position (flat, horizontal) D) The type of filler metal to be used Answer: B Explanation: The contour arrow specifies the desired weld face shape. Question 38. In a tensile test, the “yield strength” of a welded specimen is defined as: A) The maximum load the specimen can sustain before breaking B) The stress at which permanent deformation begins
C) The stress at the point of fracture D) The average stress over the entire test Answer: B Explanation: Yield strength marks the onset of plastic (permanent) deformation. Question 39. Which of the following is a primary cause of cracking in the HAZ of high‑strength low‑alloy (HSLA) steel? A) High carbon content B) Rapid cooling leading to martensite formation C) Excessive weld bead size D) Use of pure argon shielding gas Answer: B Explanation: Fast cooling can produce hard, brittle martensite in the HAZ, leading to cracking. Question 40. The term “back‑gouging” refers to: A) Removing excess weld metal from the rear side of a joint B) Cutting a groove in the base metal before welding C) A technique for improving penetration in the root pass D) A method of cleaning the weld surface after deposition Answer: A Explanation: Back‑gouging removes weld metal from the opposite side to achieve proper joint geometry. Question 41. In a GMAW‑P system, the “peak current” is: A) The average current over the entire cycle B) The maximum current during the pulse that controls penetration
C) Clause 7 – Welder Qualification D) Clause 9 – Inspection Requirements Answer: C Explanation: Clause 7 outlines the testing and qualification of welders and operators. Question 45. Which welding defect is most likely to occur when the electrode is held at an angle that is too steep relative to the workpiece? A) Under‑cut B) Over‑penetration C) Spatter D) Excessive reinforcement Answer: A Explanation: A steep electrode angle can cause the arc to gouge the base metal, creating an under‑cut. Question 46. In a welding curriculum, the “Socratic method” is used to: A) Provide step‑by‑step demonstrations B) Encourage students to discover answers through guided questioning C) Deliver lecture‑style presentations D) Assign repetitive practice drills Answer: B Explanation: The Socratic method involves asking probing questions to stimulate critical thinking. Question 47. Which of the following statements about “dilution” is true for a GMAW weld on mild steel? A) Dilution is always less than 5% B) Higher heat input generally increases dilution
C) Dilution does not affect the chemical composition of the weld metal D) Dilution is irrelevant for filler‑metal selection Answer: B Explanation: More heat melts more base metal, raising dilution percentage. Question 48. The “tack weld” is primarily used to: A) Finish the final pass of a joint B) Hold components in proper alignment before the final welds are made C) Provide a decorative edge on a weld bead D) Test the welding machine’s voltage output Answer: B Explanation: Tack welds temporarily secure parts, ensuring correct fit-up. Question 49. In a weld‑metal composition chart, the term “filler‑metal classification” (e.g., E7018) indicates: A) The welding position to be used B) The chemical composition and mechanical properties of the electrode C) The required shielding gas type D) The recommended travel speed Answer: B Explanation: The classification code defines the electrode’s composition and performance criteria. Question 50. When performing a bend test on a welded plate, a “face‑side bend” means the weld face is: A) On the inside of the bend (compressive side) B) On the outside of the bend (tensile side)
B) Ultrasonic testing (UT) C) Liquid penetrant testing (PT) D) Visual testing (VT) Answer: B Explanation: UT employs high‑frequency ultrasonic waves to locate internal discontinuities. Question 54. In a welding procedure specification, the term “non‑essential variable” (NEV) means: A) A variable that must be exactly reproduced for qualification B) A variable that can be varied within a specified range without affecting the qualification C) A variable that is not recorded in the PQR D) A variable that is optional for the welder to use Answer: B Explanation: NEVs can be changed within limits without invalidating the qualified procedure. Question 55. The “electrode angle” for a typical 90‑degree fillet weld using SMAW should be approximately: A) 0° (parallel to the workpiece) B) 30° from vertical C) 60° from horizontal D) 90° (perpendicular to the joint) Answer: B Explanation: A 30° angle provides good penetration and avoids excessive under‑cut. Question 56. Which of the following welding symbols indicates a “double‑V” groove? A) Two V‑groove symbols placed side by side on the same side of the reference line B) A single V‑groove symbol with “2V” written on the tail side
C) A V‑groove symbol with an arrow pointing in both directions D) No special symbol; “double‑V” is indicated in the specification notes only Answer: A Explanation: Two V‑groove symbols on the same side denote a double‑V groove preparation. Question 57. In a welding education program, the “learning outcome” is best described as: A) The amount of material welded by a student in a session B) A measurable statement of what the student will know or be able to do after instruction C) The total number of hours spent in the lab D) The grade the student receives on a written exam Answer: B Explanation: Learning outcomes define expected knowledge or skills and are measurable. Question 58. Which welding defect is most commonly associated with excessive moisture in the shielding gas? A) Cracks B) Porosity C) Undercut D) Lack of fusion Answer: B Explanation: Moisture introduces water vapor that can form hydrogen, leading to porosity. Question 59. In a GMAW system, increasing the voltage while keeping wire feed speed constant will generally: A) Decrease arc length and increase penetration B) Increase arc length and produce a wider bead
