PROGRAM Ultimate Exam

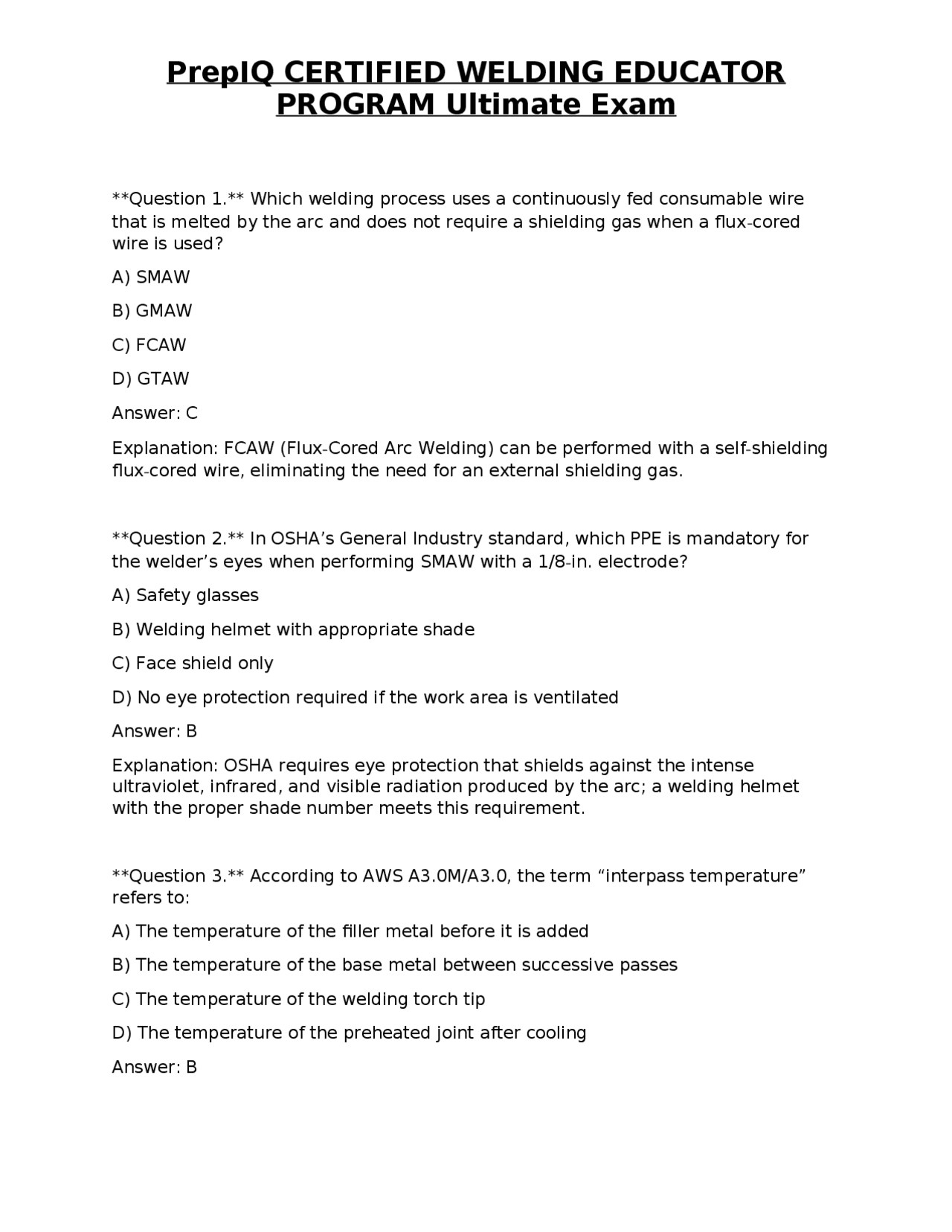

Question 1. Which welding process uses a continuously fed consumable wire that is melted by the arc and does not require a shielding gas when a flux-cored wire is used? A) SMAW B) GMAW C) FCAW D) GTAW Answer: C Explanation: FCAW (Flux-Cored Arc Welding) can be performed with a self-shielding flux-cored wire, eliminating the need for an external shielding gas. Question 2. In OSHA’s General Industry standard, which PPE is mandatory for the welder’s eyes when performing SMAW with a 1/8-in. electrode? A) Safety glasses B) Welding helmet with appropriate shade C) Face shield only D) No eye protection required if the work area is ventilated Answer: B Explanation: OSHA requires eye protection that shields against the intense ultraviolet, infrared, and visible radiation produced by the arc; a welding helmet with the proper shade number meets this requirement. Question 3. According to AWS A3.0M/A3.0, the term “interpass temperature” refers to: A) The temperature of the filler metal before it is added B) The temperature of the base metal between successive passes C) The temperature of the welding torch tip D) The temperature of the preheated joint after cooling Answer: B
PROGRAM Ultimate Exam
Explanation: Interpass temperature is the temperature of the weldment’s base metal (or previously deposited metal) measured immediately before the next welding pass. Question 4. Which of the following best describes the effect of excessive preheat on high-strength low-alloy (HSLA) steel? A) Increases hardness in the HAZ, promoting cracking B) Reduces the need for post-weld heat treatment C) Eliminates hydrogen embrittlement risk D) Improves weld bead shape and penetration Answer: A Explanation: Excessive preheat can raise the cooling rate, causing higher hardness in the HAZ and increasing susceptibility to cracking in HSLA steels. Question 5. In a welding symbol, a single “V” shape placed on the reference line denotes which joint type? A) Butt joint B) Corner joint C) T-joint D) Lap joint Answer: C Explanation: The “V” symbol on the reference line indicates a T-joint configuration. Question 6. Which destructive test is most appropriate for evaluating a weld’s ductility? A) Charpy V-Notch impact test B) Tensile test C) Bend test D) Hardness test Answer: C Explanation: The bend test subjects a weld to plastic deformation, directly assessing ductility and soundness.
PROGRAM Ultimate Exam
Question 10. When interpreting a radiographic test (RT) image, the “step wedge” is used to: A) Calibrate exposure time B) Provide a reference for film density C) Detect welding spatter D) Identify porosity size directly Answer: B Explanation: A step wedge produces a range of known densities on the film, allowing assessment of image quality and contrast. Question 11. In fabricating a pipe tee, which drawing view most clearly shows the weld groove geometry? A) Front elevation B) Isometric view C) Sectional view D) Detail view Answer: C Explanation: A sectional view cuts through the joint, revealing the exact groove shape and dimensions. Question 12. The heat input (in kJ/mm) for a GMAW process is calculated using the formula: A) (Voltage × Current) / (Travel speed) B) (Voltage × Current × 60) / (Travel speed) C) (Voltage × Current) / (Travel speed × 60) D) (Voltage + Current) / Travel speed Answer: B Explanation: Heat input = (V × I × 60) / (travel speed) to convert from J/mm to kJ/mm. Question 13. Which of the following gases is most commonly used as a shielding gas for GTAW of stainless steel?
PROGRAM Ultimate Exam
A) Pure CO₂ B) 100 % Argon C) 75 % Argon / 25 % CO₂ D) 90 % Argon / 10 % Hydrogen Answer: D Explanation: A mixture of Argon with a small amount of Hydrogen improves arc stability and weld penetration for stainless steel in GTAW. Question 14. The primary cause of “lack of fusion” in a weld is: A) Excessive travel speed B) Inadequate preheat temperature C) Incorrect electrode angle D) All of the above Answer: D Explanation: All listed factors can prevent proper melting and bonding between base metal and filler, resulting in lack of fusion. Question 15. According to AWS D1.1, the maximum allowable axial misalignment for a fillet weld on a 6 mm plate is: A) 1 mm B) 2 mm C) 3 mm D) 4 mm Answer: B Explanation: D1.1 permits up to 2 mm of axial misalignment for fillet welds on plates ≤ 6 mm thick. Question 16. In a welding curriculum, the “Bloom’s Taxonomy” level most appropriate for a hands-on welding demonstration is: A) Remembering B) Understanding
PROGRAM Ultimate Exam
Answer: D Explanation: Moisture introduces hydrogen, which can diffuse into the weld metal and cause cracking, especially in thick sections. Question 20. In a shielded metal arc welding (SMAW) operation, the “stick-out” length influences: A) Arc voltage only B) Current only C) Both voltage and current, affecting bead shape and penetration D) Neither voltage nor current Answer: C Explanation: Stick-out changes the resistance in the circuit, thereby affecting both voltage and current, which in turn influence bead geometry. Question 21. Which code clause would you consult to determine the minimum required weld size for a fillet weld on a 10 mm thick structural steel plate? A) AWS D1.1, Table 4. B) ASME Section IX, Table II- 1 C) AWS A3.0, Paragraph 12 D) API 1104, Appendix B Answer: A Explanation: AWS D1.1 Table 4.1 provides minimum fillet weld sizes based on plate thickness. Question 22. In plasma arc cutting (PAC), the primary function of the “constrictor nozzle” is to: A) Supply additional shielding gas B) Direct the plasma jet and increase cutting speed C) Remove slag from the cut zone D) Cool the electrode tip Answer: B
PROGRAM Ultimate Exam
Explanation: The constrictor nozzle focuses the plasma, increasing its temperature and velocity, which improves cutting efficiency. Question 23. When teaching a new class about welding symbols, which instructional strategy best supports visual learners? A) Lecture with handouts B) Interactive whiteboard demonstrations of symbols C) Group discussion of code excerpts D) Written quiz after the lesson Answer: B Explanation: Visual learners benefit from seeing symbols displayed dynamically, making interactive whiteboard demonstrations ideal. Question 24. The term “hardness” in the HAZ is most commonly measured by: A) Rockwell B B) Vickers C) Brinell D) Shore D Answer: B Explanation: Vickers hardness testing is suitable for small, localized areas like the HAZ and provides precise measurements. Question 25. Which of the following weld defects is most likely to be detected by liquid penetrant testing (PT) but not by magnetic particle testing (MT)? A) Surface crack parallel to magnetization B) Surface porosity C) Subsurface lack of fusion D) Surface crack perpendicular to magnetization Answer: B Explanation: PT can reveal surface porosity and open defects regardless of magnetic properties, while MT depends on magnetic flux leakage.
PROGRAM Ultimate Exam
B) Detailed description of the welding equipment brand C) Mechanical test results of the welded specimen D) Cost analysis of the welding consumables Answer: C Explanation: A PQR must document the mechanical test results (e.g., tensile, bend) that verify the procedure’s adequacy. Question 30. In a classroom setting, the “Socratic method” is most effective for which type of welding education activity? A) Demonstrating torch handling techniques B) Conducting a safety equipment inspection C) Facilitating a discussion on the root cause of weld defects D) Showing a video of a welding process Answer: C Explanation: The Socratic method uses guided questioning to promote critical thinking, ideal for exploring defect causation. Question 31. Which welding process typically requires a separate shielding gas supply of argon-helium mix to achieve high deposition rates on thick carbon steel? A) SMAW B) FCAW (self-shielded) C) GMAW (metal-cored) D) GTAW Answer: C Explanation: Metal-cored wires used in GMAW often need an Argon-Helium mixture to increase heat input and deposition on thick carbon steel. Question 32. The ASTM standard that defines the chemical composition of ER70S-6 filler metal is: A) AISI 1018 B) AISI 304
PROGRAM Ultimate Exam
C) AISI 4130
D) AISI 316L
Answer: A Explanation: ER70S-6 is a low-carbon steel filler metal whose composition aligns with ASTM AISI 1018 specifications. Question 33. In a weldability assessment, the “Carbon Equivalent” (CE) is calculated to predict susceptibility to: A) Porosity B) Hydrogen cracking C) Oxidation D) Lack of fusion Answer: B Explanation: The CE value correlates with the tendency for hydrogen-induced cracking; higher CE indicates greater risk. Question 34. For a 6 mm thick plate, the minimum groove angle required for a V-groove butt weld (according to AWS D1.1) is: A) 30° B) 45° C) 60° D) 90° Answer: B Explanation: AWS D1.1 specifies a 45° V-groove for plates up to 6 mm thick to ensure adequate root penetration. Question 35. Which NDE technique can be performed on a live pipe without removing insulation? A) Visual inspection (VT) B) Magnetic particle testing (MT) C) Ultrasonic testing (UT) with phased-array probes
PROGRAM Ultimate Exam
Explanation: Electrode consumption depends on length, diameter, and joint geometry; current influences heat input but not the amount of electrode consumed. Question 39. In an educational setting, the “flipped classroom” model for welding instruction means: A) Students watch lecture videos at home and practice welding in class B) The instructor demonstrates all techniques before students study theory C) The class begins with a safety briefing followed by theory D) All assessments are conducted online Answer: A Explanation: A flipped classroom reverses the traditional model: students learn theory (e.g., via videos) before class, freeing class time for hands-on practice. Question 40. Which of the following welding defects is most likely to be caused by an excessively high welding speed? A) Porosity B) Lack of penetration C) Cracks due to high residual stress D) Undercut Answer: B Explanation: High travel speed reduces heat input, often resulting in insufficient penetration. Question 41. The AWS D1.1 clause that governs the acceptance of a bend test for a fillet weld is found in: A) Section 4 – General Requirements B) Section 5 – Weld Quality Requirements C) Section 6 – Inspection and Test D) Section 7 – Acceptance Criteria Answer: D Explanation: Acceptance criteria for mechanical tests, including bend tests, are detailed in Section 7 of D1.1.
PROGRAM Ultimate Exam
Question 42. In a GMAW system, the “short-circuit transfer” mode is characterized by: A) Droplet detachment at a distance from the workpiece B) Continuous spray of droplets C) Arc re-ignition after each droplet contact, resulting in low heat input D) High voltage and low current Answer: C Explanation: Short-circuit transfer involves the electrode tip touching the workpiece, creating a short that extinguishes the arc; each new droplet initiates a new arc, producing low heat input. Question 43. A weld discontinuity classified as “rejection” under AWS D1.1 when the measured throat size is: A) 1 mm less than the required size B) 0.5 mm less than the required size C) 0.2 mm less than the required size D) Any amount less than the required size, regardless of tolerance Answer: D Explanation: AWS D1.1 specifies that a weld throat smaller than the minimum required dimension is a reject, without a tolerance allowance. Question 44. In a welding curriculum, the “Kolb experiential learning cycle” emphasizes which sequence? A) Concrete experience → Reflective observation → Abstract conceptualization → Active experimentation B) Lecture → Demonstration → Practice → Test C) Observation → Imitation → Mastery → Evaluation D) Theory → Simulation → Real-world application → Review Answer: A Explanation: Kolb’s model follows the four-stage cycle listed in option A, supporting experiential learning in welding education.
PROGRAM Ultimate Exam
A) To provide final strength to a joint B) To hold components in proper alignment before the final weld passes C) To increase penetration depth in the root pass D) To act as a filler metal for the entire joint Answer: B Explanation: Tack welds are small, temporary welds used to position and hold parts together before completing the full weld. Question 49. When using a welding gauge to check a fillet weld size, the gauge should be placed: A) Parallel to the welding line B) Perpendicular to the throat of the weld C) At a 45° angle to the joint face D) On the root face of the weld Answer: B Explanation: Measuring perpendicular to the throat ensures accurate assessment of weld leg dimensions. Question 50. In a welding exam, a candidate must demonstrate proper “hand-on” technique for a stick electrode. Which of the following is the most critical safety precaution? A) Using a leather welding glove on the non-dominant hand only B) Keeping the electrode holder at a 90° angle to the workpiece C) Ensuring the work area is free of flammable gases and vapors D) Setting the welding current 20 % higher than recommended Answer: C Explanation: Eliminating flammable gases and vapors prevents fire or explosion hazards, a primary safety concern. Question 51. Which AWS code specifically addresses welding of stainless steel structures? A) D1.
PROGRAM Ultimate Exam
B) D1.
C) D1.
D) D1.
Answer: B Explanation: AWS D1.2 is the Structural Welding Code for Stainless Steel. Question 52. The primary purpose of a “pre-heat” before welding high-carbon steel is to: A) Reduce the amount of filler metal needed B) Increase the cooling rate to improve hardness C) Lower the temperature gradient, reducing the risk of cracking D) Eliminate the need for post-weld heat treatment Answer: C Explanation: Pre-heating reduces thermal gradients, minimizing residual stresses and the propensity for cracking in high-carbon steels. Question 53. In a welding safety lecture, the “hierarchy of controls” places which of the following at the highest level of protection? A) Personal protective equipment (PPE) B) Administrative controls C) Engineering controls D) Substitution Answer: D Explanation: Substitution (replacing a hazardous process/material with a safer one) is the most effective control in the hierarchy. Question 54. Which of the following statements about “undersize” welds is true according to AWS standards? A) Undersize welds are acceptable if they are visually sound B) Undersize welds must be repaired regardless of location C) Undersize welds are permitted in non-critical, low-stress areas
PROGRAM Ultimate Exam
Explanation: Faster travel speed reduces heat input, narrowing the HAZ; slower speeds increase heat input, widening the HAZ. Question 58. The “critical angle” for a V-groove butt joint on a 12 mm plate (according to AWS D1.1) is: A) 30° each side B) 45° each side C) 60° each side D) 75° each side Answer: B Explanation: D1.1 specifies a 45° V-groove (total 90°) for plates up to 12 mm thick. Question 59. In a welding education lab, the most effective method to assess a student’s understanding of weld symbols is: A) Multiple-choice written test B) Oral questioning during a lecture C) Having students interpret symbols on real workpieces and record the required weld details D) Observing students while they set up a welding machine Answer: C Explanation: Applying symbols to actual workpieces demonstrates practical comprehension beyond rote memorization. Question 60. Which NDE technique is based on the principle of “total internal reflection” to reveal surface discontinuities? A) Magnetic particle testing (MT) B) Liquid penetrant testing (PT) C) Ultrasonic testing (UT) D) Radiographic testing (RT) Answer: B Explanation: PT uses a penetrant that seeps into surface flaws; under UV or white light, the penetrant’s fluorescence reveals defects via total internal reflection.
PROGRAM Ultimate Exam
Question 61. When welding a 25 mm thick low-alloy steel plate, the recommended preheat temperature range (per AWS D1.1) is: A) 50 °C – 100 °C B) 100 °C – 150 °C C) 150 °C – 200 °C D) No preheat required Answer: B Explanation: For low-alloy steels of this thickness, AWS D1.1 advises a preheat of 100 °C to 150 °C to reduce cracking risk. Question 62. In a welding curriculum, the “Bloom’s Taxonomy” level of “Analyzing” is best assessed through which type of activity? A) Reciting safety rules B) Solving a weld defect case study to determine root cause C) Demonstrating proper torch handling D) Measuring weld bead width with a gauge Answer: B Explanation: Analyzing requires breaking down information (e.g., a defect case) to understand underlying causes. Question 63. Which of the following welding consumables is classified as “non-consumable” in the AWS terminology? A) Electrode B. Filler wire C. Flux-cored wire D. Tungsten electrode (GTAW) Answer: D Explanation: In GTAW, the tungsten electrode does not melt and is therefore a non-consumable.
