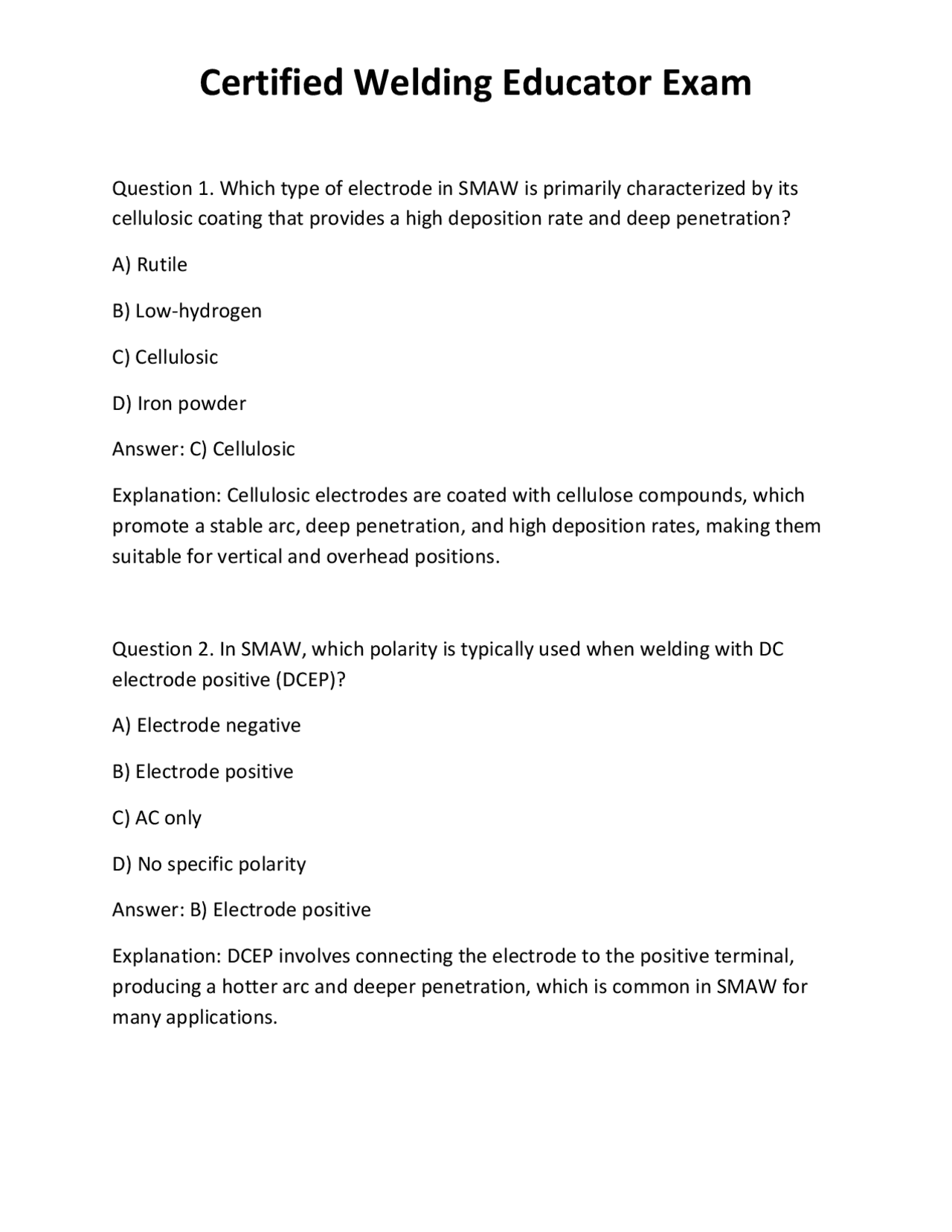

Question 1. Which type of electrode in SMAW is primarily characterized by its cellulosic coating that provides a high deposition rate and deep penetration? A) Rutile B) Low-hydrogen C) Cellulosic D) Iron powder Answer: C) Cellulosic Explanation: Cellulosic electrodes are coated with cellulose compounds, which promote a stable arc, deep penetration, and high deposition rates, making them suitable for vertical and overhead positions. Question 2. In SMAW, which polarity is typically used when welding with DC electrode positive (DCEP)? A) Electrode negative B) Electrode positive C) AC only D) No specific polarity Answer: B) Electrode positive Explanation: DCEP involves connecting the electrode to the positive terminal, producing a hotter arc and deeper penetration, which is common in SMAW for many applications.
Question 3. Which of the following is NOT a common safety precaution specific to SMAW? A) Using proper electrode storage to prevent moisture absorption B) Maintaining adequate ventilation to avoid fumes C) Using a ground clamp to complete the electrical circuit D) Using water-cooled torches to prevent overheating Answer: D) Using water-cooled torches to prevent overheating Explanation: SMAW generally uses air-cooled electrode holders; water-cooled torches are more common in GTAW and other processes, not SMAW. Question 4. Which GMAW transfer mode is characterized by a stable, high- velocity spray of molten metal that results in a smooth bead surface? A) Short-circuit transfer B) Globular transfer C) Spray transfer D) Pulsed-spray transfer Answer: C) Spray transfer Explanation: Spray transfer produces a fine, high-velocity spray of molten droplets, resulting in a smooth, high-quality weld with minimal spatter. Question 5. What is a primary disadvantage of GMAW's spray transfer mode? A) Low deposition rate
D) Helium only Answer: C) 75% Argon / 25% CO Explanation: A mixture of 75% argon and 25% CO2 offers good arc stability, minimal spatter, and a good bead appearance for carbon steel welding. Question 8. Which GTAW electrode type is best suited for AC welding of aluminum to minimize contamination? A) Thoriated B) Pure C) Lanthanated D) Ceriated Answer: B) Pure Explanation: Pure tungsten is preferred for AC welding of aluminum because it resists contamination and maintains a stable arc. Question 9. What is a key safety consideration when using GTAW with helium shielding gas? A) Increased risk of hydrogen embrittlement B) Higher reactivity and reactivity control C) Higher arc heat and potential for burns D) Reduced arc stability Answer: C) Higher arc heat and potential for burns
Explanation: Helium produces a hotter arc, increasing the risk of burns and requiring proper PPE and safety procedures. Question 10. Which of the following best describes the primary advantage of pulsed-GTAW? A) Higher heat input B) Better control of heat input and reduced distortion C) Increased spatter D) Simplifies filler metal addition Answer: B) Better control of heat input and reduced distortion Explanation: Pulsed GTAW allows precise control of current, reducing heat input and minimizing distortion, especially important for thin or sensitive materials. Question 11. In FCAW, what is the main difference between FCAW-S and FCAW- G? A) FCAW-S uses self-shielded flux-cored wire; FCAW-G uses gas-shielded flux- cored wire B) FCAW-S is only for aluminum; FCAW-G is for steel C) FCAW-S uses solid wire; FCAW-G uses flux-cored wire D) FCAW-S is manual; FCAW-G is automated Answer: A) FCAW-S uses self-shielded flux-cored wire; FCAW-G uses gas-shielded flux-cored wire
Question 14. Which welding process is characterized by the use of a consumable electrode and a granular flux that is submerged during welding? A) GTAW B) SAW C) SMAW D) PAC Answer: B) SAW Explanation: SAW uses a granular flux submerged under a blanket of flux, providing shielding and facilitating high-quality, automated welding on thick sections. Question 15. Which is a primary advantage of plasma arc welding (PAW) over GTAW? A) Less precise control B) Higher heat input C) Concentrated, high-temperature plasma jet allowing deeper penetration D) Requires no shielding gas Answer: C) Concentrated, high-temperature plasma jet allowing deeper penetration Explanation: PAW produces a focused plasma jet with higher energy density, enabling deeper weld penetration and faster welding speeds.
Question 16. Resistance spot welding primarily joins metals by applying heat generated through which mechanism? A) Friction B) Induction heating C) Electrical resistance D) Gas flame Answer: C) Electrical resistance Explanation: Resistance spot welding uses electrical resistance at the interface of two metal sheets to generate heat and form a weld. Question 17. Brazing involves joining metals primarily through what mechanism? A) Fusion of base metals B) Mechanical interlocking C) Capillary action with a filler metal melting below the melting point of base metals D) Cold welding Answer: C) Capillary action with a filler metal melting below the melting point of base metals Explanation: Brazing uses a filler metal that melts at a temperature below the base metals, flowing into the joint via capillary action to form a strong bond.
A) Aluminum-iron diagram B) Iron-carbon phase diagram C) Copper-nickel phase diagram D) Titanium-aluminum phase diagram Answer: B) Iron-carbon phase diagram Explanation: The iron-carbon phase diagram illustrates the phases and transformations in steels during cooling and solidification. Question 21. In ferrous metals, what effect does increasing carbon content generally have on weldability? A) Improves weldability B) Has no effect C) Decreases weldability due to increased hardness and brittleness D) Eliminates the need for preheating Answer: C) Decreases weldability due to increased hardness and brittleness Explanation: Higher carbon content increases hardness and reduces ductility, making welding more challenging due to risks of cracking. Question 22. Which stainless steel type is most susceptible to intergranular corrosion due to sensitization during welding? A) Austenitic B) Ferritic
C) Martensitic D) Duplex Answer: A) Austenitic Explanation: Austenitic stainless steels are prone to sensitization and intergranular corrosion if not properly heat-treated or cooled. Question 23. Which non-ferrous metal is most associated with issues of hot cracking during welding? A) Aluminum B) Copper C) Nickel alloys D) Malleable cast iron Answer: A) Aluminum Explanation: Aluminum alloys are susceptible to hot cracking due to their high thermal expansion and solidification characteristics. Question 24. Which heat treatment process aims to relieve residual stresses and improve toughness after welding? A) Quenching B) Post-weld heat treatment (PWHT) C) Annealing D) Tempering
Explanation: Porosity results from gases trapped in the weld metal during solidification, appearing as voids or bubbles. Question 27. Which of the following is a common cause of hot cracking in welds? A) Rapid cooling and high residual stresses B) Excessive filler metal C) Improper electrode storage D) Inadequate shielding gas flow Answer: A) Rapid cooling and high residual stresses Explanation: Hot cracking occurs due to tensile stresses during solidification, especially in alloys with low ductility at high temperatures. Question 28. Which nondestructive testing method is primarily used to detect surface-breaking flaws using magnetic fields? A) Ultrasonic Testing B) Liquid Penetrant Testing C) Magnetic Particle Testing D) Radiographic Testing Answer: C) Magnetic Particle Testing Explanation: MT detects surface and near-surface flaws by magnetizing the material and applying magnetic particles that gather at flaw sites.
Question 29. Which NDT method involves passing high-frequency electrical currents into the material to detect surface and subsurface flaws? A) Ultrasonic Testing B) Eddy Current Testing C) Radiographic Testing D) Liquid Penetrant Testing Answer: B) Eddy Current Testing Explanation: ET uses electromagnetic induction to locate surface and near-surface discontinuities by measuring changes in current flow. Question 30. When interpreting radiographs in RT, what indicates the presence of porosity? A) Dark, irregular spots B) Bright, dense areas C) Sharp edges D) Uniform gray tone Answer: A) Dark, irregular spots Explanation: Porosity appears as dark, irregularly shaped areas on radiographs due to reduced density compared to the surrounding metal. Question 31. Which welding symbol indicates that a weld is to be made all around the joint?
C) Square groove D) Double J groove Answer: B) Single V groove Explanation: A single V groove provides access for deep penetration and is commonly used for thick sections to ensure full fusion. Question 34. Which factor is most critical when selecting a joint preparation method? A) Material cost B) Ease of finishing C) Weld accessibility and penetration requirements D) Aesthetic appearance Answer: C) Weld accessibility and penetration requirements Explanation: Proper joint preparation ensures sufficient access and penetration, critical for weld quality and integrity. Question 35. In SMAW, which technique is used to restart an arc if it extinguishes prematurely? A) Striking the arc again on the workpiece B) Moving the electrode away and striking again C) Using a different electrode D) Increasing the electrode angle
Answer: B) Moving the electrode away and striking again Explanation: To restart an arc, the welder typically lifts the electrode slightly away from the workpiece and strikes a new arc, avoiding contamination. Question 36. Which welding process is most suitable for welding thin sheet metal and provides a high level of control? A) SMAW B) GMAW C) GTAW D) FCAW Answer: C) GTAW Explanation: GTAW offers precise control, making it ideal for thin materials and detailed welds with minimal distortion. Question 37. Which electrode coating in SMAW provides a flux that produces a stable arc, smooth weld bead, and less spatter, often used for general-purpose welding? A) Cellulosic B) Rutile C) Low-hydrogen D) Iron powder Answer: B) Rutile
Question 40. Which type of tungsten electrode is most suitable for DC welding of steel due to its high current-carrying capacity and durability? A) Pure tungsten B) Thoriated C) Lanthanated D) Ceriated Answer: B) Thoriated Explanation: Thoriated tungsten provides excellent current-carrying capacity and durability, making it suitable for DC welding of steel. Question 41. The primary purpose of preheating ferrous metals before welding is to: A) Increase cooling rate B) Reduce residual stresses C) Minimize hydrogen absorption D) Slow down cooling to prevent cracking Answer: D) Slow down cooling to prevent cracking Explanation: Preheating slows the cooling rate to reduce thermal stresses and prevent cracking, especially in high-carbon or alloy steels.
Question 42. Which heat treatment process involves heating and cooling a metal to improve toughness and relieve stresses without changing the microstructure significantly? A) Quenching B) Tempering C) Annealing D) Stress relieving Answer: D) Stress relieving Explanation: Stress relieving involves heating to a moderate temperature and slow cooling to reduce residual stresses without altering microstructure substantially. Question 43. In the context of welding metallurgy, what does the term "sensitization" refer to in stainless steels? A) Formation of martensite during welding B) Precipitation of chromium carbides at grain boundaries leading to intergranular corrosion C) Complete melting of the microstructure D) Grain refinement due to rapid cooling Answer: B) Precipitation of chromium carbides at grain boundaries leading to intergranular corrosion Explanation: Sensitization occurs when chromium carbides precipitate at grain boundaries during heating, reducing corrosion resistance.
