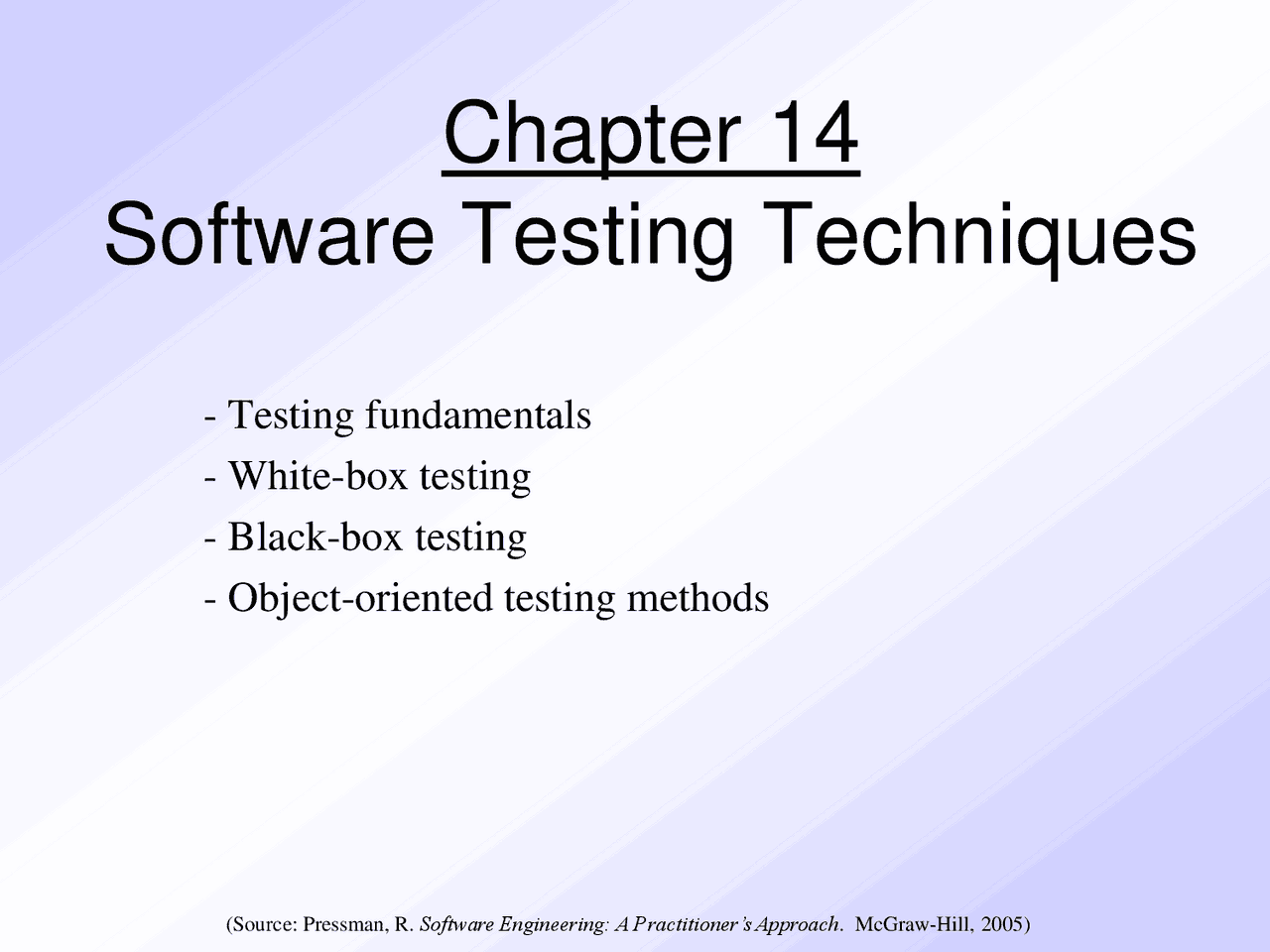

Chapter 14
Software Testing Techniques
- Testing fundamentals
- White-box testing
- Black-box testing
- Object-oriented testing methods
(Source: Pressman, R. Software Engineering: A Practitioner’s Approach. McGraw-Hill, 2005)
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Chapter 14 Software Testing Techniques, Exercises of Designs and Groups
Results in the following equations for the example flow graph ... Boundary value analysis is a test case design method that complements.
Typology: Exercises
2021/2022
1 / 40
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Chapter 14 Software Testing Techniques and more Exercises Designs and Groups in PDF only on Docsity!
Chapter 14
Software Testing Techniques
- Testing fundamentals
- White-box testing
- Black-box testing
- Object-oriented testing methods (Source: Pressman, R. Software Engineering: A Practitioner’s Approach. McGraw-Hill, 2005)
Characteristics of Testable
Software
- Operable
- The better it works (i.e., better quality), the easier it is to test
- Observable
- Incorrect output is easily identified; internal errors are automatically detected
- Controllable
- The states and variables of the software can be controlled directly by the tester
- Decomposable
- The software is built from independent modules that can be tested independently
(more on next slide)
Test Characteristics
- A good test has a high probability of finding an error
- The tester must understand the software and how it might fail
- A good test is not redundant
- Testing time is limited; one test should not serve the same purpose as another test
- A good test should be “best of breed”
- Tests that have the highest likelihood of uncovering a whole class of errors should be used
- A good test should be neither too simple nor too complex
- Each test should be executed separately; combining a series of tests could cause side effects and mask certain errors
Two Unit Testing Techniques
- Black-box testing
- Knowing the specified function that a product has been designed to perform, test to see if that function is fully operational and error free
- Includes tests that are conducted at the software interface
- Not concerned with internal logical structure of the software
- White-box testing
- Knowing the internal workings of a product, test that all internal operations are performed according to specifications and all internal components have been exercised
- Involves tests that concentrate on close examination of procedural detail
- Logical paths through the software are tested
- Test cases exercise specific sets of conditions and loops
White-box Testing
- Uses the control structure part of component-level design to derive the test cases
- These test cases
- Guarantee that all independent paths within a module have been exercised at least once
- Exercise all logical decisions on their true and false sides
- Execute all loops at their boundaries and within their operational bounds
- Exercise internal data structures to ensure their validity “Bugs lurk in corners and congregate at boundaries”
Basis Path Testing
- White-box testing technique proposed by Tom McCabe
- Enables the test case designer to derive a logical complexity measure of a procedural design
- Uses this measure as a guide for defining a basis set of execution paths
- Test cases derived to exercise the basis set are guaranteed to execute every statement in the program at least one time during testing
10
Flow Graph Example
R
R
R
R
FLOW CHART FLOW GRAPH 0
Independent Program Paths
- Defined as a path through the program from the start node until the end node that introduces at least one new set of processing statements or a new condition (i.e., new nodes)
- Must move along at least one edge that has not been traversed before by a previous path
- Basis set for flow graph on previous slide
- Path 1: 0- 1 - 11
- Path 2: 0- 1 - 2 - 3 - 4 - 5 - 10 - 1 - 11
- Path 3: 0- 1 - 2 - 3 - 6 - 8 - 9 - 10 - 1 - 11
- Path 4: 0- 1 - 2 - 3 - 6 - 7 - 9 - 10 - 1 - 11
- The number of paths in the basis set is determined by the cyclomatic complexity
Deriving the Basis Set and Test Cases
- Using the design or code as a foundation, draw a corresponding flow graph
- Determine the cyclomatic complexity of the resultant flow graph
- Determine a basis set of linearly independent paths
- Prepare test cases that will force execution of each path in the basis set
14 A Second Flow Graph Example 1 int functionY(void) 2 { 3 int x = 0; 4 int y = 19; 5 A: x++; 6 if (x > 999) 7 goto D; 8 if (x % 11 == 0) 9 goto B; 10 else goto A; 11 B: if (x % y == 0) 12 goto C; 13 else goto A; 14 C: printf("%d\n", x); 15 goto A; 16 D: printf("End of list\n"); 17 return 0; 18 }
16 A Sample Function to Diagram and Analyze 1 int functionZ(int y) 2 { 3 int x = 0; 4 while (x <= (y * y)) 5 { 6 if ((x % 11 == 0) && 7 (x % y == 0)) 8 { 9 printf(“%d”, x); 10 x++; 11 } // End if 12 else if ((x % 7 == 0) || 13 (x % y == 1)) 14 { 15 printf(“%d”, y); 16 x = x + 2; 17 } // End else 18 printf(“\n”); 19 } // End while 20 printf("End of list\n"); 21 return 0; 22 } // End functionZ
Loop Testing - General
- A white-box testing technique that focuses exclusively on the validity of loop constructs
- Four different classes of loops exist
- Simple loops
- Nested loops
- Concatenated loops
- Unstructured loops
- Testing occurs by varying the loop boundary values
- Examples: for (i = 0; i < MAX_INDEX; i++) while (currentTemp >= MINIMUM_TEMPERATURE)
Testing of Nested Loops
- Start at the innermost loop; set all other loops to minimum values
- Conduct simple loop tests for the innermost loop while holding the outer loops at their minimum iteration parameter values; add other tests for out-of-range or excluded values
- Work outward, conducting tests for the next loop, but keeping all other outer loops at minimum values and other nested loops to “typical” values
- Continue until all loops have been tested
Testing of Concatenated Loops
- For independent loops, use the same approach as for simple loops
- Otherwise, use the approach applied for nested loops
