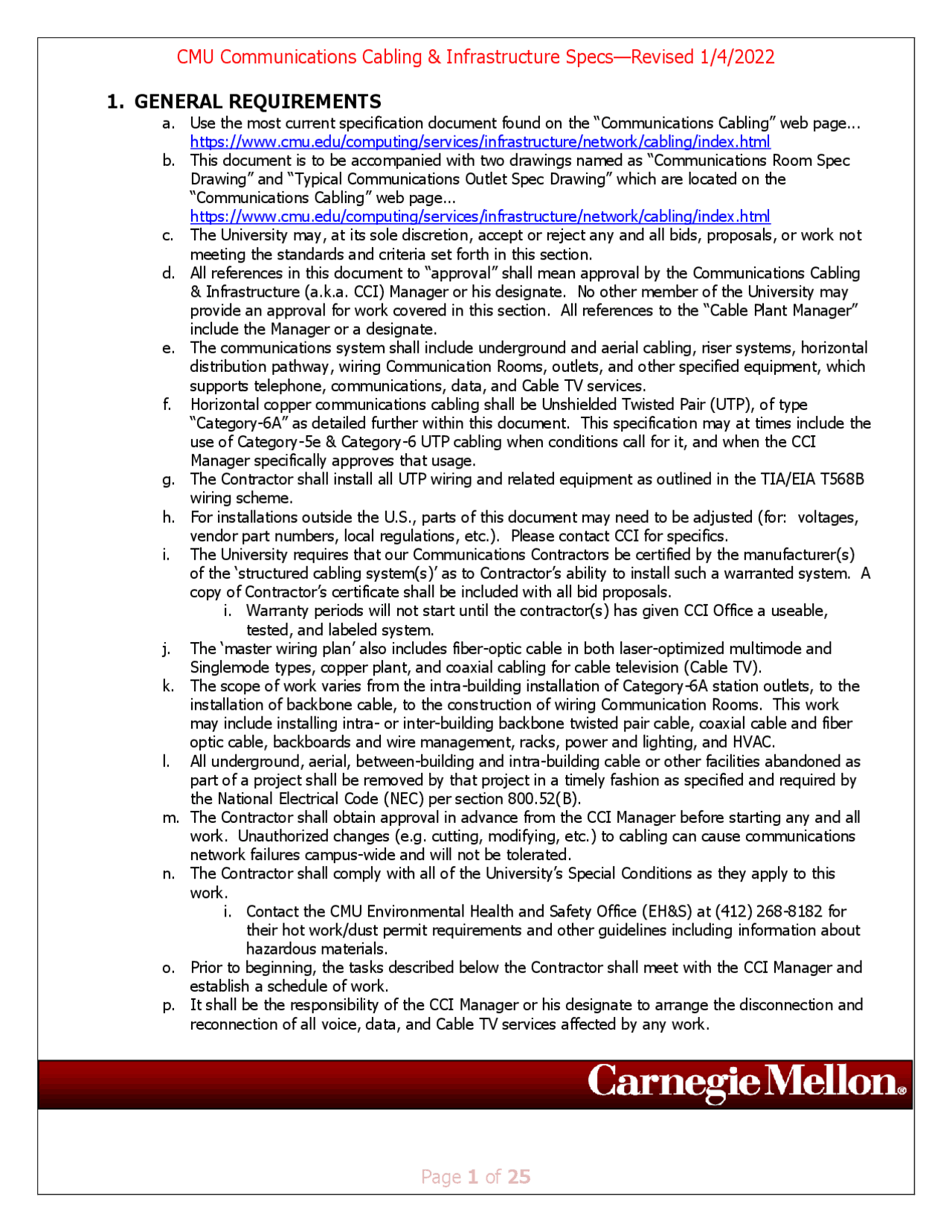

CMU Communications Cabling & Infrastructure Specs—Revised 1/4/2022
Page 1 of 25
1. GENERAL REQUIREMENTS
a. Use the most current specification document found on the “Communications Cabling” web page...
https://www.cmu.edu/computing/services/infrastructure/network/cabling/index.html
b. This document is to be accompanied with two drawings named as “Communications Room Spec
Drawing” and “Typical Communications Outlet Spec Drawing” which are located on the
“Communications Cabling” web page...
https://www.cmu.edu/computing/services/infrastructure/network/cabling/index.html
c. The University may, at its sole discretion, accept or reject any and all bids, proposals, or work not
meeting the standards and criteria set forth in this section.
d. All references in this document to “approval” shall mean approval by the Communications Cabling
& Infrastructure (a.k.a. CCI) Manager or his designate. No other member of the University may
provide an approval for work covered in this section. All references to the “Cable Plant Manager”
include the Manager or a designate.
e. The communications system shall include underground and aerial cabling, riser systems, horizontal
distribution pathway, wiring Communication Rooms, outlets, and other specified equipment, which
supports telephone, communications, data, and Cable TV services.
f. Horizontal copper communications cabling shall be Unshielded Twisted Pair (UTP), of type
“Category-6A” as detailed further within this document. This specification may at times include the
use of Category-5e & Category-6 UTP cabling when conditions call for it, and when the CCI
Manager specifically approves that usage.
g. The Contractor shall install all UTP wiring and related equipment as outlined in the TIA/EIA T568B
wiring scheme.
h. For installations outside the U.S., parts of this document may need to be adjusted (for: voltages,
vendor part numbers, local regulations, etc.). Please contact CCI for specifics.
i. The University requires that our Communications Contractors be certified by the manufacturer(s)
of the ‘structured cabling system(s)’ as to Contractor’s ability to install such a warranted system. A
copy of Contractor’s certificate shall be included with all bid proposals.
i. Warranty periods will not start until the contractor(s) has given CCI Office a useable,
tested, and labeled system.
j. The ‘master wiring plan’ also includes fiber-optic cable in both laser-optimized multimode and
Singlemode types, copper plant, and coaxial cabling for cable television (Cable TV).
k. The scope of work varies from the intra-building installation of Category-6A station outlets, to the
installation of backbone cable, to the construction of wiring Communication Rooms. This work
may include installing intra- or inter-building backbone twisted pair cable, coaxial cable and fiber
optic cable, backboards and wire management, racks, power and lighting, and HVAC.
l. All underground, aerial, between-building and intra-building cable or other facilities abandoned as
part of a project shall be removed by that project in a timely fashion as specified and required by
the National Electrical Code (NEC) per section 800.52(B).
m. The Contractor shall obtain approval in advance from the CCI Manager before starting any and all
work. Unauthorized changes (e.g. cutting, modifying, etc.) to cabling can cause communications
network failures campus-wide and will not be tolerated.
n. The Contractor shall comply with all of the University’s Special Conditions as they apply to this
work.
i. Contact the CMU Environmental Health and Safety Office (EH&S) at (412) 268-8182 for
their hot work/dust permit requirements and other guidelines including information about
hazardous materials.
o. Prior to beginning, the tasks described below the Contractor shall meet with the CCI Manager and
establish a schedule of work.
p. It shall be the responsibility of the CCI Manager or his designate to arrange the disconnection and
reconnection of all voice, data, and Cable TV services affected by any work.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19

Partial preview of the text

Download CMU Communications Cabling & Infrastructure Specs and more Study notes Optics in PDF only on Docsity!

1. GENERAL REQUIREMENTS

a. Use the most current specification document found on the “Communications Cabling” web page... https://www.cmu.edu/computing/services/infrastructure/network/cabling/index.html b. This document is to be accompanied with two drawings named as “Communications Room Spec Drawing” and “Typical Communications Outlet Spec Drawing” which are located on the “Communications Cabling” web page... https://www.cmu.edu/computing/services/infrastructure/network/cabling/index.html c. The University may, at its sole discretion, accept or reject any and all bids, proposals, or work not meeting the standards and criteria set forth in this section. d. All references in this document to “approval” shall mean approval by the Communications Cabling & Infrastructure (a.k.a. CCI) Manager or his designate. No other member of the University may provide an approval for work covered in this section. All references to the “Cable Plant Manager” include the Manager or a designate. e. The communications system shall include underground and aerial cabling, riser systems, horizontal distribution pathway, wiring Communication Rooms, outlets, and other specified equipment, which supports telephone, communications, data, and Cable TV services. f. Horizontal copper communications cabling shall be Unshielded Twisted Pair (UTP), of type “Category-6A” as detailed further within this document. This specification may at times include the use of Category-5e & Category-6 UTP cabling when conditions call for it, and when the CCI Manager specifically approves that usage. g. The Contractor shall install all UTP wiring and related equipment as outlined in the TIA/EIA T568B wiring scheme. h. For installations outside the U.S., parts of this document may need to be adjusted (for: voltages, vendor part numbers, local regulations, etc.). Please contact CCI for specifics. i. The University requires that our Communications Contractors be certified by the manufacturer(s) of the ‘structured cabling system(s)’ as to Contractor’s ability to install such a warranted system. A copy of Contractor’s certificate shall be included with all bid proposals. i. Warranty periods will not start until the contractor(s) has given CCI Office a useable, tested, and labeled system. j. The ‘master wiring plan’ also includes fiber-optic cable in both laser-optimized multimode and Singlemode types, copper plant, and coaxial cabling for cable television (Cable TV). k. The scope of work varies from the intra-building installation of Category- 6 A station outlets, to the installation of backbone cable, to the construction of wiring Communication Rooms. This work may include installing intra- or inter-building backbone twisted pair cable, coaxial cable and fiber optic cable, backboards and wire management, racks, power and lighting, and HVAC. l. All underground, aerial, between-building and intra-building cable or other facilities abandoned as part of a project shall be removed by that project in a timely fashion as specified and required by the National Electrical Code (NEC) per section 800.52(B). m. The Contractor shall obtain approval in advance from the CCI Manager before starting any and all work. Unauthorized changes (e.g. cutting, modifying, etc.) to cabling can cause communications network failures campus-wide and will not be tolerated. n. The Contractor shall comply with all of the University’s Special Conditions as they apply to this work. i. Contact the CMU Environmental Health and Safety Office (EH&S) at (412) 26 8 - 8182 for their hot work/dust permit requirements and other guidelines including information about hazardous materials. o. Prior to beginning, the tasks described below the Contractor shall meet with the CCI Manager and establish a schedule of work. p. It shall be the responsibility of the CCI Manager or his designate to arrange the disconnection and reconnection of all voice, data, and Cable TV services affected by any work.

q. The Contractor shall visit the project site on a scheduled walkthrough date in order to verify conditions on the job site. The contractor will notify the CCI Manager in writing/email of discrepancies, conflicts or omissions promptly upon discovery. r. By submitting a bid, the Contractor is attesting that responsible Contractor personnel have, in fact, visited the site during the bidding period and have verified all pertinent conditions. s. Codes, Standards and Safety i. All work shall conform to the latest NEC. ii. Contractor shall notify CMU of any conflicts between the code and design drawings or scope of work via email no less than (3) business days before quotes are due. iii. All work shall be performed by qualified personnel and in a safe, neat manner showing craftsmanship.

  1. All electrical work (above 90 VAC), grounding & bonding, ladder tray installation and rack construction must be performed by journeymen electricians. iv. All communications cabling work must be performed according to the manufacturer’s standards in harmony with their warranty requirements and then according to industry accepted standards and best-practices. t. Bid Submittals i. CMU reserves the right to reject any or all bids without explanation ii. Split (separate) price for Communications Cabling bid into the following:
  2. Pathway (conduits, cable tray, supports, waterfalls, tray fittings, etc.)
  3. Power (for Data contract work)
  4. Communications (Fiber & Copper cabling, workstations, racks, etc.)
  5. Alternate #1, #2, #3, etc. iii. With bid, submit: a. Contractor company info on letterhead b. Cutsheets for materials contractor plans to use c. Task schedule showing estimated completion dates d. The first three pages of this document in order to establish which revision the contractor has used for pricing i. The contractor should also store a complete print-out or an electronically saved version.
  6. For Projects over $100K, also include: a. Insurance and Liability info b. List of (3) recent projects most resembling currently proposed project with customers’ contact info. iv. Subcontractor info (must be CMU-approved for contracted work). v. Copy of project’s latest RFQ and scope. vi. Upon request, the contractor should be able to provide cut sheets, MSDS sheets for materials used. u. If the bid is directly for CMU CCI Office, deliver bid materials in sealed envelope to Cyert Hall at date and time specified in RFQ. v. AS-BUILT DOCUMENTATION i. Upon completion of the project, the Contractor shall provide the CCI Project Manager with the following documents, in format(s) acceptable to the CCI Project Manager:
  7. UTP Cable test results, Coaxial Cable test results and Fiber Optic Cable test results
  8. As-Built plans in AutoCAD format unless given permission for other formats. (The CCI Project Manager will supply the Contractor with a copy of the base floor plan AutoCAD file upon request.) w. QUESTIONS i. If a designated contact has not been defined in a project, use the contacts listed below for all questions:
  1. Divide total quantity of data outlets in half since only half are typically activated
  2. Divide qty. of activated outlets by 24 to determine how many 24-port Ethernet switches are needed
  3. Network Operations then refers to spec plate power ratings on gear, de-rates by 60% to determine running power in watts and multiples by qty. switches
  4. Plug equipment load in watts-to-BTU/hr. equation to determine cooling… 1 W = 3.412142 BTU/hour b. Direction of supply air should be pointed to the front of racks which is the same as the direction of the ports on the patch panels.
  5. Lighting in MDFs & IDFs a. Lighting levels in the wiring Communication Room shall be at least 50 foot-candles at 5 foot above the finished floor at the 19-in. Racks using LED fixtures. All areas of the room should be well lit including the front and rear of the racks. b. Provide/install spring-wound timer switches to control lights. i. 6 hours with no manual override ii. Use Intermatic® #FF6H for single-pole iii. Use Intermatic® #FF46H for double-pole equivalent

8. Flooring

a. Static Dissipative Tiling Floor is to be installed on all floor surfaces within MDFs & IDFs. “Armstrong Fossil Gray Excelon ESD Tile 51956 Static Control Flooring” or similar product.

  1. Doors a. Doors for new communications rooms shall be secured with card readers maintained by CMU’s Access control staff. Locks should provide for bypass key entry in the event that the card reader is not functioning. A pair of bypass keys is to be provided to CCI such that keys are unique to each building. b. On projects where new communications rooms are built, doors must be installed and secured BEFORE networking equipment can be installed. Therefore, responsible CMU parties should direct their contractors and the CMU Lock Shop to complete this in advance of building occupancy (typically no less than 2 or 3 weeks).
  2. Signage a. Signs on doors to communications rooms should only list the room number, not the function of the room (ex: “communications room”). This to not make the function of the communications rooms obvious to unauthorized users.
  3. Environmental Monitoring a. One environmental monitoring system shall be provided for each communications room. Current model is a “Vertiv Watchdog- 100 ” with flood sensor model “VERTIV FS- 15 ”. Monitor is 2RU in height and is to be mounted on 19” rails of communications rack such that it is centered vertically 2’ A.F.F.. Leak Sensor should be secured with one screw into floor, in a low lying spot if available.
  4. Other Systems

a. So as to maintain a secure environment, no other cabling or gear except for that which is in support of the campus network and telecommunications systems are to reside within communications rooms. On an as needed basis, requests have been honored to allow for location of the campus access controllers if space allows. b. All trash/debris is to be removed from communications rooms. iii. Voice Riser

  1. Provide and install a 50-pair cable type A.R.M.M. in conduit or type A.P.M.M. in conduit-less installations (plenum version of A.R.M.M. cable; with aluminum armor tape) between the MDF and each IDF. iv. Maximum length of UTP cabling:
  2. Horizontal cabling between MDF/IDF patch panel and workstation outlet: 90 meters
  3. A safe length for patch cords is 5 meters. In no case should combined patch cord length (at both ends) be greater than 10 meters.
  4. Maximum channel (e.g., horizontal cabling link + both patch cords) length shall be 100 meters. v. Communications Outlets
  5. All new UTP workstation communications cables and outlets are to be installed as Category- 6 A “universal outlets” A.K.A. ‘data’ outlets. These outlets originate from Category- 6 A jacks in the network racks inside network telecommunications rooms. These outlets are capable of being used for either voice or network services. They consist of Panduit® black jacks connected with blue plenum Category- 6 A cable.
  6. Quantity: a. Residence halls i. The rule for student rooms is that there must be at least one data outlet for every student in a room or suite of rooms (at each student’s desk area). ii. Voice outlets (universal outlets used for phone service) shall be provided in common areas such as ‘buggy rooms’, dining rooms, lobbies, and kitchens. iii. Unless specifically directed otherwise by CMU Housing Services Department (forward email proof), install (1) CATV outlet per bedroom, living room, recreation/bar area, etc. iv. Computer clusters and must be wired accordingly. b. For offices i. The general rule is to install a minimum of one data/voice outlet (i.e., two universal outlets/cables) for each occupant of an office. In cases where modular furniture is used, one data/voice outlet per workspace. ii. Install (1) CATV outlet per lounge, kitchen/dining area, etc. c. Note that even if the occupant does not want a data/voice outlet, a minimum number of communications outlets MUST be installed based on the size of the space. If the occupant does not require a data/voice outlet, the following table shall be used to determine the number of outlets. d. Calculation table:
  1. CMU Network Operations is the only group who determines the locations of Access Points (aka: “AP’s”) for 802.11 Wireless LAN service (aka: “WiFi”). Network Operations performs a rough design for planning, then performs final location verification after certain construction has been completed, ex: completion of walls/doors). This is relevant for all new campus buildings, major renovations and for smaller campus building renovations whose wireless infrastructure will require redesign. Even so-called minor renovations can impact wireless coverage— especially if walls are moved, added, or removed. Therefore, Computing Services personnel must be invited into discussions early on, during the planning phases of these projects.
  2. Only CMU’s certified communications cabling contractors can remove and install AP’s. CMU’s certified communications cabling contractors are to obtain prior approval from Network Operations or CCI before AP removal. Unless directed otherwise by CCI or Network Operations, changes to AP’s should be performed such to turn off one AP at a time or keep every other AP in a given area operating. This is to prevent a complete outage for wireless service in a given area. AP’s often provide service beyond the areas they are located at, ex: serving offices/classrooms beyond a construction zone.
  3. Cabling for AP’s is to be installed at locations indicated on the rough design and by leaving 20 feet of properly coiled cable slack and unterminated. Cabling can be terminated and AP’s mounted only after final location verification (see above).
  4. Designs shall provide for a minimum of one Access Point for every 200 to 800 square feet (drywall construction) or 50 to 400 square feet (hard plaster or masonry construction) of interior space, depending on capacity: performance ratio. Example: classrooms and lecture halls will require more dense placements.
  5. Each AP location will have two Category- 6 A data outlets installed. The AP’s will receive their power over the data cables (aka: PoE) therefore no 120 VAC power is needed. a. Cable: Panduit # PUP6AV04BU-G this is blue cable b. Jacks: Panduit # CJ6X88TGBL c. Plugs: Panduit #’s FP6X88MTG (straight) & FPUD6X88MTG (angled)
  6. The communications contractor shall install the AP brackets (supplied by CMU Network Services, contact Daryl Hollinger (Manager of Network Operations-CMU Computing Services).
  7. The exact height and location will be determined by CMU Network Operations. a. Send pdf floorplan of project to Daryl Hollinger (Manager of Network Operations-CMU Computing Services). vii. Point-to-point cables
  8. Some campus users have the need for direct, point-to-point cabling between rooms. This cabling can share current pathways only if the following conditions are met: a. These cables are not to be used to extend regular services from existing outlets (in such cases, new outlet(s) should be installed) b. Cables must be our specified brand(s) (Panduit™ for copper UTP) and have a black jacket color this is a black cable c. Cables must be installed in a manner according to our regular standard and be installed by one of our CCI Office approved cabling contractors d. Cables must terminate in a separate faceplate from regular voice/data cables

e. CCI Office will provide labels with a format like: [bldg.#] -- [1st^ room#] – [2nd^ room#] – [xxxx(1-9999)]. The following shows an example of label that could be printed on black, ½” laminated tape by the contractor (using a Brother® P-Touch labeler): f. Cables must be tested according to the “Testing” section in this document

  1. A wide variety of services can be run over Category- 6 A UTP cable including video, sound, CATV, S-video, high def. video, etc., and adhering to our recommendations will help to ensure the following: a. Interference and cross-talk onto current voice/data cabling will be limited b. Cables can be tested, verified and results stored in our current database c. Cables can be given addresses and documented on our AutoCAD drawings
  2. Note: The majority of the cabling we provide is activated with services supported by the Network Operations and Telecom groups. These groups have expertise in troubleshooting and problem escalation. Services on the point-to-point cables are to be directly supported by the customers who are expected to have expertise in troubleshooting and problem escalation. Incorrect troubleshooting could lead to additional contractor charges if cable testing proves no problems found.
  3. Fiber point-to-point cables shall not be zip cord (see “Fiber Cables”) viii. Pathways
  4. Above suspended ceiling a. Office: J-hooks b. Corridor: basket tray
  5. Visible, in corridor a. Priority given to aesthetics (Chalfant Series 6)
  6. Data Center or equipment room a. CPI universal Runway b. Panduit FiberRunner® c. Panduit WYR-Grid
  7. Communications cabling pathways must avoid elevator shafts and elevator machine rooms a. For applications directly related to elevator operation (such as elevator phones), contact CMU FMS department for written approval. ix. Abandoned/replaced/decommissioned cables must be completely removed by the electrical/telecommunications contractor and their unused pathways must be sealed/patched and painted if necessary
  8. See NEC Art. 800.25 and similar sections
  9. A list of all cables to be removed or replaced must be provided to CCI so they can be properly deactivated and removed from databases and campus floor plans. x. Removal/demolition of communications cabling must only be performed by CMU’s certified communications cabling contractors. xi. Hazardous Materials
  10. For information about hazardous materials, Contact the CMU Environmental Health and Safety Office (EH&S) at (412) 268- 8182 b. Materials i. Panduit products

P09-Rm144-

Rm

c. Use 2400-series Wiremold for any run which contains one or more elbow fittings. i. Use available radiused (fiber optic type) elbow fittings (# 2411FO

  • color?).
  1. Cable Tray a. Ladder and Basket Tray i. Size for maximum of 40% fill along entire length ii. FLEXTRAY Basket Tray, nVent WBT or equivalent. iii. Basket tray to be sized based on the number of cables being supported with a maximum 40% fill factor for future installs. iv. Basket tray can be used as a vertical raceway. v. Basket tray shall be “end support” hung only (no center supports), with rubber or plastic covers on all exposed all-thread rod to prevent cable damage. vi. Cable drop-outs must be used where cable exits tray downward. vii. Minimum of 2” depth for basket tray. iv. Communications Outlets
  2. Yokes (106-style frames) a. Panduit # CF1062EIY (Duplex Yoke, Electric Ivory)

b. Blank inserts, to match yoke color

  1. Hammond® boxes for outlets serving HVAC & Fire Alarm panels a. To discourage tampering and permit tool-less visual inspection of patch cord connections to these outlets, provide and install the following: i. Panduit # CBXZEI-AY plenum-rated surface-mount outlet inside the following special j-box. ii. Hammond Manufacturing # 1554H2GYCL (hyperlink) j-box with clear cover, to house the Panduit outlet. Connect this box with 1” E.M.T. conduit to the HVAC or Fire alarm panel (to be less than 3- foot between j-box and HVAC/FA panel; to contain patch cord(s)).
  2. CATV a. F-type F/F bulkhead installed in a stainless (must be metal) blank wall plate secured with nuts and lock washers on front and back of wall plate i. Toner P/N: WP- 81 - SS Metallic or equivalent
  3. Fiber work area outlets (see “Fiber Optic Cable” section) v. Communications Room Hardware
  4. Rack systems and hardware: Panduit™
  5. Fiber Optic Panels a. Shall be Corning #PCH b. SC housing adapters (bulkheads) shall be installed in the connector plates with their key slots facing up.
  6. Communications backboard a. All communications backboards shall be 3/4" plywood, AC grade. b. Backboard shall be painted off-white with fire retardant paint on all sides and edges—DON’T PAINT CERTIFICATION STAMP! c. Backboard shall be mounted with the “C” side against the wall.
  7. D-rings a. 2" metal 'D' ring. Allentel P/N GB13A, CPI or equivalent. b. 3" metal 'D' ring. Allentel P/N GB13B, CPI or equivalent. c. 5" metal 'D' ring. Allentel P/N GB13C, CPI or equivalent. vi. Fire-stopping
  1. Listed removable fire-stopping shall be used at all locations where fire-stopping is required by local codes and shall be used in full compliance with the manufacturer’s instructions. Verify with CCI to match the fire stopping method with the location installed. a. Pillows: i. SpecSeal Product P/N: SSB26: 9” lengths or equivalent b. Cable Pathway through Wall Penetrations: i. Pensil Series P/N: PEN 200 Foam or equivalent, or… ii. Fire rated pathways (shall not contain electrical cabling):
  2. For more than two UTP cables, use STI EZ-Path®; according to manufacturer’s guidelines.
  3. For more one or two UTP cables, use SpecSeal Ready® fire stop grommet (# RFG2); may be used with a maximum of (2) Category- 6 A cables (grommet needs to be able to slide along cable into place) c. Putty: i. SpecSeal Series P/N: SSP Putty or equivalent vii. Miscellaneous
  4. J-hooks a. Minimum size 1-5/8” (Erico “Caddy” P/N: CAT21 or equivalent) viii. Substitutions
  5. Any equipment proposed as equal to that specified shall conform to the standards described here, and the manufacturer must supply proof acceptable to the University in the form of a written guarantee that the equipment substituted meets or exceeds the specifications, and the substitution be accepted in writing by the University c. Procedure i. Removing outlets/cables
  6. Contractor must get email approval from CCI Office to remove cable prior to any disconnection/cutting. Contractor must provide electronic (i.e., email) list of outlet addresses to be removed. ii. Special Procedures for Raised Floors
  7. Cyert Hall Data Center Spaces… The data center spaces are defined as multiple rooms/floors within Cyert Hall including A82, A84, A100, the ECE machine room on the B-level and the North Lab on the 2nd floor a. Before performing work beneath the floor, contact CCI and Dave Kalbaugh ([email protected]) via email so that he is aware (as building manager) and so he, in turn, can coordinate with FMS to have the subfloor sensors disabled. After receiving confirmation that the sensors have been disabled, commence work. After work is completed, contact CCI and Dave again to have sensors re-enabled. Sensors should be re-enabled before the end of each business day. b. Q: What happens if the procedure is not followed? i. A: As the sub floor area is disturbed, debris can become airborne as well as vibrations can be induced from bumping sensors, both of which may trip sensors. When one sensor trips, a building-wide alarm goes off. When a second sensor is tripped, it starts an automated process to turn off power to the data center within seconds. iii. Cable installation

c. for cable stripping and connector installation, use T&B #CST596711(stripping), T&B snap-n-seal tool #SNSUTL i. Alternatively use the T&B all-in-one tool #IT

  1. Fiber Optic Cable a. Use factory terminated/polished pigtails or complete pre-term solution (as part of Corning warranted system) 2.1.1. Labeling for copper UTP cabling and outlets
  2. Cable ID tags shall be provided & printed by CCI
  3. Contractor shall verify patch panel ports for cabling and notify CCI Office a minimum of (3) days before labels are needed.
  4. Labels shall be placed at the following (4) locations: b. Faceplate i. Place above the top jack in the 106-style frame and below the bottom jack; remove all debris with denatured alcohol and allow to dry before applying label. ii. Example of label placement on a typical faceplate… c. Cable jacketing at both cable ends i. “Butterflied” placement 6” from the end of the cable jacketing at both the back of the patch panel and within the outlet box. d. Patch panel port
  5. At cubicles or other office furniture blocking access to outlets: e. An additional label must be placed on the crown of the faceplate (must be cleaned first, for proper adhesion), above the top jack, so that it can be seen from above, looking down between the wall and the furniture. f. Patch cords must be of the same Category cable as the horizontal cabling and labelled on both ends to show the same label as the network outlet to which it is connected. i. CMU Project Managers and their customers shall provide CCI and the communications cabling contractor a marked-up floor plan to show planned activation locations so that labelled patch cords can be installed before outlets are blocked by cubicles or office furniture.
  6. New labeling scheme: We are transitioning to a new labeling scheme for new installations and will still support the existing labelling scheme to maintain existing outlets. The new labelling scheme is described below. g. Here is an example of an outlet label at the at the user's location...

i. This example can be broken down as follows (referring to the characters from left to right) ...

  1. The building # is "142"
  2. The Communications Room is on floor "1"
  3. The Communications Room ID # is "A"
  4. The rack identifier # is "1"
  5. The patch panel identifier # is "2"
  6. The port # is "9" 2.1.2. Testing
  7. It is the contractor’s responsibility to train their personnel on the use of the Fluke Networks®^ testing equipment according to instructions for the testing equipment.
  8. Copper UTP Horizontal Links h. All cables being terminated or re-terminated must be tested. i. All cables/outlets shall be tested with CMU’s or the contractor’s Fluke DTX- 1800 copper tester (owned or rented). CMU’s tester may or may not be available for use. j. Save failed results until problem is fixed. Failed tests in the tester can then be overwritten with the passing tests. k. With the RFQ submittal, the contractor will list the serial numbers of their main unit, their remote unit, and the calibration date (must be current (< 1 year) when testing this project’s cables) Contractor shall use Fluke LinkWare Live service to download cable addresses and then upload(sync) the results. To complete the Panduit warrant process, the contractor must submit these results to Panduit for warranty. l. The tester shall be set up to include the following: i. Test Limit = appropriate ISO Permanent Link certification Autotest
  9. Category- 6 A: “ISO11801 PL2 Class Ea (+All)”
  10. Category-6: “ISO11801 PL Class E (+All)” ii. Record full test with graph iii. Record contractor’s name and operator’s name iv. Record date/time of test v. Use manufacturer’s published NVP for the specific cables under test (choose manufacturer’s exact cable if listed in tester)
  11. The following chart shows the three most common copper UTP cables to be tested on the CMU Campus and the appropriate settings in the Fluke DTX cable tester… Cable Typical Location * Tester Settings Test Limit Cable Type
  1. Uni-directional with main unit in Building Entrance Facility vii. Power Meter:
  2. Use smart remote
  3. Set for correct connector type and number of adapters & splices
  4. “Bi-directional” (tester will prompt to swap connections halfway through the test) I. Save failed results until problem is fixed; include/save picture of both end faces with any failing results (using OTDR’s camera) r. Additional info: i. “Fiber Testing” (Fluke Networks) ii. Fluke networks video on how to clean fiber connectors

II. YouTube Videos:

  1. DSX 5000 Cable Analyzer™ - Setup: By Fluke Networks
  2. DSX 5000 Cable Analyzer™ - Running a Test: By Fluke Networks
  3. Getting Started with the CertiFiber® Pro Optical Loss Test Set
  4. Getting Started with the OptiFiber® Pro OTDR v. Grounding
  5. Grounding Busbars a. Provide grounding conductor (Telecommunications Bonding Backbone (TBB)) from building electric main (Primary Bonding Busbar or PBB; in the MDF) and a Secondary Bonding Busbar or SBB (Panduit # GB2B0306TPI-
  1. in the Telecommunications room(s)
  1. Racks and Cabinets a. Install both a horizontal and a vertical ground bar on each rack and feed the horizontal bar with a #6 AWG green copper conductor (Use Panduit parts; see parts list below) i. Install both strips on the front (equipment mounting side) of rack with the horizontal bar on top of the vertical bar
  2. Labeling a. Telecommunications grounding—at grounding termination points, install Panduit grounding labels (Panduit # LTYK)

3. OUTSIDE PLANT

x. Design Criteria i. Diverse Building Entrance Pathways

  1. It is desired that new buildings have at least two diverse pathways/entrances for two diverse communication cabling feeds. ii. Underground Pathways
  2. Digging, trenching or direct burial activity at any depth requires advance permission from Facilities Management Services (FMS). a. FMS may also require a PA One Call review.
  3. Underground inter-building pathways shall be rigid PVC schedule-40 conduit, 4” minimum trade size and encased in concrete. a. Underground communications conduits shall be completely encased with a minimum of 4” of non-air-entrained, 5 000 psi wet mix concrete. i. Use Carlon® conduit spacers in accordance with manufacturer’s instructions (see Carlon® spacers)

b. Conduits and concrete shall be entirely below the local frost line c. Contractor shall use red powder concrete die to color surface of the wet concrete d. “Caution—Electric Line Buried Below” (or similar) plastic tape shall be installed above the concrete, parallel to the trench, at a depth midway between the top of the concrete and finish grade. i. For trenches wider than 2’, install additional runs of caution tape (one run for each 24” of width). e. Contractor shall provide (via email) digital photos showing the underground conduit run both before and after concrete pour.

  1. A minimum of two (2) conduits shall be provided. At least one conduit shall be left empty for future use.
  2. Each conduit in use shall have a MaxCell 3 - cell Red Thread inner-duct (Part number MXC- 3456 - RD) installed, or equivalent.
  3. Minimum burial depth of each conduit shall be in accordance with local ordinances and NEC Table 300.5.
  4. In utility tunnels and similar spaces, cable ladders or the equivalent shall be used to secure all cabling, inner-duct, etc. Product Number: Multi-Mount Cable Support Arm, Arm support # MM18, Arm # MM14. Made and manufactured by “Underground Devices, INC.” or equivalent.
  5. Unused conduits for future use shall have a durable pull rope tied-off to a trade- size sealing device.
  6. GPS waypoints are to be recorded for new communications pathways. The waypoints are to provided to CCI in electronic format. Waypoints will be plotted by FMCS for maintaining the campus map of all utilities. iii. Enclosures
  7. Consult with CMU CCI Office for design requirements iv. Building and Manhole Entry/Exit
  8. Lightning Protection a. Appropriate lightning protection must be used on all metallic conductors of communications cabling entering a building. i. Must be installed according to: local codes, recommendations of the cabling manufacturer and the manufacturer of the lightning protection device—whichever is more stringent. ii. Must be grounded properly
  9. Communications conduit entering buildings underground must enter through core drilled holes (for new construction, pre-cast holes appropriately sized for the Link- Seal® (see web pages below) product are required) a. Holes through concrete must be smooth, round, and perpendicular ( degrees) to the wall surface (vertically and horizontally). b. Conduit within concrete holes must be straight and concentric—this excludes the oblong part of elbows and offsets.
  10. The following modular/mechanical sealing product must be used (according to the manufacturer’s directions): a. Link-Seal® (Link-Seal® webpage) b. See product ordering/instructions (Link-Seal® installation video) i. The following is an example for our typical entry:
  11. 4” PVC conduit = 4.5” O.D. = 6” core hole = qty. of 10 links of #CS- 300 - C

i. No coaxial cable is to be included on new installations. CATV shall use the last two strands of the Singlemode fiber backbone. b. Damage to existing cable i. In the case of damage to existing coax backbone cable, CMU CCI Office reserves the right to have it replaced with fiber optic cable c. Existing installations and retro-fit i. Underground:

  1. 1/2" semi-flexible coaxial cable, jacketed, flooded a. CommScope# P3- 500 - JCASS b. Times Fiber# T10500JB ii. Aerial:
  2. 1/2" semi-flexible coaxial cable, jacketed a. CommScope# P3 500 JCAM109 (w/ messenger) b. Times Fiber# T10500J iii. Connectors
  3. For P3-500 and T10500 cable use either a Corning/Gilbert PN: GRS- 500 - CH-DU- 03 - T pin type connector or a Corning/Gilbert P/N: GRS- 500 - BAFF-DU- 03 per the system design. d. Splitter Specifications i. 16 - way
  4. 1 GHz bandwidth wall mount 16-way splitter/tap Toner P/N: XGVS-16 or approved equivalent ii. 8 - way
  5. 1 GHz bandwidth strand mount 8-way power passing tap Motorola P/N: FFT- 8 - XX or approved equivalent (XX tap value to be determined by Cable TV group prior to build) ii. Conduit (See “Underground Pathways” above) iii. Enclosures iv. Splices
  6. The splice case shall be flame retardant.
  7. The splice case shall be capable of either straight inline or butt splices option.
  8. Splice cases shall be sized as appropriate (but no larger) for the size of the spliced cable. a. K&B Building Riser Closure, 3M or equal.
  9. The Contractor must have the appropriate 3M splicing tool for splicing 4000 series modules. No substitutions shall be allowed.
  10. 25 pair splicing modules (3M MS2 4000 - C/TR series splicing modules) shall feature an array of U-shaped, phosphor bronze contacts and stainless-steel cut-off blades.
  11. Test entry ports on the front side of each module shall allow for individual testing of individual pairs
  12. Modules shall be filled with a flooding compound. v. Miscellaneous
  13. Duct seal a. Plastic perma-gum duct seal: Anixter P/N 009386, Blackthorn or equal z. Procedure i. Cable installation
  14. Inspect all conduit bends to verify proper radius. Comply with NEC Section 346- 10 for minimum permissible radius and maximum permissible deformation.
  15. Apply a chemically inert lubricant to all cable prior to pulling in conduit.
  1. Do not subject cable to tension greater than that recommended by the manufacturer. Use multi-spool rollers where cable is to be pulled in place around bends. Do not pull reverse bends.
  2. Verify that all conduit, cable tray and/or raceway has been de-burred and properly joined, coupled, and terminated prior to installation of cable. Verify that all conduit, cable tray and/or raceway is clear of foreign matter and substances prior to installation of cable.
  3. Cable loops and bends shall not have a radius less than that recommended by the manufacturer.
  4. All shielded cable shall be insulated. Do not permit shields to contact conduit, raceway, boxes, panels or equipment enclosures.
  5. All cable shall be continuous and splice free for the entire length of the run between designated connections or terminations unless otherwise specified.
  6. Do not obscure access to access doors, hatches, air dampers, valves, cable trays, junction boxes, pull-boxes conduit entries or similar areas of access.
  7. Secure all cable run vertically for continuous distances greater than thirty (30) feet. Provide symmetrical conforming nonmetallic bushings or woven cable grips appropriate to weight of cable(s). ii. Termination and splicing
  8. At designated splices, maintain conductor, strand and binder color code across all splices.
  9. Within buildings, make splices only in designated cable trays, terminal cabinets, on designated equipment backboards or where specifically shown on plans.
  10. (see “Fiber Optic Cable” section) iii. Labeling
  11. Labeling for outside plant cabling and conduits will be provided by CCI and installed by the contractor. Labels shall provide details for “to/”from” locations, type of cable, quantity of conductors or strands, installation date and other details determined by CCI to be of importance
  12. Labels are to be installed... a. On each cable’s jacket within manholes and handholes b. On each cable inside buildings and placed on cable jacket within 2 feet of building entrance or emergence from conduit c. On conduits within 2 feet of conduit termination. iv. Testing (see “ Testing ” section above) v. Grounding
  13. IEEE C62.41 CAT C for lightning strikes
  14. ANSI/IEEE C62.41-1991, 1996; Cascaded Protection
  15. NFPA 780 Compliant System
  16. Article 250 NEC and related articles
  17. Antennas and Masts a. NEC Art. 810 b. NFPA 780

4. Fiber Optic Cable

aa. General i. All multimode shall be the 50uM Laser-optimized OM3 type, except within the data centers—where OM4 shall be installed. ii. Pre-terminated (A.K.A.: “Pre-term”) fiber shall ‘one-shop’ manufactured, tested, and certified with documentation. The contractor shall not substitute any components of the requested fiber system including the termination and testing components.
