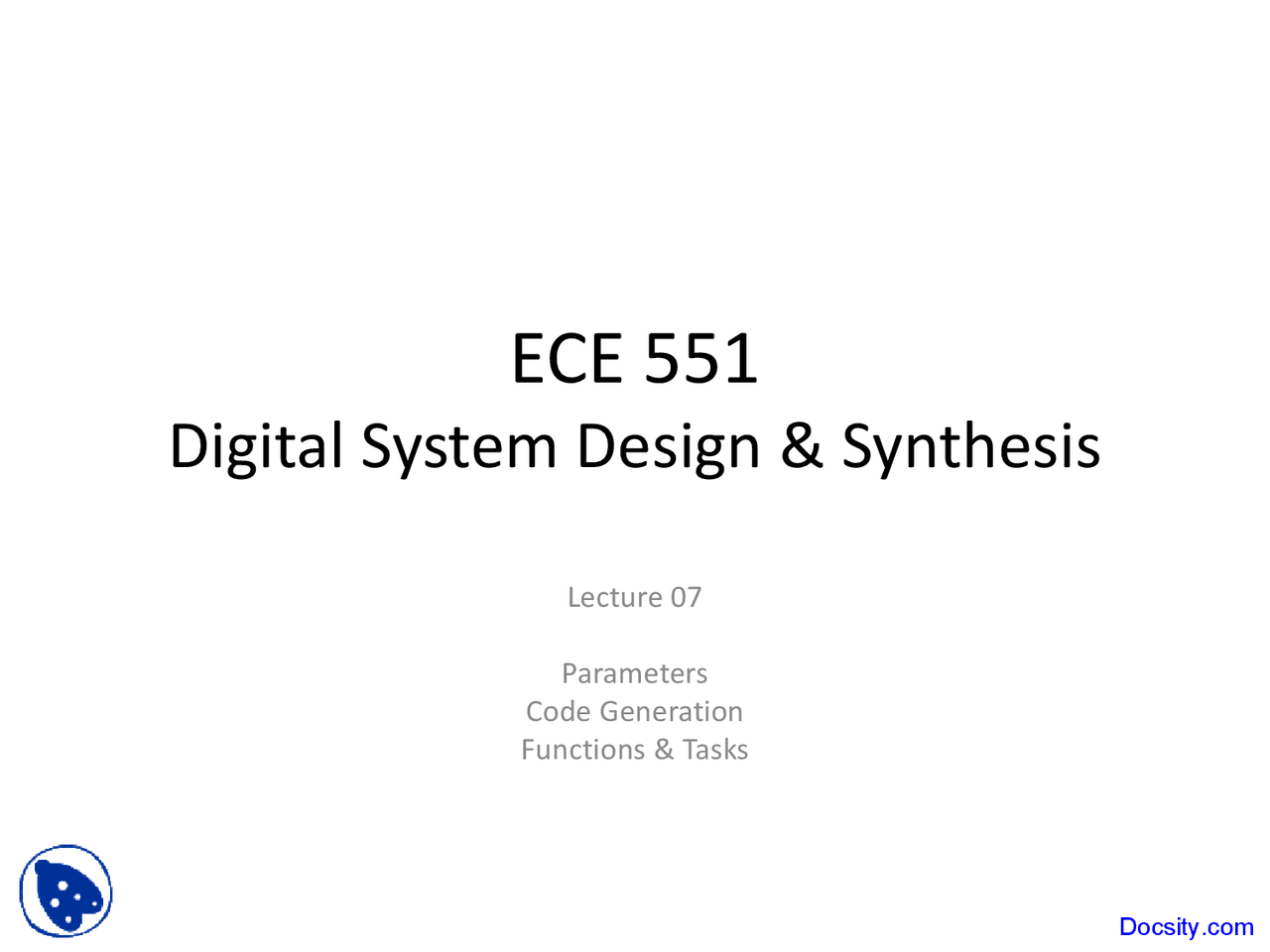

ECE 551

Digital System Design & Synthesis

Lecture 07

Parameters Code Generation Functions & Tasks

Elaboration of Verilog Code

Overview

• Parameters

• Generated Instantiation

• Functions and Tasks

• ā€œCompilerā€ Directives

Parameters

• Compile-time constant parameters in Verilog

  • In Verilog: parameter N=8’d100;
  • Values are substituted during Elaboration; parameters cannot change value after synthesis

• Can be used for three main reasons

  • Make code more readable
  • Make it easier to update code
  • Improve (re)usability of modules

Reusability/Extensibility of Modules

7

module xor_array(y_out, a, b); parameter SIZE = 8, DELAY = 15; // parameter defaults output [SIZE-1:0] y_out; input [SIZE-1:0] a,b; wire #DELAY y_out = a ^ b; endmodule

xor_array G1 (y1, a1, b1); // use defaults xor_array #(4, 5) G2(y2, a2, b2); // override default parameters // SIZE = 4, DELAY = 5

  • Module instantiations cannot specify delays without

parameter s

  • Where would delays go? What type would they be?

Overriding Parameters

  • Parameters can be overridden
    • Generally done to ā€œresizeā€ module or change its delay
  • Implicitly: override in order of appearance
    • xor_array #(4, 5) G2(y2, a2, b2);
  • Explicitly: name association (preferred)
    • xor_array #(.SIZE(4), .DELAY(5)) G3(y2, a2, b2);
  • Explicitly: defparam
    • defparam G4.SIZE = 4, G4.DELAY = 15;
    • xor_array G4(y2, a2, b2);
  • localparam parameters in a module can’t be overridden
    • localparam SIZE = 8, DELAY = 15;

Parameterized Ripple Carry Adder

10

module RCA(sum, c_out, a, b, c_in); parameter BITS=8; input [BITS-1:0] a, b; input c_in; output [BITS-1:0] sum; output c_out; wire [BITS-1:1] c;

Add_full M[BITS-1:0](sum, {c_out, c[BITS-1:1]}, a, b, {c[BITS-1:1], c_in}); endmodule

ļ‚§ Instantiate a 16-bit ripple-carry adder:

RCA #(.BITS(16)) add_16(sum, carryout, a, b,

carryin);

Parameterized Shift Register [2]

12

module shift_bhv (outbit, out, in, clk, rst);

parameter WIDTH = 8; output [WIDTH-1:0] out; output outbit; input in; always @( posedge clk) begin if (rst) {outbit,out} <= 0; else {outbit,out} <= {out[WIDTH-1:0],in}; end

endmodule

ļ‚§ Instantiate a 16-bit shift register:

shift_bhv #(16) shift_16(shiftbit, shiftout, shiftin, clk, rst);

Generated Instantiation

• Generate statements: control over the

instantiation/creation of

– Modules, gate primitives, continuous assignments,

initial blocks, always blocks, nets and regs

• Generate instantiations are resolved during

Elaboration

– Can alter or replace a piece of code based on

compile-time information

– Before the design is simulated or synthesized

Special Generate Variables

• Index variables used in generate statements;

declared using genvar (e.g., genvar i )

• Useful when developing parameterized

modules

• Can override the parameters to create

different-sized structures

• Easier than creating different structures for all

different possible bitwidths

Generate Loops in LHC Firmware

17

input [CLUSTER_ET_SIZE-1:0] cluster_grid[GRID_X-1:0][GRID_Y-1:0]; wire eg_grid_mask[GRID_X-1:0][GRID_Y-1:0]; wire eg_grid_mask[GRID_X-1:0][GRID_Y-1:0]; …… genvar i, j;

generate begin : mask_gen

for (i = 0; i < GRID_X; i=i+1) begin : xcoord for (j = 0; j < GRID_Y; j=j+1) begin : ycoord

logic [CLUSTER_ET_SIZE-1:0] central_et = cluster_grid[i][j]; assign eg_grid_mask [i][j] = (central_et >= EG_THRESHOLD); assign tau_grid_mask[i][j] = (central_et >= TAU_THRESHOLD);

end end end endgenerate //This must be SystemVerilog. Why?

Accessing Data from other Loops

18

generate for (i = 0; i < GRID_X; i = i + 1) begin : aliasing_x for (j = 0; j < GRID_Y; j = j + 1) begin : aliasing_y

if ((i >= ISO_X1) && (i <= ISO_X2) && (j >= ISO_Y1) && (j <= ISO_Y2)) begin

assign et_array[i-ISO_X1][j-ISO_Y1] = mask_gen.xcoord[i].ycoord[j].central_et ;

assign eg_correction [i-ISO_X1][j-ISO_Y1] = eg_grid_mask[i][j];

assign tau_correction[i-ISO_X1][j-ISO_Y1] = tau_grid_mask[i][j]; end end end endgenerate

Generate-Case

  • A generate-case allows conditional (pre-synthesis)

instantiation using case constructs

  • See Standard 12.1.3 for more details

module adder ( output co, sum, input a, b, ci);

parameter WIDTH = 8; generate case (WIDTH) 1: adder_1bit x1(co, sum, a, b, ci); // 1-bit adder implementation 2: adder_2bit x1(co, sum, a, b, ci); // 2-bit adder implementation default : adder_cla #(WIDTH) x1(co, sum, a, b, ci); endcase

endgenerate

endmodule 20

Can have a ā€œdefaultā€ in a generate-case

Generate a Pipeline [Part 1]

21

module pipeline(out, in, clk, rst); parameter BITS = 8; parameter STAGES = 4; input [BITS-1:0] in; output [BITS-1:0] out; wire [BITS-1:0] stagein [0:STAGES-1]; // value from previous stage reg [BITS-1:0] stage [0:STAGES-1]; // pipeline registers

assign stagein[0] = in; generate genvar s; for (s = 1; s < STAGES; s = s + 1) begin : stageinput assign stagein[s] = stage[s-1]; end endgenerate

// continued on next slide
