Computer achiecture and organization, Schemes and Mind Maps of Computer science

Computer science

Computer achiecture and organization

Typology: Schemes and Mind Maps

2021/2022

Uploaded on 11/15/2023

ebram-wagdy
ebram-wagdy 🇪🇬

1 document

1 / 7

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

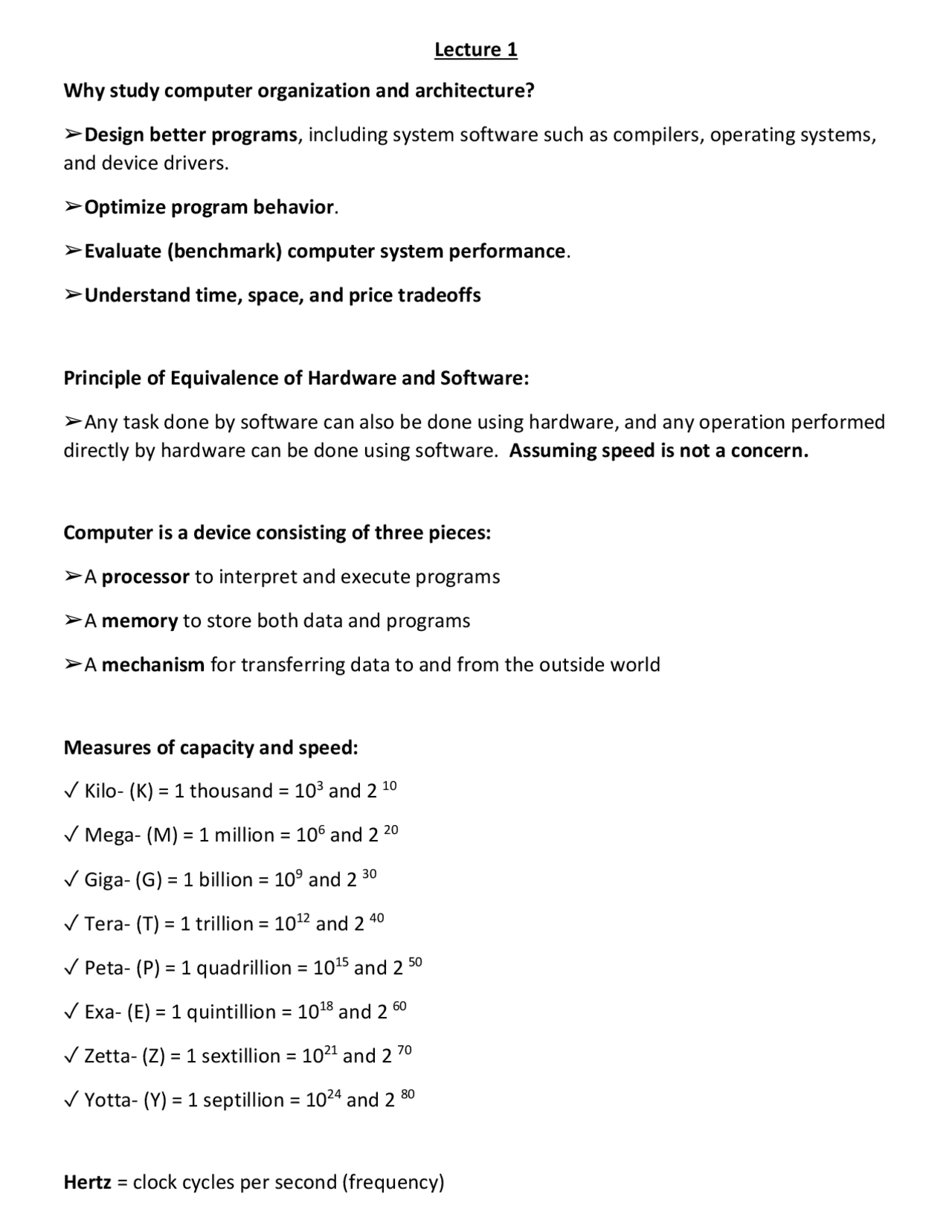

Lecture 1
Why study computer organization and architecture?
➢Design better programs, including system software such as compilers, operating systems,
and device drivers.
➢Optimize program behavior.
➢Evaluate (benchmark) computer system performance.
➢Understand time, space, and price tradeoffs
Principle of Equivalence of Hardware and Software:
➢Any task done by software can also be done using hardware, and any operation performed
directly by hardware can be done using software. Assuming speed is not a concern.
Computer is a device consisting of three pieces:
➢A processor to interpret and execute programs
➢A memory to store both data and programs
➢A mechanism for transferring data to and from the outside world
Measures of capacity and speed:
✓ Kilo- (K) = 1 thousand = 103 and 2 10
✓ Mega- (M) = 1 million = 106 and 2 20
✓ Giga- (G) = 1 billion = 109 and 2 30
✓ Tera- (T) = 1 trillion = 1012 and 2 40
✓ Peta- (P) = 1 quadrillion = 1015 and 2 50
✓ Exa- (E) = 1 quintillion = 1018 and 2 60
✓ Zetta- (Z) = 1 sextillion = 1021 and 2 70
✓ Yotta- (Y) = 1 septillion = 1024 and 2 80
Hertz = clock cycles per second (frequency)
pf3
pf4
pf5

Partial preview of the text

Download Computer achiecture and organization and more Schemes and Mind Maps Computer science in PDF only on Docsity!

Lecture 1 Why study computer organization and architecture? ➢ Design better programs , including system software such as compilers, operating systems, and device drivers. ➢ Optimize program behavior. ➢ Evaluate (benchmark) computer system performance. ➢ Understand time, space, and price tradeoffs Principle of Equivalence of Hardware and Software: ➢Any task done by software can also be done using hardware, and any operation performed directly by hardware can be done using software. Assuming speed is not a concern. Computer is a device consisting of three pieces: ➢A processor to interpret and execute programs ➢A memory to store both data and programs ➢A mechanism for transferring data to and from the outside world Measures of capacity and speed: ✓ Kilo- (K) = 1 thousand = 10^3 and 2 10 ✓ Mega- (M) = 1 million = 10^6 and 2 20 ✓ Giga- (G) = 1 billion = 10^9 and 2 30 ✓ Tera- (T) = 1 trillion = 10^12 and 2 40 ✓ Peta- (P) = 1 quadrillion = 10^15 and 2 50 ✓ Exa- (E) = 1 quintillion = 10^18 and 2 60 ✓ Zetta- (Z) = 1 sextillion = 10^21 and 2 70 ✓ Yotta- (Y) = 1 septillion = 10^24 and 2 80 Hertz = clock cycles per second (frequency)

✓ 1MHz = 1,000,000 Hz ✓ Processor speeds are measured in MHz or GHz. Byte = a unit of storage ✓ 1KB = 2 10 = 1024 Bytes ✓ 1GB = 2 30 = 1,099,511,627,776 Bytes Main memory (RAM) is measured in GB. Disk storage is measured in GB for small systems , TB (2 40 ) for large systems. Measures of time and space: ➢Milli- (m) = 1 thousandth = 10- 3 ➢Micro- () = 1 millionth = 10- 6 ➢Nano- (n) = 1 billionth = 10- 9 ➢Pico- (p) = 1 trillionth = 10- 12 ➢Femto- (f) = 1 quadrillionth = 10- 15 ➢Atto- (a) = 1 quintillionth = 10- 18 ➢Zepto- (z) = 1 sextillionth = 10- 21 ➢Yocto- (y) = 1 septillionth = 10- 2 ➢ Circuits on computer chips are measured in microns. (space) ➢ Main memory access times are often 50 to 70 nanoseconds. (time) Ex: bus operating at 133MHz has a cycle time of 7.52 (1/133,000,000) nanoseconds: 133,000,000 cycles/second = 7.52 ns/cycle

The First Generation : Vacuum Tube Computers The Second Generation : Transistorized Computers The Third Generation : Integrated Circuit Computers The Fourth Generation : VLSI Computers The ENIAC was the first general-purpose computer. Computer manufacturers of The Third Generation were characterized as IBM and the BUNCH (Burroughs, Unisys, NCR, Control Data, and Honeywell). Moore’s Law (1965) ➢ Gordon Moore, Intel founder ➢ “The density of transistors in an integrated circuit will double every year.” ▪ Contemporary version: ➢ “The density of silicon chips doubles every 18 months.” ▪ But this “law” cannot hold forever .. Rock’s Law ➢ Arthur Rock, Intel financier ➢ “The cost of capital equipment to build semiconductors will double every 4 years.” ➢ In 1968, a new chip plant cost about $12, In 2012, a chip plants under construction cost well over $5 billion. For Moore’s Law to hold, Rock’s Law must fall, or vice versa. But no one can say which will give out first.

Lecture 2 The Computer Level Hierarchy:

  • Computers consist of many things besides chips.
  • Computer must use software.
  • Writing complex programs requires a “divide and conquer” approach, where each program module solves a smaller problem.
  • Complex computer systems employ a similar technique through a series of virtual machine layers
  • Each virtual machine layer is an abstraction of the level below it.
  • The machines at each level execute their own instructions, calling upon machines at lower levels to perform tasks as required.
  • Computer circuits ultimately carry out the work**.
  • Level 6:** The User Level – Program execution and user interface level - Level 5: High-Level Language Level – The level with which we write programs in languages such as C, Pascal, Lisp, and Java. - Level 4: Assembly Language Level – Acts upon assembly language produced from Level 5, as well as instructions programmed directly at this level. - Level 3: System Software Level – Controls executing processes on the system. – Protects system resources. – Assembly language instructions often pass-through Level 3 without modification. - Level 2: Machine Level – Also known as the Instruction Set Architecture (ISA) Level. – Consists of instructions that are particular to the architecture of the machine. – Programs written in machine language need no compilers, interpreters, or assemblers. - Level 1: Control Level – A control unit decodes and executes instructions and moves data through the system. – Control units can be microprogrammed or hardwired. – A microprogram is a program written in a low-level language that is implemented by the hardware. – Hardwired control units consist of hardware that directly executes machine instructions.

Fractional values: The quantity ½ is exactly representable in the binary and decimal systems, but is not in the ternary (base 3) numbering system Hexadecimal: A group of four binary digits is called a hextet. Octal: Octal was very useful when computers used six-bit words. Continue Lecture 3 from pdf ….
