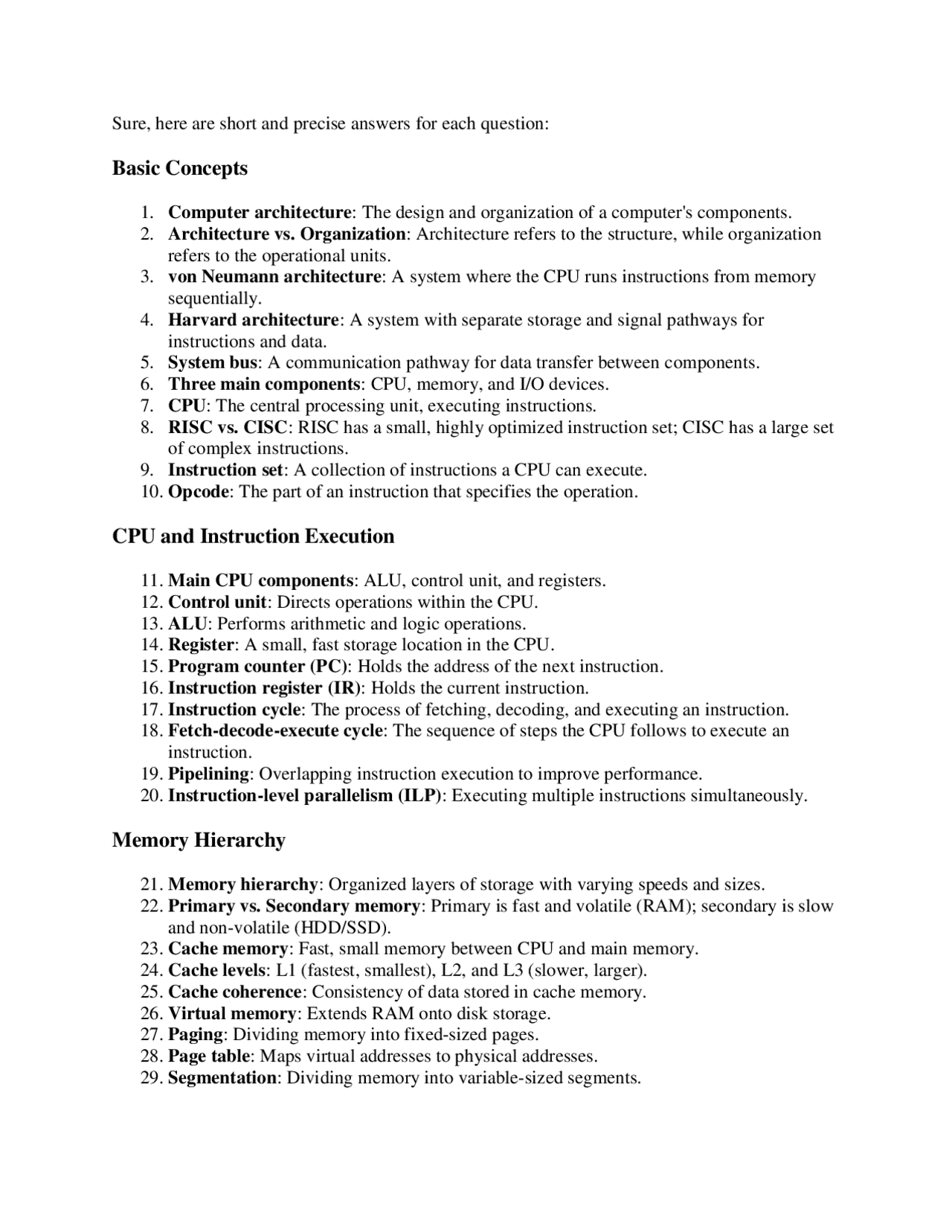

Sure, here are short and precise answers for each question:
Basic Concepts
1. Computer architecture: The design and organization of a computer's components.
2. Architecture vs. Organization: Architecture refers to the structure, while organization
refers to the operational units.
3. von Neumann architecture: A system where the CPU runs instructions from memory
sequentially.
4. Harvard architecture: A system with separate storage and signal pathways for
instructions and data.
5. System bus: A communication pathway for data transfer between components.
6. Three main components: CPU, memory, and I/O devices.
7. CPU: The central processing unit, executing instructions.
8. RISC vs. CISC: RISC has a small, highly optimized instruction set; CISC has a large set
of complex instructions.
9. Instruction set: A collection of instructions a CPU can execute.
10. Opcode: The part of an instruction that specifies the operation.
CPU and Instruction Execution
11. Main CPU components: ALU, control unit, and registers.
12. Control unit: Directs operations within the CPU.
13. ALU: Performs arithmetic and logic operations.
14. Register: A small, fast storage location in the CPU.
15. Program counter (PC): Holds the address of the next instruction.
16. Instruction register (IR): Holds the current instruction.
17. Instruction cycle: The process of fetching, decoding, and executing an instruction.
18. Fetch-decode-execute cycle: The sequence of steps the CPU follows to execute an
instruction.
19. Pipelining: Overlapping instruction execution to improve performance.
20. Instruction-level parallelism (ILP): Executing multiple instructions simultaneously.
Memory Hierarchy
21. Memory hierarchy: Organized layers of storage with varying speeds and sizes.
22. Primary vs. Secondary memory: Primary is fast and volatile (RAM); secondary is slow
and non-volatile (HDD/SSD).
23. Cache memory: Fast, small memory between CPU and main memory.
24. Cache levels: L1 (fastest, smallest), L2, and L3 (slower, larger).
25. Cache coherence: Consistency of data stored in cache memory.
26. Virtual memory: Extends RAM onto disk storage.
27. Paging: Dividing memory into fixed-sized pages.
28. Page table: Maps virtual addresses to physical addresses.
29. Segmentation: Dividing memory into variable-sized segments.
pf3
pf4

Partial preview of the text

Download Computer Architecture and more Exams Computer Science in PDF only on Docsity!

Sure, here are short and precise answers for each question:

Basic Concepts

  1. Computer architecture : The design and organization of a computer's components.
  2. Architecture vs. Organization : Architecture refers to the structure, while organization refers to the operational units.
  3. von Neumann architecture : A system where the CPU runs instructions from memory sequentially.
  4. Harvard architecture : A system with separate storage and signal pathways for instructions and data.
  5. System bus : A communication pathway for data transfer between components.
  6. Three main components : CPU, memory, and I/O devices.
  7. CPU : The central processing unit, executing instructions.
  8. RISC vs. CISC : RISC has a small, highly optimized instruction set; CISC has a large set of complex instructions.
  9. Instruction set : A collection of instructions a CPU can execute.
  10. Opcode : The part of an instruction that specifies the operation.

CPU and Instruction Execution

  1. Main CPU components : ALU, control unit, and registers.
  2. Control unit : Directs operations within the CPU.
  3. ALU : Performs arithmetic and logic operations.
  4. Register : A small, fast storage location in the CPU.
  5. Program counter (PC) : Holds the address of the next instruction.
  6. Instruction register (IR) : Holds the current instruction.
  7. Instruction cycle : The process of fetching, decoding, and executing an instruction.
  8. Fetch-decode-execute cycle : The sequence of steps the CPU follows to execute an instruction.
  9. Pipelining : Overlapping instruction execution to improve performance.
  10. Instruction-level parallelism (ILP) : Executing multiple instructions simultaneously.

Memory Hierarchy

  1. Memory hierarchy : Organized layers of storage with varying speeds and sizes.
  2. Primary vs. Secondary memory : Primary is fast and volatile (RAM); secondary is slow and non-volatile (HDD/SSD).
  3. Cache memory : Fast, small memory between CPU and main memory.
  4. Cache levels : L1 (fastest, smallest), L2, and L3 (slower, larger).
  5. Cache coherence : Consistency of data stored in cache memory.
  6. Virtual memory : Extends RAM onto disk storage.
  7. Paging : Dividing memory into fixed-sized pages.
  8. Page table : Maps virtual addresses to physical addresses.
  9. Segmentation : Dividing memory into variable-sized segments.
  1. SRAM vs. DRAM : SRAM is faster and more expensive, used for cache; DRAM is slower and cheaper, used for main memory.

Input/Output Systems

  1. I/O system : Manages communication between the computer and external devices.
  2. I/O mapping : Assigning memory addresses to I/O devices.
  3. DMA : Direct memory access allows devices to transfer data without CPU intervention.
  4. I/O controller : Manages data flow to and from I/O devices.
  5. Interrupt : A signal that prompts the CPU to stop current tasks and execute a specific piece of code.
  6. Interrupt handling : The process of responding to interrupts.
  7. Polling : Periodically checking the status of an I/O device.
  8. Device driver : Software that controls a hardware device.
  9. Synchronous vs. Asynchronous I/O : Synchronous waits for operation completion; asynchronous does not.
  10. Peripheral device : External device connected to a computer (e.g., keyboard, mouse).

Data Representation

  1. Data representation : The format in which data is stored and processed.
  2. Binary number system : Base-2 numerical system.
  3. Hexadecimal number system : Base-16 numerical system.
  4. Binary to decimal conversion : Summing powers of 2 for each binary digit.
  5. Decimal to binary conversion : Dividing by 2 and recording remainders.
  6. Byte : 8 bits.
  7. Word : The natural data size of a processor (e.g., 32-bit, 64-bit).
  8. Floating-point number : A number with a fractional component.
  9. IEEE 754 : Standard for floating-point arithmetic.
  10. ASCII code : Character encoding standard for text.

Arithmetic and Logic

  1. ALU operations : Addition, subtraction, multiplication, division, and logical operations.
  2. Binary addition : Adding binary numbers using carryover.
  3. Binary subtraction : Subtracting binary numbers using borrow.
  4. Two's complement : A method for representing negative binary numbers.
  5. Arithmetic shift : Shifting bits left/right with sign preservation.
  6. Logical shift : Shifting bits left/right without sign preservation.
  7. Bitwise operations : Operations on binary digits (AND, OR, XOR, NOT).
  8. Boolean expression : An expression that evaluates to true or false.
  9. Logic gate : A hardware device implementing a Boolean function.
  10. AND gate : Outputs true only if all inputs are true.

Control Unit and Microprogramming

  1. FPGA : A reprogrammable hardware chip.
  2. DSP : Digital Signal Processor, used for real-time signal processing.
  3. Cloud computing : Delivering computing services over the internet.
  4. Edge computing : Processing data near its source.
  5. Quantum computing : Computing using quantum-mechanical phenomena.
  6. Machine learning : Algorithms that improve automatically through experience.
  7. Security in architecture : Protecting the integrity, confidentiality, and availability of system resources.
