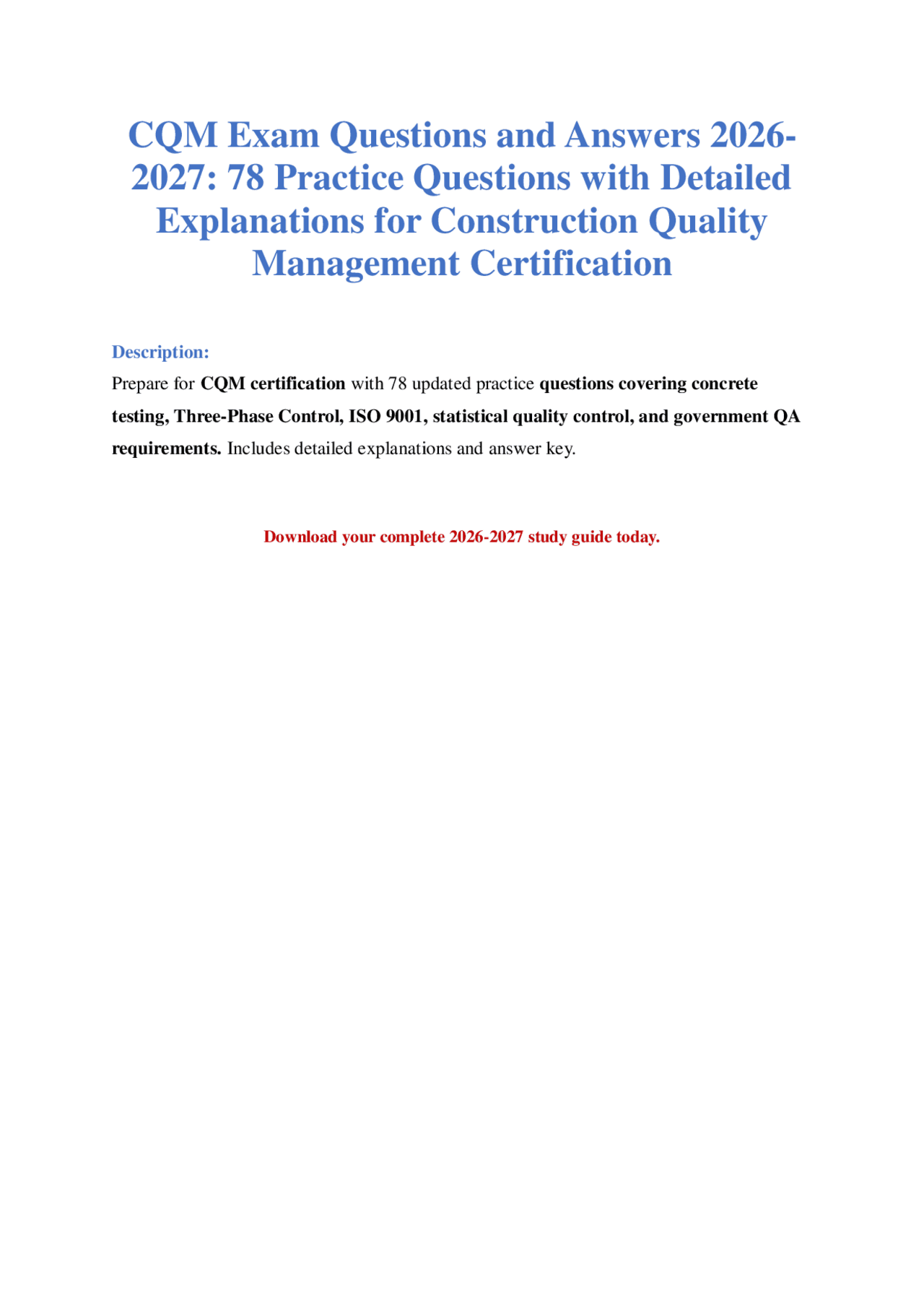

Prepare for CQM certification with 78 updated practice questions covering concrete testing, Three-Phase Control, ISO 9001, statistical quality control, and government QA requirements. Includes detailed explanations and answer key. Construction Quality Management CQM exam questions, CQM practice test 2026-2027 with answers, Quality Control vs Quality Assurance construction, Three-Phase Control system construction, Concrete slump test and compressive strength questions
Typology: Exams
1 / 31
This page cannot be seen from the preview
Don't miss anything!
Description: Prepare for CQM certification with 78 updated practice questions covering concrete testing, Three-Phase Control, ISO 9001, statistical quality control, and government QA requirements. Includes detailed explanations and answer key. Download your complete 2026-2027 study guide today.
Instructions: Answer all questions. Choose the single best answer for multiple-choice questions. For true/false questions, provide a brief explanation for your choice. Part I: Fundamentals of Construction Quality Question 1 In a construction project, the foundational documents that formally establish the quality requirements for materials and workmanship are collectively known as: A) The project schedule and budget. B) The safety manual and site logistics plan. C) The plans and specifications. D) The contractor's internal quality control policy. Answer: C) The plans and specifications. Explanation: The contract drawings (plans) and written specifications are the definitive legal and technical documents that establish the required quality standards for a construction project. All other documents, like schedules and safety plans, support the execution of these requirements. Question 2 What is the primary purpose of a formal Construction Quality Management (CQM) program on a project? A) To ensure the project is completed with the highest possible profit margin for the contractor. B) To guarantee that all construction activities are performed in accordance with the contract's plans and specifications, on schedule, within budget, and in a safe manner. C) To transfer all project risk from the contractor to the government agency. D) To create a comprehensive paper trail for post-project archival purposes only. Answer: B) To guarantee that all construction activities are performed in accordance with the contract's plans and specifications, on schedule, within budget, and in a safe manner. Explanation: CQM is a holistic system designed to ensure project success across multiple dimensions. While a paper trail is a component, and profit is a contractor's goal, the core purpose is integrated project delivery meeting all contractual requirements for quality, time,
verification rather than direct inspection. C) The government can transfer all liability for design errors to the contractor. D) The government can take control of the contractor's daily work schedules. Answer: B) The government's quality assurance efforts become more efficient, focusing on verification rather than direct inspection. Explanation: An effective CQC system means the contractor is managing quality as a process. This allows the government's QA role to shift from finding defects to auditing the contractor's processes and verifying that the CQC system is functioning correctly. This leads to better use of government manpower, fewer deficiencies, and higher client satisfaction. Part II: Roles, Responsibilities, and Management Challenges Question 6 The modern construction industry has become highly specialized due to several converging factors. Which of the following is a primary driver of this specialization? A) A decrease in government regulations. B) The increasing complexity of technology, materials, and building systems. C) A reduction in competition within the industry. D) The standardization of all construction methods. Answer: B) The increasing complexity of technology, materials, and building systems. Explanation: Rapid advancements in technology (e.g., BIM, smart buildings), complex materials, and evolving regulations demand specialized knowledge and skills. This, along with shifting market demands, has moved the industry away from generalist approaches. Question 7 Unlike manufacturing, construction projects are notoriously difficult to manage. A primary reason for this is: A) The repetitive nature of the work. B) The protected environment of a factory setting. C) The unique and temporary nature of each project, subject to variable site conditions and weather. D) The involvement of only a single, small team of workers. Answer: C) The unique and temporary nature of each project, subject to variable site conditions and weather.
Explanation: Every construction project is a prototype built in a unique location. Factors like weather, soil conditions, and the availability of a non-repetitive labor force create variability and uncertainty that are not present in a controlled manufacturing environment. Question 8 Looking toward the future, which factor is predicted to have a growing influence on both government agencies and the construction industry? A) A return to purely paper-based documentation. B) Decreased focus on client satisfaction. C) Greater emphasis on sustainability and LEAD (or equivalent green building) principles. D) A reduction in formal partnerships and collaboration. Answer: C) Greater emphasis on sustainability and LEAD (or equivalent green building) principles. Explanation: Future trends point towards stricter environmental regulations, greater client demand for sustainable buildings, and the integration of advanced management systems. Formal partnering and improved QC/QA will also be key, but sustainability (e.g., LEED, BREEAM) represents a major and growing area of specialization and regulatory focus. Question 9 What is the fundamental difference between "inspection" and "control" in the context of construction quality? A) Inspection is done by the government; control is done by the contractor. B) Inspection is the examination of work, while control is a proactive system for planning and managing activities to achieve quality. C) Inspection happens at the end of the project; control happens at the beginning. D) There is no practical difference; the terms are interchangeable. Answer: B) Inspection is the examination of work, while control is a proactive system for planning and managing activities to achieve quality. Explanation: Inspection is a reactive or verification tool—looking at what has been done. Control is a proactive, ongoing management system focused on planning, organizing, and directing activities to ensure that the desired quality is built into the project from the start. Question 10 True or False: Under a standard construction contract, the government agency bears the primary contractual responsibility for performing quality control.
Part III: Quality Control Plans and Procedures Question 13 What is a Quality Control (QC) Plan? A) A government-issued document that dictates the contractor's every move. B) A non-binding suggestion for how the project might be built. C) A detailed and comprehensive plan, developed by the contractor, which serves as the foundation for all quality-related activities on the project. D) A simple list of required material submittals. Answer: C) A detailed and comprehensive plan, developed by the contractor, which serves as the foundation for all quality-related activities on the project. Explanation: The QC Plan is the contractor's playbook for quality. It outlines the organizational structure, procedures, testing, and documentation that will be used to ensure the work meets contract requirements. It is a contract deliverable and must be accepted by the government before construction begins. Question 14 The "Three-Phase Control" system is a cornerstone of many CQM programs. Which of the following correctly lists the three phases in their proper order? A) Initial, Preparatory, Follow-up B) Preparatory, Initial, Follow-up C) Planning, Execution, Review D) Submittal, Inspection, Testing Answer: B) Preparatory, Initial, Follow-up Explanation: The three-phase system is a structured approach to quality control for each definable feature of work:
Question 15 What is the primary objective of the Post-Award Orientation Conference (often called the Pre-Construction Conference)? A) To finalize the project's budget. B) To introduce the project team and establish the administrative and procedural "ground rules" for executing the contract. C) To allow the government to begin its detailed inspection of the work. D) To give the contractor an opportunity to request additional time. Answer: B) To introduce the project team and establish the administrative and procedural "ground rules" for executing the contract. Explanation: This crucial meeting sets the stage for the entire project. It brings the government and contractor teams together to review the contract requirements, discuss the approved QC plan, establish lines of communication, and clarify roles and responsibilities before construction begins. Question 16 What is the primary purpose of the submittal process (e.g., shop drawings, product data, samples)? A) To slow down the construction process and create paperwork. B) To allow the contractor to change the design without approval. C) To demonstrate that the proposed materials, equipment, and methods comply with the contract requirements before they are purchased or installed. D) To provide the government with a record of what was used after the project is complete. Answer: C) To demonstrate that the proposed materials, equipment, and methods comply with the contract requirements before they are purchased or installed. Explanation: The submittal process is a critical quality control step. It ensures that the specific products and fabrication details the contractor intends to use are reviewed and accepted by the design team, preventing costly and time-consuming rework later. Question 17 According to standard government quality assurance procedures, what is the government's responsibility regarding the review of contractor submittals? A) To review and approve 100% of all submittals for technical accuracy. B) To review and approve only submittals related to the project budget.
Answer: C) Slump test Explanation: The slump test measures the consistency and workability of fresh concrete, indicating how easily the concrete will flow and be placed. The compression test measures hardened concrete strength, the rebound hammer estimates surface hardness, and the Vicat test determines cement setting time. Question 20 What is the standard size of a concrete cube specimen used for compressive strength testing in many international codes? A) 100 mm × 100 mm × 100 mm B) 150 mm × 150 mm × 150 mm C) 200 mm × 200 mm × 200 mm D) 300 mm × 300 mm × 300 mm Answer: B) 150 mm × 150 mm × 150 mm Explanation: The standard concrete cube for compressive strength testing is 150 mm in each dimension. Cylinder specimens (150 mm diameter × 300 mm height) are also common in some standards, but the 150 mm cube is the standard cube size. Question 21 According to IS 456 and similar international standards, what is the minimum recommended curing period for ordinary Portland cement concrete? A) 3 days B) 7 days C) 14 days D) 28 days Answer: B) 7 days Explanation: The minimum curing period for ordinary concrete is typically 7 days. However, 28 days is the standard age for specifying and testing characteristic compressive strength. Special concretes may require extended curing periods. Question 22 For reinforced concrete structures, what is the typical permissible limit of chloride content in concrete to prevent corrosion of reinforcement? A) 0.1% by weight of cement B) 0.2% by weight of cement
C) 0.4% by weight of cement D) 0.6% by weight of cement Answer: B) 0.2% by weight of cement Explanation: Excessive chlorides promote corrosion of steel reinforcement. The permissible limit is generally 0.2% by weight of cement for reinforced concrete structures. More stringent limits apply for prestressed concrete. Question 23 A rebound hammer (Schmidt hammer) test is performed on existing concrete to evaluate: A) The water-cement ratio of the mix B) The approximate compressive strength and surface uniformity C) The complete stress-strain behavior D) The chloride penetration resistance Answer: B) The approximate compressive strength and surface uniformity Explanation: The rebound hammer provides an estimate of concrete surface hardness, which correlates approximately with compressive strength. It is a non-destructive test useful for comparative assessments and uniformity checks but not a substitute for core testing. Question 24 In concrete technology, what does the term "bleeding" refer to? A) The loss of cement paste through formwork joints B) The separation of water from the concrete mix that rises to the surface C) The discoloration of concrete due to chemical attack D) The gradual loss of strength over time Answer: B) The separation of water from the concrete mix that rises to the surface Explanation: Bleeding is a form of segregation where water rises to the surface of freshly placed concrete. Excessive bleeding can create weak surface layers and reduce durability. Question 25 Which admixture is most effective for improving concrete workability without increasing the water content? A) Calcium chloride accelerator B) Air-entraining agent
Question 28 For reinforced concrete work, what is the minimum grade of concrete typically specified as per standards like IS 456? A) M B) M C) M D) M Answer: C) M Explanation: M20 grade concrete (characteristic strength of 20 MPa) is generally the minimum specified for reinforced concrete work. Higher grades are used for more demanding structural applications. Question 29 What is the recommended minimum overlap length for reinforcing bar splicing in tension zones for normal conditions? A) 24 times the bar diameter B) 40 times the bar diameter C) 50 times the bar diameter D) 60 times the bar diameter Answer: B) 40 times the bar diameter Explanation: The typical minimum lap length for bars in tension is about 40 times the bar diameter , though this varies based on concrete grade, bar type, and specific code requirements. Question 30 Which non-destructive test method is most widely used for detecting internal flaws in steel weldments? A) Magnetic particle testing (MT) B) Dye penetrant testing (PT) C) Ultrasonic testing (UT) D) Visual inspection Answer: C) Ultrasonic testing (UT) Explanation: Ultrasonic testing is the most widely applied non-destructive method for
detecting internal flaws in steel welds. It uses high-frequency sound waves to locate discontinuities such as cracks, lack of fusion, and slag inclusions. Question 31 In concrete structure evaluation, at what crack width does it typically require attention and possible treatment according to many codes? A) 0.1 mm B) 0.2 mm C) 0.3 mm D) 1.0 mm Answer: C) 0.3 mm Explanation: Crack widths exceeding 0.3 mm generally require evaluation and possible treatment , as they may affect durability, especially concerning reinforcement corrosion. However, acceptable limits vary based on exposure conditions. Question 32 What does BBS stand for in construction documentation? A) Building Base Specification B) Bar Bending Schedule C) Beam Binding Standard D) Basic Building System Answer: B) Bar Bending Schedule Explanation: BBS stands for Bar Bending Schedule , which is a detailed list of reinforcement bars showing their shape, size, length, quantity, and bending details for a structural element. Question 33 For waterproofing installations, a common requirement before acceptance is: A) Visual inspection only B) A 24-hour ponding or flood test C) Compressive strength testing D) Ultrasonic scanning Answer: B) A 24-hour ponding or flood test Explanation: Waterproofing installations are typically validated by a ponding test where the
Answer: B) The probability that a good-quality lot will be rejected by the sampling plan Explanation: Producer's risk (α) is the probability that a lot meeting the acceptable quality level (AQL) will be erroneously rejected based on the sample results. This is unfavorable to the supplier. Question 37 The consumer's risk in acceptance sampling refers to: A) The probability of accepting a lot that does not meet the quality standard B) The risk of paying too much for materials C) The probability of rejecting a good lot D) The risk of delayed delivery Answer: A) The probability of accepting a lot that does not meet the quality standard Explanation: Consumer's risk (β) is the probability that a bad lot (at the lot tolerance percent defective, LTPD) will be accepted based on the sampling plan. This is unfavorable to the buyer. Question 38 In a single sampling plan with N=2000, n=50, and acceptance number Ac=1, what does Ac= signify? A) One defective item is allowed in the entire lot of 2000 B) The lot is accepted if one or fewer defective items are found in the sample of 50 C) One sample must be tested from each batch D) The acceptance quality limit is 1% defective Answer: B) The lot is accepted if one or fewer defective items are found in the sample of 50 Explanation: The acceptance number (Ac) is the maximum number of defective items allowed in the sample for the lot to be accepted. If more than one defective is found, the lot is rejected. Question 39 An Operating Characteristic (OC) curve for a sampling plan plots: A) Cost versus sample size B) Probability of acceptance versus incoming lot quality (percent defective) C) Time versus number of defects D) Producer risk versus consumer risk
Answer: B) Probability of acceptance versus incoming lot quality (percent defective) Explanation: The OC curve graphically represents the discriminatory power of a sampling plan. It shows the probability that a lot with a given quality level will be accepted by the plan. Question 40 What does AOQL (Average Outgoing Quality Limit) represent in acceptance sampling? A) The average quality of incoming materials B) The worst-case average quality of outgoing products after inspection and replacement of defective items C) The quality level that is always achieved D) The limit of acceptable testing errors Answer: B) The worst-case average quality of outgoing products after inspection and replacement of defective items Explanation: AOQL is the maximum average percent defective in outgoing products after applying a sampling plan that includes rectification of rejected lots. It represents the worst- case average quality the consumer will receive. Question 4 1 When a quality characteristic follows a normal distribution, what percentage of values typically fall within ±3 standard deviations (σ) of the mean? A) 68.26% B) 95.46% C) 99.73% D) 100% Answer: C) 99.73% Explanation: For a normal distribution, approximately 99.73% of all values lie within ± standard deviations from the mean. This property is fundamental to statistical process control and the concept of "three-sigma limits." Question 42 In statistical process control, control charts are primarily used to: A) Set the product price B) Distinguish between common cause and special cause variation
C) Measurement, Maintenance, Manpower, Machinery, Energy D) Motivation, Movement, Manufacturing, Modeling, Evaluation Answer: B) Man, Machine, Material, Method, Environment Explanation: The 4M1E framework categorizes potential causes of quality problems into five areas: Man (personnel), Machine (equipment), Material (inputs), Method (procedures), and Environment (conditions). This systematic approach ensures comprehensive analysis. Question 46 A histogram showing a bimodal distribution (two peaks) in concrete strength test results likely indicates: A) Perfect quality control B) Two different populations mixed together (e.g., different concrete batches or suppliers) C) Normal random variation D) Insufficient sample size Answer: B) Two different populations mixed together (e.g., different concrete batches or suppliers) Explanation: A bimodal distribution suggests that data from two different sources or conditions have been combined. In concrete testing, this could mean results from two different mix designs, suppliers, or curing conditions were grouped together. Question 47 Pareto analysis (80/20 rule) in quality management suggests that: A) 80% of problems are caused by 20% of the potential causes B) 80% of the project budget should be for quality C) 20% of materials cause 80% of defects D) Quality costs are exactly 20% of project cost Answer: A) 80% of problems are caused by 20% of the potential causes Explanation: Pareto analysis states that a majority of problems (roughly 80%) often result from a relatively few causes (about 20%). This principle helps prioritize quality improvement efforts on the most significant issues.
Part VI: Quality Management Systems and Standards Question 48 Which ISO standard provides the requirements for a quality management system that is widely used in the construction industry? A) ISO 14001 B) ISO 45001 C) ISO 9001 D) ISO 50001 Answer: C) ISO 9001 Explanation: ISO 9001 is the international standard specifying requirements for a quality management system (QMS). Organizations use it to demonstrate their ability to consistently provide products and services that meet customer and regulatory requirements. Question 49 The PDCA cycle, which forms the basis of ISO 9001, consists of which four stages? A) Prepare, Develop, Check, Act B) Plan, Do, Check, Act C) Problem, Design, Construct, Approve D) Predict, Document, Control, Audit Answer: B) Plan, Do, Check, Act Explanation: The PDCA cycle (Plan-Do-Check-Act) is the fundamental framework for continuous improvement. Plan establishes objectives; Do implements the plan; Check monitors and measures results; Act takes actions for continual improvement. Question 50 In ISO 9001:2015, which document is considered the highest-level document describing the quality management system? A) Work instruction B) Quality procedure C) Quality manual D) Quality record Answer: C) Quality manual Explanation: The quality manual is the top-level document that outlines the scope of the
