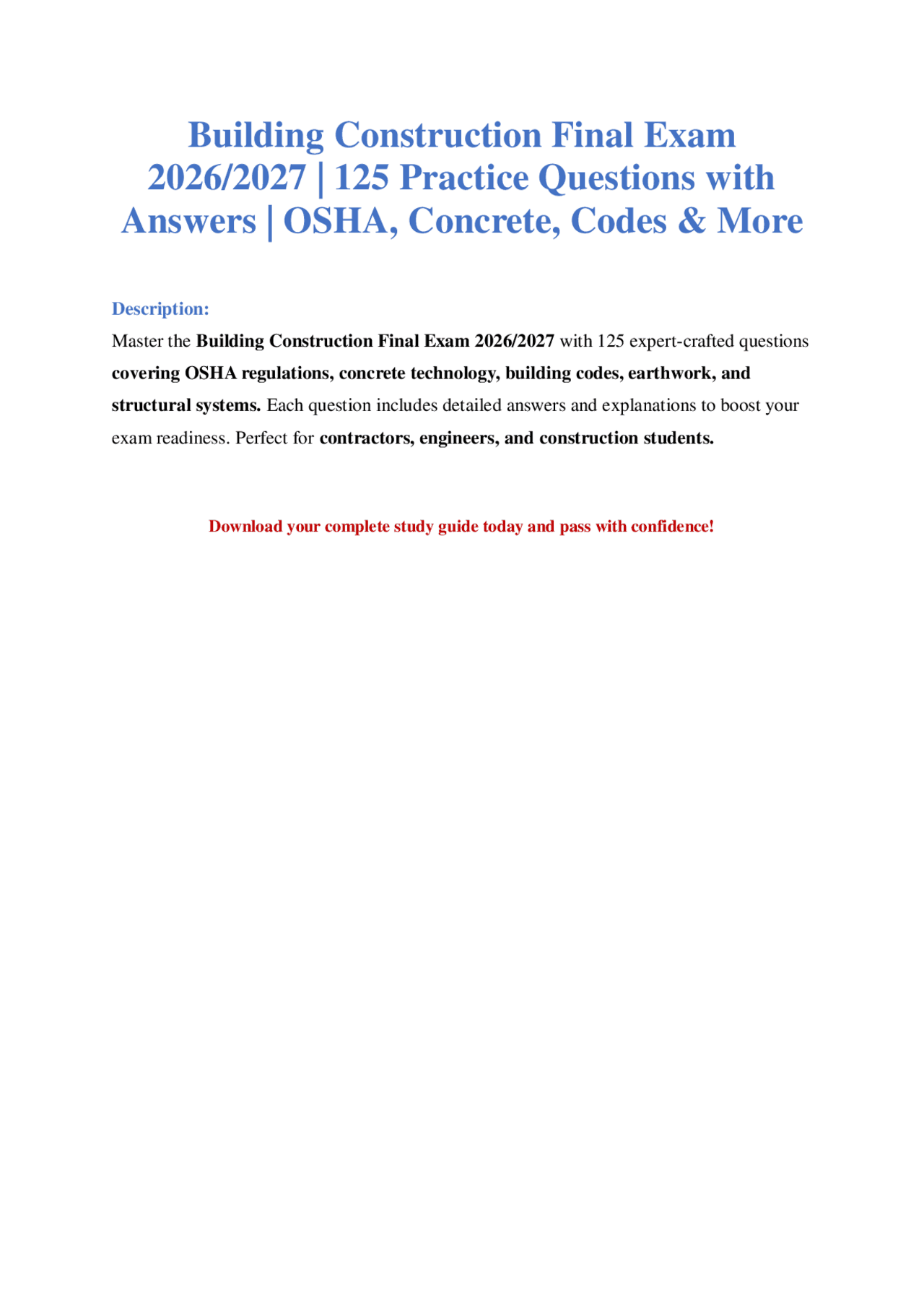

Building Construction Final Exam
2026/2027 | 125 Practice Questions with
Answers | OSHA, Concrete, Codes & More
Description: Master the Building Construction Final Exam 2026/2027 with 125 expert-crafted questions covering OSHA regulations, concrete technology, building codes, earthwork, and structural systems. Each question includes detailed answers and explanations to boost your exam readiness. Perfect for contractors, engineers, and construction students. Download your complete study guide today and pass with confidence!
Building Construction Exam 2026/2027: 125 Questions &
Answers
SECTION A: EARTHWORK AND SITE PREPARATION
1. Well-blasted rock typically exhibits a swell percentage of: A. 10% B. 20% C. 30% D. 40% E. 50% Answer: B. 20% Explanation: Well-blasted rock typically exhibits a swell percentage of approximately 20%, indicating the volume increase that occurs when rock is fractured and loosened from its in- situ state. This swell factor is essential for estimating material handling requirements and hauling capacity in earthwork operations. 2. The preliminary site investigation is usually conducted: A. As a single comprehensive phase B. In two distinct stages C. During the construction phase D. After the building permit is issued E. Only when soil issues are suspected Answer: B. In two distinct stages Explanation: Preliminary site investigations are typically conducted in two stages: an initial desk study and site reconnaissance, followed by a more detailed subsurface investigation. This phased approach allows for cost-effective assessment while ensuring adequate information for foundation design decisions. 3. Excavations located five feet or less from the lot line during the renovation of an existing building shall be enclosed with a barrier not less than _____ feet high: A. 4' B. 5' C. 6'
intervals to compute cut and fill quantities, providing practical accuracy for estimating earthmoving requirements.
6. The swell percentage of well-blasted rock is primarily used to determine: A. The compaction requirements for fill placement B. The volume increase when rock is excavated and loosened C. The moisture content adjustment needed for compaction D. The bearing capacity of the foundation material E. The required depth of excavation Answer: B. The volume increase when rock is excavated and loosened Explanation: The swell percentage of well-blasted rock represents the volume increase that occurs when rock is fractured and loosened from its in-situ state. This factor is essential for estimating material handling requirements, hauling capacity, and storage needs in earthwork operations. 7. In earthwork calculations, which equation correctly represents the swell percentage? A. Swell (%) = ((Soil density in bank / Soil density in loose) - 1) × 100 B. Swell (%) = ((Soil density in loose / Soil density in bank) - 1) × 100 C. Swell (%) = ((Soil density in bank × Soil density in loose) - 1) × 100 D. Swell (%) = ((Soil density in bank / Soil density in compacted) - 1) × 100 E. Swell (%) = ((Soil density in compacted / Soil density in bank) - 1) × 1 00 Answer: A. Swell (%) = ((Soil density in bank / Soil density in loose) - 1) × 100 Explanation: The swell percentage is calculated as the difference between the bank density and loose density, divided by the loose density. This formula quantifies the volume expansion when soil or rock is excavated. 8. The phenomenon where soil volume decreases when compacted from its loose state to a denser condition is known as: A. Swell B. Shrinkage C. Settlement D. Consolidation E. Elastic rebound
Answer: B. Shrinkage Explanation: Shrinkage in earthwork terminology refers to the volume decrease that occurs when soil is compacted from its loose excavated state to a denser condition in an embankment. Contractors must account for shrinkage factors when estimating fill quantities.
9. The formula for shrinkage in earthwork calculations is expressed as: A. Shrinkage (%) = (1 - (Soil density in bank / Soil density in compacted)) × 100 B. Shrinkage (%) = ((Soil density in compacted / Soil density in bank) - 1) × 100 C. Shrinkage (%) = (1 - (Soil density in loose / Soil density in compacted)) × 100 D. Shrinkage (%) = ((Soil density in loose / Soil density in bank) - 1) × 100 E. Shrinkage (%) = (1 - (Soil density in compacted / Soil density in loose)) × 100 Answer: A. Shrinkage (%) = (1 - (Soil density in bank / Soil density in compacted)) × 100 Explanation: Shrinkage percentage is calculated by subtracting the ratio of bank density to compacted density from 1, then multiplying by 100. This formula quantifies the volume reduction that occurs when excavated material is placed and compacted in an embankment. 10. Which of the following represents a common source of error in earthwork estimation? A. Accurate in-place density testing B. Proper identification of unsuitable materials C. Insufficient subsurface exploration and sampling D. Regular surveying of excavation and fill construction E. Clear communication of shrink/swell factor definitions Answer: C. Insufficient subsurface exploration and sampling Explanation: Insufficient subsurface exploration and sampling represents a significant source of error in earthwork estimation. Poor characterization of soil and rock materials during the design phase can lead to inaccurate predictions of material behavior. 11. Geotechnical engineers are responsible for providing all of the following information for earthwork projects EXCEPT: A. Types and distribution of rock and soil materials B. Availability of suitable borrow sources
14. In earthwork calculations, the net excavation is computed by: A. Adding excavation volume to the swell volume B. Subtracting the swell volume from the excavation volume C. Multiplying excavation volume by the shrinkage factor D. Dividing the excavation volume by the swell factor E. Adding excavation volume to the shrinkage volume Answer: A. Adding excavation volume to the swell volume Explanation: Net excavation is computed by adding the swell volume to the original excavation volume. Since excavated material swells when loosened, the net volume available for hauling or placement is the bank volume plus the swell. 15. For a project with net embankment exceeding net excavation, and a borrow source with 15% shrinkage, the borrow amount is calculated by: A. Multiplying the net shortage by (1 - 0.15) B. Dividing the net shortage by (1 - 0.15) C. Multiplying the net shortage by (1 + 0.15) D. Dividing the net shortage by (1 + 0.15) E. Adding the net shortage to the shrinkage volume Answer: B. Dividing the net shortage by (1 - 0.15) Explanation: When importing borrow material with shrinkage, the borrow amount is calculated by dividing the net shortage by the factor (1.0 - shrink factor). This ensures that after the borrow material undergoes shrinkage during compaction, the resulting compacted volume equals the required fill volume. 16. Which of the following is NOT a geotechnical source of error in earthwork estimation? A. Poor in-place materials characterization B. Failure to consider variable ground conditions C. Overstripping of topsoil beneath planned fills D. Poor assessment of risk in reporting density relationships E. Failure to adequately characterize cut/fill transition zones Answer: C. Overstripping of topsoil beneath planned fills
Explanation: Overstripping of topsoil beneath planned fills is a construction-related error rather than a geotechnical source of error. Geotechnical errors stem from issues such as inadequate investigation, improper testing, and failure to characterize subsurface conditions.
17. The apparent shrink/swell factor on a project may be significantly different from the geotechnical laboratory value due to: A. Laboratory testing using only disturbed samples B. Construction practices that substantially impact volume changes C. The use of different measurement units D. Inaccurate moisture content calculations E. Failure to account for seasonal weather patterns Answer: B. Construction practices that substantially impact volume changes Explanation: The apparent shrink/swell factor observed on a project may differ substantially from the geotechnical laboratory value due to construction practices. Factors such as the level of compaction effort, actual lift thickness, and handling losses affect the apparent volume change. **SECTION B: OSHA REGULATIONS AND WORKER SAFETY
- Lifelines in areas subjected to cutting or abrasion shall be a minimum of _____ inch wire core manila rope:** A. 1/ B. 3/ C. 7/ D. 1 E. 1-1/ Answer: C. 7/ Explanation: OSHA requires that lifelines used in areas where they may be subjected to cutting or abrasion be a minimum of 7/8-inch wire core manila rope. The larger diameter and wire core provide additional abrasion resistance and strength in demanding conditions.
D. 10 feet E. 12 feet Answer: B. 6 feet Explanation: OSHA requires safety belt lanyards to have a maximum length that provides for a fall of no greater than 6 feet. This length limitation is critical because falls greater than 6 feet generate significantly higher forces and increase the risk of injury.
22. According to OSHA, all safety belt and lanyard hardware, except rivets, shall be capable of withstanding a tensile loading of: A. 2,000 pounds without cracking B. 3,000 pounds without permanent deformation C. 4,000 pounds without cracking, breaking, or permanent deformation D. 5,000 pounds without failure E. 6,000 pounds without bending Answer: C. 4,000 pounds without cracking, breaking, or permanent deformation Explanation: OSHA requires all safety belt and lanyard hardware to withstand a tensile loading of 4,000 pounds without cracking, breaking, or taking a permanent deformation. This ensures that hardware components maintain their integrity under the forces generated during a fall. 23. Which type of rope is required for lifelines used in rock-scaling operations? A. 3/4-inch manila rope B. 7/8-inch wire core manila rope C. 1-inch nylon rope D. 5/8-inch polypropylene rope E. 3/4-inch wire core polyester rope Answer: B. 7/8-inch wire core manila rope Explanation: Rock-scaling operations present unique hazards where lifelines may be subjected to cutting or abrasion from sharp rocks. OSHA requires a minimum 7/8-inch wire core manila rope for these applications.
24. All excavations made in Type B soil 20 feet or less in depth which have vertically sided lower portions shall be shielded or supported to a height _____ inches above the top of the vertical side: A. At least 12 inches B. At least 18 inches C. At least 24 inches D. At least 30 inches E. At least 36 inches Answer: B. At least 18 inches Explanation: Excavations in Type B soil with vertically sided lower portions require shielding or support extending at least 18 inches above the top of the vertical side. This requirement prevents soil failure from the top of the vertical portion and protects workers from cave-in hazards. 25. The OSHA area office has a maximum of _____ days to assess the penalty for failure to abate a violation: A. 15 days B. 30 days C. 45 days D. 60 days E. 90 days Answer: B. 30 days Explanation: The OSHA area office has a maximum of 30 days to assess penalties for failure to abate violations. This timeframe ensures timely enforcement action while allowing adequate review of non-compliance situations. 26. Barricades for protection of employees shall conform to: A. OSHA standard 1926. B. The Manual on Uniform Traffic Control Devices C. ANSI Z89.1 requirements D. NFPA 70E standards E. ASTM F18 specifications
C. Plastic garbage bags D. Cardboard boxes E. Water-filled containers Answer: B. Approved metal containers Explanation: Oily rags must be stored in approved metal containers with self-closing lids until they can be properly removed from the worksite. This requirement prevents spontaneous combustion and reduces fire hazards associated with oil-soaked materials.
30. Sloping or benching for excavations greater than _____ feet deep shall be designed by a registered professional engineer: A. 10 feet B. 15 feet C. 20 feet D. 25 feet E. 30 feet Answer: C. 20 feet Explanation: Excavations exceeding 20 feet in depth require sloping or benching designs prepared by a registered professional engineer. This requirement addresses the increased complexity and risk associated with deep excavations. 31. The maximum permitted space between rungs, cleats, and steps of portable and fixed ladders is _____ inches: A. 8 inches B. 10 inches C. 12 inches D. 14 inches E. 16 inches Answer: C. 12 inches Explanation: The maximum permitted space between rungs, cleats, and steps of portable and fixed ladders is 12 inches. This spacing provides safe and comfortable climbing by allowing the user to maintain three points of contact while ascending or descending.
32. Simple slope excavations of Type A soil that are 12 feet or less in depth and remain open 24 hours or less shall have a maximum allowable slope of: A. 1:1 (45 degrees) B. 1.5:1 (34 degrees) C. 2:1 (26 degrees) D. 2.5:1 (22 degrees) E. 3:1 (18 degrees) Answer: A. 1:1 (45 degrees) Explanation: For Type A soil excavations 12 feet or less in depth that remain open for 24 hours or less, the maximum allowable slope is 1:1 (45 degrees). Type A soil is the most stable soil type, and the short duration of exposure allows for this steeper slope. 33. When erecting steel structures, there shall be not more than _____ between the erection floor and the uppermost permanent floor: A. 4 stories B. 6 stories C. 8 stories D. 10 stories E. 12 stories Answer: C. 8 stories Explanation: When erecting steel structures, there shall be not more than 8 stories between the erection floor and the uppermost permanent floor. This limitation ensures that erectors are not working at excessive heights above the nearest permanent floor level. **SECTION C: CONCRETE AND REINFORCEMENT
- The calculated fire-resistance rating for a 3.8 inch thick sand and lightweight aggregate precast concrete wall shall be _____ hour(s):** A. 1 hour B. 1.5 hours C. 2 hours D. 2.5 hours E. 3 hours
C. 35%-40%
D. 45%-50%
E. 55%-60%
Answer: C. 35%-40% Explanation: Tack welding of intersecting reinforcing bars reduces the strength of the bars by approximately 35% to 40%. This significant strength reduction occurs due to localized heating effects, metallurgical changes, and potential notch effects at the weld points.
38. Deformations on rebar: A. Are purely decorative B. Improve bond with concrete C. Reduce the weight of the bar D. Indicate the bar grade E. Facilitate bending operations Answer: B. Improve bond with concrete Explanation: Deformations on reinforcing bars are specifically designed to improve the mechanical bond between the steel reinforcement and surrounding concrete. These surface deformations provide interlocking action that enhances stress transfer and composite action. 39. In shotcrete construction, the minimum separation between parallel reinforcing bars #5 or smaller shall be not less than _____ inches: A. 1. B. 2 C. 2. D. 3 E. 3. Answer: C. 2. Explanation: For shotcrete construction, the minimum separation between parallel reinforcing bars #5 or smaller shall be not less than 2.5 inches. This spacing ensures adequate penetration of shotcrete material around the reinforcement and proper encapsulation for bond development.
40. In shotcrete construction, the minimum separation between parallel reinforcing bars larger than #5 shall be not less than: A. 2.5 inches B. 3 inches C. 3.5 inches D. 4 inches E. 4.5 inches Answer: D. 4 inches Explanation: For reinforcing bars larger than #5, the minimum separation in shotcrete construction must be not less than 4 inches. Larger bars require greater spacing to allow adequate shotcrete coverage and prevent rebound material from being trapped around the reinforcement. 41. Contraction joints should extend vertically into a slab to a depth of: A. One-eighth of the slab thickness B. One-quarter of the slab thickness C. One-third of the slab thickness D. One-half of the slab thickness E. Two-thirds of the slab thickness Answer: B. One-quarter of the slab thickness Explanation: Contraction joints should extend vertically into a slab to a depth of approximately one-quarter of the slab thickness. This depth creates a weakened plane that controls cracking due to shrinkage, allowing the slab to crack in a controlled manner. 42. Concrete mixers with _____ or larger loading skips shall be equipped with mechanical devices to clear the skip of materials and guardrails on each side of the skip: A. 1/2 cubic yard B. 3/4 cubic yard C. 1 cubic yard D. 1.5 cubic yards E. 2 cubic yards Answer: C. 1 cubic yard
D. Reducing the cement content in the mix E. Increasing the slump of the concrete Answer: C. Using evaporation retarders and wind breaks Explanation: The most effective way to minimize evaporation and reduce plastic shrinkage cracking in hot weather concrete is through a combination of strategies, including evaporation retarders and wind breaks. These measures directly address the environmental factors that cause rapid moisture loss from the concrete surface.
46. Concrete is allowed to drop freely a maximum of _____ when placed in forms: A. 3 feet B. 4 feet C. 5 feet D. 6 feet E. 8 feet Answer: C. 5 feet Explanation: Concrete is allowed to drop freely a maximum of 5 feet when placed in forms. This limitation prevents segregation of the concrete mixture, where heavier aggregates separate from the lighter cement paste and sand during a long drop. 47. For concrete foundation walls, vertical reinforcement shall be based on a minimum yield strength of: A. 40,000 psi B. 50,000 psi C. 60,000 psi D. 75,000 psi E. 80,000 psi Answer: C. 60,000 psi Explanation: Concrete foundation wall reinforcement requirements are based on Grade 60 reinforcing steel with a minimum yield strength of 60,000 psi. This high-strength reinforcement allows for efficient design while meeting structural performance requirements.
48. When using an internal vibrator in thin concrete slabs, the vibrator should: A. Be operated at the highest possible speed to ensure complete consolidation B. Be inserted at points not exceeding the radius of action for effective consolidation C. Be allowed to contact the formwork to transfer vibration to the entire form D. Be used primarily around the perimeter of the slab E. Be held in the concrete for at least 30 seconds at each insertion point Answer: B. Be inserted at points not exceeding the radius of action for effective consolidation Explanation: The vibrator should be inserted at points not exceeding the radius of action for effective consolidation. Over-vibration or excessive spacing can lead to segregation, surface defects, or incomplete consolidation. **SECTION D: FORMWORK AND SHORING
- In formwork design calculations, the American Concrete Institute recommends using a minimum total load of _____ psf for concrete and equipment when power buggies are being used to transport concrete over exposed rebar:** A. 50 psf B. 75 psf C. 100 psf D. 125 psf E. 150 psf Answer: B. 75 psf Explanation: ACI recommends a minimum total load of 75 psf for concrete and equipment when power buggies are used to transport concrete over exposed reinforcing bars. This live load accounts for the dynamic effects of buggy movement and concentrated loads. 50. Typical deflection limits for formwork components are usually a maximum of L/ but should not exceed _____ inches for sheathing: A. 1/16 inch B. 1/8 inch C. 3/16 inch
