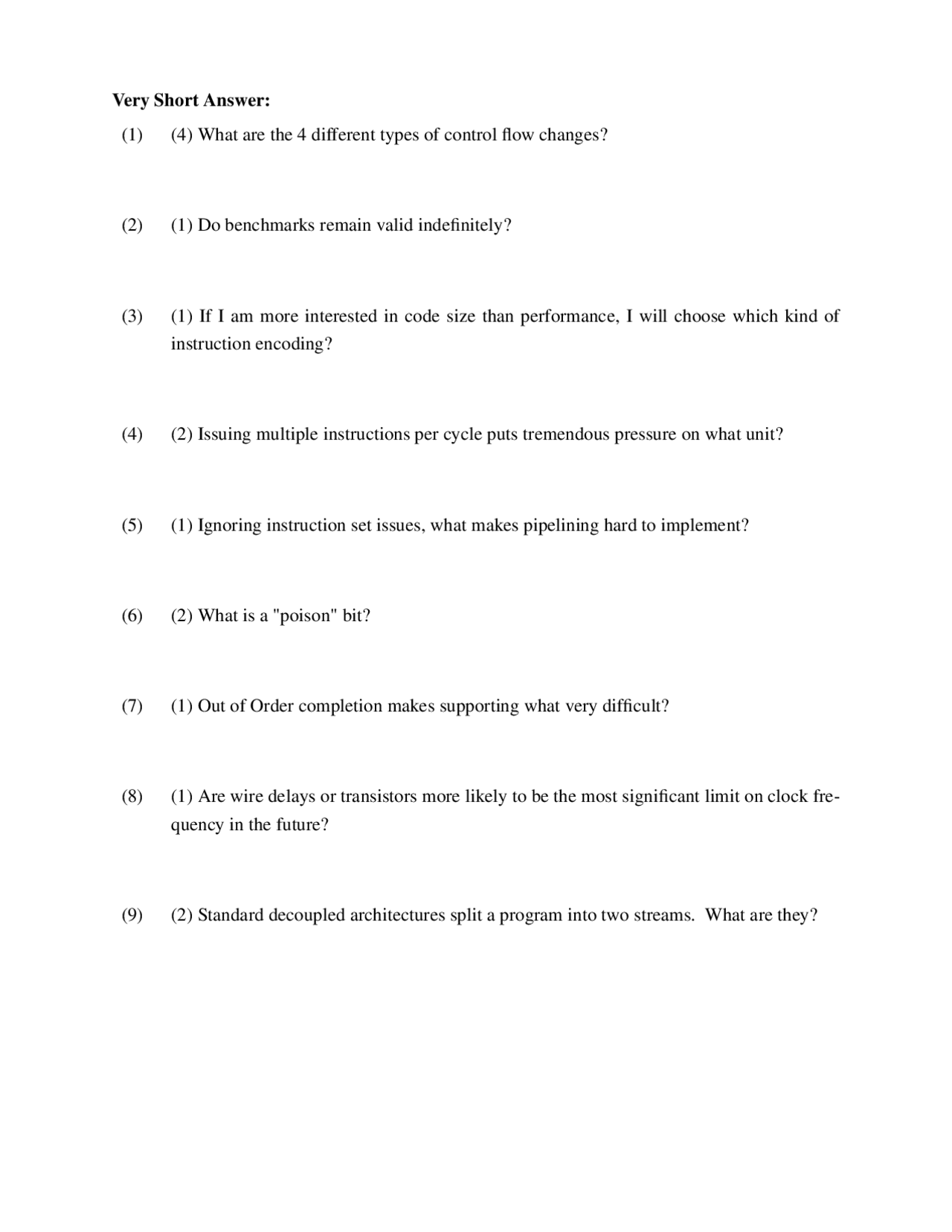

Very Short Answer:
(1) (4) What are the 4 different types of control flowchanges?
(2) (1) Do benchmarks remain valid indefinitely?
(3) (1) If I am more interested in code size than performance, I will choose which kind of
instruction encoding?
(4) (2) Issuing multiple instructions per cycle puts tremendous pressure on what unit?
(5) (1) Ignoring instruction set issues, what makes pipelining hard to implement?
(6) (2) What is a "poison" bit?
(7) (1) Out of Order completion makes supporting what very difficult?
(8) (1) Are wire delays or transistors more likely to be the most significant limit on clock fre-
quencyinthe future?
(9) (2) Standard decoupled architectures split a program into twostreams. What are they?
pf3
pf4
pf5
pf8

Partial preview of the text

Download Computer Architecture: Control Flow, Branch Folding, CPU Performance, Pipelining, Hazards and more Exams Computer Architecture and Organization in PDF only on Docsity!

Very Short Answer:

(1) (4) What are the 4 different types of control flow changes?

(2) (1) Do benchmarks remain valid indefinitely?

(3) (1) If I am more interested in code size than performance, I will choose which kind of

instruction encoding?

(4) (2) Issuing multiple instructions per cycle puts tremendous pressure on what unit?

(5) (1) Ignoring instruction set issues, what makes pipelining hard to implement?

(6) (2) What is a "poison" bit?

(7) (1) Out of Order completion makes supporting what very difficult?

(8) (1) Are wire delays or transistors more likely to be the most significant limit on clock fre-

quency in the future?

(9) (2) Standard decoupled architectures split a program into two streams. What are they?

Short Answers:

(10) (3) Most silicon dies are fairly small. Why are they not bigger?

(11) (3) What is branch folding?

(12) (3) Write down the 3-term CPU performance equation developed in class.

(13) (6) There are 3 kinds of Hazards. List and give brief descriptions of all three.

(14) (6) Predicated instructions cannot eliminate a branch instruction when that branch is part

of what kind of program structure?

(16) (8) Below is a picture of some of the basic components of tomasulo’s algorithm. How-

ever, there are things missing. Draw in what is necessary to complete the picture.

(17) (7) Compare and contrast Superscalar with VLIW. Describe each, and list the advan-

tages and disadvantages of each approach.

(18) (15) On the following page is the table used to describe scoreboarding. The contents of

the table represent the state of the scoreboard at time 4. Your job is to fill in the table at

time 8. Assume at time 8 the 2nd LF completes

(19) (10) Assume that a processor with a single port to memory has a clock rate that is 1.

times higher than the clock rate of the processor with dual ported memory. Data refer-

ences constitute 30% of an instruction mix, and the ideal CPI of a pipelined processor

without any structural hazards is 1. Disregarding any other performance losses, is the

pipeline with or without the structural hazard faster, and by how much?

(20) (10) Suppose we have made the following measurements:

Frequency of floating point operations (other than square root) = 30%

Average CPI of floating point operations = 5.

Average CPI of other instructions = 1.

Frequency of square root = 3%

CPI of square root = 30

You have a choice - decrease the CPI of the square root by an order of magnitude, or

decrease the average CPI of all floating point operations to 2.5. Which one of these

should you do? (Show how you came to this conclusion, obviously! :-)
