Ultimate Exam

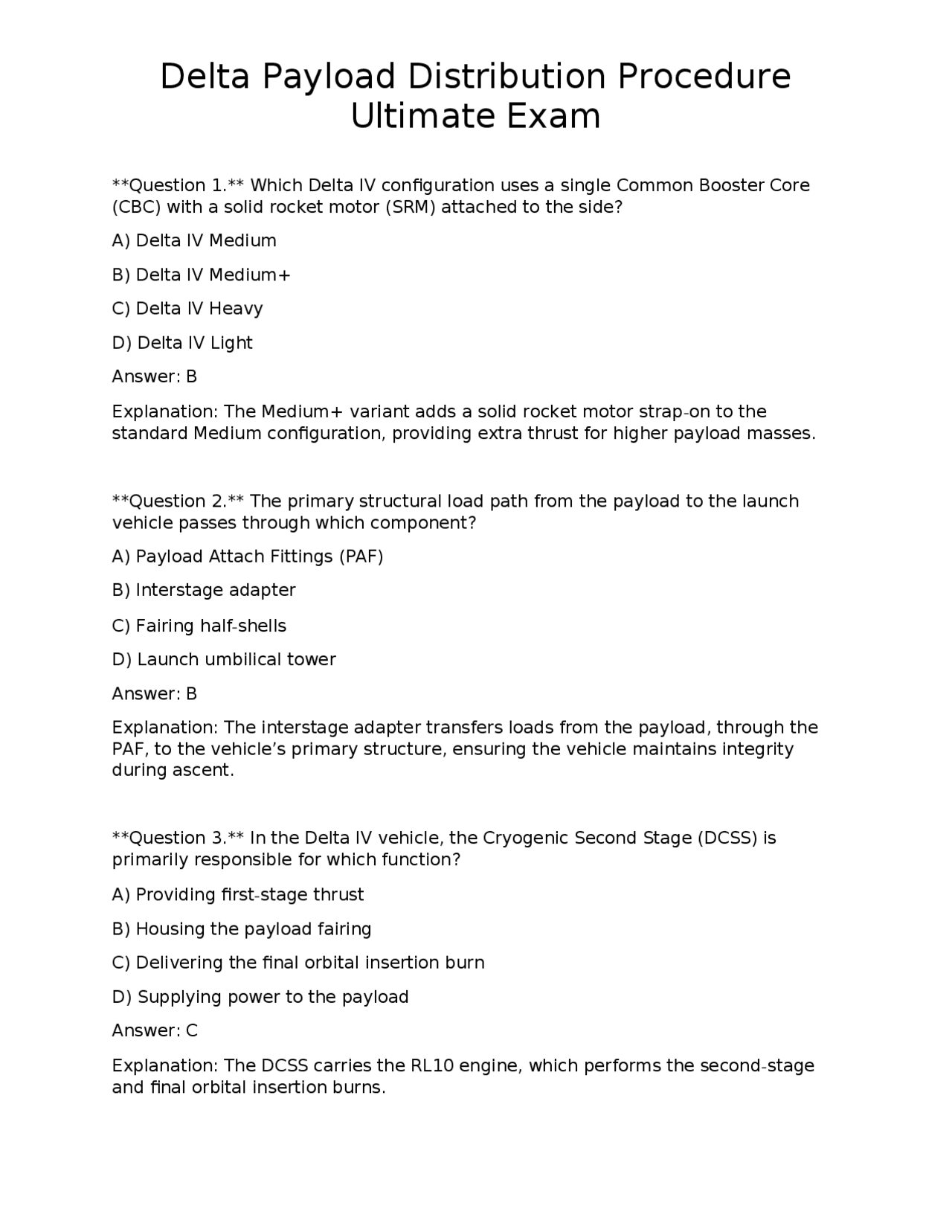

Question 1. Which Delta IV configuration uses a single Common Booster Core (CBC) with a solid rocket motor (SRM) attached to the side? A) Delta IV Medium B) Delta IV Medium+ C) Delta IV Heavy D) Delta IV Light Answer: B Explanation: The Medium+ variant adds a solid rocket motor strap-on to the standard Medium configuration, providing extra thrust for higher payload masses. Question 2. The primary structural load path from the payload to the launch vehicle passes through which component? A) Payload Attach Fittings (PAF) B) Interstage adapter C) Fairing half-shells D) Launch umbilical tower Answer: B Explanation: The interstage adapter transfers loads from the payload, through the PAF, to the vehicle’s primary structure, ensuring the vehicle maintains integrity during ascent. Question 3. In the Delta IV vehicle, the Cryogenic Second Stage (DCSS) is primarily responsible for which function? A) Providing first-stage thrust B) Housing the payload fairing C) Delivering the final orbital insertion burn D) Supplying power to the payload Answer: C Explanation: The DCSS carries the RL10 engine, which performs the second-stage and final orbital insertion burns.
Ultimate Exam
Question 4. Which of the following is a standard bolt-circle interface used on the Delta IV payload attach fittings? A) 24-bolt circle, 150 mm diameter B) 12-bolt circle, 200 mm diameter C) 8-bolt circle, 300 mm diameter D) 16-bolt circle, 250 mm diameter Answer: D Explanation: The Delta IV commonly uses a 16-bolt circle with a 250 mm diameter for its payload interface, allowing standardized mechanical attachment. Question 5. A Marman clamp is used for: A) Electrical grounding of the payload B) Securing the payload to the fairing during launch C) Providing thermal insulation to the payload D) Enabling quick release of the payload after orbit insertion Answer: B Explanation: Marman clamps mechanically lock the payload to the fairing or adapter, ensuring it remains attached throughout launch stresses. Question 6. “Keep-Out” zones on the payload fairing are defined to prevent: A) Excessive aerodynamic heating on the vehicle skin B) Interference with the vehicle’s RF communication antennas C) Physical contact between the payload and the fairing interior D) Over-pressurization of the fairing during ascent Answer: C Explanation: Keep-Out zones are clearance areas that ensure the payload does not contact the fairing interior, avoiding damage from vibration or thermal expansion.
Ultimate Exam
Question 10. The purpose of acoustic blankets inside the payload fairing is to: A) Reduce aerodynamic drag during ascent B) Suppress high-frequency acoustic energy that can damage the payload C) Provide thermal insulation against cryogenic propellant boil-off D) Act as a visual barrier for payload technicians Answer: B Explanation: Acoustic blankets absorb and attenuate intense sound pressure levels generated by the vehicle’s engines, protecting delicate payload components. Question 11. During pad dwell, the payload fairing is typically purged with: A) Helium (He) B) Nitrogen (N₂) C) Gaseous nitrogen (GN₂) D) Carbon dioxide (CO₂) Answer: C Explanation: GN₂ purge maintains a dry, inert environment inside the fairing, preventing moisture and contamination of the payload. Question 12. Which thermal condition is most critical for the payload during ascent after fairing jettison? A) Radiative heating from the sun B) Convective heating from the atmosphere C) Cryogenic cooling from propellant venting D) Thermal shock from rapid pressure drop Answer: B Explanation: After fairing jettison, the payload is exposed to high-speed airflow, causing convective heating that must be managed to avoid overheating.
Ultimate Exam
Question 13. Steady-state G-loads experienced during Main Engine Cutoff (MECO) are typically in the range of: A) 1–2 g B) 3–4 g C) 5–6 g D) 7–8 g Answer: B Explanation: At MECO, the vehicle transitions from powered flight to coast, producing sustained loads around 3–4 g on the structure and payload. Question 14. The most significant transient load event for the payload occurs during: A) First-stage ignition B) Booster separation C) Fairing jettison D) Second-stage ignition Answer: C Explanation: Fairing jettison involves rapid separation forces and shock, creating a sharp transient load on the payload structure. Question 15. In the Horizontal Integration Facility (HIF), the payload is typically encapsulated using: A) A bisector fairing mating process B) A trisector fairing mating process C) A full-cylinder cleanroom enclosure D) A vacuum-sealed container Answer: B Explanation: The Delta IV uses a trisector fairing, where the fairing halves are joined around the payload in three sections before roll-out.
Ultimate Exam
Question 19. The primary function of the moment of inertia (MOI) constraint in Delta IV integration is to: A) Ensure the payload fits within the fairing volume B) Prevent excessive vehicle pitch and yaw during ascent C) Balance the vehicle’s center of gravity for launch pad roll-out D) Optimize the thrust vector control algorithm Answer: B Explanation: MOI limits guarantee that the vehicle’s rotational dynamics remain within controllable bounds, avoiding instability during pitch-over and yaw maneuvers. Question 20. Center-of-gravity (CG) calculations for the integrated vehicle must be performed relative to: A) The launch pad’s ground level B) The vehicle’s aerodynamic center C) The vehicle’s thrust axis at liftoff D) The payload’s geometric center Answer: C Explanation: CG is referenced to the thrust axis because it directly affects the vehicle’s stability and control during the powered phase of flight. Question 21. The Solid Rocket Motor (SRM) burnout and separation sequence typically occurs at an altitude of: A) 10 km B) 30 km C) 50 km D) 70 km Answer: B Explanation: SRM burnout occurs around 30 km, after which the motor is jettisoned to reduce dead weight and aerodynamic drag.
Ultimate Exam
Question 22. The distinction between MECO and SECO is that: A) MECO ends first-stage thrust; SECO ends second-stage thrust B) MECO occurs after payload separation; SECO occurs before fairing jettison C) MECO is a manual command; SECO is autonomous D) MECO triggers the flight termination system; SECO does not Answer: A Explanation: MECO (Main Engine Cutoff) stops the first-stage engine, while SECO (Second Stage Engine Cutoff) stops the second-stage RL10 engine. Question 23. A direct injection orbit insertion differs from a GTO maneuver in that: A) Direct injection places the payload directly into its final orbit without an intermediate transfer orbit B) Direct injection uses only the first stage for orbital insertion C) GTO requires a lunar flyby for energy efficiency D) GTO is only used for low-Earth orbit missions Answer: A Explanation: Direct injection bypasses the geostationary transfer orbit, delivering the satellite straight to its operational altitude. Question 24. The RL10 engine’s restart capability enables: A) Mid-flight orbital correction burns for multi-payload deployments B) Continuous thrust throughout the entire ascent C) Increased thrust during first-stage ignition D) Redundant safety shutdown of the second stage Answer: A Explanation: RL10 can be reignited after coast phases, allowing precise insertion burns or deployment of multiple payloads on separate trajectories.
Ultimate Exam
Explanation: The rule limits launch if the forecasted probability of triggered lightning (which can be induced by the vehicle’s ion trail) exceeds 0.2 % within the next 30 minutes. Question 28. A “No-Go” technical parameter for the Delta Cryogenic Second Stage (DCSS) sensor suite includes: A) Excessive propellant temperature > 250 K B) Pressure sensor reading outside 0.9–1.1 MPa range C) Failure of the PAF torque sensor to register 5 Nm D) Unhealthy health-monitoring telemetry from the RL10 engine Answer: D Explanation: The RL10 health-monitoring telemetry must be nominal; any fault flags a No-Go for proceeding with launch. Question 29. The Flight Termination System (FTS) on Delta IV is activated primarily by: A) A ground-based command from the range safety office B) An automatic onboard fault detection algorithm C) A loss-of-communication event lasting more than 30 seconds D) The vehicle exceeding its planned trajectory envelope by 5 % Answer: A Explanation: The range safety officer issues a command to the FTS to destroy the vehicle if it deviates dangerously from its trajectory. Question 30. Real-time data from the Redundant Inertial Flight Control Assembly (RIFCA) is used to: A) Adjust the payload’s power consumption during ascent B) Provide attitude and navigation information to the flight computer C) Monitor propellant tank pressures in the second stage D) Control the fairing separation timing
Ultimate Exam
Answer: B Explanation: RIFCA supplies high-precision inertial measurements (gyros and accelerometers) for vehicle attitude control and navigation. Question 31. During a launch “scrub,” the primary action taken is: A) Immediate ignition of the first-stage engines at the pad B) Safing the payload and venting the fairing atmosphere while leaving the vehicle on the pad C) Removing the vehicle from the launch pad and returning it to the integration facility D) Transferring the vehicle to a backup launch pad within 24 hours Answer: B Explanation: A scrub postpones the launch; the vehicle is safed, the fairing is vented, and the vehicle remains on the pad until a new launch window is assigned. Question 32. Emergency de-fueling procedures for hypergolic propellants require which of the following steps first? A) Opening the vent valves to purge the tanks with dry nitrogen B) Isolating the propellant lines with shut-off valves C) Activating the fire suppression system in the launch pad D) Removing the payload to a safe distance Answer: B Explanation: Isolating the lines prevents further flow of hazardous propellants, allowing safe venting and removal thereafter. Question 33. The Interface Control Document (ICD) for a Delta IV payload primarily defines: A) The vehicle’s launch trajectory parameters B) Mechanical, electrical, and data interface specifications between payload and vehicle C) The weather forecast requirements for launch day
Ultimate Exam
D) 0.75 m from the payload’s center of mass Answer: C Explanation: To avoid interference with fairing ribs and structural elements, a 0.2 m clearance around antenna deployment hardware is mandated. Question 37. Which acoustic frequency band contributes most to the sound pressure level inside the payload fairing during liftoff? A) 10–30 Hz (low-frequency rumble) B) 100–200 Hz (mid-frequency) C) 500–2000 Hz (high-frequency) D) 5–10 kHz (ultrasonic) Answer: C Explanation: The high-frequency band (500– 2000 Hz) dominates acoustic energy that can cause structural vibration and component fatigue. Question 38. The GN₂ purge flow rate for the payload fairing is typically set to: A) 0.5 lb/min B) 2 lb/min C) 5 lb/min D) 10 lb/min Answer: B Explanation: A 2 lb/min GN₂ flow maintains a dry, inert environment without creating excessive pressure differentials. Question 39. During ascent, the vehicle’s aerodynamic heating is most intense during: A) First-stage ignition B) Max-Q (maximum dynamic pressure) C) Fairing jettison
Ultimate Exam
D) Second-stage ignition Answer: B Explanation: Max-Q represents the point of peak aerodynamic pressure and heating, challenging both vehicle and payload thermal protection. Question 40. The primary purpose of the bisector fairing mating process in a different launch vehicle (not Delta IV) is to: A) Reduce the number of fairing halves from two to one B) Allow the payload to be installed vertically C) Enable a single-piece fairing to be split for transport D) Provide a faster integration timeline than trisector methods Answer: C Explanation: A bisector design splits a single-piece fairing into two halves, simplifying transport and handling compared to a full-cylinder fairing. Question 41. When transferring the encapsulated payload from the HIF to the launch pad, the primary concern is: A) Maintaining humidity at 30 % RH B) Avoiding any lateral shock that could damage the payload structure C) Keeping the payload at cryogenic temperature D) Ensuring continuous power supply during the move Answer: B Explanation: Lateral shocks can cause structural damage or misalignment; careful handling mitigates this risk. Question 42. The moment of inertia (MOI) for the integrated vehicle is measured about which axis for pitch control analysis? A) Longitudinal (roll) axis B) Lateral (pitch) axis C) Vertical (yaw) axis
Ultimate Exam
D) Payload separation Answer: C Explanation: A coast period provides time for thermal and propellant settling before the RL10 can be safely reignited. Question 46. A pneumatic payload separation system relies on: A) Compressed nitrogen stored in high-pressure bottles B) Hydraulic fluid pressure from the first-stage engine turbopumps C) Spring-loaded pistons pre-charged with helium D) Electric motors driving a gear-driven release latch Answer: A Explanation: Pneumatic systems use high-pressure gas (commonly nitrogen) to actuate pistons that push the separation device. Question 47. The “Triggered Lightning” risk is mitigated by: A) Delaying launch until the storm passes completely B) Installing lightning rods on the launch pad C) Using a launch vehicle “ion trail” suppression system D) Monitoring electric field strength and aborting if it exceeds 10 kV/m Answer: D Explanation: Real-time electric field monitoring ensures the vehicle does not create conditions that could trigger a lightning discharge. Question 48. The Flight Readiness Review (FRR) sign-off requires validation of: A) The vehicle’s final paint scheme B) All payload software release versions C) The vehicle’s flight termination system functionality D) The launch pad’s parking lot capacity Answer: C
Ultimate Exam
Explanation: FRR ensures that critical safety systems, especially the FTS, are fully functional before launch. Question 49. The Delta IV launch vehicle’s range safety area is defined by: A) A 10-km radius around the launch pad B) A 200-km radius corridor extending downrange from the launch site C) A 500-km radius sphere centered on the trajectory apex D) An unrestricted global area due to orbital nature Answer: B Explanation: The range safety corridor extends downrange to protect populated areas; any deviation beyond this area triggers FTS activation. Question 50. The primary purpose of the “keep-out” zone for the payload’s thermal radiators is to: A) Prevent radiators from contacting the fairing interior during ascent vibrations B) Ensure radiators are exposed to direct sunlight for pre-flight heating C) Allow space for the deployment of solar arrays after orbit insertion D) Provide a buffer for acoustic blanket installation Answer: A Explanation: Radiators must be protected from mechanical contact that could cause damage or misalignment during launch loads. Question 51. Which of the following constitutes a “technical No-Go” for the payload attach fittings (PAF) sensor suite? A) A torque reading below the minimum spec of 10 Nm during pre-flight check B) A visual inspection showing minor paint blemishes on the PAF housing C) A temperature reading of 22 °C inside the fairing D) A recorded voltage of 28 V on the payload power bus Answer: A
Ultimate Exam
Explanation: The FAA requires a debris mitigation analysis to assess the likelihood of creating long-lived orbital debris. Question 55. The “range safety officer” (RSO) is primarily responsible for: A) Verifying the payload’s scientific objectives B) Authorizing the activation of the Flight Termination System C) Managing the launch pad’s fueling schedule D) Conducting post-flight data analysis Answer: B Explanation: The RSO has the authority to command the FTS to destroy the vehicle if it deviates from its safety corridor. Question 56. In the Delta IV Heavy configuration, the number of CBCs used is: A) One primary CBC only B) Two CBCs (one core, one strap-on) C) Three CBCs (one central core, two boosters) D) Four CBCs (one core, three strap-ons) Answer: C Explanation: The Heavy configuration consists of a central core CBC flanked by two additional CBCs as strap-on boosters. Question 57. The primary function of the launch umbilical tower is to: A) Provide aerodynamic shielding for the vehicle during ascent B) Supply propellant, power, and data connections to the vehicle up to launch commit C) House the vehicle’s flight computer hardware D) Act as a lightning protection mast for the launch pad Answer: B
Ultimate Exam
Explanation: The umbilical tower delivers all necessary services (fuel, power, data) to the vehicle until the moment of liftoff. Question 58. The “max-Q” point typically occurs at an altitude of approximately: A) 5 km B) 15 km C) 30 km D) 50 km Answer: C Explanation: Max-Q is reached around 30 km where dynamic pressure peaks due to the combination of velocity and atmospheric density. Question 59. Which of the following is a standard method to reduce payload vibration during launch? A) Installing additional fuel tanks in the vehicle B) Using vibration isolation mounts between the payload and PAF C) Increasing the thrust of the first stage by 10 % D) Shortening the length of the interstage adapter Answer: B Explanation: Vibration isolation mounts decouple the payload from vehicle vibrations, protecting sensitive instruments. Question 60. The RL10 engine’s specific impulse (Isp) is approximately: A) 250 s B) 300 s C) 450 s D) 500 s Answer: C Explanation: The RL10’s cryogenic combustion yields a high specific impulse near 450 seconds, enabling efficient orbital insertion.
