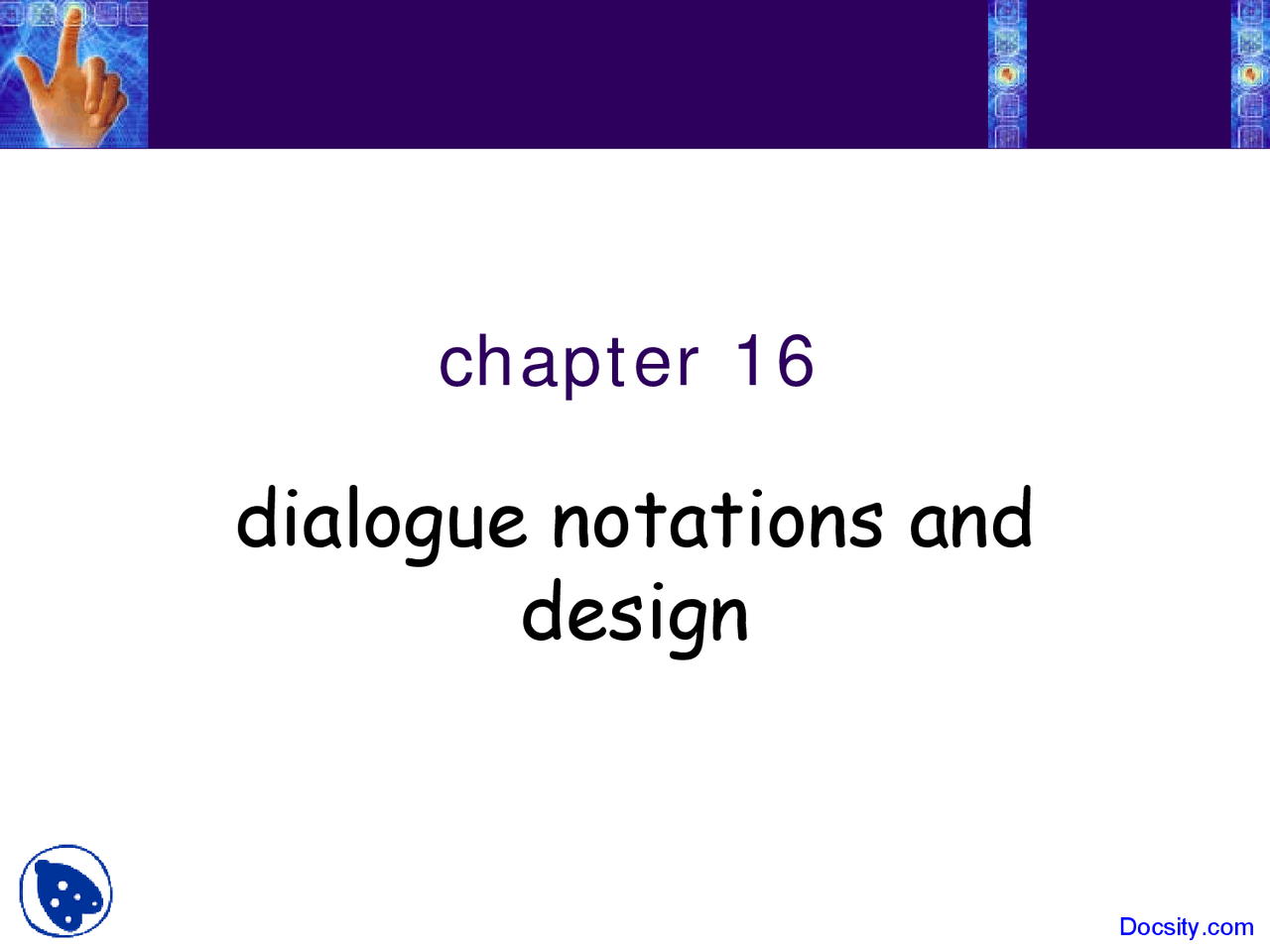

chapter 16
dialogue notations and
design
Dialogue Notations and Design
- Dialogue Notations
- Diagrammatic
- state transition networks, JSD diagrams, flow charts
- Textual
- formal grammars, production rules, CSP
- Diagrammatic
- Dialogue linked to
- the semantics of the system – what it does
- the presentation of the system – how it looks
- Formal descriptions can be analysed
- for inconsistent actions
- for difficult to reverse actions
- for missing actions
- for potential miskeying errors
structured human dialogue
- human-computer dialogue very constrained
- some human-human dialogue formal too …
Minister: do you man’s name take this woman … Man: I do Minister: do you woman’s name take this man … Woman: I do Man: With this ring I thee wed (places ring on womans finger) Woman: With this ring I thee wed (places ring ..) Minister: I now pronounce you man and wife
lessons about dialogue
- wedding service
- sort of script for three parties
- specifies order
- some contributions fixed – “I do”
- others variable – “do you man’s name …”
- instructions for ring concurrent with saying words “with this ring …”
- if you say these words are you married?
- only if in the right place, with marriage licence
- syntax not semantics
dialogue design notations
- dialogue gets buried in the program
- in a big system can we:
- analyse the dialogue:
- can the user always get to see current shopping basket
- change platforms (e.g. Windows/Mac)
- dialogue notations helps us to
- analyse systems
- separate lexical from semantoc
- analyse the dialogue:
- … and before the system is built
- notations help us understand proposed designs
graphical notations
state-transition nets (STN)
Petri nets, state charts
flow charts, JSD diagrams
State transition networks -
events
- arc labels a bit cramped because:
- notation is `state heavy‘
- the events require most detail
Start Menu
Circle 1 Circle 2 Finish
Line 1 Line 2 Finish
select 'circle'
select 'line'
click on centre (^) circumferenceclick on rubber band draw circle
rubber band draw lastline
first pointclick on double click
click on point draw a line
