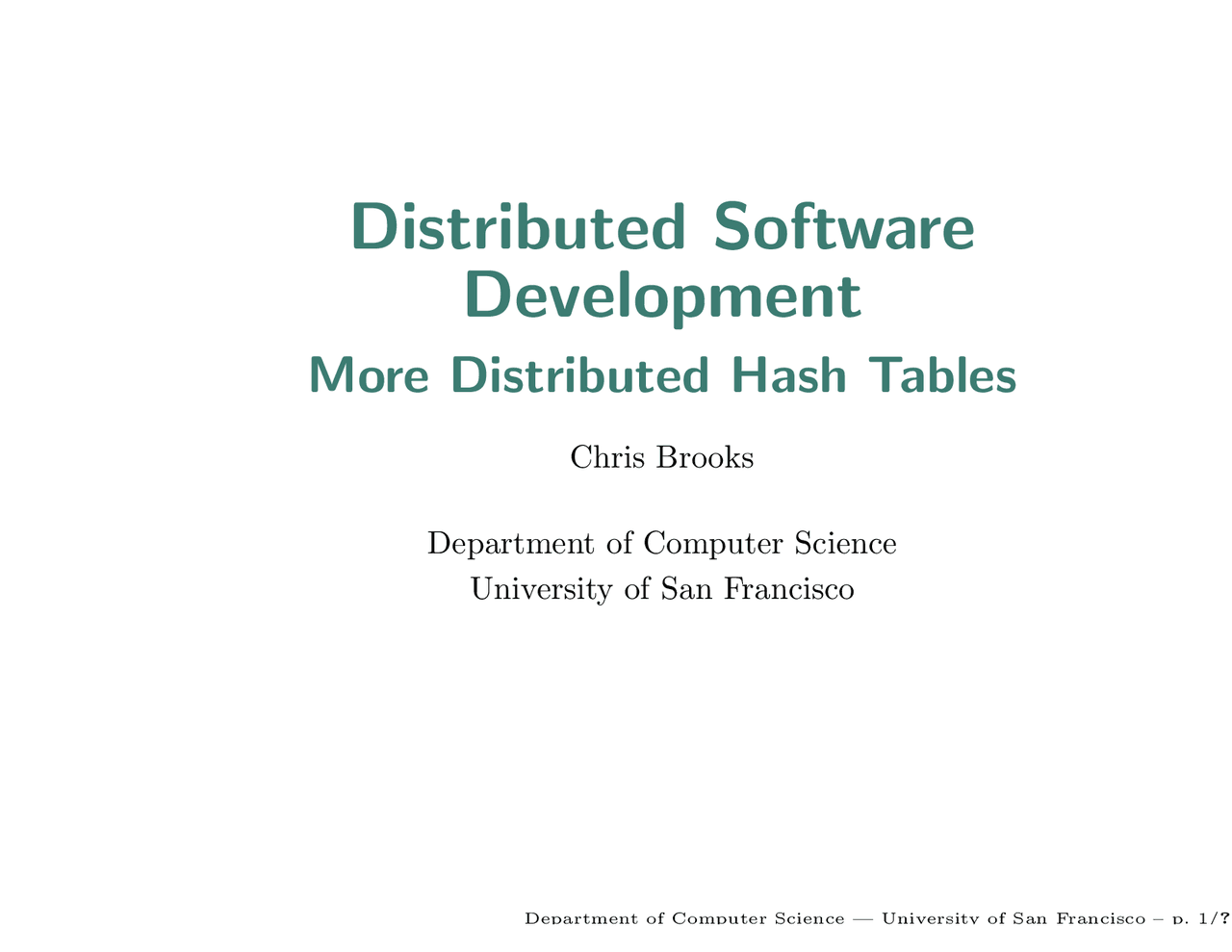

Distributed Software

Development

More Distributed Hash Tables

Chris Brooks Department of Computer ScienceUniversity of San Francisco^ Department of Computer Science — University of San Francisco – p. 1/

Distributed Hash Tables

-^ On Tuesday, we talked about Distributed Hash Tables^ •^

Used Chord as an example

-^ Able to act as a distributed storage and indexing mechanism •^ Maps “keys” (hashes of data) to “values” (coordinates in aspace of nodes.) •^ Each node is responsible for a set of the keyspace.

Department of Computer Science — University of San Francisco – p. 2/

Chord

-^ Recall that Chord uses a 1-D ring to structure the network. •^ Nodes keep a

finger table

that tells them the successors at

various points in the network. • Routing requires

O(logn

)^ messages.

-^ Can tolerate failures through replication of data.

Department of Computer Science — University of San Francisco – p. 4/

CAN

-^ CAN stands for Content Addressable Network •^ Developed at Berkeley at the same time as Chord wasdeveloped at MIT. •^ Also provides hash-table like functionality.^ •^

get, store, delete

Department of Computer Science — University of San Francisco – p. 5/

Example

-^ An example CAN in a 2-Dspace. •^ Node 1 is responsible fordata in the range( (0-0.25), (0.5-1) ) •^ Node 4 is responsible fordata in the range( (0.5-1), (0.5-1) ) Department of Computer Science — University of San Francisco – p. 7/

Routing in CAN

-^ Each node keeps track of the IP address and zone of itsneighbors. •^ A neighbor is a node whose zone overlaps a node in

n^ −^1

dimensions, and abuts it in the

nth dimension.

-^ In our example, 2,3, and 4 are neighbors of 1.^ •^

Remember that the space is really a torus.

-^ Routing is done by greedy search. •^ Always forward the message to the neighbor who is closestto the data, using standard Euclidean distance. (ties brokenrandomly)

Department of Computer Science — University of San Francisco – p. 8/

Node joining

-^ New nodes are added to the system by choosing an existingzone and subdividing it. •^ First, the new node must find an existing bootstrap node. •^ Then it must find its coordinates within CAN •^ Finally, it must update its neighbors’ routing tables.

Department of Computer Science — University of San Francisco – p. 10/

Node joining - bootstrapping • It is assumed that the IP address of at least one currentCAN node is known to the joining node. • The designers use DNS to map a CAN hostname to one ormore CAN nodes. • This bootstrap node can provide the IP addresses of othernodes in the network that can be used as entry points.

Department of Computer Science — University of San Francisco – p. 11/

Node joining - updating neighbors •^ Once the zone has been partitioned, all neighbors need toupdate their routing tables. •^ New node gets the routing table from the node whose zoneit split. •^ Adds node whose zone it split, and removes allnon-neighbors. •^ Split node removes non-neighbors as well. •^ Both nodes send update messages to all affected nodes.

Department of Computer Science — University of San Francisco – p. 13/

Example

-^ Initially, 3’s neighbors are 1,2and 5. •^ 6 joins and splits 3’s zone alongthe x axis. •^ 6 gets 3’s list of neighghbors •^ 6 adds 3 to its neighbor list andsends an update to 1,2, and 5 •^ 3 adds 6 to its list of neighbors •^ 3 removes 1 and 2 from its listof neighbors and sends them anupdate. Department of Computer Science — University of San Francisco – p. 14/

Handling Failure

-^ CAN nodes send periodic “I’m alive” messages to theirneighbors^ •^

Contains a node’s zone coordinates and their neighborsand their coordinates.

-^ If a node does not receive an “I’m alive” message after agiven time period, it begins a takeover.

Department of Computer Science — University of San Francisco – p. 16/

Handling Failure

-^ To begin, it starts a timer^ •^

Length is proportionate to its zone size. • Intuition: we want to merge smaller zones

-^ Once the timer expires, send a TAKEOVER message to allof the failed node’s neighbors. •^ When a TAKEOVER message is received, a node turns offits own timer if the zone volume of the sender is less thanits own. •^ Otherwise, it replies with its own TAKEOVER message.^ •^

Somewhat like leader election.

Department of Computer Science — University of San Francisco – p. 17/

provements: multiple coordinate spac^ •^ One improvement is to maintain multiple coordinate spaces.^ •^ Each node is assigned a different zone in each coordinatespace, or “reality”.^ •^ Contents are replicated for each reality.^ •^ If there are

r^ realities, this means that

r^ copies of the data

are stored in the network. • This provides fault tolerance. • By translating routing messages between realities, nodes canpotentially find shorter-latency routes between nodes.

Department of Computer Science — University of San Francisco – p. 19/

Improved routing metrics

-^ The basic CAN routing algorithm uses greedy search. Itchooses the node that produces the greatest reduction indistance between the present node and the data to be found. •^ An alternative is to also measure the round-trip-timebetween a node and each of its neighbors. •^ When choosing where to forward a packet, select the nodethat maximizes progress over RTT. •^ This favors low-latency paths at the IP level.

Department of Computer Science — University of San Francisco – p. 20/
