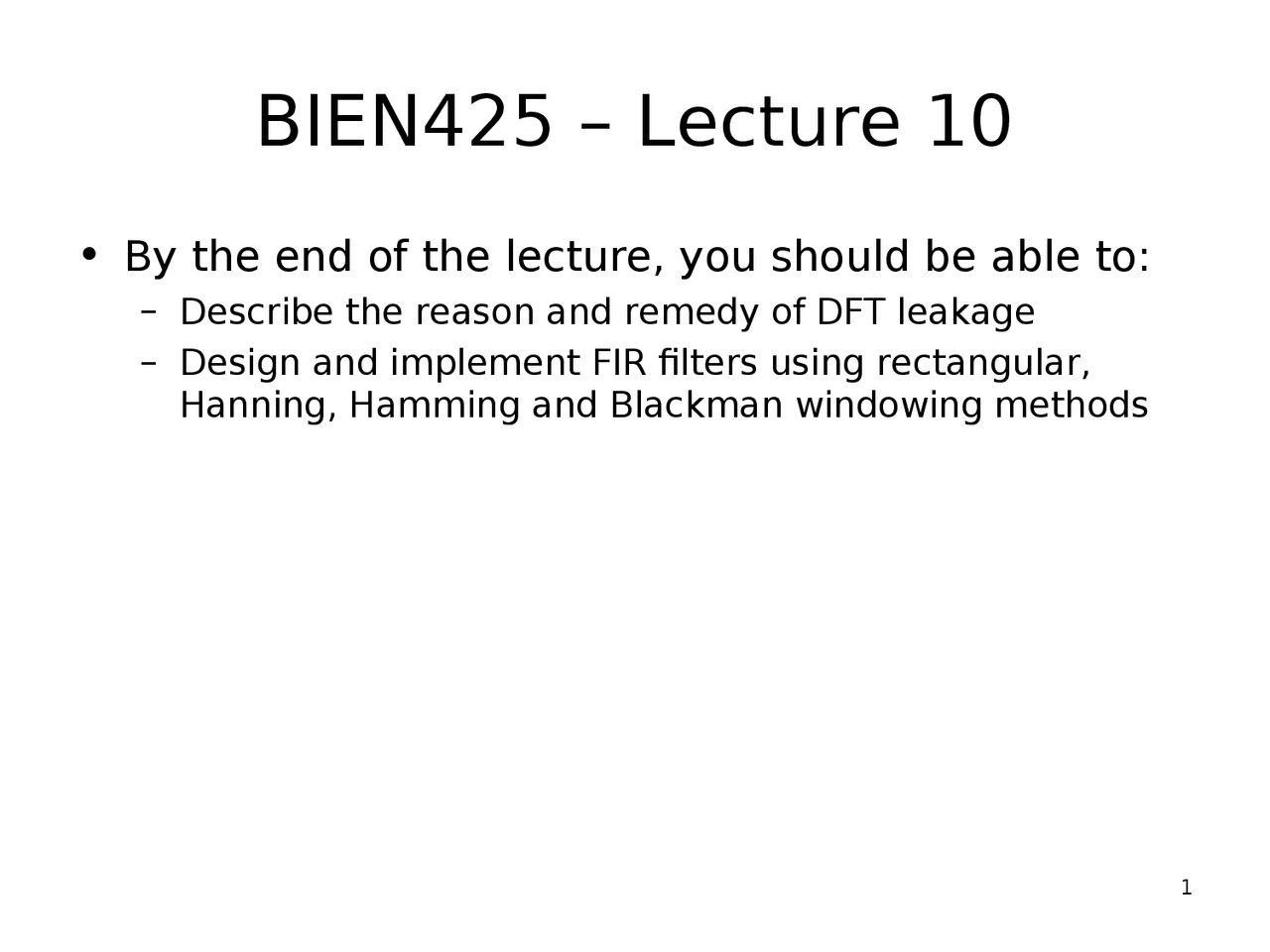

BIEN425 – Lecture 10
•By the end of the lecture, you should be able to:
–Describe the reason and remedy of DFT leakage
–Design and implement FIR filters using rectangular,
Hanning, Hamming and Blackman windowing methods
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
DSP lecture hamming window, Lecture notes of Electronic Technology
digital signal processing hamming lecture
Typology: Lecture notes
2018/2019
1 / 16
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download DSP lecture hamming window and more Lecture notes Electronic Technology in PDF only on Docsity!
BIEN425 – Lecture 10
- (^) By the end of the lecture, you should be able to:
- (^) Describe the reason and remedy of DFT leakage
- (^) Design and implement FIR filters using rectangular, Hanning, Hamming and Blackman windowing methods
DFT leakage
- (^) Leakage occurs because the DFT X(i) produces accurate results only when input data has energy precisely at discrete analysis frequencies given by ifs/ N.
- (^) What happens if input signal has component at intermediate frequencies?
- (^) This is due to correlation between two waves, one of which does not have an integral number of cycles in N points; therefore the sum for the correlation computation is not zero.
Why rectangular windows?
Spectrum of rectangular
window
- (^) For N points and window (unit value) length of K, we can obtain the frequency spectrum which takes the form of Dirichlet Kernel (Lecture10.m) First zero of the mainlobe occurs at n = N/K. Mainlobe
Some windows
- (^) Filter transfer function can be re-written as:
- (^) First we determine h(i) based on our filter specs, then we decide the windows w(i)
- (^) Similarly for Type 3 and 4 linear phase filters:
- To find h(i), simply insert the right form of Ar(f) based on the filter characteristics into the correct equation.
- (^) In general, for Type 1 linear-phase filter with order m=2p, h(k) can be written as follows
General strategy (ideal)
- (^) Pick m
- (^) Pick a window w(i)
- (^) Pick a Type 1 ideal impulse response h(i) from Table 6.
- (^) Compute bi = w(i)h(i)
• Compute H(z)
m i i i H z bz 0
14
Example
-120 0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.
- 0 20 Lowpass filter using Hanning window f/fs A(f) (dB) -120 0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.
0 20 Lowpass filter using Blackman window f/fs A(f) (dB)
16
General strategy (non-ideal)
- (^) Pick m
- (^) Pick a window w(i)
- (^) Pick Ar(f)
- Compute bi = w(i)h(i) based on your filter type (1-4)
- (^) For Type 1 and 2
- (^) For Type 3 and 4
- (^) Compute H(z)
m i i i H z bz 0
