Joshua Krinsky Kevin Martin 12/9/

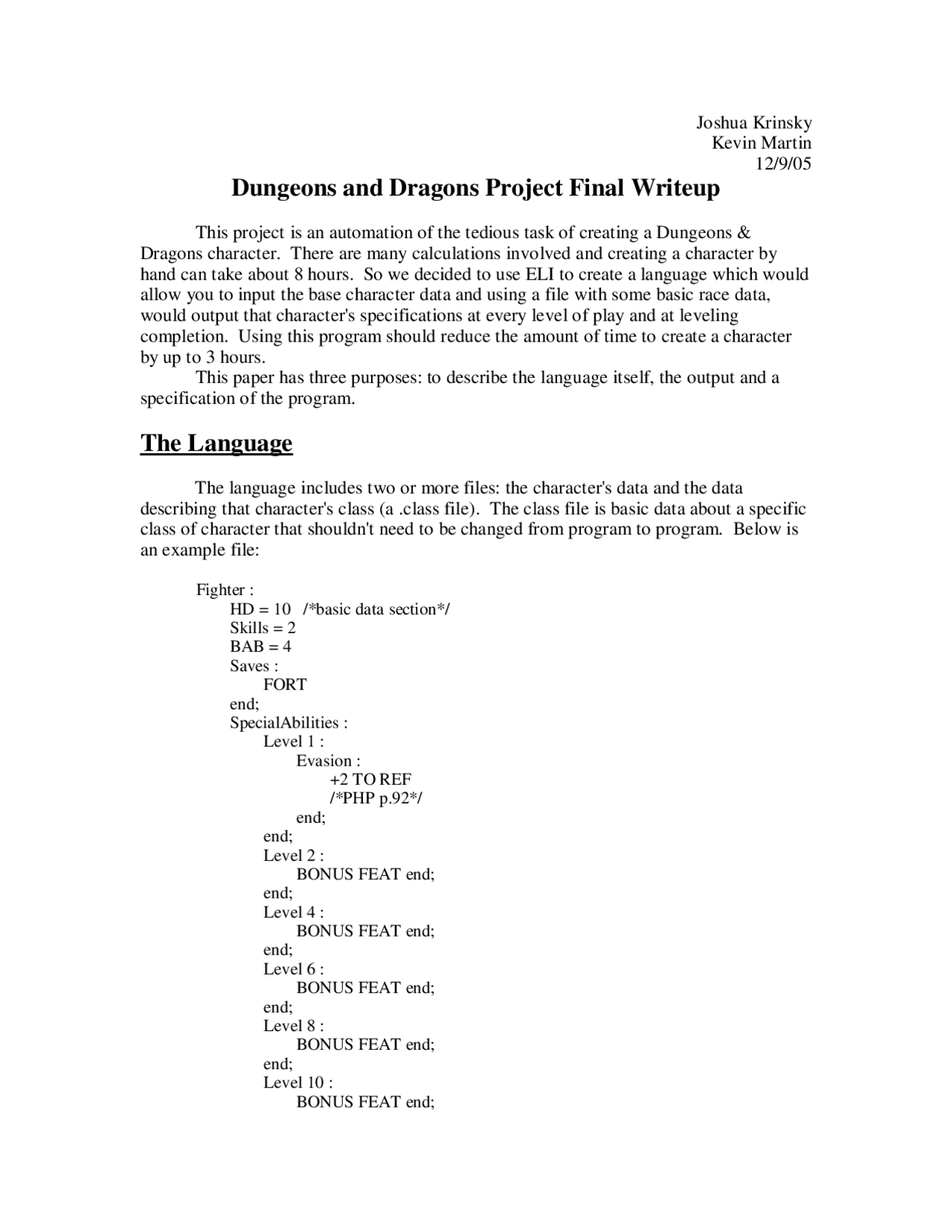

Dungeons and Dragons Project Final Writeup
This project is an automation of the tedious task of creating a Dungeons & Dragons character. There are many calculations involved and creating a character by hand can take about 8 hours. So we decided to use ELI to create a language which would allow you to input the base character data and using a file with some basic race data, would output that character's specifications at every level of play and at leveling completion. Using this program should reduce the amount of time to create a character by up to 3 hours. This paper has three purposes: to describe the language itself, the output and a specification of the program.
The Language
The language includes two or more files: the character's data and the data describing that character's class (a .class file). The class file is basic data about a specific class of character that shouldn't need to be changed from program to program. Below is an example file:
Fighter : HD = 10 /basic data section/ Skills = 2 BAB = 4 Saves : FORT end; SpecialAbilities : Level 1 : Evasion : +2 TO REF /PHP p.92/ end; end; Level 2 : BONUS FEAT end; end; Level 4 : BONUS FEAT end; end; Level 6 : BONUS FEAT end; end; Level 8 : BONUS FEAT end; end; Level 10 : BONUS FEAT end;
end; Level 12 : BONUS FEAT end; end; Level 14 : BONUS FEAT end; end; Level 16 : BONUS FEAT end; end; Level 18 : BONUS FEAT end; end; Level 20 : BONUS FEAT end; end; end; ClassSkills : Climb Craft Handle Animal Intimidate Jump Hide Swim end; end;
The file starts creating a block that starts with the type of class that this file will describe Fighter and ends with an end;. There are then four sections inside this: basic data, Saves , SpecialAbilities , and ClassSkills. The sections begin with the title then colon and ends with an end; except for the basic data section which has all of its parts in a list. The basic data section specifies the amounts of each of the following: HD , Skills , and BAB. HD means hit dice and it specifies the type of die should be used when calculating hit points, in this case a 10 sided die. Skills is the number of skill points that character will receive each level. BAB or the base attack bonus specifies how many increases that character's to hit value gets for every 4 levels. It has a max value of 4. The Saves section specifies the “good saves” or saves that will increase at a higher level than the regular saves. The SpecialAbilities section specifies what feats that the character will receive at each level. One option for each level is to specify the feat itself (in this case Evasion ) which includes an optional modifier to a skill +2 TO REF and a C style comment /PHP p.92/. The other option is to say BONUS FEAT which will allow that class an additional feat from the Feats section of the other input file in addition to the number it would normally get. The last section is the ClassSkills section which specifies the base skills of that class. These skills mean that that skill will increase at a greater rate than normal skills. The main input file of the program is the file that specifies that specific character's data, below is an example:
Group DragonFist :
MagicItems : GlovesOfDex : +4 TO DEX /page 317 DMG/ end; DaggerOFVenom : +2 TO #Dagger +2 TODAMAGE #Dagger /once per day this dagger will coat itself with Scorpion Poison page 297 DMG/ end; end; end; end;
This file allows you to specify multiple characters and their data in a group. You start by specifying the group and its name Group DragonFist and end with an end;. There are then two sections: Group Data and Character. Group Data ends with an end; and specifies the feat progression and the level at which the group is to be calculated to. Feat Progression specifies at what rate feats are to be acquired, in this case every other level. The main section of this file is the Character section of which there can be multiples of. It starts by specifying the character's name Character Pip : and ends with an end;. There are six sections in Character: base information, Weapons , Stats , Skill s, Feats , and Magic Items. They all begin with the title then colon and end with an end;. The base information section has two lines. Race which specifies the race of the character and include which specifies the class input file to use and ends with a ;. The Weapons section specifies the Melee and Ranged weapons that this character will have. The weapon name has to begin with a # and the Dtype 4 (or other number) specifies what sided die should be used to determine what damage is done with that weapon. The Stats section specifies the level of the basic character stats ( STR , DEX , CON , INT , WIS , CHA ) and the Primary Stat. The basic stats, specified with an = and the number, are the basic statistics of that character and are used in almost every other calculation in the program. The Primary Stat specifies what stat will be increased every four levels automatically. The Skills section specifies the skills that this character has and what stat that they modify. After the name of the skill Hide and inside the parentheses there is the stat that will be modified by the skill ( DEX ). The number after the equals specifies when that skill is to be added too, in the case of 4 it will be added to every 4th level. If that skill is in the ClassSkills section of the class file, the stat will be incremented by one otherwise it is incremented by a half. The half value doesn't mean anything to the stat until there are two of them to add together and make one. The Feats section specifies the feat pool from which this character can draw from each level if the Feat Progression says it can or BONUS FEAT is specified in the current level in the class file. The feats are specified by giving the feat name Stealth , a colon and then an end; at the end. A feat can hold a few different things. It has to have a c-style comment /page 104 PHB/ and at least one modifier. The modifier begins with a +2 (or other number) then a TO and then one of a few different values: skills Hide (examples in italics), weapons #Dagger (note that once again the weapon is specified with a # at the
start), weapon damage TODAMAGE #Dagge r(note that there is no space between the TO and the DAMAGE ), saves WILL , stats DEX , armor class AC , and initiative INIT. The MagicItems section specifies the magic items that that character has in its possesion. These are only used in the final calculations and not in the level calculations. They begin with the name and a colon and end with an end;. The insides are the same as a feat: a modifier or modifiers and a c-style comment.
Output
The output has all the data about the group and all characters in it up to the level specified. It starts with the group name and then each character in the group has three sections: title and stat information, level by level details, and the final look.
Group: DragonFist
Name: Pip Race: Halfling Stats: STR: 12 DEX: 18 CON: 14 INT: 10 WIS: 18 CHA: 12
Level 1: +1 BAB +2 FORT Feat(s): Stealth, WeaponFocus Skill(s): +2 Hide, +2 MoveSilently
Level 2: +1 BAB +1 FORT Feat(s): PointBlankShot Skill(s): +0.5 Hide, +0.5 MoveSilently
Final Look:
Name: Pip Race: Halfling Medium-size Humanoid Fighter 2 CR: 2 HD: 1d10+ hp: Initiative: + Speed 30ft. AC: 16 Attacks: #Dagger +6 Melee (1d4+3) #Crossbow +9 Ranged (1d8+1)
X.cnt = 1; Iterator.done = UNTIL GT (X.cnt, INCLUDING Group.Level) ITERATE X.cnt = X.incr;
What this does is iterate any computations that are dependant on the variables in the computation until the statement before the ITERATE is true, doing whatever is after the ITERATE every iteration. In this case, we iterate all computations that depend on X.cnt until the “UNTIL GT (X.cnt, INCLUDING Group.Level)” is true while doing “X.cnt = X.incr” every iteration. This means that until X.cnt is greater than the level you want to go to, iterate X.cnt's computations (one of which is to add 1 to X.incr) and to set X.cnt to X.incr each iteration. To get the computations that we needed in the iteration, we added the following rule: END; RULE : X ::= Character COMPUTE CHAINSTART HEAD.PRO = X.cnt; X.incr = ADD (X.cnt, 1)<-TAIL.PRO; END;
So now we are running through the chain PRO then adding one to X.incr every iteration. The computations in the chain have to do with leveling up such as: skill increases, feat computations, special ability computations, weapon hit score increases, and stat increases.
Strict Dependencies Between Calculations
Every single calculation can be categorized in one of three ways: calculations that need to happen before the iteration begins, calculations that need to happen during the iteration, and calculations that need to happen after the iteration is completed. There are very strict dependencies between these categories because otherwise Eli might decide to do a calculation during the iteration that shouldn't be there and such calculations would run multiple times and would produce incorrect results at the end of the iteration. The calculations that happen before the iterations start are set up calculations for the iteration so that the iteration process can run correctly with the correct values. Below is an example of the code that tests whether the same name was used for the ranged and melee weapons.
RULE : Melee ::= 'Melee' '=' WeaponDef 'Dtype' Number COMPUTE Melee.MKey = WeaponDef.Key<-INCLUDING Character.PreCalc; Melee.NameTest = SetUsed(Melee.MKey, 1, 2); Melee.a = IF (EQ (GetUsed(Melee.MKey,0), 2), message (ERROR, "cannot use same weapon name for both melee and Ranged", 0, COORDREF))<- Melee.NameTest; /* can only use weapon name once */ Melee.PreItr = ORDER( ResetTotal(Melee.MKey, 0), ResetDType(Melee.MKey, Number), ResetDTotal(Melee.MKey, 0), ResetPStat(Melee.MKey, KeyInEnv( INCLUDING Iterator.Env,
MakeName("STR"))))<-Melee.a;
In this example, the three lines: assign to Melee.a, assign to Melee.NameTest, and the message are for testing whether the same name was used for the melee and ranged weapons. This works by seeing if there are any previous occurrences of the name and sending an error if there isn't. If this was to occur during every iteration, it would send an error out every time because the name occurred when it was declared. It would be detecting that initial declaration and not a duplicate every time. We fixed this by making the ORDER statement depend on the completion of Melee.a and also assign to Melee.PreItr, which is setup to be completed before the iterations begin. The calculations that need to be run during the iteration are those that need to occur every time the character levels up. These need to be specifically attached to the chain PRO (Process Right Order), which controls what is done during the iteration. Not only do they have to be attached to the chain, but they have to be attached in a specific order due to the fact that some of the calculations during the level-up can be effected by other calculations during the level-up. One example is the BONUS FEAT ability associated with the character's class (in the class file):
Level 2 : BONUS FEAT end; end;
This node will grant the character an extra feat at this level. In order to ensure that the character gets this extra feat at this level, the special abilities for this character need to be processed before the character's feat. This example demonstrates what happens when the feat is calculated before the special abilities.
(in RULE : Feat ::= FeatName ':' Effects Comments 'end;' COMPUTE)
. SKey = KeyInEnv( INCLUDING Iterator.Env, MakeName("FEAT"))<-INCLUDING Character.PreCalc; Effects.run = FFirstRun(.Key,.SKey)<-Feat.PRO;
(in RULE : Ability ::= 'BONUS FEAT' 'end;' COMPUTE) Ability.PRO = IF (.cond, ResetTotal(KeyInEnv( INCLUDING Iterator.Env, MakeName("FEAT")), ADD(GetTotal(KeyInEnv( INCLUDING Iterator.Env, MakeName("FEAT")),0), 1)));
In the Ability rule, the value stored at the FEAT key holds how many feats can to be assigned in that particular level. So because this is a BONUS FEAT rule, it adds one to the value at the FEAT key. Then in the Feat rule, feats are used only if the value at the FEAT key is greater than zero. If it is greater than zero, the feat is used and then in FFirstRun the value at the FEAT key is decremented by one. So if the calculations in the BONUS FEAT rule are not done before those in the Feat rule, the value stored at the FEAT key will be one smaller than it should be which will cause there to be one less feats being used. The Ability rule being completed before the Feat rule is guaranteed by the chain which can't continue on until all of the feats are computed. The Calculations that need to be processed after the iteration is finished involve the final output or modifying values that could affect the calculations done during the iteration that shouldn't be calculated until the end. The magic items for this character
DEX = 18
CON = 14
INT = 10
WIS = 8
CHA = 12
Primary Stat = DEX end;
Skills : Hide (STR) = 4 s kill definition and (stat use) MoveSilently (CON) = 4 end;
Feats : Stealth : +2 TO Hide skill use +2 TO MoveSilently skill use /page 104 PHB/ end; WeaponFocus : +1 TO Dagger weapon use +2 TODAMAGE Crossbow /page 105 PHB/ end; GreatFortitude: +2 TO FORT save use /page 102 PHB/ end; end;
(In second input file) Saves : FORT save definition end;
This name analysis is done with symbol computations that inherit either IdDefScope or IdUseEnv. Here is an example of Skill:
SYMBOL SkillDef INHERITS IdDefScope COMPUTE SYNT.Sym = TERM; END; SYMBOL SkillUse INHERITS IdUseEnv COMPUTE SYNT.Sym = TERM; END;
Then in the appropriate places and rules in the lido file we use either SkillDef or SkillUse. Example:
RULE : Skill ::= SkillDef '(' StatUse ')' '=' Number etc... RULE : EffectKind ::= SkillUse COMPUTE EffectKind.Key = SkillUse.Key END;
Making Keys Available
One problem we ran into was that we needed some of the variables and their keys available whether the user declares them or not. An example of this are the saves. They are declared in the Saves section of the second input file but are needed for computations later and in the final output. We have to make sure that each of the saves are represented in the def table whether the user declared them or not. To do this we use the following line for FORT to put it in the def table:
ResetTotal(DefineIdn( INCLUDING Iterator.Env, MakeName("FORT")), 0);
This is done as one of the first computations in the tree. Other than the saves, the other keys that are needed are: INIT, AC, SKILLS, FEAT, and the stats.
Error Checking
We wanted to place some restrictions on what the user was putting in their input file and throw errors if the didn't do the right thing. We had a few cases of this: we couldn't open the specified second input file, the melee and ranged weapon are the same, the same stat was declared more than once, and the same skill was defined more than once. As an example, if the melee and ranged weapons are the same our program will throw and output. Here would be the code for this in the Melee rule (it has a counterpart in the Ranged rule):
Melee.NameTest = SetUsed(WeaponDef.Key, 1, 2); IF (EQ (GetUsed(WeaponDef.Key,0), 2), message (ERROR, "cannot use same weapon name for both melee and Ranged", 0, COORDREF))<- Melee.NameTest;
This works by setting the Used attribute to 1 if that particular weapon has not been defined before and 2 if it has. If Used is 2, throw the error.
Using a Second Input File
Another problem we ran into was that we needed a second input file of character data. We didn't want the user to have to put this data in the first input file because it is a lot of data about specific types of characters that doesn't change. To do this, we created a separate section of our lido file to create an AST for it and a couple rules in the first AST to open the file and insert the second AST into the first. We decided that the best place in the first AST to do this was create a rule called
