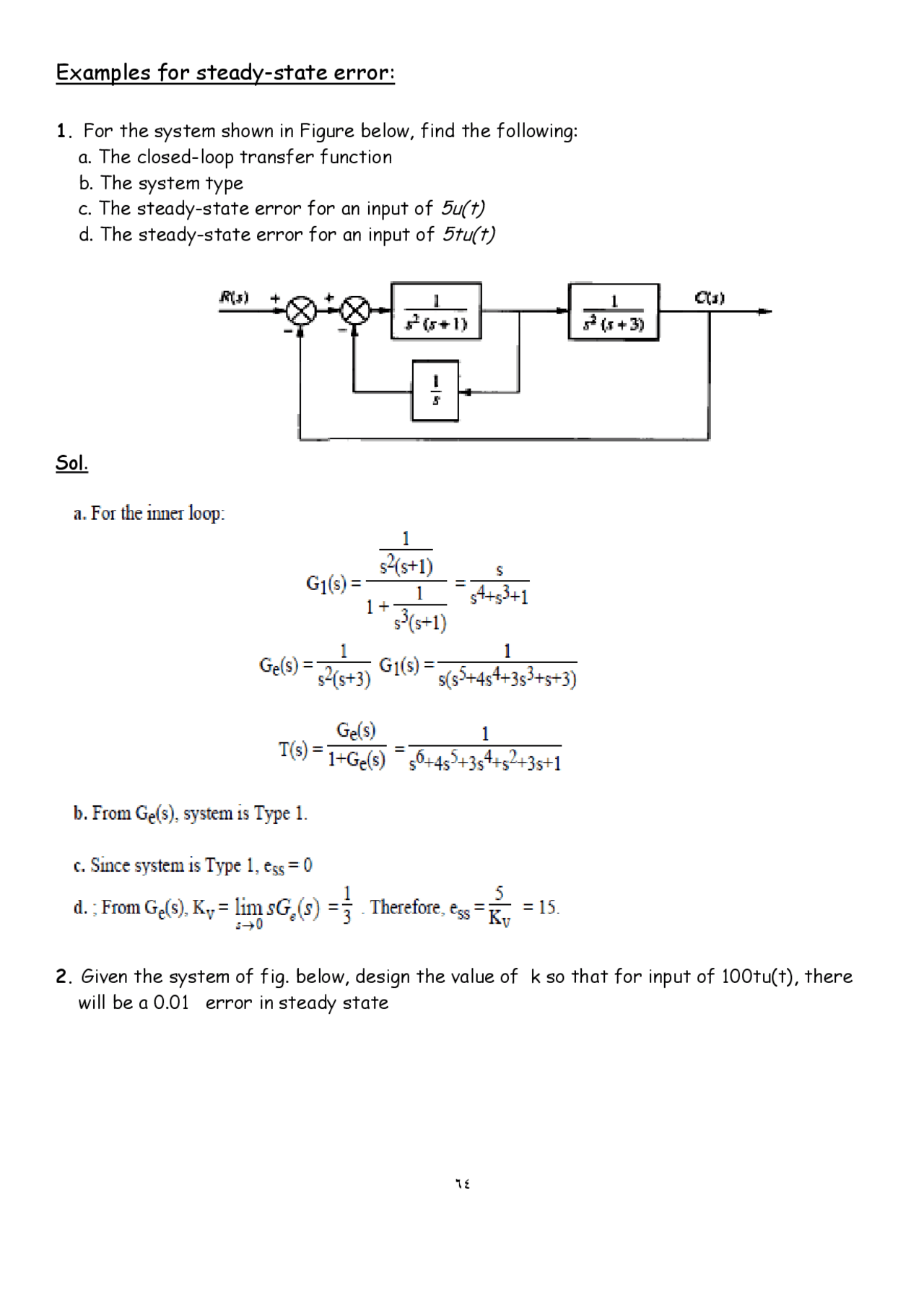

1. For the system shown in Figure below, find the following: a. The closed-loop transfer function b. The system type
Sol.
2. Given the system of fig. below, design the value of k so that for input of 100tu(t), there will be a 0.01 error in steady state
3. For unity feed – back system which have the open loop system is:
Find the steady-state error for the inputs, 25u(t), 37tu(t), 47t^2 u(t).
Sol.
4. For the system shown in Figure below, find the steady-state error for the inputs, 15u(t), 15tu(t)
