Frog Dissection additional information.pdf, Lecture notes of Anatomy

Anatomy

Obtain all the dissecting equipment and place it at your work area. 2. Observe the frog. Feel the smooth and pliable skin. Note the coloration on all parts of ...

Typology: Lecture notes

2022/2023

Uploaded on 02/28/2023

tarley
tarley 🇺🇸

4.5

(59)

251 documents

1 / 5

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

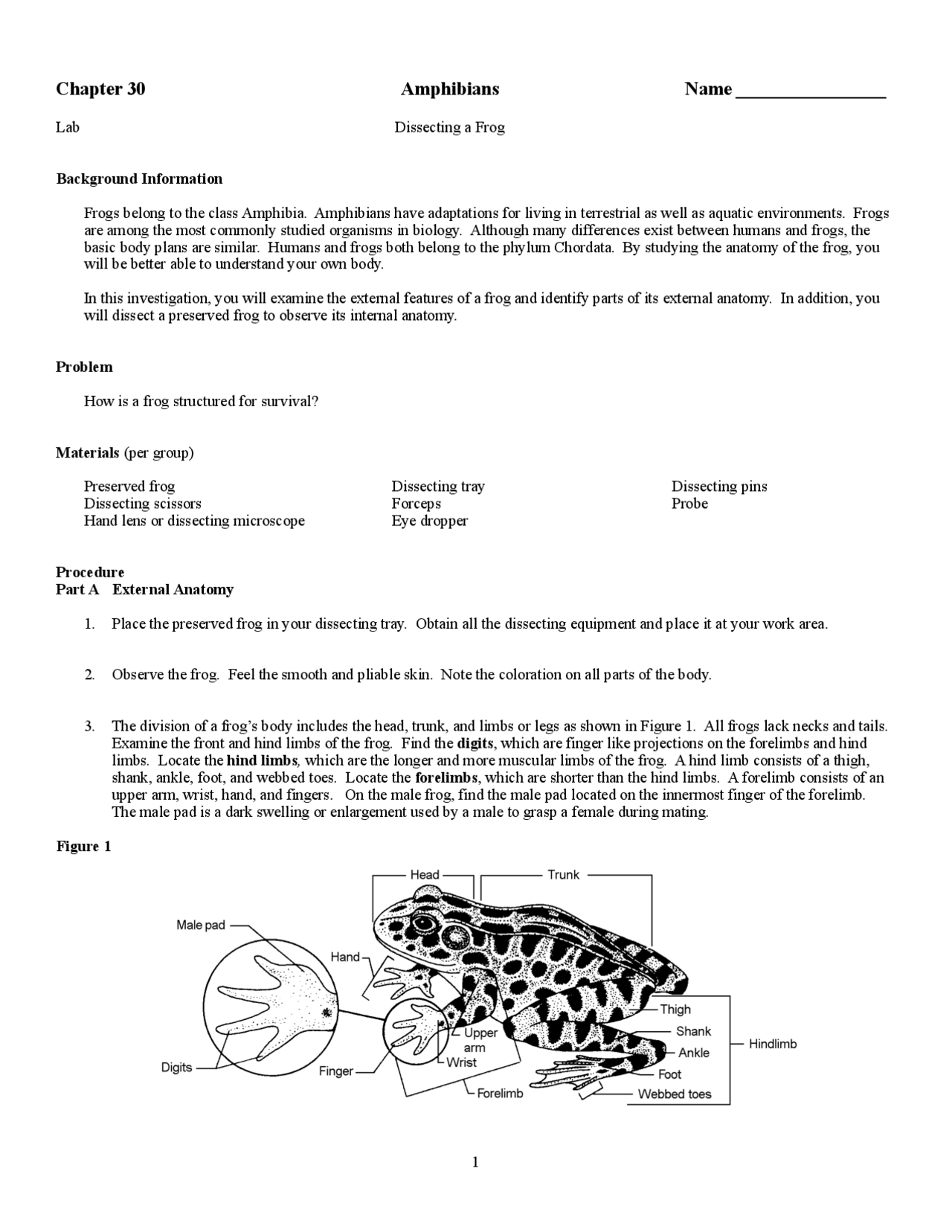

Chapter 30 Amphibians Name ________________
Lab Dissecting a Frog
Background Information
Frogs belong to the class Amphibia. Amphibians have adaptations for living in terrestrial as well as aquatic environments. Frogs
are among the most commonly studied organisms in biology. Although many differences exist between humans and frogs, the
basic body plans are similar. Humans and frogs both belong to the phylum Chordata. By studying the anatomy of the frog, you
will be better able to understand your own body.
In this investigation, you will examine the external features of a frog and identify parts of its external anatomy. In addition, you
will dissect a preserved frog to observe its internal anatomy.
Problem
How is a frog structured for survival?
Materials (per group)
Preserved frog Dissecting tray Dissecting pins
Dissecting scissors Forceps Probe
Hand lens or dissecting microscope Eye dropper
Procedure
Part A External Anatomy
1. Place the preserved frog in your dissecting tray. Obtain all the dissecting equipment and place it at your work area.
2. Observe the frog. Feel the smooth and pliable skin. Note the coloration on all parts of the body.
3. The division of a frog’s body includes the head, trunk, and limbs or legs as shown in Figure 1. All frogs lack necks and tails.
Examine the front and hind limbs of the frog. Find the digits, which are finger like projections on the forelimbs and hind
limbs. Locate the hind limbs, which are the longer and more muscular limbs of the frog. A hind limb consists of a thigh,
shank, ankle, foot, and webbed toes. Locate the forelimbs, which are shorter than the hind limbs. A forelimb consists of an
upper arm, wrist, hand, and fingers. On the male frog, find the male pad located on the innermost finger of the forelimb.
The male pad is a dark swelling or enlargement used by a male to grasp a female during mating.
Figure 1
1
pf3
pf4
pf5

Partial preview of the text

Download Frog Dissection additional information.pdf and more Lecture notes Anatomy in PDF only on Docsity!

Chapter 30 Amphibians Name ________________

Lab Dissecting a Frog Background Information Frogs belong to the class Amphibia. Amphibians have adaptations for living in terrestrial as well as aquatic environments. Frogs are among the most commonly studied organisms in biology. Although many differences exist between humans and frogs, the basic body plans are similar. Humans and frogs both belong to the phylum Chordata. By studying the anatomy of the frog, you will be better able to understand your own body. In this investigation, you will examine the external features of a frog and identify parts of its external anatomy. In addition, you will dissect a preserved frog to observe its internal anatomy. Problem How is a frog structured for survival? Materials (per group) Preserved frog Dissecting tray Dissecting pins Dissecting scissors Forceps Probe Hand lens or dissecting microscope Eye dropper Procedure Part A External Anatomy

  1. Place the preserved frog in your dissecting tray. Obtain all the dissecting equipment and place it at your work area.
  2. Observe the frog. Feel the smooth and pliable skin. Note the coloration on all parts of the body.
  3. The division of a frog’s body includes the head, trunk, and limbs or legs as shown in Figure 1. All frogs lack necks and tails. Examine the front and hind limbs of the frog. Find the digits , which are finger like projections on the forelimbs and hind limbs. Locate the hind limbs , which are the longer and more muscular limbs of the frog. A hind limb consists of a thigh, shank, ankle, foot, and webbed toes. Locate the forelimbs , which are shorter than the hind limbs. A forelimb consists of an upper arm, wrist, hand, and fingers. On the male frog, find the male pad located on the innermost finger of the forelimb. The male pad is a dark swelling or enlargement used by a male to grasp a female during mating. Figure 1
  1. Examine the frog’s head. Notice the size of the frog’s eyes and how the eyes protrude. Find the nonmovable upper and lower eyelids. Locate the nictitating membrane that is a transparent covering that sweeps upward over the eyes. Identify the tympanic membrane or the eardrum located on each side of the head. Observe the frontal organ or brow spot found between and anterior to the two eyes. The frontal organ is the remaining indication of a third or middle eye. Note the external nares or nostrils that are the openings on the anterior and dorsal part of the skull.
  2. Pry open the mouth. Use the scissors to cut the corners of the mouth where the maxilla (upper jaw) and mandible (lower jaw) join together. Examine the frog’s mouth. Locate the tongue , which is a muscular, sticky flap on a living frog. The frog flicks out the tongue from the floor of the mouth to catch flying insects. Pull out the tongue. See Figure 3.
  3. Feel the maxillary teeth that are found along the rim of the upper jaw or maxilla. Find the volmerine teeth attached to the skull bones of the roof of the mouth. Notice that only the upper jaw has small teeth. Locate the internal nares or nostrils found in the roof of the mouth. Figure 2 Figure 3
  4. Locate the glottis , which is a slit-like opening on the swollen voice box found on the floor of the mouth. Air passes through the glottis going to and from the lungs. Find the esophagus at the rear of the mouth. The wide opening of the esophagus allows the frog to swallow food whole. The esophagus is the first tube of the alimentary canal leading to the stomach. Notice each eustachian tube opening found lateral to the esophagus near the hinge of the upper jaw. The eustachian tube openings lead to each ear and ensure equal air pressure on both sides of the tympanic membrane. Part B Internal Anatomy
  5. Place the frog in the dissection tray ventral side up and pin down the four limbs. Use the forceps and scissors to lift a piece of skin where the hind legs meet the body. Insert the scissors and cut just the skin along the midline to the level of the lower jaw as shown in Figure 4. Clip the skin at a right angle to the incision as shown. Now sever the layers of muscle that have been exposed. Make this incision a little to the right of center to avoid cutting a major vein. The large blood vessel lying under the muscle layer is the abdominal vein that originates in the liver. (NOTE: Always lift the parts to be cut so as to avoid damaging underlying tissues and organs.) In the chest region you will have to cut through the breastbone. Again make right angle cuts from each end of the long incision as shown in Figure 4. Fold open and pin down flaps of the skin and body wall. Make additional cuts in the breastbone to expose the organs in the upper body.

Figure 6 – Internal View of the Frog

  1. Excretory System - Push the intestines aside to see the two dark, oblong kidneys lying on the dorsal wall of the body cavity. Find the ureter , which is a tube leading out of each kidney. The ureters carry the urinary wastes from the kidney to the urinary bladder. The chemical waste is called urine and is stored in the urinary bladder that empties into the cloaca. The adrenal gland , which is part of the endocrine system, can be seen as a yellow stripe on each kidney. Fat bodies , whose purpose is to store fat to be used during hibernation or when food is scarce, attach to the anterior end of each kidney. Usually fat bodies are bright yellow, finger-like projections.
  2. Reproductive System - In male frogs each yellowish, oval-shaped testis is attached b y tubes to the kidney. During mating the sperm mixes with and follows the exit route of the urine. The males of many frog species have vestigial oviducts attached to the cloaca called Müllerian tubes_._ In female frogs the two ovaries appear as egg sacs. Eggs released from the ovaries enter a long, coiled oviduct at the anterior opening. Eggs pass down the cream-colored oviduct and are held in an ovisac, or uterus, before entering the cloaca. From the cloaca the eggs pass from the body to be fertilized outside the frog’s body. Complete the following dissection of the frog’s nervous system if time allows.
  3. Nervous System - The lens of the eye in a living frog is crystalline and transparent. The lens does not change shape to focus as it does in the human eye. Frogs are nearsighted on land and farsighted under water. With the scissors, carefully dissect the eyeball. Remove the spherical lens. Place the lens on your palm and hold it up to the light. Note that it gathers light, even in its preserved condition. With the tips of two dissecting needles, tease apart the lens to see its structure. Place the frog dorsal side up and remove the skin from the skull with scissors or a scalpel. With a scalpel, shave or whittle the bone of the skull between the eyes. Use very shallow strokes, peeling off the bone in layers or shavings. When the bone becomes thin, peel it off very carefully using forceps. Be sure not to dig the points of the forceps into the brain tissue. See Figure 7. The two hemispheres of the cerebrum control voluntary motion and conscious activities of the frog. Identify the rounded cerebral hemispheres between the eyes. The olfactory lobes are centers for sensing odors. Nerves lead to these Figure 7 lobes from the nostrils. Continue to shave bone toward the anterior of the frog's head. Expose the olfactory lobes. The optic lobes control the activities of the eyes. Continue to shave bone, working posteriorly from the cerebral hemispheres. Locate the optic lobes, relatively large, hollow, rounded masses of midbrain tissue. The cerebellum coordinates the muscular activities and controls the balance of the frog. Posterior to the optic lobes, find the cerebellum, a very short section of the brain. The medulla is the control center in the brain for breathing, swallowing, digestion, and reflexes. Trace the cerebellum as it leads into the medulla. Then locate the spinal cord as it begins at the posterior base of the medulla. Dissect a vertebra or two in order to see the spinal cord encased within the vertebral column.
  4. Clean up your work area and equipment. Return the cleaned dissecting equipment to the appropriate place.
