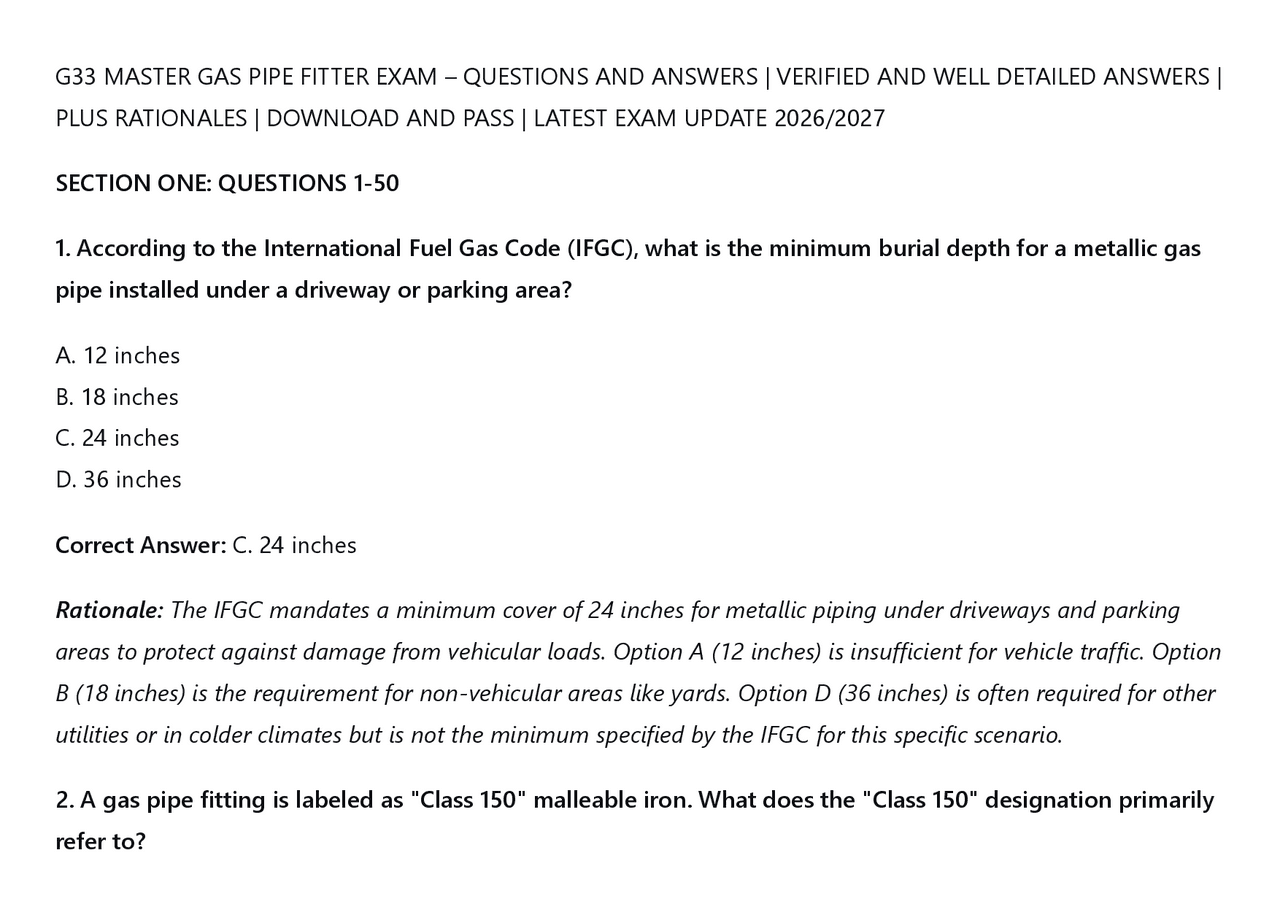

G33 MASTER GAS PIPE FITTER EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED ANSWERS |
PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/
SECTION ONE: QUESTIONS 1-
1. According to the International Fuel Gas Code (IFGC), what is the minimum burial depth for a metallic gas pipe installed under a driveway or parking area?
A. 12 inches B. 18 inches C. 24 inches D. 36 inches
Correct Answer: C. 24 inches
Rationale: The IFGC mandates a minimum cover of 24 inches for metallic piping under driveways and parking areas to protect against damage from vehicular loads. Option A (12 inches) is insufficient for vehicle traffic. Option B (18 inches) is the requirement for non-vehicular areas like yards. Option D (36 inches) is often required for other utilities or in colder climates but is not the minimum specified by the IFGC for this specific scenario.
2. A gas pipe fitting is labeled as "Class 150" malleable iron. What does the "Class 150" designation primarily refer to?
A. The maximum operating temperature in degrees Fahrenheit. B. The pressure rating at a specific temperature. C. The tensile strength of the iron in PSI. D. The pipe's nominal wall thickness.
Correct Answer: B. The pressure rating at a specific temperature.
Rationale: "Class 150" is a pressure-temperature rating for fittings, indicating the maximum allowable working pressure (MAWP) at a standard temperature (typically 150°F for malleable iron). Option A is incorrect as it refers to temperature, not pressure. Option C is a material property, not the class designation. Option D describes pipe schedule, not fitting class.
3. Which of the following is the MOST critical factor to consider when determining the appropriate size of a gas piping system for a new residential installation?
A. The total number of gas appliances. B. The distance from the gas meter to the farthest appliance. C. The allowable pressure drop from the meter to the appliances. D. The specific gravity of the gas being supplied.
Correct Answer: C. The allowable pressure drop from the meter to the appliances.
5. What is the primary purpose of performing a leak test on a gas piping system with a manometer instead of using a bubble solution for the entire system?
A. To test for leaks at high pressures. B. To identify the exact location of a leak. C. To provide a quantitative measure of system pressure stability. D. To avoid corrosion caused by bubble solutions.
Correct Answer: C. To provide a quantitative measure of system pressure stability.
Rationale: A manometer provides a visual and quantifiable measurement of pressure. A "standpipe test" or manometer test confirms the entire system is holding pressure over a period of time, which is a more reliable initial verification of system integrity than relying on bubble testing for every joint. Bubble solution is used to pinpoint leaks after a pressure drop is observed. Option A is incorrect; bubble solution is often used for high-pressure testing. Option B is a function of bubble testing.
6. When threading steel gas pipe, how many threads should typically be exposed on a properly made-up joint?
A. 1 to 2 threads B. 2 to 3 threads
C. 3 to 4 threads D. 4 to 5 threads
Correct Answer: B. 2 to 3 threads
Rationale: Standard good practice dictates that a properly tightened joint should have 2 to 3 threads exposed. This indicates the pipe has been threaded to the correct depth and the fitting has been sufficiently engaged. Option A (1 to 2) might indicate over-tightening and risk cracking the fitting. Option C (3 to 4) and Option D (4 to 5) suggest under-tightening or insufficient threading, which would create a weak and potentially leaking joint.
7. A fitter is installing a new gas line adjacent to an electrical panel. What is the minimum horizontal clearance required between the gas piping and an electrical panel?
A. 12 inches B. 18 inches C. 24 inches D. 36 inches
Correct Answer: D. 36 inches
Rationale: The IFGC requires a minimum horizontal clearance of 36 inches between gas piping and electrical panels to prevent physical damage and to allow for safe access to the panel. Option A, B, and C are all less than
Correct Answer: A. 0.
Rationale: Standard pipe sizing tables for natural gas are typically based on a specific gravity of 0.60. This value represents the typical composition of natural gas as delivered to consumers. Option B (0.70), C (0.80), and D (1.00) are used for other gases like propane (1.52) or for situations requiring correction factors, but 0.60 is the benchmark for natural gas.
10. A customer reports a strong, distinct "rotten egg" odor in their home. The Master Gas Fitter's FIRST course of action should be to:
A. Immediately shut off the gas at the meter. B. Call the local fire department. C. Evacuate the building and call 911 from outside. D. Attempt to locate the leak with a combustible gas detector.
Correct Answer: C. Evacuate the building and call 911 from outside.
Rationale: The "rotten egg" odor is mercaptan, a warning agent added to natural gas. In the presence of a strong odor indicating a potential gas leak, the priority is life safety. The correct and immediate action is to evacuate the building and call emergency services (911) from a safe distance. Option A is a critical step, but it should be done
after a safe evacuation if possible. Option B is a part of the emergency response but calling 911 is the best practice. Option D is unsafe and puts the fitter at risk.
11. In a multi-family dwelling, a gas riser passes through a floor. According to code, how should the riser be protected?
A. It must be wrapped with a corrosion-resistant tape. B. It must be installed in a fire-rated shaft. C. It must be enclosed in a metal sleeve and the annular space fire-stopped. D. It must be galvanized to prevent rust.
Correct Answer: C. It must be enclosed in a metal sleeve and the annular space fire-stopped.
Rationale: When a gas pipe penetrates a floor or wall, it must be protected by a sleeve. The annular space (space between the pipe and the sleeve) must be sealed with an approved fire-stopping material to prevent the spread of fire and smoke. Option A protects against corrosion, not fire. Option B is for vertical runs, not specifically for floor penetrations.
12. What is the primary function of a sediment trap (drip leg) in a gas piping system?
A. To provide a place for moisture and debris to collect before entering the appliance. B. To regulate the gas pressure entering the appliance.
A, B, and D represent common misconceptions, but 24 inches is the specific clearance requirement for this scenario.
14. When using a polyethylene (PE) gas pipe, a stiffener is required. Where is a stiffener typically required?
A. At all support points and hangers. B. At all joints and connections. C. Where the pipe is connected to a fitting or is subject to stress from a clamp or fitting. D. Where the pipe is installed within 18 inches of an electrical panel.
Correct Answer: C. Where the pipe is connected to a fitting or is subject to stress from a clamp or fitting.
Rationale: A stiffener is inserted into the end of a PE pipe to prevent it from collapsing or deforming when it is inserted into a fitting or compressed by a clamp. Option A is incorrect; support points need proper strapping, not stiffeners. Option B is too broad; it is only needed where a connection is made. Option D is a clearance issue, not related to stiffeners.
15. Which of the following is a sign of a potentially dangerous backdraft condition from an atmospheric vent gas appliance?
A. Soot staining around the vent cap. B. A strong odor of unburned gas.
C. The pilot light is burning yellow. D. Rust on the vent connector.
Correct Answer: A. Soot staining around the vent cap.
Rationale: Soot staining is a clear indicator of incomplete combustion and a potential backdrafting problem. Soot is produced when the appliance is not venting properly, allowing flue gases to condense or re-enter the building. Option B indicates a leak. Option C indicates an air/fuel mixture problem. Option D may indicate corrosion.
16. A gas pipe is being installed in a chase that also contains a chimney. What is a critical requirement for the chase?
A. The chase must be completely sealed from the rest of the building. B. The chase must be vented to the outside to prevent the accumulation of gas. C. The gas pipe and chimney must be separated by a minimum of 6 inches. D. The chase must be constructed of non-combustible materials.
Correct Answer: A. The chase must be completely sealed from the rest of the building.
Rationale: If a gas pipe is in a chase with a chimney, the chase must be sealed from the building's interior to prevent any potential gas leaks from entering the living space. The chimney's negative pressure could draw air
A. The pipe must be buried. B. The pipe must be suspended a minimum of 6 inches above the dirt floor. C. The pipe must be protected by a sleeve. D. The pipe must be coated with corrosion-resistant paint.
Correct Answer: B. The pipe must be suspended a minimum of 6 inches above the dirt floor.
Rationale: Gas piping in a crawlspace must be protected from corrosion. A minimum clearance of 6 inches above a dirt floor is required to prevent exposure to moisture and to allow for inspection. Option A is only permitted in specific circumstances. Option C is not generally required for this scenario. Option D is not a substitute for the 6- inch clearance requirement.
19. Which of the following is the most common type of fitting used to connect two different sizes of gas pipe?
A. Coupling B. Union C. Reducer D. Elbow
Correct Answer: C. Reducer
Rationale: A reducer is a fitting specifically designed to connect pipes of two different diameters. Option A (coupling) connects two pipes of the same diameter. Option B (union) is a detachable fitting used for access or connection. Option D (elbow) is used to change direction.
20. What is the main reason for performing a gas shut-down and re-light procedure on all appliances after the gas utility has performed a system outage?
A. To ensure the appliances are properly registered in the utility's system. B. To check for proper appliance operation and safety, as debris and air may have entered the lines. C. To satisfy an insurance requirement. D. To allow the utility to test the meter for accuracy.
Correct Answer: B. To check for proper appliance operation and safety, as debris and air may have entered the lines.
Rationale: After a gas outage, the system can fill with air or debris, and pilot lights may be out. A complete shut- down and re-light procedure is essential to purge air from the lines, check for proper burner operation, and ensure all safety controls (like the thermocouple) are functioning correctly. Option A, C, and D are not the primary reasons for this procedure.
C. Immediately outside the kitchen exhaust hood. D. On the wall, readily accessible, and in the same room as the appliance.
Correct Answer: D. On the wall, readily accessible, and in the same room as the appliance.
Rationale: The shut-off valve for a gas appliance must be readily accessible and located in the same room as the appliance. While it is often on the appliance, the code mandates it be in the same room. Option A is common but not the only correct answer; it's better described by D. Option B is too far. Option C is a specific requirement for the hood, not the appliance itself.
23. What is the standard thread sealant that is approved for use on all gas piping joints?
A. Teflon tape only. B. Pipe joint compound only. C. Either Teflon tape or pipe joint compound that is specifically rated for gas. D. A combination of Teflon tape and pipe joint compound applied simultaneously.
Correct Answer: C. Either Teflon tape or pipe joint compound that is specifically rated for gas.
Rationale: While many fitters have a preference, both Teflon tape and pipe joint compound are approved as long as they are specifically designed and rated for use with gas. Option D is sometimes used but is not a standard requirement. Option A and B are incomplete as they exclude the other valid option.
24. A homeowner requests a gas line be installed through a floor joist. What is a key consideration for this type of installation?
A. The pipe must be sleeved with a larger pipe. B. The pipe must be installed in a straight line through the joist. C. The pipe must be installed at a slight angle to facilitate drainage. D. The pipe must be isolated from the wood with a vibration-dampening material.
Correct Answer: A. The pipe must be sleeved with a larger pipe.
Rationale: When a gas pipe passes through a floor joist or structural member, it must be protected from potential damage and allow for expansion and contraction. This is typically achieved by sleeving it with a larger diameter pipe. Option B is not a code requirement. Option C is incorrect as gas pipes are not designed for drainage.
25. A gas leak is detected using a combustion gas analyzer. The reading shows 5,000 ppm of combustible gas. The CO (carbon monoxide) reading is 0 ppm. What is the most appropriate classification of this event?
A. A high-risk, immediate action event. B. A low-risk event that can be scheduled for repair. C. A medium-risk event requiring prompt investigation and repair. D. A non-hazardous event.
27. When cutting a steel pipe, the cut end must be reamed. What is the primary reason for reaming?
A. To increase the pipe's diameter for easier threading. B. To remove the burr and create a smooth surface for the flow of gas. C. To remove the outer rust and make the pipe shine for a better seal. D. To prepare the pipe end for a compression fitting.
Correct Answer: B. To remove the burr and create a smooth surface for the flow of gas.
Rationale: Reaming the cut end of a steel pipe removes the sharp burr left by the cutting process. This is critical because a burr inside the pipe can cause turbulence, create a restriction, and even chip off, potentially damaging appliance controls. Option A is incorrect; reaming does not enlarge the pipe. Option C is incorrect; rust removal is a separate process. Option D is incorrect; reaming is not specific to compression fittings.
28. A building is equipped with a 2 PSI gas system. What must be installed at each appliance to ensure it operates correctly?
A. A sediment trap. B. A flexible connector. C. A pressure regulator. D. An additional shut-off valve.
Correct Answer: C. A pressure regulator.
Rationale: Most gas appliances are designed to operate at a low pressure (typically 0.5 PSI). Therefore, a 2 PSI system requires a pressure regulator at each appliance to step the pressure down to the appliance's rated input. Option A and D are required but are not specific to the 2 PSI system. Option B is an appliance connector, not a solution for pressure.
29. A chimney flue is being used to vent a gas furnace and a gas water heater. What is a critical requirement for this common venting system?
A. The flue must be the same size as the furnace's vent connector. B. The water heater must have a larger vent connector. C. Both appliances must be in the same room. D. The flue must be sized to handle the combined venting load of both appliances.
Correct Answer: D. The flue must be sized to handle the combined venting load of both appliances.
Rationale: When multiple appliances are vented into a common flue, the flue must be properly sized to handle the combined BTU input and the resulting flue gases from all appliances, ensuring proper draft. Option A, B, and C are not the critical requirement; sizing is based on combined load, not individual or location.
