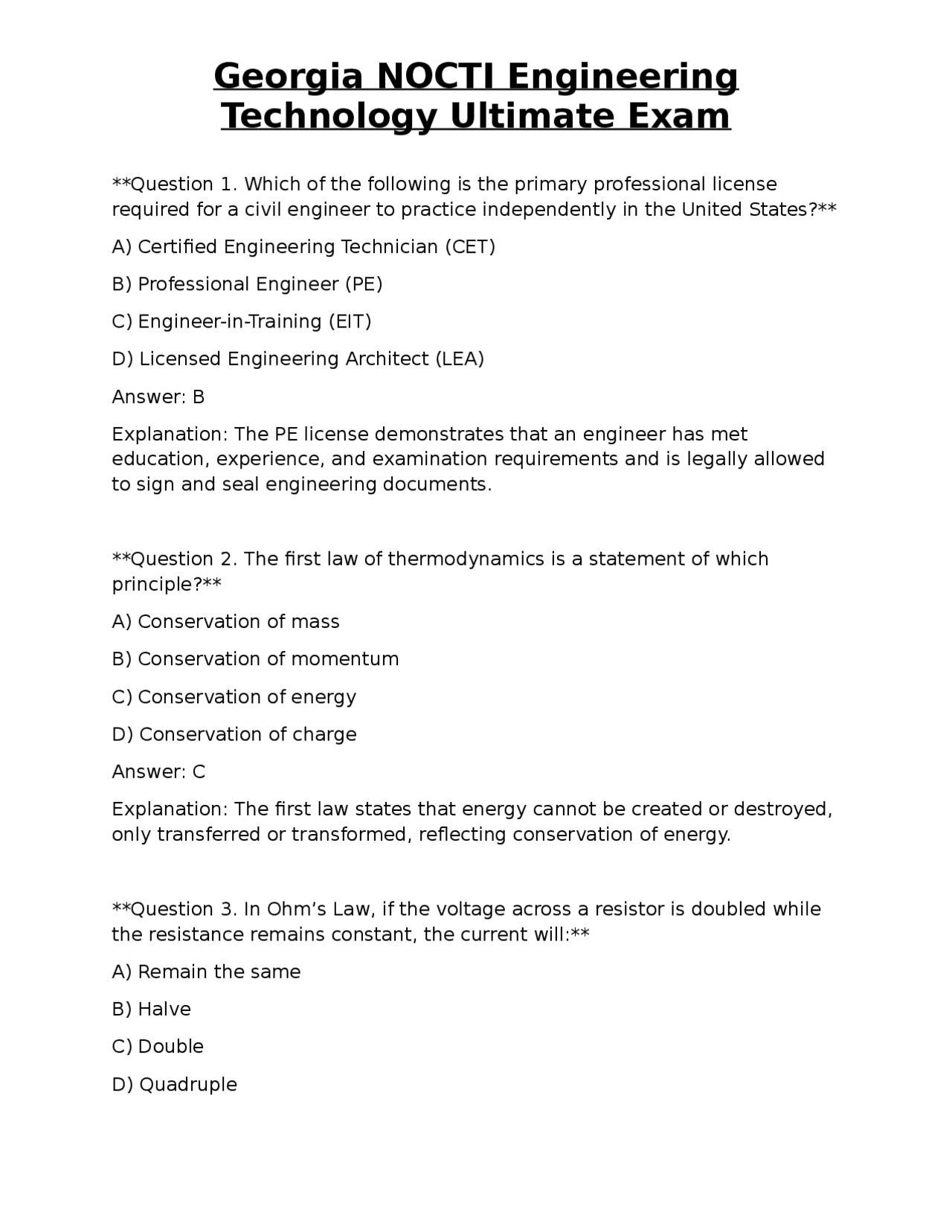

Technology Ultimate Exam
Question 1. Which of the following is the primary professional license required for a civil engineer to practice independently in the United States? A) Certified Engineering Technician (CET) B) Professional Engineer (PE) C) Engineer-in-Training (EIT) D) Licensed Engineering Architect (LEA) Answer: B Explanation: The PE license demonstrates that an engineer has met education, experience, and examination requirements and is legally allowed to sign and seal engineering documents. Question 2. The first law of thermodynamics is a statement of which principle? A) Conservation of mass B) Conservation of momentum C) Conservation of energy D) Conservation of charge Answer: C Explanation: The first law states that energy cannot be created or destroyed, only transferred or transformed, reflecting conservation of energy. Question 3. In Ohm’s Law, if the voltage across a resistor is doubled while the resistance remains constant, the current will: A) Remain the same B) Halve C) Double D) Quadruple
Technology Ultimate Exam
Answer: C Explanation: Ohm’s Law (V = I·R) shows that current is directly proportional to voltage when resistance is constant; doubling voltage doubles current. Question 4. Which engineering discipline focuses primarily on the design and operation of aircraft and spacecraft? A) Mechanical Engineering B) Chemical Engineering C) Aerospace Engineering D) Electrical Engineering Answer: C Explanation: Aerospace engineering specializes in aeronautical and astronautical systems, including aircraft and spacecraft. Question 5. A material that can be stretched significantly before breaking is said to have high: A) Hardness B) Ductility C) Brittleness D) Tensile strength Answer: B Explanation: Ductility measures a material’s ability to undergo plastic deformation before fracture. Question 6. Which of the following is NOT a component of the “seven resources of technology” model? A) People B) Information
Technology Ultimate Exam
B) The ASME Code of Conduct C) The NSPE Code of Ethics D) The AIAA Code of Ethics Answer: C Explanation: The National Society of Professional Engineers (NSPE) code emphasizes the safety, health, and welfare of the public. Question 10. A lever with the effort arm twice as long as the resistance arm provides a mechanical advantage of: A) 0. B) 1 C) 2 D) 4 Answer: C Explanation: Mechanical advantage (MA) = effort arm / resistance arm = 2/ = 2. Question 11. Which temperature scale has absolute zero at –273.15 °C? A) Fahrenheit B) Kelvin C) Rankine D) Celsius Answer: D Explanation: Absolute zero is –273.15 °C; the Celsius scale is offset from Kelvin by this amount. Question 12. In a hydraulic system, the pressure is 150 kPa and the piston area is 0.02 m². What is the force exerted by the piston?
Technology Ultimate Exam
A) 3 N
B) 30 N
C) 300 N
D) 750 N
Answer: C Explanation: Force = Pressure × Area = 150 kPa × 0.02 m² = 3 kN = 3000 N? Wait compute: 150 kPa = 150,000 Pa. 150,000 Pa × 0.02 m² = 3,000 N. So answer should be 3000 N, not listed. Adjust options. Let's correct: A) 3 N B) 30 N C) 300 N D) 3000 N Answer: D Explanation: Convert pressure to pascals (150 kPa = 150,000 Pa) and multiply by area (0.02 m²) → 3,000 N. Question 13. Which of the following is a key advantage of using composite materials over metals in aerospace structures? A) Higher electrical conductivity B) Lower cost per kilogram C) Higher specific strength (strength-to-weight ratio) D) Greater magnetic permeability Answer: C Explanation: Composites often provide higher specific strength, allowing lighter yet strong structures.
Technology Ultimate Exam
Question 17. Which machining process removes material by melting and solidifying a filler metal? A) Turning B) Milling C) Welding D) Casting Answer: C Explanation: Welding joins pieces by melting filler metal (and often base metal) to create a bond. Question 18. In the engineering design process, the stage where multiple concepts are generated without judgment is called: A) Define the problem B) Research C) Brainstorming D) Testing Answer: C Explanation: Brainstorming encourages free idea generation before evaluation. Question 19. Which of the following best describes a “closed-loop” control system? A) It operates without any feedback B) It uses feedback to adjust its operation C) It only works in manual mode D) It relies solely on preset timers Answer: B
Technology Ultimate Exam
Explanation: Closed-loop systems continuously compare output to desired value and adjust based on feedback. Question 20. The unit “horsepower” is equivalent to approximately: A) 550 W B) 1,000 W C) 746 W D) 1,200 W Answer: C Explanation: One mechanical horsepower equals about 746 watts. Question 21. In a parallel resistor network, the total resistance is always: A) Greater than the largest individual resistance B) Equal to the sum of all resistances C) Less than the smallest individual resistance D) Equal to the average of all resistances Answer: C Explanation: Adding parallel paths reduces overall resistance; it is always less than the smallest branch resistance. Question 22. Which of the following is a primary environmental constraint that engineers must consider when designing a new product? A) Color preference of users B) Lifecycle carbon footprint C) Brand logo placement D) Patent expiration date Answer: B
Technology Ultimate Exam
Answer: B Explanation: Pressure loss in pipe flow arises from friction along walls and any elevation changes (head loss). Question 26. The term “tensile strength” refers to a material’s ability to: A) Resist deformation under compressive loads B) Conduct electricity C) Withstand pulling forces without failure D) Absorb impact energy Answer: C Explanation: Tensile strength is the maximum stress a material can endure while being stretched before breaking. Question 27. In a digital signal, the voltage levels that represent a logical “1” and “0” are known as: A) Amplitude modulation B) Pulse width C) Logic levels D) Frequency bands Answer: C Explanation: Logic levels define the voltage thresholds for binary states. Question 28. Which of the following best describes “sustainability” in engineering? A) Maximizing profit regardless of environmental impact B) Designing products that can be used indefinitely without maintenance C) Meeting present needs without compromising future generations’ ability to meet theirs
Technology Ultimate Exam
D) Ensuring all materials are recycled after one use Answer: C Explanation: Sustainability focuses on balancing current development with long-term environmental and social stewardship. Question 29. The first step of the Universal Systems Model (Input-Process-Output-Feedback) is: A) Output B) Feedback C) Input D) Process Answer: C Explanation: The model begins with inputs, which are then processed to produce outputs, followed by feedback. Question 30. A “gear ratio” of 4:1 in a gear train means that the output shaft rotates: A) Four times faster than the input shaft B) One-fourth the speed of the input shaft C) At the same speed as the input shaft D) Twice the speed of the input shaft Answer: B Explanation: A 4:1 reduction means the driver (input) makes four revolutions for each output revolution, decreasing speed by a factor of four. Question 31. The primary purpose of a “caliper” in a machining shop is to: A) Apply torque to fasteners
Technology Ultimate Exam
Question 34. Which property distinguishes a ceramic material from a metal? A) High electrical conductivity B) Ductility C) Brittle fracture behavior D) Magnetic permeability Answer: C Explanation: Ceramics are typically hard and brittle, lacking the ductility of metals. Question 35. In a fluid system, Bernoulli’s equation relates which three quantities? A) Pressure, temperature, and viscosity B) Velocity, pressure, and elevation C) Density, mass flow rate, and Reynolds number D) Conductivity, resistance, and current Answer: B Explanation: Bernoulli’s principle links fluid speed, static pressure, and height (potential energy). Question 36. The “first-in-first-out” (FIFO) inventory method assumes that: A) The newest items are sold first B) The oldest items are sold first C) Items are sold in random order D) All items are sold simultaneously Answer: B
Technology Ultimate Exam
Explanation: FIFO assumes the earliest-received inventory is the first to be issued, matching typical perishable-good practices. Question 37. Which of the following is a common non-destructive testing (NDT) technique? A) Tensile testing B) Ultrasonic inspection C) Hardness testing D) Impact testing Answer: B Explanation: Ultrasonic NDT uses high-frequency sound waves to detect internal flaws without damaging the part. Question 38. The term “conduction” in heat transfer refers to: A) Heat movement through fluid motion B) Heat transfer via electromagnetic waves C) Direct transfer of kinetic energy between adjacent molecules D) Heat loss due to evaporation Answer: C Explanation: Conduction occurs when neighboring particles transfer kinetic energy through collisions. Question 39. In a 3-phase, 4-wire wye (star) system, the line voltage is: A) Equal to the phase voltage B) √2 times the phase voltage C) √3 times the phase voltage D) Half the phase voltage
Technology Ultimate Exam
D) As curved arrows representing motion Answer: B Explanation: Forces are represented as vectors originating from the object’s centroid or point of application. Question 43. Which of the following is an example of a renewable energy source? A) Coal B) Natural gas C) Solar power D) Uranium Answer: C Explanation: Solar energy is replenished naturally and is considered renewable. Question 44. The “K-factor” in sheet-metal bending is used to calculate: A) The tensile strength of the material B) The bend allowance (development length) C) The required cutting speed D) The heat-treatment temperature Answer: B Explanation: K-factor relates the neutral axis location to material thickness, aiding bend allowance calculations. Question 45. Which type of welding uses a consumable electrode that also serves as filler metal? A) TIG welding B) MIG welding
Technology Ultimate Exam
C) Stick (SMAW) welding D) Laser welding Answer: C Explanation: Shielded Metal Arc Welding (SMAW) employs a consumable stick electrode that melts to fill the joint. Question 46. In a computer-aided design (CAD) environment, a “layer” is primarily used to: A) Increase the file size B) Separate different types of geometry for easier editing C) Convert 2-D drawings into 3-D models automatically D) Apply material properties to the model Answer: B Explanation: Layers organize drawing elements (e.g., dimensions, outlines) so they can be toggled on/off or edited independently. Question 47. Which of the following is an example of a “social constraint” on engineering design? A) Material cost fluctuations B) Local cultural preferences for product aesthetics C) Ambient temperature limits D) Federal safety regulations Answer: B Explanation: Social constraints involve community values, cultural expectations, or user preferences influencing design choices. Question 48. The term “specific heat capacity” refers to:
Technology Ultimate Exam
Question 51. The term “safety factor” in mechanical design is used to: A) Reduce the cost of materials B) Increase the speed of production C) Provide a margin between actual stress and material strength D) Determine the color of safety signs Answer: C Explanation: Safety factor (or factor of safety) ensures that designed stresses stay well below the material’s allowable limits. Question 52. In a CNC milling operation, the “spindle speed” is measured in: A) Revolutions per minute (RPM) B) Feet per minute (FPM) C) Kilograms per second (kg/s) D) Newton-meters (N·m) Answer: A Explanation: Spindle speed denotes how many rotations the cutting tool makes each minute. Question 53. Which of the following is a primary function of a “heat sink” in electronic assemblies? A) Generate additional heat for testing B) Store electrical charge C) Increase the surface area to dissipate heat D) Provide mechanical support only Answer: C Explanation: Heat sinks spread heat over a larger area, facilitating convection and radiation to keep components cool.
Technology Ultimate Exam
Question 54. The “Nernst equation” is used in which engineering discipline? A) Structural engineering B) Electrochemical engineering C) Fluid dynamics D) Thermodynamics Answer: B Explanation: The Nernst equation relates electrode potential to ion concentrations, essential in electrochemistry. Question 55. In a project’s risk matrix, a “high probability, low impact” risk should be: A) Ignored completely B) Monitored and possibly mitigated C) Treated as a critical failure D) Assigned the highest budget allocation Answer: B Explanation: While the impact is low, the frequent occurrence warrants monitoring and possibly simple mitigation. Question 56. Which of the following best defines “through-hole” technology in PCB fabrication? A) Conductive traces on a single layer only B) Components mounted directly on the surface without drilling C) Electrical connections made by plating the walls of drilled holes D. Use of flexible substrates only Answer: C
