EECS 482
1

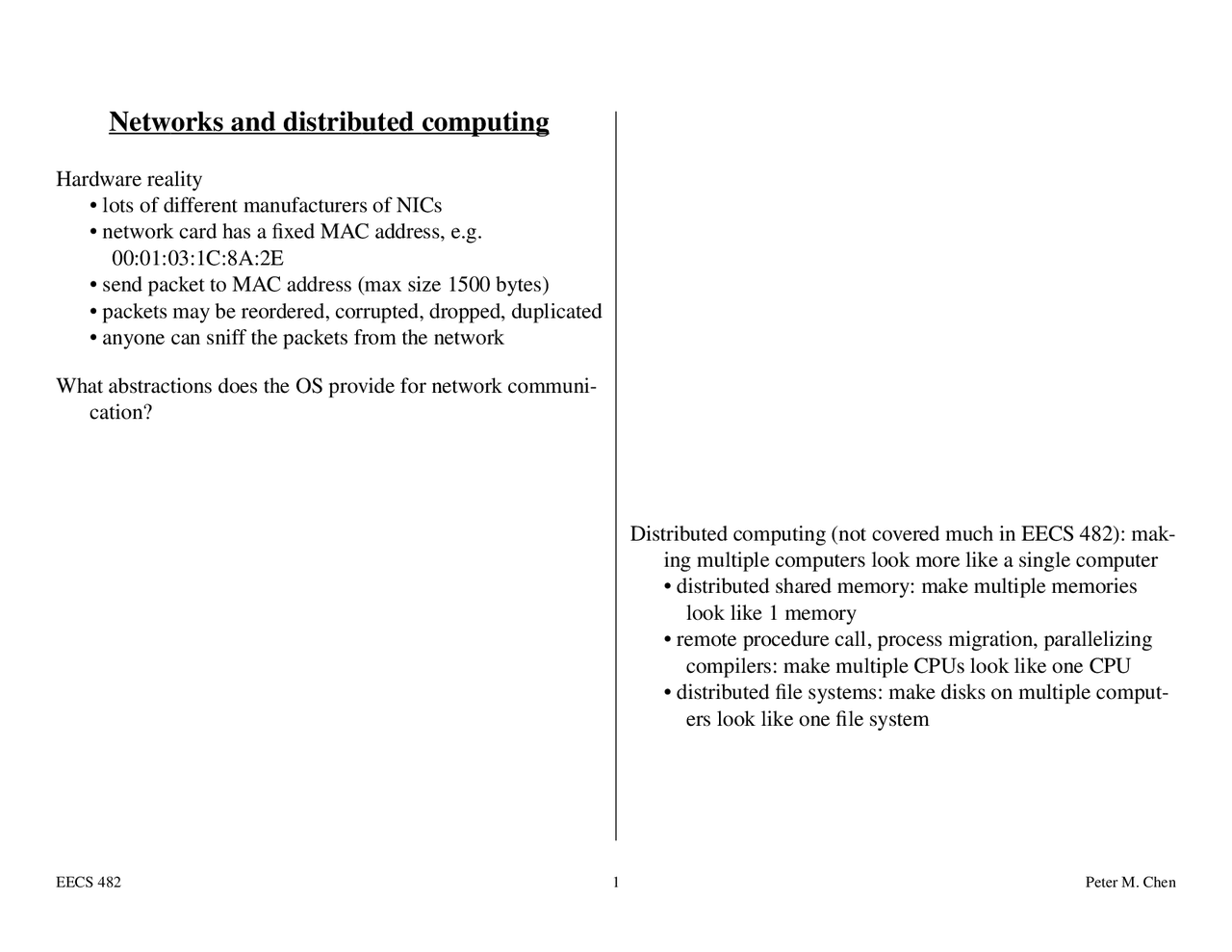

Netw
orks and distrib
uted computing
Hardware reality
- lots of different manufacturers of NICs• network card has a fixed MAC address, e.g.
00:01:03:1C:8A:2E
- send packet to MAC address (max size 1500 bytes)• packets may be reordered, corrupted, dropped, duplicated• anyone can sniff the packets from the network What abstractions does the OS provide for network communi-
cation?
Distributed computing (not covered much in EECS 482): mak-
ing multiple computers look more like a single computer• distributed shared memory: make multiple memories
look like 1 memory
- remote procedure call, process migration, parallelizing
compilers: make multiple CPUs look like one CPU
- distributed file systems: make disks on multiple comput-
ers look like one file system
EECS 482
2
Abstractions and pr
otocol lay
ers
Why build up abstractions in layers?
Routing
Hardware interface: deliver to neighbor computer on LANApplication interface: deliver to final destination through sev-
eral hops Provided by the IP (Internet Protocol) layerMessages on LAN (e.g. Ethernet) are sent via the physical ID
of the network interface card (e.g. 0:a0:c9:95:f5:58)
NFS
HTTP
e-mail
ssh
RPC
UDP
TCP
IP
Ethernet
ATM
ppp
computer 1
computer 2
Ethernet switchcomputer 3
EECS 482
4
Translation from hostname to IP address is provided by DNS
(domain name system) Used to be done with one central server
- central server has to learn about all changes• central server has to answer all lookups Split up the data into a hierarchical database (each DNS server
stores part of the database). Hierarchy allows local man-agement (so everybody doesn’t notify one central serverwhenever their hostname changes), and spreads the lookupwork across multiple servers Example: translating www.eecs.umich.edu
- start with the (well-known) IP address of the root name
server (A.ROOT-SERVERS.NET, 198.41.0.4)
- ask root name server for IP address of the edu name
server (also A.ROOT-SERVERS.NET, 198.41.0.4)
- ask edu name server for the IP address of the umich.edu
name server (dns.itd.umich.edu, 141.211.144.15)
- ask umich.edu name server for the IP address of
eecs.umich.edu name server (zip.eecs.umich.edu,141.213.4.4)
- ask eecs.umich.edu name server for the IP address of
www.eecs.umich.edu: 141.213.4.
Message size
Hardware interface: physical network type limits size of a
message (e.g. Ethernet maximum packet size is 1500bytes) Application interface: can send larger message (e.g. IP maxi-
mum packet size is 64 KB) IP layer can fragment a packet when it’s larger than the next
hop’s MTU (maximum transmission unit), then re-assem-ble it at the destination
EECS 482
5
Sock
ets and ports
Hardware interface: machine-to-machine communication (one
network endpoint per machine) Application interface: process-to-process communication (one
or more network endpoints per process) A process can ask the OS to create a “socket”, which will be
one endpoint of a network connection• thread is like a virtual processor• address space is like a virtual memory• an endpoint (socket) is like a virtual network interface
card
Each socket on a computer has a unique “port” number
- a process can associate a specific port number with a
socket using the
bind
call
- when sending to a socket, the destination port number is
included in each message. This allows the destinationmachine to know which process (and which socket inthat process) should receive the message.
The OS to multiplex several network connections onto a single
physical card UDP (user datagram protocol) provides this process-to-process
abstraction on top of IP TCP (transmission control protocol) is also built on IP
- provides additional abstractions beyond UDP: ordered,
reliable, byte streams
process A
process B socket 3
socket 2
socket 1
Operating System
Network InterfaceCard
EECS 482
7
Duplicate messages are easy to detect (look at the sequence #)
and fix (just drop the duplicate) To detect corrupted messages, add some redundant informa-
tion, e.g. checksum• if message is corrupted, simply drop it. This transforms
the problem of a corrupted message into the problem ofa dropped message, and we already know how to handlethat).
Byte str
eams
Hardware interface: send information over network in distinct
messages Application interface: send data in a continuous stream (simi-
lar to reading/writing a file) TCP provides byte streams instead of distinct messagesSender sends messages of arbitrary size that are combined into
a single stream TCP layer breaks up the stream into fragments, sends them as
distinct messages, then reassembles them at the destinationinto a byte stream for the receiver. In contrast, UDP pre-serves the message boundary between sender and receiver. E.g.
- sender sends 100 bytes, then sends another 100 bytes• TCP receive may return 1-200 bytes If receiver wants to receive a certain number of bytes, it must
loop around the receive call How to know # of bytes to receive?
EECS 482
8
Wh
y b
uild distrib
uted applications?
Performance: aggregate performance of many machines can be
higher than the performance of a single fast machine Co-location: locate different computers near local resources
- examples of local resources: people, sensors, actuators Reliability: can provide continuous service, even if one com-
puter is down
Building distrib
uted applications
Send/receive as communication primitive
- how did we communicate between threads running on a
single computer?
- this doesn’t work for threads running across different
computers (distributed applications)
- to communicate, must send/receive messages Send/receive as synchronization primitives - what hardware primitives did we build on top of to syn-
chronize between threads on a single machine?
- these don’t work for synchronizing between multiple
machines
- we’ll use send/receive as the atomic primitives that allow
us to synchronize distributed applications
EECS 482
10
client_produce() {
send
produce request message to server wait
for
response
} client_consume() {
send
consume message to server wait
for
response
} server()
{
receive
request (from any producer or any client) if
(request is from a producer) {put
coke in machine
}^
else
{ take
coke out of machine
} send
response
} Problems with this code?How to fix the code?
server() {
receive request
(from
any
producer
or
any
client) if (request is
from
a
producer)
{
fork a thread
that
calls
server_produce()
} else {
fork a thread
that
calls
server_consume()
} } server_produce()
{
lockwhile (machine
is
full)
{
wait } put coke in machinesend response
to
producer
client
unlock } server_consume()
{
lockwhile (machine
is
empty)
{
wait } take coke out
of
machine
send response
to
consumer
client
unlock }
EECS 482
11
This creates a new thread for each request. How to lower the
overhead of creating threads? There are other ways of solving the problem (but threads are
the cleanest, because each thread just has to keep track ofone thing at a time (and it can be blocking, as long as itdoesn’t hold a lock)• polling (using select())• signals (using SIGIO)
RPC
We’ve been using send/receive. E.g. client sends request to
server, server receives request, then sends response mes-sage to client• this exposes the distributed nature of the system to the
programmer
- we’d like to make building a distributed application as
similar as possible to building a centralized application
What else in programming is like making a request to a server
and getting a response?
EECS 482
13
Peter M. Chen
Client stub Server stub Note that client makes a normal function call, server function
is called like a normal function RPC is the mechanism behind CORBA and COM
Pr
oducer consumer using RPC
This uses datagrams (like UDP) and assumes messages are
reliable Client stub is named produce()
int produce(int
n){
int status;send(sock,
&n,
sizeof(n));
recv(sock,
&status,
sizeof(status));
return(status); } Server stub can be named anything
produce_stub()
{
int n;int status;recv(sock,
&n,
sizeof(n));
status =
produce(n);
/*
call
“produce”
function
on
server
*/
send(sock,
&status,
sizeof(status));
} Client and server stubs can be generated automatically. What
information do you need to generate the stub?
EECS 482
14
Pr
oblems with RPC
RPC tries to make request/response to remote server look like
a function call, but some differences remain Hard to pass pointers and global variables
- what happens if you pass a pointer to the remote server
and the server de-references it?
- one way to fix this is to also send the data being pointed
to, then change the pointers on the server to point to theremote copy of the data, then copy the data back to theclient when the server is finished
Data might have different representations on different
machines• solve by agreeing to some conventional format Different failure modes can occur in RPC than a normal func-
tion call• e.g. server fails but client stays up
Structuring a concurr
ent system
1 multi-threaded process on 1 computer 1 multi-threaded process on each of several computers
send receive
