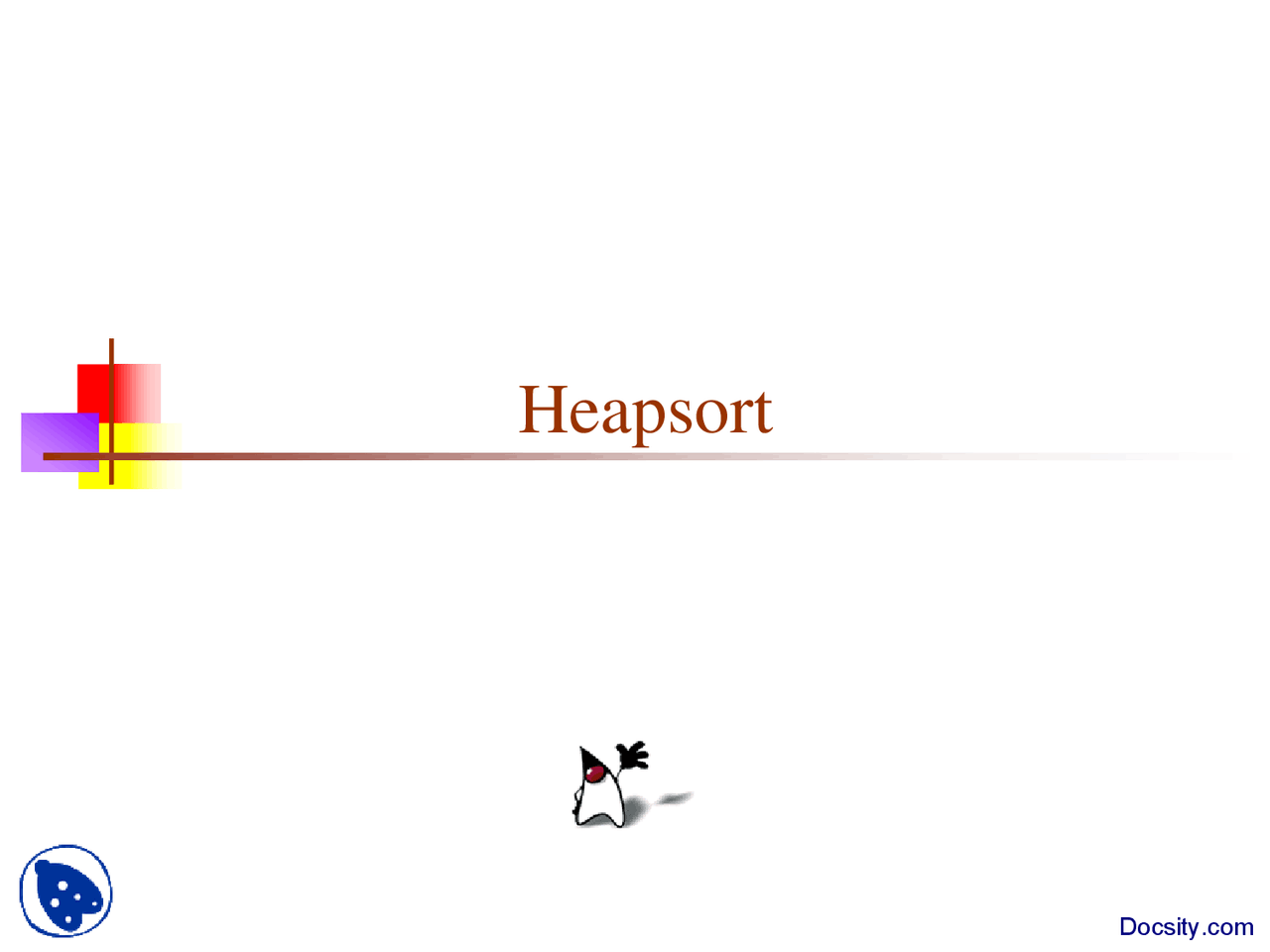

Heapsort

Docsity.com

Why study Heapsort?

 It is a well-known, traditional sorting algorithm

you will be expected to know

 Heapsort is always O(n log n)

 Quicksort is usually O(n log n) but in the worst case

slows to O(n^2 )

 Quicksort is generally faster, but Heapsort is better in

time-critical applications

 Heapsort is a really cool algorithm!

Docsity.com

Balanced binary trees

 Recall:

 The depth of a node is its distance from the root

 The depth of a tree is the depth of the deepest node

 A binary tree of depth n is balanced if all the nodes at

depths 0 through n-2 have two children

Balanced Balanced Not balanced

n- n- n

Docsity.com

Left-justified binary trees

 A balanced binary tree of depth n is left-

justified if:

 it has 2

n

nodes at depth n (the tree is “full”), or

 it has 2

k

nodes at depth k, for all k < n, and all

the leaves at depth n are as far left as possible

Left-justified Not left-justified

Docsity.com

The heap property

 A node has the heap property if the value in the

node is as large as or larger than the values in its

children

 All leaf nodes automatically have the heap property

 A binary tree is a heap if all nodes in it have the

heap property

Blue node has

heap property

Blue node has

heap property

Blue node does not

have heap property

Docsity.com

siftUp

 Given a node that does not have the heap property, you can

give it the heap property by exchanging its value with the

value of the larger child

 This is sometimes called sifting up

 Notice that the child may have lost the heap property

Blue node has

heap property

Blue node does not

have heap property

Docsity.com

Constructing a heap II

 Each time we add a node, we may destroy the heap

property of its parent node

 To fix this, we sift up

 But each time we sift up, the value of the topmost node

in the sift may increase, and this may destroy the heap

property of its parent node

 We repeat the sifting up process, moving up in the tree,

until either

 We reach nodes whose values don’t need to be swapped

(because the parent is still larger than both children), or

 We reach the root

Docsity.com

Constructing a heap III

1 2 3

4

Docsity.com

A sample heap

 Here’s a sample binary tree after it has been heapified

 Notice that heapified does not mean sorted

 Heapifying does not change the shape of the binary tree;

this binary tree is balanced and left-justified because it

started out that way

Docsity.com

Removing the root (animated)

 Notice that the largest number is now in the root

 Suppose we discard the root:

 How can we fix the binary tree so it is once again balanced

and left-justified?

 Solution: remove the rightmost leaf at the deepest level and

use it for the new root

Docsity.com

The reHeap method II

 Now the left child of the root (still the number 11 ) lacks

the heap property

 We can siftUp() this node

 After doing this, one and only one of its children may have

lost the heap property

Docsity.com

The reHeap method III

 Now the right child of the left child of the root (still the

number 11 ) lacks the heap property:

 We can siftUp() this node

 After doing this, one and only one of its children may have

lost the heap property —but it doesn’t, because it’s a leaf

Docsity.com

Sorting

 What do heaps have to do with sorting an array?

 Here’s the neat part:

 Because the binary tree is balanced and left justified, it can be

represented as an array

 Danger Will Robinson: This representation works well only with balanced , left-justified binary trees

 All our operations on binary trees can be represented as

operations on arrays

 To sort:

heapify the array; while the array isn’t empty { remove and replace the root; reheap the new root node; } Docsity.com

Mapping into an array

 Notice:

 The left child of index i is at index 2*i+

 The right child of index i is at index 2*i+

 Example: the children of node 3 (19) are 7 (18) and 8 (14)

0 1 2 3 4 5 6 7 8 9 10 11 12
