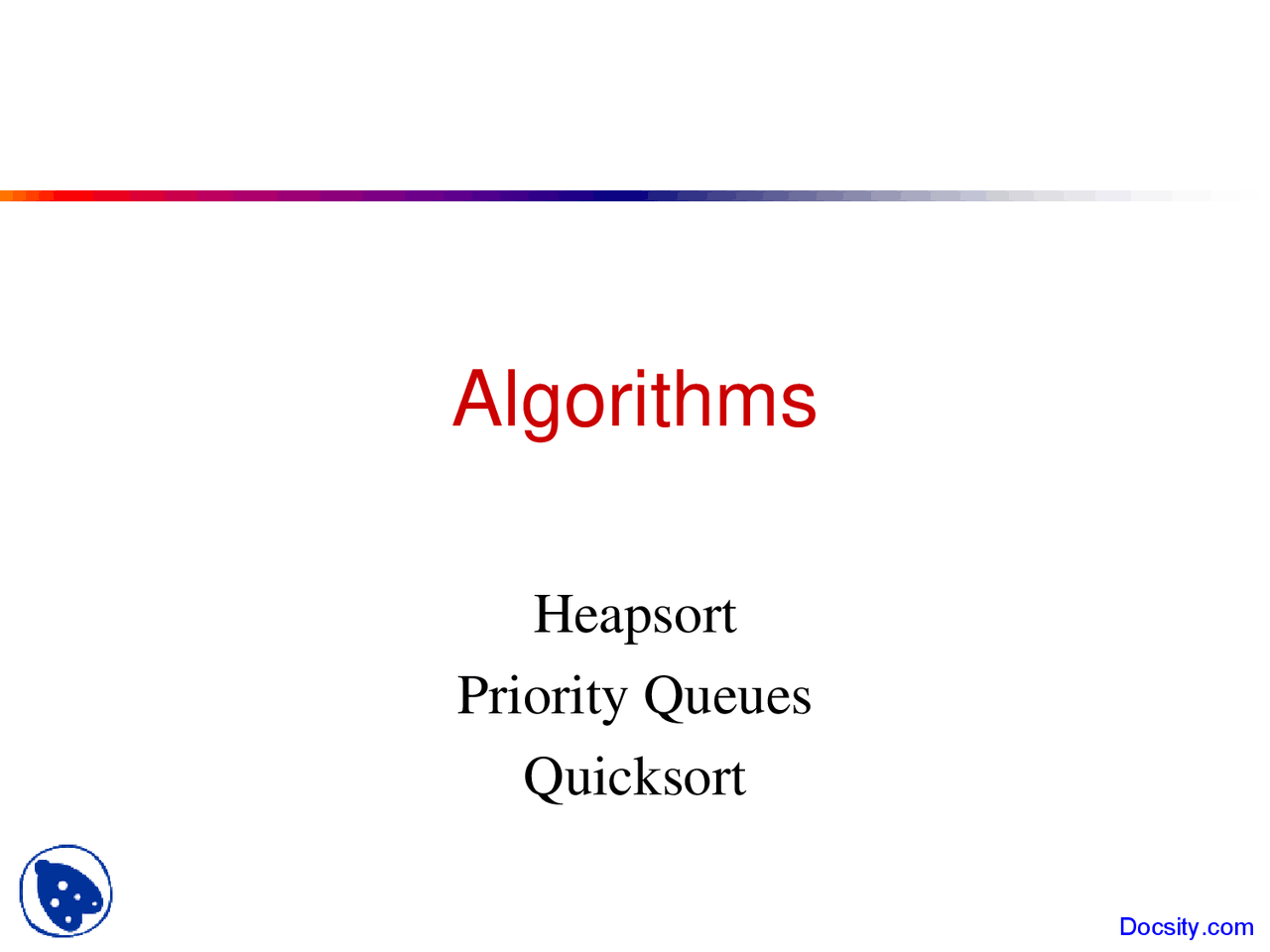

Algorithms

Heapsort Priority Queues Quicksort

Review: Heaps

 A heap is a “complete” binary tree, usually represented as an array: 16 4 10 14 7 9 3 2 8 1

A = 16 14 10 8 7 9 3 2 4 1

Review: The Heap Property

 Heaps also satisfy the heap property :

A[ Parent ( i )] ≥ A[ i ] for all nodes i > 1  In other words, the value of a node is at most the value of its parent  The largest value is thus stored at the root (A[1])

 Because the heap is a binary tree, the height of any node is at most Θ(lg n )

Review: Heapify()

 Heapify() : maintain the heap property

 Given: a node i in the heap with children l and r  Given: two subtrees rooted at l and r , assumed to be heaps  Action: let the value of the parent node “float down” so subtree at i satisfies the heap property  If A[i] < A[l] or A[i] < A[r], swap A[i] with the largest of A[l] and A[r]  Recurse on that subtree  Running time: O( h ), h = height of heap = O(lg n )

BuildHeap()

// given an unsorted array A, make A a heap BuildHeap(A) { heap_size(A) = length(A); for (i =  length[A]/2  downto 1) Heapify(A, i); }

Analyzing BuildHeap()

 Each call to Heapify() takes O(lg n ) time

 There are O( n ) such calls (specifically, n/2)

 Thus the running time is O( n lg n )

 Is this a correct asymptotic upper bound?  Is this an asymptotically tight bound?

 A tighter bound is O (n )

 How can this be? Is there a flaw in the above reasoning?

Heapsort

 Given BuildHeap() , an in-place sorting

algorithm is easily constructed:  Maximum element is at A[1]  Discard by swapping with element at A[n]  Decrement heap_size[A]  A[n] now contains correct value  Restore heap property at A[1] by calling Heapify()  Repeat, always swapping A[1] for A[heap_size(A)]

Heapsort

Heapsort(A) { BuildHeap(A); for (i = length(A) downto 2) { Swap(A[1], A[i]); heap_size(A) -= 1; Heapify(A, 1); } }

Priority Queues

 Heapsort is a nice algorithm, but in practice Quicksort (coming up) usually wins

 But the heap data structure is incredibly useful for implementing priority queues  A data structure for maintaining a set S of elements, each with an associated value or key  Supports the operations Insert() , Maximum() , and ExtractMax()  What might a priority queue be useful for?

Priority Queue Operations

 Insert(S, x) inserts the element x into set S

 Maximum(S) returns the element of S with the maximum key

 ExtractMax(S) removes and returns the element of S with the maximum key

 How could we implement these operations using a heap?

Tying It Into The “Real World”

 And now, a real-world example… combat billiards  Sort of like pool...  Except you’re trying to kill the other players…  And the table is the size of a polo field…  And the balls are the size of Suburbans...  And instead of a cue you drive a vehicle with a ram on it  Problem: how do you simulate the physics?

Figure 1: boring traditional pool

Combat Billiards:

Simulating The Physics

 Simplifying assumptions:

 G-rated version: No players  Just n balls bouncing around  No spin, no friction  Easy to calculate the positions of the balls at time Tn from time Tn-1 if there are no collisions in between  Simple elastic collisions

Implementing Priority Queues

HeapInsert(A, key) // what’s running time? { heap_size[A] ++; i = heap_size[A]; while (i > 1 AND A[Parent(i)] < key) { A[i] = A[Parent(i)]; i = Parent(i); } A[i] = key; }

Implementing Priority Queues

HeapMaximum(A) { // This one is really tricky:

return A[i]; }
