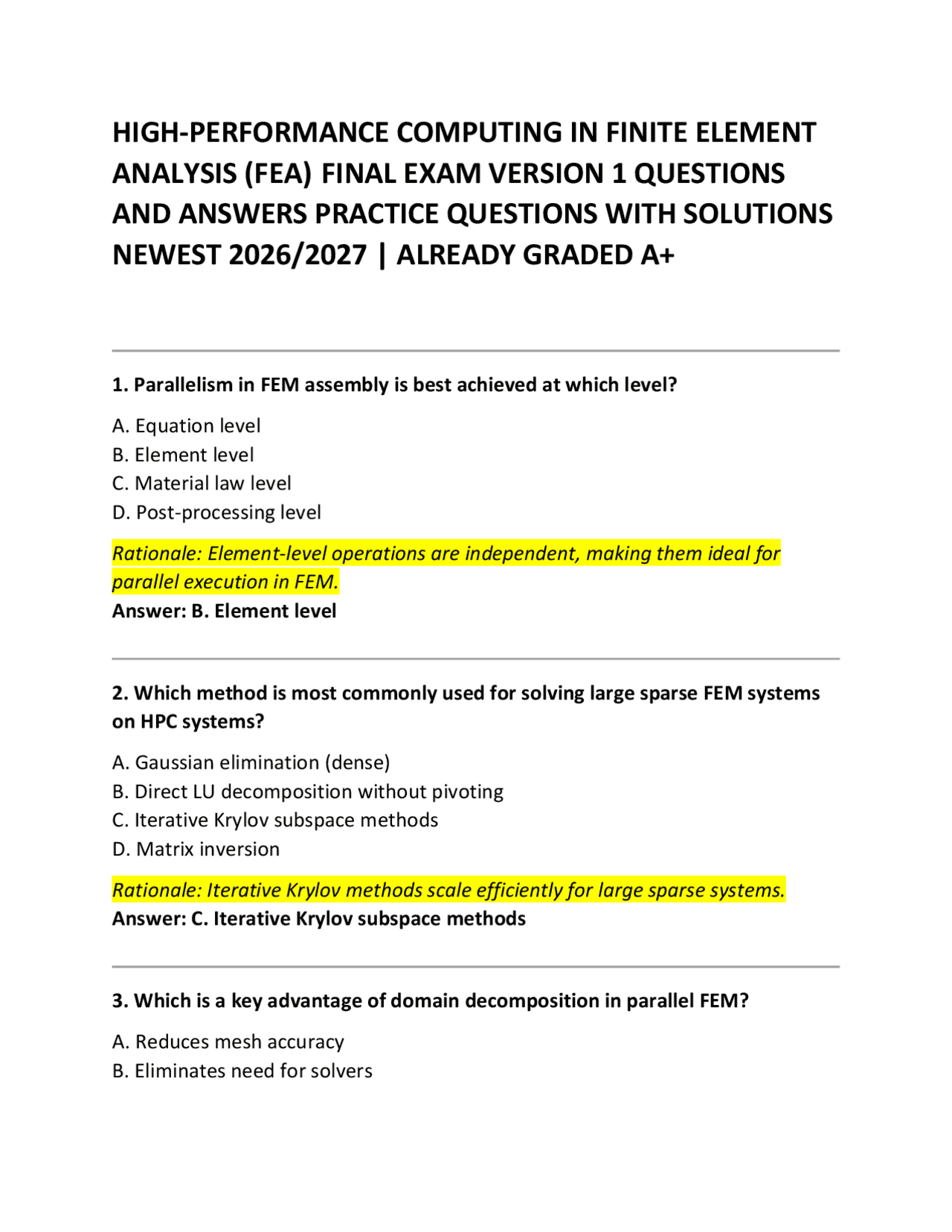

HIGH-PERFORMANCE COMPUTING IN FINITE ELEMENT
ANALYSIS (FEA) FINAL EXAM VERSION 1 QUESTIONS
AND ANSWERS PRACTICE QUESTIONS WITH SOLUTIONS
NEWEST 2026/2027 | ALREADY GRADED A+
1. Parallelism in FEM assembly is best achieved at which level? A. Equation level B. Element level C. Material law level D. Post-processing level Rationale: Element-level operations are independent, making them ideal for parallel execution in FEM. **Answer: B. Element level
- Which method is most commonly used for solving large sparse FEM systems on HPC systems?** A. Gaussian elimination (dense) B. Direct LU decomposition without pivoting C. Iterative Krylov subspace methods D. Matrix inversion Rationale: Iterative Krylov methods scale efficiently for large sparse systems. **Answer: C. Iterative Krylov subspace methods
- Which is a key advantage of domain decomposition in parallel FEM?** A. Reduces mesh accuracy B. Eliminates need for solvers
C. Enables distributed memory parallelism D. Converts FEM into FDM Rationale: Domain decomposition distributes subdomains across processors. Answer: C. Enables distributed memory parallelism
4. MPI is primarily used in HPC FEM for: A. Shared memory threading B. Distributed memory communication C. GPU kernel execution D. Mesh generation Rationale: MPI handles communication between distributed processes. **Answer: B. Distributed memory communication
- OpenMP is best suited for:** A. Distributed clusters B. GPU programming C. Shared-memory parallelism D. Network communication Rationale: OpenMP works within shared-memory systems. **Answer: C. Shared-memory parallelism
- The stiffness matrix in FEM is typically:** A. Dense and small B. Sparse and large C. Diagonal only D. Identity matrix Rationale: FEM leads to sparse matrices due to local element connectivity. Answer: B. Sparse and large
Rationale: Partitioning distributes workload evenly across processors. Answer: C. Balance computational load
11. What is the main purpose of preconditioning in iterative solvers? A. Increase mesh resolution B. Improve convergence rate C. Reduce memory usage D. Eliminate stiffness matrix Rationale: Preconditioning improves numerical conditioning for faster convergence. **Answer: B. Improve convergence rate
- Which preconditioner is commonly used in large-scale FEM?** A. Jacobi B. LU only exact C. Random matrix D. Fourier transform Rationale: Jacobi is simple and parallelizable. **Answer: A. Jacobi
- In FEM HPC, “weak scaling” refers to:** A. Increasing problem size per processor B. Reducing mesh density C. Fixed problem size D. Increasing precision only Rationale: Weak scaling keeps workload per processor constant. **Answer: A. Increasing problem size per processor
- Strong scaling measures:**
A. Larger mesh size efficiency B. Speedup with fixed problem size C. Memory usage growth D. Mesh quality Rationale: Strong scaling evaluates performance for fixed workload. Answer: B. Speedup with fixed problem size
15. Cache efficiency in FEM assembly depends on: A. Random memory access B. Data locality C. Network latency D. Mesh color Rationale: Data locality improves cache reuse and performance. **Answer: B. Data locality
- GPU acceleration in FEM is most effective for:** A. Serial loops B. Element-wise computations C. File I/O D. Mesh input parsing Rationale: Element computations are highly parallel. **Answer: B. Element-wise computations
- Sparse matrix storage reduces:** A. Accuracy B. Memory usage C. Stability D. Boundary conditions
A. Excel B. METIS C. Word D. Photoshop Rationale: METIS is widely used for graph partitioning in FEM. Answer: B. METIS
22. The global stiffness matrix is assembled from: A. Random values B. Element stiffness matrices C. Boundary nodes only D. Material constants only Rationale: FEM assembles global matrix from element contributions. **Answer: B. Element stiffness matrices
- In HPC FEM, communication cost depends mainly on:** A. Mesh color B. Interface nodes C. Element material D. Solver type only Rationale: Interface nodes require data exchange. **Answer: B. Interface nodes
- Which method reduces communication in parallel FEM?** A. Global assembly B. Overlapping domains C. Dense matrices D. Single processor execution
Rationale: Overlapping reduces communication frequency. Answer: B. Overlapping domains
25. Krylov methods include: A. Jacobi only B. CG and GMRES C. FFT only D. Euler method Rationale: CG and GMRES are Krylov subspace methods. **Answer: B. CG and GMRES
- GMRES is especially useful for:** A. Symmetric matrices only B. Non-symmetric systems C. Scalar problems D. Mesh generation Rationale: GMRES handles non-symmetric systems. **Answer: B. Non-symmetric systems
- FEM scalability improves most with:** A. Dense matrices B. Sparse solvers C. Serial algorithms D. Small meshes Rationale: Sparse solvers reduce computation and memory cost. **Answer: B. Sparse solvers
- Finite element vectorization improves:**
Rationale: DOF refers to independent nodal variables. Answer: A. Degree of Freedom
32. Which storage is best for GPU sparse matrices? A. COO or CSR B. Full dense C. Image format D. Linked list only Rationale: CSR/COO are GPU-efficient sparse formats. **Answer: A. COO or CSR
- Element-wise parallelism suffers least from:** A. Computation imbalance B. Communication C. Arithmetic operations D. Memory access Rationale: Element computations are independent. **Answer: C. Arithmetic operations
- FEM solver convergence is improved by:** A. Poor conditioning B. Preconditioning C. Random initialization D. Mesh coarsening only Rationale: Preconditioning improves matrix conditioning. **Answer: B. Preconditioning
- In HPC FEM, ghost nodes are used for:**
A. Visualization B. Inter-processor communication C. Mesh deletion D. Element creation Rationale: Ghost nodes store neighboring data for parallel domains. Answer: B. Inter-processor communication
36. Which is NOT a parallel FEM challenge? A. Load balancing B. Communication cost C. Mesh partitioning D. Element formulation theory Rationale: Element formulation is mathematical, not HPC-specific. **Answer: D. Element formulation theory
- FEM assembly complexity is typically:** A. O(1) B. O(N) C. O(N²) dense D. Exponential Rationale: Sparse FEM assembly scales linearly with elements. **Answer: B. O(N)
- Hybrid MPI + OpenMP is used to:** A. Reduce accuracy B. Combine distributed and shared memory parallelism C. Eliminate mesh D. Replace FEM
A. Mesh creation B. Solve linear system C. Material definition D. Visualization Rationale: Solver computes system equations. Answer: B. Solve linear system
43. GPU shared memory is: A. Slow B. Fast but small C. Infinite D. Disk-based Rationale: Shared memory is fast but limited. **Answer: B. Fast but small
- FEM matrices are typically sparse due to:** A. Global interactions B. Local element connectivity C. Dense formulation D. Random assembly Rationale: Elements only connect to neighbors. **Answer: B. Local element connectivity
- Which reduces FEM computational cost most?** A. Dense matrix storage B. Sparse solvers C. Increasing DOF D. Serial execution
Rationale: Sparse solvers avoid unnecessary computations. Answer: B. Sparse solvers
46. Domain decomposition methods include: A. Finite difference B. Schwarz method C. Fourier transform D. Taylor series Rationale: Schwarz methods are classical domain decomposition techniques. **Answer: B. Schwarz method
- FEM parallel efficiency increases when:** A. Communication increases B. Computation dominates communication C. Mesh is smaller D. Serial fraction increases Rationale: High compute-to-communication ratio improves efficiency. **Answer: B. Computation dominates communication
- GPU thread divergence leads to:** A. Faster execution B. Performance loss C. Better accuracy D. Reduced memory use Rationale: Divergent threads reduce GPU efficiency. **Answer: B. Performance loss
- FEM global assembly is typically:**
Rationale: Restriction moves fine-grid residuals to coarse grids. Answer: B. Transfer residual to coarser grid
53. Prolongation in multigrid methods refers to: A. Coarse-to-fine interpolation B. Mesh deletion C. Matrix inversion D. Load balancing Rationale: Prolongation interpolates coarse-grid correction to fine grid. **Answer: A. Coarse-to-fine interpolation
- A major GPU FEM kernel bottleneck is:** A. Arithmetic speed B. Memory bandwidth C. Element formulation D. Mesh generation Rationale: GPU performance is often limited by memory transfer rates. **Answer: B. Memory bandwidth
- Which FEM operation is most suitable for GPU parallelization?** A. Sparse matrix assembly B. Element stiffness computation C. File I/O D. Mesh partitioning Rationale: Element computations are independent and massively parallel. **Answer: B. Element stiffness computation
- Nonlinear FEM typically requires:**
A. Single solve only B. Iterative Newton-Raphson schemes C. No convergence checks D. No stiffness updates Rationale: Nonlinear systems require iterative linearization. Answer: B. Iterative Newton-Raphson schemes
57. Tangent stiffness matrix in nonlinear FEM represents: A. Initial geometry only B. Linearized system response C. Mesh topology D. Boundary conditions Rationale: It linearizes nonlinear equilibrium equations. **Answer: B. Linearized system response
- In Newton-Raphson FEM, convergence is measured using:** A. Mesh size B. Residual norm C. Element count D. CPU usage Rationale: Residual norm indicates equilibrium satisfaction. **Answer: B. Residual norm
- Strong scalability is most affected by:** A. Floating point format B. Communication overhead C. Element shape D. Material model
A. Uniform meshes B. Dynamic load imbalance C. Fixed computation D. No communication Rationale: Refinement creates uneven workload distribution. Answer: B. Dynamic load imbalance
64. Octree data structures are used in AMR for: A. Material modeling B. Hierarchical mesh refinement C. Direct solvers D. Visualization only Rationale: Octrees efficiently manage hierarchical grids. **Answer: B. Hierarchical mesh refinement
- GPU thread divergence occurs when:** A. All threads follow same path B. Threads take different execution paths C. Memory is shared D. Mesh is uniform Rationale: Divergent control flow reduces GPU efficiency. **Answer: B. Threads take different execution paths
- Which solver is commonly used in nonlinear FEM on HPC systems?** A. Direct LU only B. Newton-Krylov methods C. FFT only D. Euler forward
Rationale: Newton-Krylov combines nonlinear and iterative solvers. Answer: B. Newton-Krylov methods
67. Matrix-free FEM methods are used to: A. Store full stiffness matrix B. Avoid explicit matrix assembly C. Increase memory usage D. Reduce accuracy Rationale: Matrix-free methods compute matrix-vector products on the fly. **Answer: B. Avoid explicit matrix assembly
- Main benefit of matrix-free methods is:** A. Higher memory usage B. Reduced memory footprint C. Slower computation D. Dense storage requirement Rationale: They avoid storing large sparse matrices. **Answer: B. Reduced memory footprint
- In HPC FEM, halo regions are used for:** A. Mesh visualization B. Inter-process boundary data exchange C. Material properties D. Solver initialization only Rationale: Halo regions store neighbor data in parallel domains. **Answer: B. Inter-process boundary data exchange
- Load imbalance in AMR is typically handled by:**
