Ultimate Exam

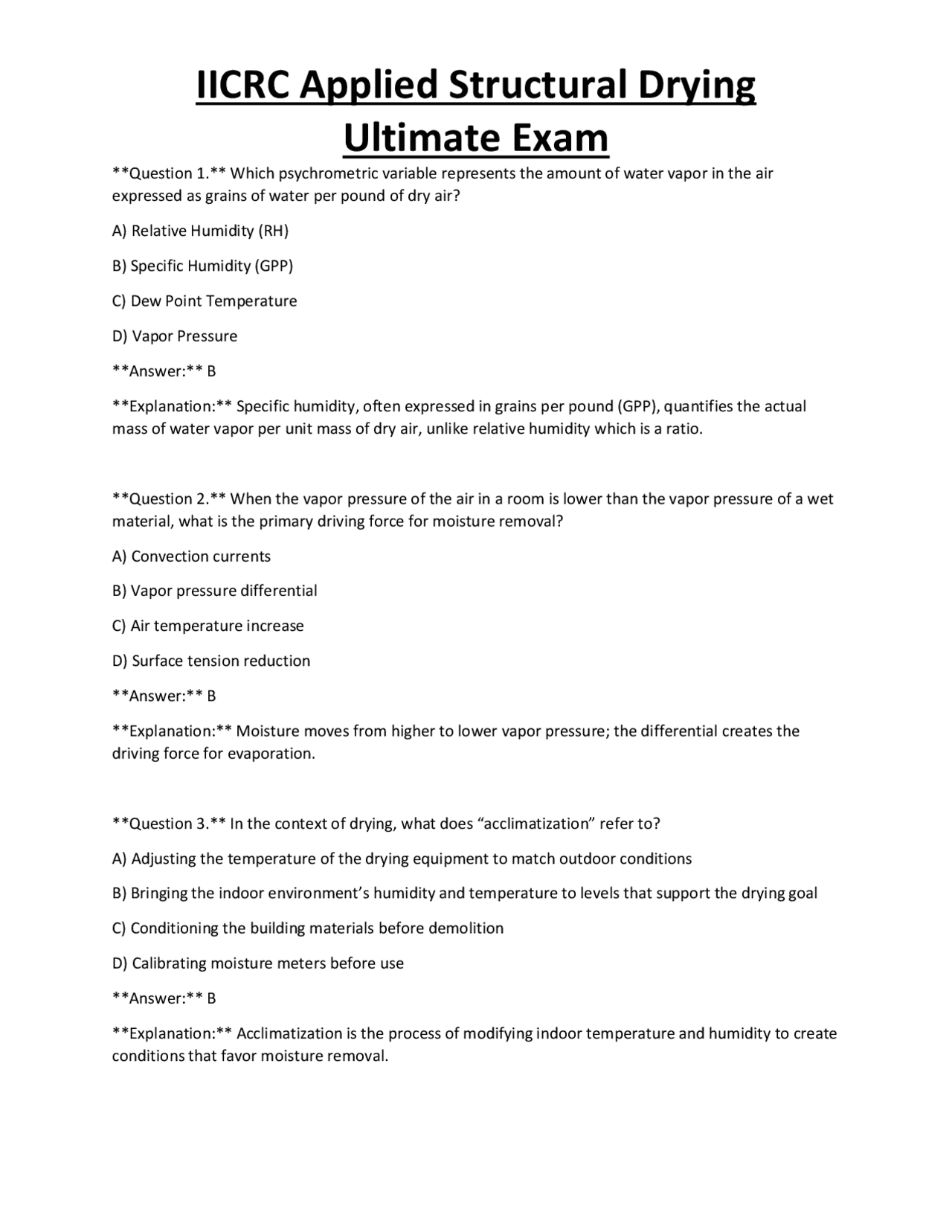

Question 1. Which psychrometric variable represents the amount of water vapor in the air expressed as grains of water per pound of dry air? A) Relative Humidity (RH) B) Specific Humidity (GPP) C) Dew Point Temperature D) Vapor Pressure Answer: B Explanation: Specific humidity, often expressed in grains per pound (GPP), quantifies the actual mass of water vapor per unit mass of dry air, unlike relative humidity which is a ratio. Question 2. When the vapor pressure of the air in a room is lower than the vapor pressure of a wet material, what is the primary driving force for moisture removal? A) Convection currents B) Vapor pressure differential C) Air temperature increase D) Surface tension reduction Answer: B Explanation: Moisture moves from higher to lower vapor pressure; the differential creates the driving force for evaporation. Question 3. In the context of drying, what does “acclimatization” refer to? A) Adjusting the temperature of the drying equipment to match outdoor conditions B) Bringing the indoor environment’s humidity and temperature to levels that support the drying goal C) Conditioning the building materials before demolition D) Calibrating moisture meters before use Answer: B Explanation: Acclimatization is the process of modifying indoor temperature and humidity to create conditions that favor moisture removal.
Ultimate Exam
Question 4. Which water category is defined as “clean water from a sanitary source with no contaminants”? A) Category 1 B) Category 2 C) Category 3 D) Category 4 Answer: A Explanation: Category 1 water is clean, such as water from a broken pipe or faucet, with no health hazards. Question 5. A carpet that has been saturated for a short period and is drying quickly falls under which water class? A) Class 1 B) Class 2 C) Class 3 D) Class 4 Answer: B Explanation: Class 2 involves a large amount of water with fast evaporation, typical of carpet and cushion drying. Question 6. Which class of loss requires “specialty drying” due to low porosity and deep moisture retention? A) Class 1 B) Class 2 C) Class 3 D) Class 4 Answer: D Explanation: Class 4 losses involve dense materials like hardwood, stone, or concrete that need specialized drying techniques.
Ultimate Exam
Question 10. A “drying goal” is typically set at what percentage above the dry standard? A) 5% B) 10% C) 15% D) 20% Answer: B Explanation: The goal is usually within 10% of the dry standard to ensure the material is effectively dried. Question 11. Which moisture detection tool measures moisture content through electrical impedance without penetrating the material? A) Pin-type meter B) Non‑penetrating (impedance) meter C) Infrared camera D) Thermo‑hygrometer Answer: B Explanation: Non‑penetrating meters use electromagnetic fields to assess moisture without inserting pins. Question 12. A pin‑type meter provides moisture readings by: A) Measuring surface temperature differences B) Detecting changes in electrical resistance with direct contact C) Analyzing reflected infrared wavelengths D) Calculating vapor pressure from ambient humidity Answer: B Explanation: Pin meters insert probes into the material; moisture alters electrical resistance, which the meter reads.
Ultimate Exam
Question 13. Which instrument is most appropriate for monitoring ambient air temperature and relative humidity simultaneously? A) Moisture meter B) Infrared camera C) Thermo‑hygrometer D) Psychrometer chart Answer: C Explanation: Thermo‑hygrometers record both temperature and humidity in the environment. Question 14. The primary benefit of using an infrared (IR) camera during structural drying is: A) Direct measurement of moisture content in wood B) Identification of temperature differentials that indicate hidden moisture C) Calibration of dehumidifier output D) Measuring specific humidity in grains per pound Answer: B Explanation: IR cameras detect temperature variations, helping locate hidden moisture behind walls or floors. Question 15. According to the IICRC S500 standard, what is the minimum documentation required for each day of a drying project? A) Only final moisture readings B) Equipment make and model list C) Atmospheric readings, material moisture content, and equipment status D) Photographs of the exterior only Answer: C Explanation: Daily logs must capture inlet/outlet/ambient/outside readings, material MC, and equipment performance.
Ultimate Exam
Question 19. An LGR dehumidifier differs from a standard refrigerant unit primarily by: A) Using a larger compressor B) Operating at a lower grain removal rate per pound of air C) Employing a secondary drying coil to achieve lower outlet humidity D) Requiring more electricity per pound of water removed Answer: C Explanation: LGR units have an additional drying coil that allows them to achieve lower outlet relative humidity, enhancing performance in high‑moisture situations. Question 20. For a Class 4 loss involving hardwood flooring, which equipment combination is most effective? A) Axial air movers and a standard refrigerant dehumidifier B) Floor mats with pressurized drying and a desiccant dehumidifier C) Portable fans and a portable water‑cooled dehumidifier D) Ceiling‑mounted air movers and a standard refrigerant dehumidifier Answer: B Explanation: Pressurized drying mats coupled with desiccant dehumidifiers address deep moisture in dense hardwood. Question 21. In concrete drying, capillary action primarily causes moisture to: A) Evaporate directly from the surface only B) Move upward through the material and out of the surface C) Remain trapped indefinitely D) Convert into vapor without movement Answer: B Explanation: Capillary action draws moisture through the pore network of concrete, moving it toward the surface for evaporation.
Ultimate Exam
Question 22. Which of the following is a key consideration when drying a crawlspace with high soil moisture? A) Installing additional carpet padding B) Applying a vapor barrier over the ground C) Increasing the temperature of the HVAC system only D) Using only axial fans for airflow Answer: B Explanation: A vapor barrier helps prevent ground moisture from migrating into the crawlspace, aiding the drying process. Question 23. During a commercial multi‑layer wall drying, the most critical factor to monitor is: A) The color change of the paint B) The moisture content of the innermost structural member C) The temperature of the exterior siding D) The humidity level in the adjacent office space Answer: B Explanation: The innermost structural member (e.g., studs) often retains the most moisture and dictates overall drying success. Question 24. The “48‑to‑ 72 ‑hour window” in microbiology refers to: A) The time required for water to evaporate from carpet fibers B) The period after water intrusion when mold spores begin germination C) The interval needed for dehumidifiers to reach full capacity D) The standard time to complete a moisture mapping survey Answer: B Explanation: Mold spores typically germinate within 48–72 hours after water exposure, making early mitigation essential.
Ultimate Exam
A) The drying equipment reaches its maximum capacity B) Structural collapse risk or unsafe atmospheric conditions are identified C) The moisture content is within 20% of the dry standard D) The client requests a break Answer: B Explanation: Safety concerns such as potential structural failure or hazardous atmospheres mandate immediate work stoppage. Question 29. The “Standard of Care” in restoration dictates that a technician should: A) Replace all materials regardless of condition B) Restore any material that can be returned to pre‑loss condition within reasonable effort and cost C) Only use the cheapest materials available D) Avoid documenting any decisions Answer: B Explanation: The Standard of Care requires technicians to restore salvageable materials when feasible, balancing cost and effort. Question 30. Subrogation in a water‑damage claim primarily involves: A) The insurer seeking reimbursement from the party responsible for the loss B) The homeowner suing the contractor for poor workmanship C) The technician receiving a bonus for rapid drying D) The insurance adjuster refusing to pay any claim Answer: A Explanation: Subrogation allows the insurer to recover costs from the liable party after paying the claim. Question 31. Which psychrometric chart axis represents specific humidity (grains per pound)? A) Horizontal axis
Ultimate Exam
B) Vertical axis C) Diagonal axis D) No axis; it’s plotted as a curve Answer: A Explanation: On a psychrometric chart, the horizontal axis typically shows specific humidity (GPP). Question 32. The dew point temperature is crucial in drying because: A) It indicates the exact amount of water in the material B) It represents the temperature at which air becomes saturated and condensation can occur C) It is the same as the ambient temperature D) It determines the airflow speed needed Answer: B Explanation: Dew point shows when air will condense; keeping temperatures above the dew point prevents secondary moisture. Question 33. Grain depression is calculated by: A) Subtracting the outlet grain count from the inlet grain count B) Adding the inlet and outlet grain counts together C) Multiplying the inlet grain count by the dehumidifier capacity D) Dividing the inlet grain count by the room volume Answer: A Explanation: Grain depression = inlet GPP – outlet GPP; it measures the dehumidifier’s moisture removal efficiency. Question 34. In the S500 equipment prompt formula, the initial dehumidifier capacity is based on: A) The number of air movers used B) The class of loss and the cubic footage of the space C) The outside temperature only
Ultimate Exam
D) Automatically adjusts temperature of the space Answer: B Explanation: Trailer‑mounted units have higher capacity and can handle the larger water removal demands of commercial projects. Question 38. The primary function of an HEPA Air Scrubber (AFD) in a drying project is to: A) Increase the temperature of the drying environment B) Remove airborne contaminants, including mold spores and dust, from the air C) Accelerate the evaporation rate of moisture from surfaces D) Decrease the relative humidity to 0% Answer: B Explanation: HEPA filters capture particles ≥0.3 μm, protecting occupants and technicians from contaminants. Question 39. In a scenario where a wall assembly contains a vapor barrier on the interior side, the recommended drying strategy is to: A) Increase interior humidity to match the barrier B) Remove the vapor barrier if possible and increase airflow behind the wall C) Seal the exterior completely D) Use only axial fans on the interior surface Answer: B Explanation: Removing or breaching the interior vapor barrier allows trapped moisture to escape and improves drying. Question 40. Which moisture meter type is most suitable for measuring the MC of a finished drywall surface without causing damage? A) Pin‑type meter B) Non‑penetrating (impedance) meter C) Infrared moisture scanner
Ultimate Exam
D) Vacuum extraction meter Answer: B Explanation: Non‑penetrating meters assess moisture through the surface without leaving holes. Question 41. The term “specific humidity” is synonymous with: A) Relative humidity B) Absolute humidity C) Dew point temperature D) Vapor pressure Answer: B Explanation: Specific humidity (or absolute humidity) quantifies the actual mass of water vapor per mass of dry air. Question 42. During a drying project, a technician notices that the outlet grain count of the dehumidifier has risen above the inlet grain count. This indicates: A) The dehumidifier is operating efficiently B) The dehumidifier is not removing moisture; possibly due to high inlet humidity or equipment malfunction C) The ambient temperature is too high D) The room is fully dried Answer: B Explanation: Outlet grain should be lower than inlet; a higher outlet grain suggests the unit isn’t extracting moisture effectively. Question 43. Which factor does NOT directly affect the rate of evaporation from a wet surface? A) Air temperature B) Air velocity over the surface C) Surface color D) Relative humidity of the surrounding air
Ultimate Exam
D) To avoid condensation inside the dehumidifier housing Answer: A Explanation: Low inlet temperatures can cause coil frosting, hindering moisture removal; LGR units perform best above 65 °F. Question 47. In a multi‑story building with a Class 3 loss on the second floor, the recommended placement of dehumidifiers is: A) Only on the ground floor B) On each affected floor, with proper intake and exhaust positioning to promote vertical airflow C) In the attic only D) In the basement only Answer: B Explanation: Placing units on each affected floor ensures localized control and facilitates vertical air movement for efficient drying. Question 48. The primary reason for using a “negative pressure” environment in a crawlspace is to: A) Pull moisture from the soil into the space for easier removal B) Prevent soil gases and moisture from migrating upward into the conditioned space C) Increase the temperature of the crawlspace D) Promote faster airflow from the attic Answer: B Explanation: Negative pressure helps keep soil gases and moisture from entering the living area, aiding overall building health. Question 49. In the IICRC terminology, “wet‑line” migration is best monitored using: A) Visual inspection only B) Moisture meters and thermal imaging to track the edge of moisture spread over time C) Humidity sensors placed on the floor D) Air velocity meters
Ultimate Exam
Answer: B Explanation: Combining moisture meters and IR imaging provides accurate tracking of wet‑line movement. Question 50. Which of the following statements about “specific heat” is true in the context of drying? A) It determines the amount of water a material can hold B) It is the amount of energy required to raise the temperature of a unit mass of air by one degree Celsius, influencing how quickly heat can be supplied for evaporation C) It is unrelated to drying processes D) It only applies to solid materials, not air Answer: B Explanation: Specific heat of air affects how much energy is needed to raise temperature, which in turn influences evaporation rates. Question 51. When a structural drying project involves a “wet wall cavity,” the first step in equipment placement is to: A) Install dehumidifiers directly inside the cavity B) Seal the cavity completely before any airflow is introduced C) Place air movers to create a laminar sweep across the interior surface of the wall, promoting airflow into the cavity D) Apply antimicrobial agents before any drying begins Answer: C Explanation: Proper air mover placement initiates airflow that pulls moisture out of the cavity. Question 52. Which of the following is a key indicator that a dehumidifier’s condensate pump is malfunctioning? A) The unit emits a high‑pitched whine B) No water is collected in the condensate bucket despite high inlet humidity C) The inlet temperature drops rapidly
Ultimate Exam
D) Using supplemental heating to maintain inlet temperature above 60 °F Answer: B Explanation: Continuous operation without monitoring can cause the unit to become saturated; periodic checks and proper inlet temperature are essential. Question 56. When documenting a moisture reading, the correct format according to S includes: A) Date, time, location, material, meter type, reading, and units B) Only the final moisture content value C) The name of the technician and the brand of meter used D) The ambient temperature only Answer: A Explanation: Comprehensive documentation includes date, time, location, material, meter type, reading, and units for legal and professional accuracy. Question 57. A technician notices mold growth on a drywall surface that was dried to within 5% of the dry standard. The most appropriate next step is: A) Ignore the mold because the material is dry B) Apply an EPA‑registered antimicrobial and document the treatment C) Remove the drywall immediately without further testing D) Increase the temperature to 100 °F to kill the mold Answer: B Explanation: Even with acceptable MC, visible mold requires antimicrobial treatment and proper documentation. Question 58. Which of the following best describes “specific humidity” on a psychrometric chart? A) The ratio of water vapor pressure to total atmospheric pressure B) The mass of water vapor per unit mass of dry air, plotted on the horizontal axis C) The temperature at which condensation occurs
Ultimate Exam
D) The amount of water vapor expressed as a percentage of saturation Answer: B Explanation: Specific humidity (grains per pound) is plotted horizontally and represents actual water vapor mass. Question 59. In a drying project involving a “wet‑in‑wet” scenario (two adjacent rooms both saturated), the optimal equipment strategy is to: A) Use one dehumidifier in the larger room only B) Place dehumidifiers in each room and balance airflow between them to prevent cross‑contamination C) Rely solely on air movers without dehumidifiers D) Seal both rooms completely and wait for natural drying Answer: B Explanation: Separate dehumidifiers ensure each space reaches its drying goal while balanced airflow prevents moisture transfer. Question 60. The primary purpose of a “containment barrier” in a Category 2 water loss is to: A) Increase the drying speed of the affected area B) Prevent cross‑contamination of clean areas with potentially hazardous contaminants C) Reduce the need for PPE D) Eliminate the need for antimicrobial treatment Answer: B Explanation: Containment barriers isolate contaminated zones to protect unaffected areas and occupants. Question 61. When calculating the required number of axial air movers for a 2,500 ft² room with 10 ft ceilings, the total linear footage of walls is approximately: A) 200 ft B) 400 ft C) 600 ft
