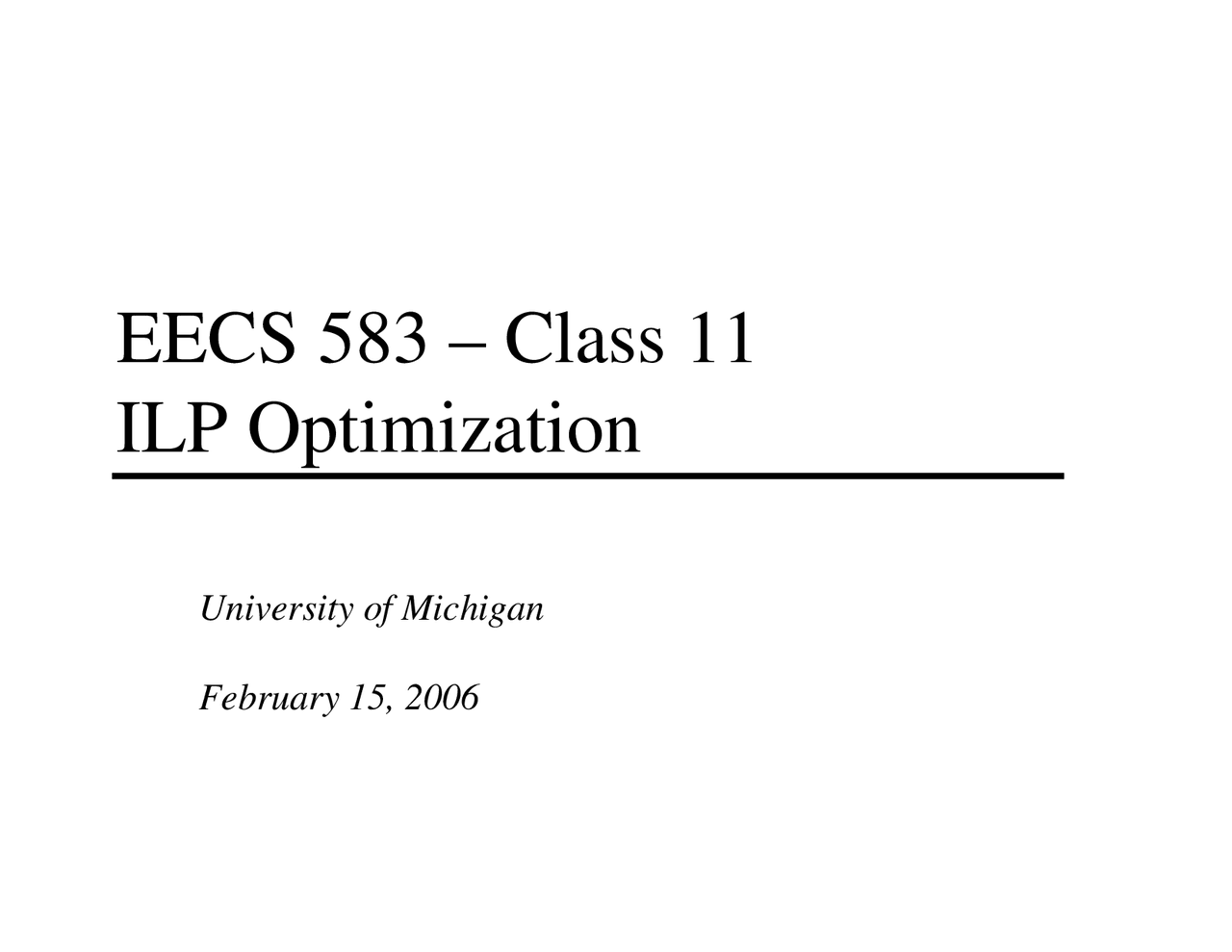

EECS 583 – Class 11ILP Optimization

University of MichiganFebruary 15, 2006

• 1 -

Reading Material^

Today’s class»

"Compiler Code Transformations for Superscalar-Based High-Performance Systems", S. Mahlke et al., Supercomputing '92,Nov. 1992, pp. 808-817.

Material for the next lecture»

“Machine Description Driven Compilers for EPIC Processors”,B. Rau, V. Kathail, and S. Aditya, HP Technical Report, HPL-98-40, 1998.

• 3 -

Induction Variable Strength Reduction

Create basic inductionvariables from derivedinduction variables

Induction variable»

BIV (i++)^

»^

DIV (j = i * 4)^

»^

DIV can be converted into aBIV that is incremented by 4

Issues»

Initial and increment vals

»^

Where to place increments

r5 = r4 - 3r4 = r4 + 1

r7 = r4 * r

r6 = r4 << 2

• 4 -

Induction Variable Strength Reduction (2)^

Rules»

X is a *, <<, + or – operation »^

src1(X) is a basic ind var »^

src2(X) is invariant »^

No other ops modify dest(X) »^

dest(X) != src(X) for all srcs »^

dest(X) is a register

Transformation»

Insert the following into the preheader^

new_reg = RHS(X)

»^

If opcode(X) is not add/sub, insert to thebottom of the preheader^

new_inc = inc(src1(X)) opcode(X) src2(X)

»^

else^

new_inc = inc(src1(X))

»^

Insert the following at each update ofsrc1(X)^

new_reg += new_inc

»^

Change X



dest(X) = new_reg

r5 = r4 - 3r4 = r4 + 1

r7 = r4 * r

r6 = r4 << 2

• 6 -

Class Problem

Optimize this applying induction var str reductioninduction var elimination

r5 = r5 + 1r11 = r5 * 2r10 = r11 + 2 r12 = load (r10+0)

r9 = r1 << 1r4 = r9 - 10r3 = load(r4+4)r3 = r3 + 1store(r4+0, r3)r7 = r3 << 2r6 = load(r7+0)r13 = r2 - 1r1 = r1 + 1r2 = r2 + 1

r1 = 0r2 = 0

r13, r12, r6, r

liveout

• 7 -

ILP Optimization^

Traditional optimizations»

Redundancy elimination

»^

Reducing operation count

ILP (instruction-level parallelism) optimizations»

Increase the amount of parallelism and the ability to overlapoperations

»^

Operation count is secondary, often trade parallelism for extrainstructions (avoid code explosion)

ILP increased by breaking dependences»

True or flow = read after write dependence

»^

False or (anti/output) = write after read, write after write

• 9 -

Global Register Renaming

Straight-line code strategydoes not work»

A single use may havemultiple reaching defs

Web = Collection of defs/useswhich have possible valueflow between them»

Identify webs^

Take a def, add all uses  Take all uses, add allreaching defs  Take all defs, add all uses  repeat until stable soln

»^

Each web renamed if name isthe same as another web

x =y =

= y= x

x =y =

= y

= x

y =

= y

• 10 -

Rename with Copy

Renaming within a web»

The worst case is a web spansall defs/uses »^

Want to enable some of thedefs within the web to bereordered or executed inparallel

Xform»

Rename def »^

Rename uses for which def isthe the only reaching def »^

Insert copy^

orig_dest = new_dest

y =

= y

y == y

= y

y =

= y

= y

• 12 -

Promote with Copy^

Similar to rename with copy»

Promotion alone not legalbecause a live valuedestroyed

Rename destination, canpromote to any ancestor»

Might as well choose True »^

Substitute uses for which defis the only reaching def »^

Insert copy of old_dest =new_dest if original_ped »^

Again, must ensure operationwill not cause a spuriousexception

r7 = 0p1,p2 = CMPP.UN.UC(r1 < r5)r7 = load(r8) if p2r12 = r7 +1 if p2r10 = r4 + 4 if p1r11 = r7 + 1 if Tr1 = r2 + r3r7 = 0p1,p2 = CMPP.UN.UC(r1 < r5)r

= load(r8) if T

r

= r

if p

r12 = r

+1 if p

r10 = r4 + 4 if p1r11 = r7 + 1 if T

• 13 -

Class Problem

r1 = 0 if Tp1 = CMPP.UN(r3 < r4) if Tr2 = r6 + 3 if p1p2,p3 = CMPP.UN.UC(r5 < r6) if p1r1 = r5 + 1 if p2r10 = r2 + r3 if p2r1 = r3 * 3 if p3r11 = load(r1) if p3store (r1, r10) if Tstore (r3, r11) if T

1. Promote everything to its highest predicate w/o renaming2. Promote any defs of r1, r2 that remain predicated to True

using promotion with renaming

• 15 -

Tree Height Reduction^

Re-compute expression as abalanced binary tree»

Obey precedence rules »^

Essentially re-parenthesize

Effects»

Height reduced (n terms)^

n-1 (assuming unit latency)  ceil(log2(n))

»^

Number of operationsremains constant »^

Cost^

Temporary registers “live”longer

»^

Watch out for^

Always ok for integerarithmetic  Floating-point – may notbe!!

r9 = r1 + r2r10 = r9 + r3r11 = r10 - r4r12 = r11 + r5r13 = r12 – r

r13 = r1 + r2 + r3 – r4 + r5 – r r1 + r

r3 – r

r5 – r

t1 = r1 + r2t2 = r3 – r4t3 = r5 – r6t4 = t1 + t2r13 = t4 + t

r

after back subs:

original:

final code:

• 16 -

Fancier Tree Height Reduction^

Take advantage of literals»

Reassociate to maximizeopportunities for combiningliterals at compile time »^

Reduces amount ofcomputation

r13 = r1 + 4 + r2 - 3 + r3 - 6

r1 + r

r3 – 5 + r

after back subs:^ reassociate:r13 = r1 + r2 + r3 + (4 - 3 – 6)simplify:r13 = r1 + r2 + r3 - 5balance:

• 18 -

Class Problem

Assume: + = 1, * = 3

0 r

0 r

0 r

1 r

2 r

0 r

operandarrival times

r10 = r1 * r2r11 = r10 + r3r12 = r11 + r4r13 = r12 – r5r14 = r13 + r

Back susbstituteRe-express in tree-height reduced form

Account for latency and arrival times

• 19 -

Optimizing Unrolled Loops

r1 = load(r2)r3 = load(r4)r5 = r1 * r3r6 = r6 + r5r2 = r2 + 4r4 = r4 + 4if (r4 < 400) goto loop

loop:

r1 = load(r2)r3 = load(r4)r5 = r1 * r3r6 = r6 + r5r2 = r2 + 4r4 = r4 + 4r1 = load(r2)r3 = load(r4)r5 = r1 * r3r6 = r6 + r5r2 = r2 + 4r4 = r4 + 4r1 = load(r2)r3 = load(r4)r5 = r1 * r3r6 = r6 + r5r2 = r2 + 4r4 = r4 + 4if (r4 < 400) goto loop

iter1 iter2 iter

Unroll = replicate loop bodyn-1 times.Hope to enable overlap ofoperation execution fromdifferent iterationsNot possible!

loop:

unroll 3 times
