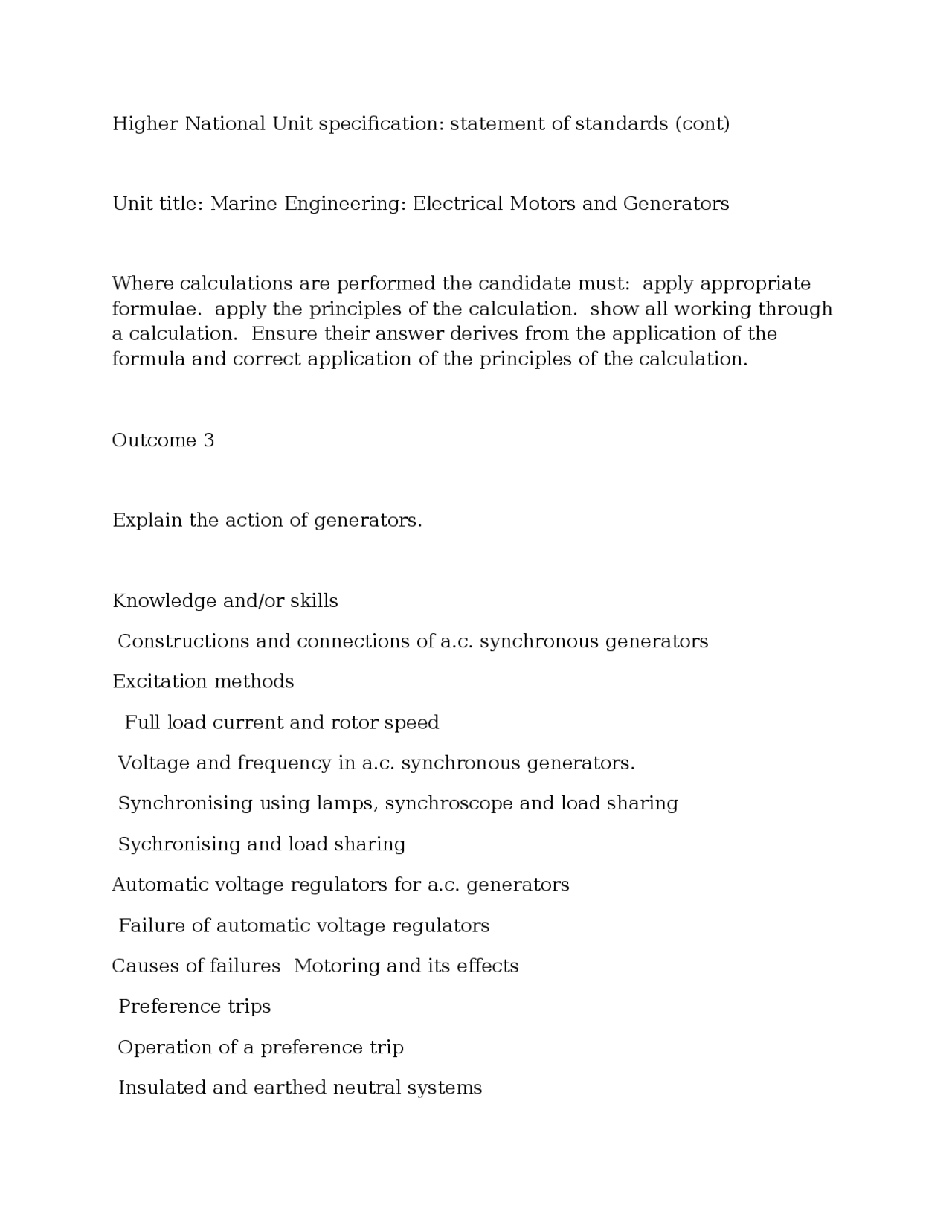

Higher National Unit specification: statement of standards (cont)
Unit title: Marine Engineering: Electrical Motors and Generators
Where calculations are performed the candidate must: apply appropriate
formulae. apply the principles of the calculation. show all working through
a calculation. Ensure their answer derives from the application of the
formula and correct application of the principles of the calculation.
Outcome 3
Explain the action of generators.
Knowledge and/or skills
Constructions and connections of a.c. synchronous generators
Excitation methods
Full load current and rotor speed
Voltage and frequency in a.c. synchronous generators.
Synchronising using lamps, synchroscope and load sharing
Sychronising and load sharing
Automatic voltage regulators for a.c. generators
Failure of automatic voltage regulators
Causes of failures Motoring and its effects
Preference trips
Operation of a preference trip
Insulated and earthed neutral systems
