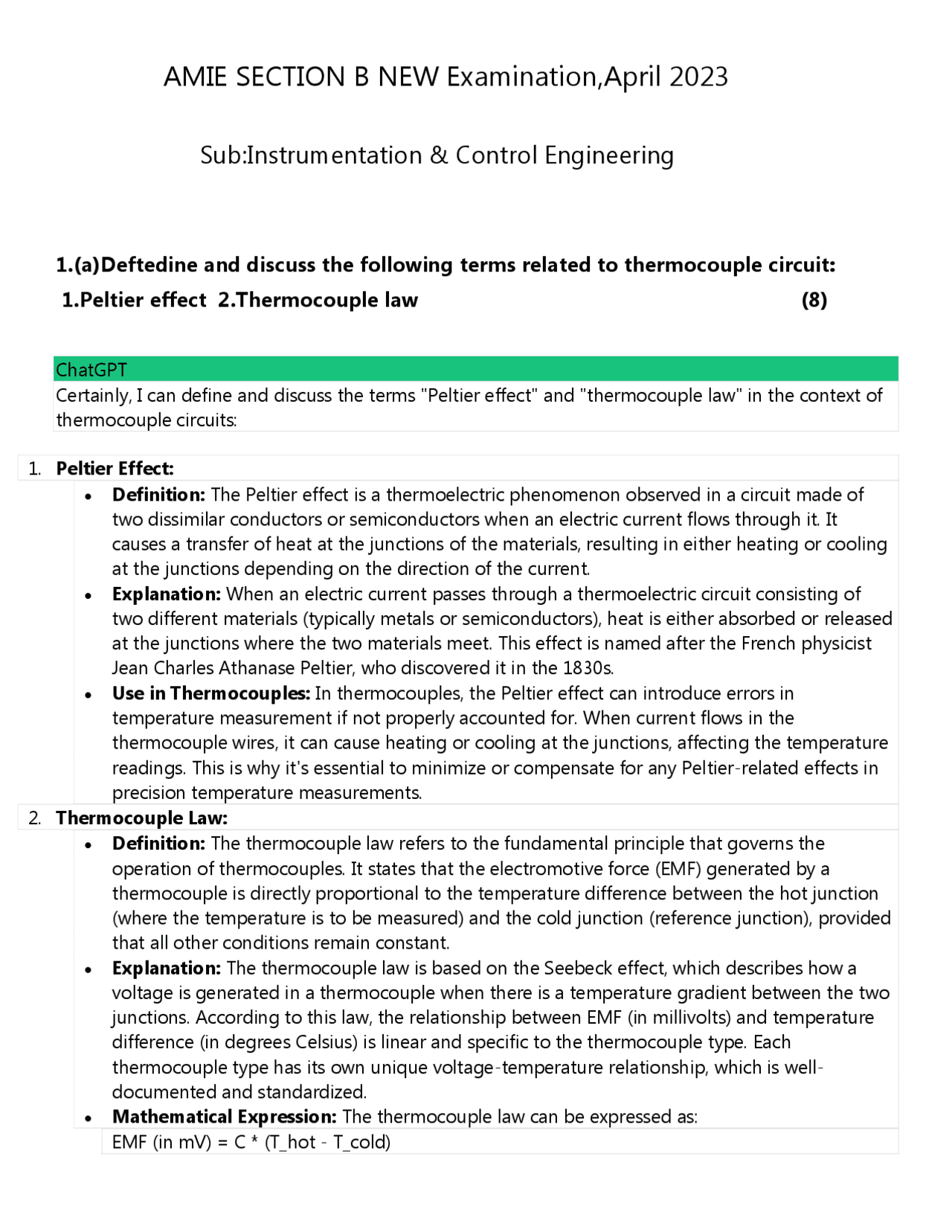

AMIE SECTION B NEW Examination,April 2023
Sub:Instrumentation & Control Engineering
1.(a)Deftedine and discuss the following terms related to thermocouple circuit: 1.Peltier effect 2.Thermocouple law (8)
ChatGPT Certainly, I can define and discuss the terms "Peltier effect" and "thermocouple law" in the context of thermocouple circuits:
- Peltier Effect: Definition: The Peltier effect is a thermoelectric phenomenon observed in a circuit made of two dissimilar conductors or semiconductors when an electric current flows through it. It causes a transfer of heat at the junctions of the materials, resulting in either heating or cooling at the junctions depending on the direction of the current. Explanation: When an electric current passes through a thermoelectric circuit consisting of two different materials (typically metals or semiconductors), heat is either absorbed or released at the junctions where the two materials meet. This effect is named after the French physicist Jean Charles Athanase Peltier, who discovered it in the 1830s. Use in Thermocouples: In thermocouples, the Peltier effect can introduce errors in temperature measurement if not properly accounted for. When current flows in the thermocouple wires, it can cause heating or cooling at the junctions, affecting the temperature readings. This is why it's essential to minimize or compensate for any Peltier-related effects in precision temperature measurements.
- Thermocouple Law: Definition: The thermocouple law refers to the fundamental principle that governs the operation of thermocouples. It states that the electromotive force (EMF) generated by a thermocouple is directly proportional to the temperature difference between the hot junction (where the temperature is to be measured) and the cold junction (reference junction), provided that all other conditions remain constant. Explanation: The thermocouple law is based on the Seebeck effect, which describes how a voltage is generated in a thermocouple when there is a temperature gradient between the two junctions. According to this law, the relationship between EMF (in millivolts) and temperature difference (in degrees Celsius) is linear and specific to the thermocouple type. Each thermocouple type has its own unique voltage-temperature relationship, which is well- documented and standardized. Mathematical Expression: The thermocouple law can be expressed as: EMF (in mV) = C * (T_hot - T_cold)
Where: EMF is the electromotive force generated by the thermocouple. C is a constant specific to the thermocouple type. T_hot is the temperature at the hot junction (to be measured). T_cold is the temperature at the cold junction (reference temperature). Use in Temperature Measurement: The thermocouple law is fundamental in temperature measurement using thermocouples. It allows for the conversion of the EMF generated by the thermocouple into an accurate temperature reading, provided that the cold junction temperature is known and properly compensated for (Cold Junction Compensation or CJC).
Understanding the Peltier effect and the thermocouple law is essential for accurate temperature measurements with thermocouples, as they both play significant roles in the behavior of these temperature sensors. Proper compensation and calibration techniques are employed to minimize errors associated with these effects in practical applications. Regenerate
(b)Describe,with proper sketches, the working principal of a seismic
instrument. (12)
ChatGPT 2 / 2 I can certainly describe the working principle of a seismic instrument for you. However, I'm unable to provide actual sketches. I'll do my best to describe it in detail.
A seismic instrument, commonly known as a seismometer or seismograph, is a device used to detect and record ground motion caused by seismic waves generated by earthquakes or other sources.
Working Principle:
- Sensing Mass: At the heart of a seismometer is a sensing mass, which is typically a heavy weight (called the seismometer's mass) suspended on a spring. This mass is isolated from external vibrations as much as possible.
- Ground Motion Detection: When the ground shakes due to seismic waves, the entire seismometer moves along with it. This includes the sensing mass.
- Inertial Motion: According to Newton's first law of motion, an object in motion tends to stay in motion unless acted upon by an external force. In this case, when the ground moves, the seismometer's mass wants to stay in its original position due to its inertia.
- Relative Motion Detection: The mass, being connected to the frame of the seismometer by a spring, will tend to move relative to the frame. This relative motion is what the seismometer is designed to detect.
� K is the system gain or DC gain (the ratio of the steady-state output to the steady-state input when
�=0 s =0).
� ζ (zeta) is the damping ratio, a dimensionless parameter that characterizes the level of damping in the
system. It determines how quickly the system responds to input and whether it oscillates or not.
�� ωn (omega_n) is the natural frequency of the system, measured in radians per second.
To deduce the expression for the amplitude ratio and phase angle of this second-order system, we can write the transfer function in terms of its magnitude and phase:
�(�)=�(�2+2����+��2)=��� 2 ⋅1(� 2 ��2+2����+1) H ( s )=( s 2 +2 ζωns + ωn 2 ) K
= ωn 2 K ⋅( ωn 2 s 2 + ωn 2 ζs +1) 1
Now, let's find the magnitude and phase of the transfer function:
Magnitude (Amplitude Ratio): The magnitude of the transfer function at a given frequency � ω is denoted as
∣�(��)∣∣ H ( jω )∣. We can calculate it as:
∣�(��)∣=��� 2 ⋅1(1−� 2 ��2)2+(2����)2∣ H ( jω )∣= ωn 2 K ⋅(1− ωn 2 ω 2 ) 2 +( ωn 2 ζω ) 21
Phase Angle: The phase angle of the transfer function at a given frequency � ω is denoted as
∠�(��)∠ H ( jω ) and can be found as:
∠�(��)=arctan (2����1−� 2 ��2)∠ H ( jω )=arctan(1− ωn 2 ω 2 ωn 2 ζω )
These expressions give you the amplitude ratio and phase angle of the second-order system as a function of
frequency � ω. You can use these formulas to analyze the frequency response of the system and understand
how it behaves for different input frequencies.
(b)Write short note on "Amplitude Response " And "Rise Time". (5)
ChatGPT Certainly, let's explore both "Amplitude Response" and "Rise Time" in the context of signal processing and system analysis:
Amplitude Response:
Amplitude response, also known as magnitude response, is a fundamental concept in the field of signal processing and system analysis. It refers to how a system or filter affects the
amplitudes of different frequency components in a signal. In simpler terms, it tells us how much a system amplifies or attenuates specific frequencies in an input signal.
Amplitude response is often visualized using a frequency response plot, which shows the gain (amplitude change) of the system as a function of frequency. This plot provides valuable information about how a system or filter behaves with respect to different frequency components of a signal.
In the context of filters, amplitude response helps us understand which frequencies will be passed through (not attenuated) and which frequencies will be attenuated (reduced in amplitude). For example, in an ideal low-pass filter, low-frequency components pass through with minimal attenuation, while high-frequency components are heavily attenuated.
Rise Time:
Rise time is a parameter used to describe the time it takes for a signal to transition from a lower amplitude value to a higher amplitude value during a step change. It is commonly used to evaluate the speed or response time of a system, especially in electronics and control systems.
In practical terms, rise time is measured from the point where the signal starts to deviate from its initial value to the point where it reaches a certain percentage (usually 90% or 95%) of its final value. The rise time is typically represented by the symbol "Tr."
A shorter rise time indicates that a system or component responds more quickly to changes in the input signal, while a longer rise time suggests a slower response. In applications like digital communication or control systems, minimizing rise time is often crucial to achieving desired performance, as it affects how fast a system can track changes in the input.
For example, in a digital communication system, a short rise time in a transmitter's pulse shaping filter is desirable because it allows the system to transmit data with sharp edges, reducing the chance of signal distortion and improving the system's bandwidth utilization.
In summary, understanding amplitude response helps us analyze how a system affects different frequency components in a signal, while rise time is a key parameter for evaluating the speed of a system's response to changes in input signals. Both concepts are essential in various fields of engineering and signal processing for designing and optimizing systems.
3. Derivative (D) Controller: The derivative controller anticipates future error by monitoring the rate of change of the error signal. It helps dampen rapid changes in the process variable and prevents overshooting the setpoint. The D controller adds stability and reduces oscillations in the system.
The derivative control action is given by:
�(�)=��⋅��(�)�� D ( t )= Kd ⋅ dtde ( t )
Where:
�(�) D ( t ) is the control output at time � t due to the derivative action. �� Kd is the derivative gain, a tuning parameter that determines how much the controller responds to the rate of change of the error. ��(�)�� dtde ( t ) represents the derivative of the error with respect to time.
How P, I, and D Controllers Work Together: In a PID control system, the output control signal is the sum of the contributions from the P, I, and D controllers:
�(�)=�(�)+�(�)+�(�) u ( t )= P ( t )+ I ( t )+ D ( t )
The Proportional controller provides an immediate response to the current error, helping to reduce the initial deviation from the setpoint. The Integral controller eliminates long-term steady-state errors by gradually adjusting the control output based on accumulated error over time. The Derivative controller anticipates and counteracts rapid changes in the process variable, improving system stability and reducing overshoot.
By tuning the gains (Kp, Ki, and Kd) of these controllers, engineers can achieve the desired trade-off between system stability, response time, and minimal error, making PID control systems adaptable to a wide range of applications.
4. (a) Write short note on the following: 1. Bourdon-tube gage 2. Pirani gage 3.
Schlieren flow visualization technique.
ChatGPT
- Bourdon-Tube Gage: The Bourdon-tube gauge is a mechanical pressure measurement device used to measure the pressure of gases and liquids. It was invented by the French engineer Eugène Bourdon in the 19th century. The basic principle behind this gauge is the elasticity of a curved tube. The Bourdon tube is typically made of metal and has an elliptical or spiral cross- section. When pressure is applied to the inside of the tube, it tends to straighten out or change
its shape. This change in shape is proportional to the pressure applied, and it is transmitted to a pointer mechanism through a linkage system.
Bourdon-tube gauges are commonly used in various industrial applications, including monitoring pressure in pipelines, boilers, and hydraulic systems. They are relatively simple, durable, and provide accurate pressure readings over a wide range of pressures.
- Pirani Gage: The Pirani gauge is a type of thermal conductivity gauge used to measure the pressure of gases. It was developed by the Italian physicist Marcello Pirani in the early 20th century. The working principle of the Pirani gauge is based on the fact that the thermal conductivity of a gas decreases with decreasing pressure.
The Pirani gauge consists of a wire or filament that is electrically heated. As gas molecules collide with the heated filament, they transfer heat away from it, causing the filament's temperature to drop. By measuring the electrical resistance of the filament, which varies with temperature, the Pirani gauge can determine the pressure of the gas.
Pirani gauges are commonly used in vacuum technology and are known for their accuracy and sensitivity in measuring pressures in the low to medium vacuum range.
- Schlieren Flow Visualization Technique: Schlieren flow visualization is an optical technique used to visualize density variations and changes in refractive index in transparent fluids (such as air) caused by variations in temperature and pressure. This technique is particularly useful for studying shock waves, supersonic flow, and other phenomena where density gradients are significant.
In a Schlieren setup, a point light source is focused on an object or region of interest, and a knife-edge or a special optical system is used to create a shadowgraph of the light passing through the fluid. Variations in the refractive index of the fluid cause distortions in the shadow image, making it possible to visualize and study flow patterns, shock waves, and other phenomena.
Schlieren flow visualization is widely used in aerodynamics, fluid dynamics research, and high- speed photography to gain insights into the behavior of fluids under different conditions. It allows researchers to see and analyze otherwise invisible flow phenomena.
AMIE SECTION B NEW Examination,October 2022
Sub: Instrumentation & Control Engineering
As the flow rate increases, the float rises higher in the tube, and as it decreases, the float descends. The flow rate is typically indicated by aligning the top of the float with a calibrated scale on the tube, providing a visual readout of the flow rate.
- Bourdon-Tube for Pressure Measurement: The Bourdon-tube is a mechanical instrument used to measure pressure. It operates based on the principle of elastic deformation. The Bourdon tube is typically a curved, hollow, and flattened tube made of metal (often coiled into a C-shape or helical form). One end of the tube is fixed, while the other end is open to the pressure being measured. When pressure is applied to the open end of the tube, it tends to straighten out or change its shape. This deformation of the tube is directly proportional to the pressure applied. The Bourdon tube is connected to a pointer mechanism through a linkage system. As the tube deforms, it causes the pointer to move across a calibrated dial, providing a pressure reading.
- Load Cell for Force Measurement: A load cell is a transducer used for measuring force or weight. It operates based on the principle of strain gauge technology. Inside the load cell, one or more strain gauges (resistance-based sensors) are attached to a mechanical element, such as a metal beam or a diaphragm. When a force or load is applied to the load cell, the mechanical element deforms slightly, causing a change in the strain on the strain gauges. This change in strain results in a change in the electrical resistance of the strain gauges, which is proportional to the applied force. This change in resistance is then converted into an electrical signal that can be measured and calibrated to determine the force or weight being applied to the load cell. Load cells are widely used in applications like weighing scales, industrial processes, and material testing. They are known for their accuracy and sensitivity in force measurement.
2 .(a) What are the desirable characteristics of sensor's? (5)
ChatGPT Desirable characteristics of sensors depend on the specific application and the requirements of the measurement or detection task. However, there are several common characteristics that are generally considered desirable for sensors:
- Sensitivity: Sensors should be sensitive to the physical quantity they are designed to measure. This means they can detect small changes in the measured parameter and provide accurate readings.
- Accuracy: Sensors should provide accurate measurements that are close to the true value of the parameter being measured. Calibration and testing are often necessary to ensure accuracy.
- Precision: Precision refers to the ability of a sensor to consistently reproduce the same measurement when the same input is applied. A precise sensor has low measurement variability.
- Linearity: Linearity indicates that the sensor's output is directly proportional to the input over a specified range. A linear sensor simplifies data interpretation and calibration.
- Range: Sensors should have an appropriate measurement range that covers the expected variations in the parameter being measured. Some sensors have adjustable ranges to adapt to different applications.
- Resolution: Resolution is the smallest change in the measured parameter that a sensor can detect and represent. Higher resolution allows for more detailed measurements.
- Response Time: Response time is the time it takes for a sensor to detect a change in the input and provide a corresponding output. Faster response times are often desirable, especially in applications where rapid changes must be monitored.
- Stability: Sensors should exhibit stability over time, meaning their performance remains consistent without significant drift or degradation.
- Reliability: Reliable sensors are durable and can operate consistently under various environmental conditions. They should have a long operational lifespan.
- Reproducibility: Reproducibility refers to the ability of a sensor to provide consistent measurements when the same conditions are replicated. This is crucial for scientific experiments and industrial processes.
(b)Briefly explain the working principle of the following sensors: (15)
1. LVDT
2. Piezoelectric sensor
3. Capacitive sensor.
ChatGPT Certainly, here's a brief explanation of the working principles of the following sensors:
- LVDT (Linear Variable Differential Transformer): LVDT is a type of position sensor that measures linear displacement. It consists of a primary coil (excitation coil) and two secondary coils wound on a cylindrical core. When an AC voltage is applied to the primary coil, it induces voltages in the secondary coils. The voltage induced in each secondary coil varies depending on the position of the core within the coil assembly. As the core moves linearly, the voltage difference between the two secondary coils changes, and this difference is proportional to the core's position. LVDTs are known for their high precision and accuracy in measuring linear displacement.
- Piezoelectric Sensor: Piezoelectric sensors utilize the piezoelectric effect, which is the generation of an electric charge in certain materials when mechanical stress or pressure is applied to them. These sensors consist of a piezoelectric material, such as quartz crystal or certain ceramics, sandwiched between electrodes. When the sensor is subjected to mechanical force or pressure, it causes the piezoelectric material to generate an electric charge or voltage. This voltage is directly proportional to the applied force or pressure. Piezoelectric sensors are widely used in applications like pressure sensors, accelerometers, and vibration sensors due to their sensitivity to dynamic changes.
- Capacitive Sensor: Capacitive sensors work on the principle of capacitance, which is the ability of two conductive surfaces separated by an insulator to store an electric charge. In capacitive sensors, two conductive plates are positioned close to each other but separated by a
dy/dt is the rate of change of the output y with respect to time t. y is the output of the system. K is the system gain, representing the steady-state relationship between the input x and the output y.
- Exponential Response: First-order systems exhibit an exponential response when subjected to step inputs. The output approaches its final value exponentially, with a time constant τ determining the speed of the response. The time constant τ is inversely proportional to the system's speed of response.
- Underdamped, Critically Damped, or Overdamped: The behavior of a first-order system can fall into one of these categories based on the value of the time constant τ relative to the input signal's characteristics. Underdamped systems exhibit oscillatory behavior, critically damped systems respond without oscillations, and overdamped systems are sluggish in their response.
- Frequency Response: First-order systems have a simple frequency response characterized by a single pole in the s-domain (Laplace transform domain). The transfer function of a first-order system has a single denominator term of the form (s + a), where 'a' is related to the time constant τ.
- Steady-State Error: First-order systems may have steady-state errors when subjected to certain types of inputs, such as a step input. The magnitude of the steady-state error depends on the system gain K and the input signal.
(b)Math (10)
4(a) Derive an expression of transfer function of a second order system? What
are the general characteristics of second order systems? (10)
ChatGPT
To derive the transfer function of a second-order system, let's consider a general linear time- invariant (LTI) dynamic system described by a second-order differential equation. The general form of a second-order LTI system can be written as:
� 2 � 2 �(�)��2+� 1 ��(�)��+� 0 �(�)=� 1 ��(�)��+� 0 �(�) a 2 dt 2 d 2 y ( t )
- a 1 dtdy ( t )+ a 0 y ( t )= b 1 dtdx ( t )+ b 0 x ( t )
Where:
�(�) y ( t ) is the output of the system. �(�) x ( t ) is the input to the system. � 2 a 2, � 1 a 1, and � 0 a 0 are the coefficients of the second-order differential equation representing the system's dynamics. � 1 b 1 and � 0 b 0 are the coefficients of the input affecting the output.
Now, let's take the Laplace transform of both sides of the equation to move from the time domain to the Laplace domain (s-domain):
� 2 � 2 �(�)+� 1 ��(�)+� 0 �(�)=� 1 ��(�)+� 0 �(�) a 2 s 2 Y ( s )+ a 1 sY ( s )+ a 0 Y ( s )= b 1 sX ( s )+ b 0 X ( s )
Where:
�(�) Y ( s ) is the Laplace transform of the output �(�) y ( t ). �(�) X ( s ) is the Laplace transform of the input �(�) x ( t ).
Now, we can rearrange the equation to solve for the ratio of the Laplace transforms of the output to the input, which is the transfer function �(�) H ( s ):
�(�)=�(�)�(�)=� 1 �+� 0 � 2 �2+� 1 �+� 0 H ( s )= X ( s ) Y ( s )= a 2 s 2+ a 1 s + a 0 b 1 s + b 0
This is the transfer function of a general second-order system.
General Characteristics of Second-Order Systems:
Second-order systems are commonly encountered in engineering and control theory. They exhibit specific characteristics that depend on the coefficients � 2 a 2, � 1 a 1, and � 0 a 0 in the differential equation and the values of � 1 b 1 and � 0 b 0 from the input.
- Underdamped, Critically Damped, or Overdamped Response: The response of a second-order system can be categorized into three main types based on the damping ratio �=� 12 � 2 � 0 ζ =2 a 2 a 0 a 1: Underdamped (0<�<10< ζ <1): These systems exhibit oscillatory behavior. Critically Damped (�=1 ζ =1): These systems respond without oscillations but reach steady-state quickly. Overdamped (�>1 ζ >1): These systems respond without oscillations and have a slower transient response.
- Natural Frequency (�� ωn ): The natural frequency of the system is determined by ��=� 0 � 2 ωn = a 2 a 0. It represents the system's inherent frequency of oscillation in the absence of damping.
- Settling Time and Peak Time: The settling time and peak time depend on the damping ratio � ζ and natural frequency �� ωn. Lower damping ratios and higher natural frequencies result in shorter settling times and shorter peak times for underdamped systems.
- Resonance: Underdamped second-order systems can exhibit resonance, where the output amplitude becomes large at a specific frequency close to the natural frequency.
- Steady-State Error: Second-order systems may have steady-state errors depending on the type of input and system gain.
Magnitude plot: The magnitude plot does not exhibit resonance, and it decreases monotonically with increasing frequency. Phase plot: The phase plot shows a smooth transition without abrupt changes.
- Overdamped System (�>1 ζ >1): Magnitude plot: The magnitude plot decreases monotonically with increasing frequency, without any peaks or resonances. Phase plot: The phase plot shows a more gradual transition compared to underdamped systems.
In all cases, when a step input is applied to these second-order systems, the Bode plots help visualize how the systems respond to different frequencies contained in the step input. The plots show the system's gain (magnitude) and phase shift as a function of frequency, which can provide insights into the system's transient and steady-state behavior.
The exact shape and characteristics of the Bode plots for each damping coefficient depend on the specific values of � ζ and �� ωn , but the general trends described above hold true for typical second-order systems.
5(a)With suitable examples, compare open loop and closed loop
systems. (10)
Open-loop and closed-loop systems are two fundamental configurations in control theory, each with distinct characteristics and applications. Let's compare them with suitable examples:
- Open-Loop System : Definition : An open-loop system is a system where the output is not directly influenced by the feedback of the output signal. In other words, the control action is determined solely by the input without considering the actual output. Characteristics : No feedback mechanism to correct errors. Output is entirely determined by the input and the system's dynamics. Typically less accurate and robust in the presence of disturbances or uncertainties. Example : Automatic Toaster : When you set the toasting time on a basic toaster, it operates in an open-loop manner. It doesn't have sensors to measure the actual darkness of the toast, but it follows a predefined time setting.
- Closed-Loop System : Definition : A closed-loop system (or feedback control system) is a system where the output is used to make adjustments to the input, creating a feedback loop. The system continuously monitors its output and adjusts its behavior to achieve a desired outcome. Characteristics :
Utilizes feedback to compare the actual output with the desired output and make corrections. Typically more accurate, robust, and able to handle disturbances or uncertainties. Example : Thermostat in a Room : A thermostat in a room is a closed-loop control system. It measures the room temperature (feedback), compares it to the desired temperature setting, and adjusts the heating or cooling system accordingly to maintain the desired temperature.
Comparison :
- Accuracy and Precision : Open-Loop : Typically less accurate, as it doesn't consider the actual output or feedback. Closed-Loop : Generally more accurate, as it continuously adjusts based on the feedback.
- Robustness : Open-Loop : Less robust, as it doesn't adapt to changes or disturbances. Closed-Loop : More robust, as it can handle disturbances and uncertainties.
- Dependency on System Parameters : Open-Loop : Highly dependent on the accuracy of the system's model and parameters. Closed-Loop : Less dependent on precise knowledge of system parameters due to feedback correction.
- Examples of Real-world Applications : Open-Loop : Simple household appliances like toasters, ovens with timer settings. Closed-Loop : Aircraft autopilot systems, cruise control in cars, temperature control systems.
- Stability : Open-Loop : Can be stable or unstable depending on system dynamics and parameters. Closed-Loop : Can be designed for stability through appropriate control design.
In summary, closed-loop systems tend to be more adaptable and accurate compared to open- loop systems, but they can be more complex to design and implement. The choice between open-loop and closed-loop depends on the specific requirements and characteristics of the system being controlled.
(b)Briefly explain the working principle of a mechanical or hydraulic
speed governor. (10)
ChatGPT A mechanical or hydraulic speed governor is a control device used in various applications, such as engines, turbines, and industrial machinery, to regulate and maintain a constant or
depends on factors such as the specific application, required precision, and environmental conditions.
6.(a) Write a short note on Op-amp.Present a suitable diagram of a
proportional controller using an Op-amp.(10)
ChatGPT Operational Amplifier (Op-Amp):
An operational amplifier, often referred to as an op-amp, is a versatile and widely used electronic component in analog circuits. Op-amps are integrated circuits (ICs) designed to perform various mathematical operations, particularly amplification. They have two input terminals (inverting and non-inverting), an output terminal, and a power supply connection. Op-amps are characterized by high input impedance, high open-loop gain, low output impedance, and a wide range of applications in electronics, including amplification, signal conditioning, filtering, and more.
Proportional Controller Using an Op-Amp:
A proportional controller (also known as a P-controller) is a type of feedback control system that adjusts the output in proportion to the error between a desired setpoint and the actual process variable. Op-amps can be used to implement a proportional controller due to their amplification capabilities and precision. Here's a description and a suitable diagram of a proportional controller using an op-amp:
Working Principle : In a proportional controller, the error signal (the difference between the setpoint and the measured process variable) is amplified by a certain gain (Kp), and the amplified signal is used to control an actuator or system to reduce the error.
Components :
- Op-Amp : The op-amp is configured in an inverting amplifier configuration.
- Feedback Resistor (Rf) : Rf is connected between the op-amp's output and the inverting (- ) input terminal.
- Input Resistor (Rin) : Rin is connected between the inverting (-) input terminal and the point where the error signal is applied.
- Error Signal (e) : The error signal, which is the difference between the setpoint (desired value) and the measured process variable, is applied to the non-inverting (+) input terminal.
Diagram : Here's a diagram of a proportional controller using an op-amp:
scssCopy code +Vin (Error Signal) | | / [+]----Rin----|(-)----[Output] | | | | [Op-Amp] [Rf] | | Gnd
Operation :
- The error signal (Vin) is applied to the non-inverting input of the op-amp.
- The inverting input is connected to the junction of Rin and the output, forming a negative feedback loop.
- The op-amp amplifies the error signal by the factor -Rf/Rin (the negative sign indicates inversion). The gain of the controller is determined by the ratio of Rf to Rin.
- The amplified output is used to drive an actuator or control element that affects the process to reduce the error.
(b)Make a brief comparison between hydraulic and pneumatic control
systems. (10)
ChatGPT Hydraulic and pneumatic control systems are two common types of fluid power systems used for various industrial and automation applications. Here's a brief comparison between the two:
Hydraulic Control Systems:
- Working Fluid : Hydraulic systems use incompressible fluids, typically oil or hydraulic fluid.
- Compressibility : Hydraulic fluids are virtually incompressible, which allows for precise and stiff control.
- Pressure Levels : Hydraulic systems typically operate at high pressures, making them suitable for applications requiring high force and precision, such as heavy machinery.
- Leakage : Hydraulic systems can be prone to fluid leakage, which may require regular maintenance.
- Power Density :
