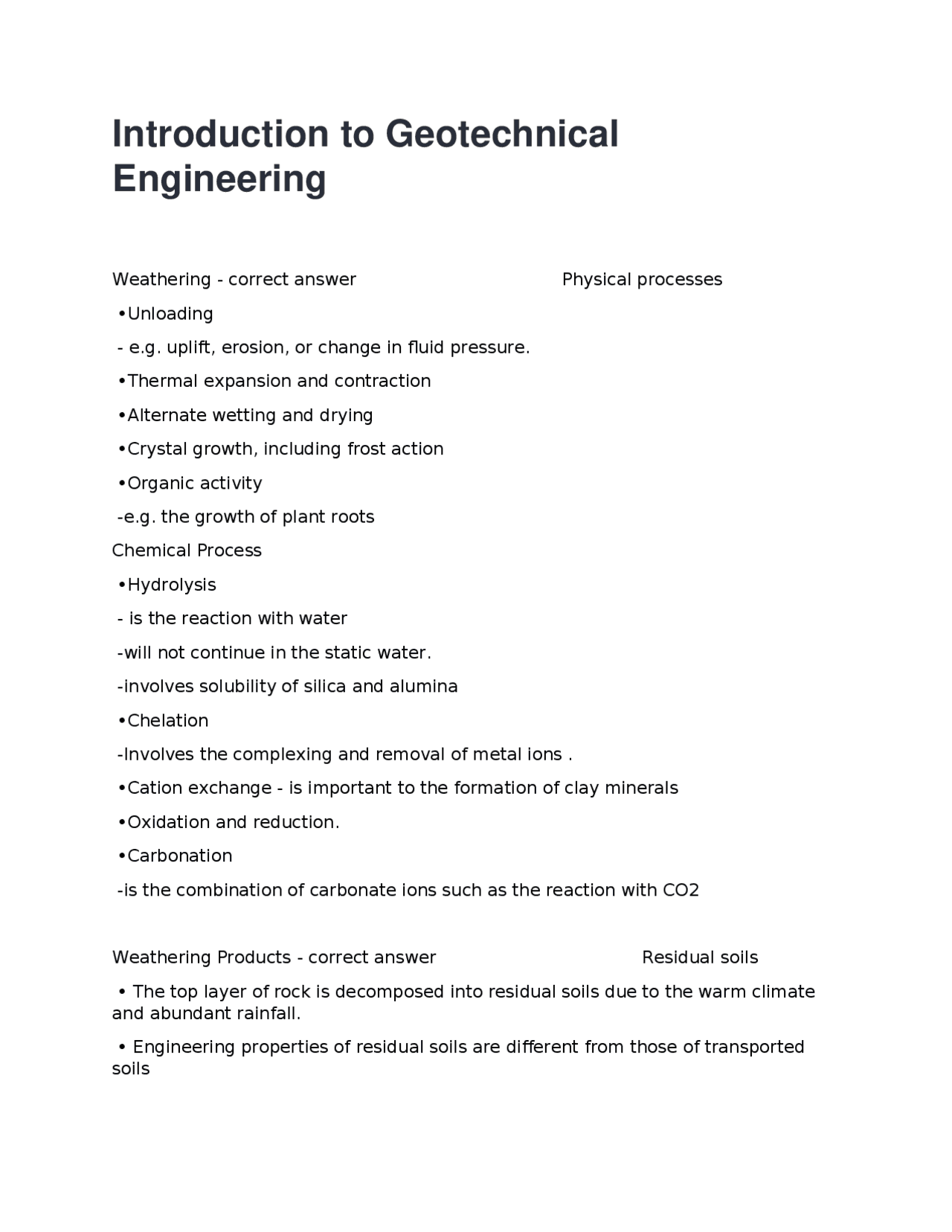

Introduction to Geotechnical
Engineering
Weathering - correct answer Physical processes
•Unloading
- e.g. uplift, erosion, or change in fluid pressure.
•Thermal expansion and contraction
•Alternate wetting and drying
•Crystal growth, including frost action
•Organic activity
-e.g. the growth of plant roots
Chemical Process
•Hydrolysis
- is the reaction with water
-will not continue in the static water.
-involves solubility of silica and alumina
•Chelation
-Involves the complexing and removal of metal ions .
•Cation exchange - is important to the formation of clay minerals
•Oxidation and reduction.
•Carbonation
-is the combination of carbonate ions such as the reaction with CO2
Weathering Products - correct answer Residual soils
• The top layer of rock is decomposed into residual soils due to the warm climate
and abundant rainfall.
• Engineering properties of residual soils are different from those of transported
soils
pf3
pf4
pf5

Partial preview of the text

Download Introduction to Geotechnical Engineering.docx and more Exams Nursing in PDF only on Docsity!

Introduction to Geotechnical

Engineering

Weathering - correct answer Physical processes •Unloading

  • e.g. uplift, erosion, or change in fluid pressure. •Thermal expansion and contraction •Alternate wetting and drying •Crystal growth, including frost action •Organic activity -e.g. the growth of plant roots Chemical Process •Hydrolysis
  • is the reaction with water -will not continue in the static water. -involves solubility of silica and alumina •Chelation -Involves the complexing and removal of metal ions. •Cation exchange - is important to the formation of clay minerals •Oxidation and reduction. •Carbonation -is the combination of carbonate ions such as the reaction with CO Weathering Products - correct answer Residual soils
  • The top layer of rock is decomposed into residual soils due to the warm climate and abundant rainfall.
  • Engineering properties of residual soils are different from those of transported soils

Transported soils

  • The particle sizes of transported soils are selected by the transportation agents such as streams, wind, etc.
  • The transported soils can be categorize based on the mode of transportation and deposition (six types). Transported Soils - correct answer - Glacial Soils
  • Alluvial Soils
  • Lacustrine Soils
  • Mainre Soils
  • Aeolian Soils
  • Colluvial Soil Glacial Soils - correct answer Formed by transportation and deposition of glaciers Alluvial Soils - correct answer Transported by running water and deposited along streams Lacustrine Soils - correct answer Formed by deposition in quiet lakes Marine Soils - correct answer Formed by deposition in the Seas Aeolian Soils - correct answer Transported and deposited by the wind Colluvial Soils - correct answer Formed by movement of soil from its original place by gravity, Such as during landslide Gibbsite sheet - correct answer - Al(3+)
  • Al2(OH)6, 2/3 cationic spaces are filled
  • The interlayer bonding is by van der Waals forces and by cations which balance charge deficiencies (weak bonding).
  • There is interlayer swelling, which is very important to engineering applications (expansive clay). •Width: 1 or 2 μm, Thickness: 10 Å~1/100 width Illite - correct answer 2:1 Mineral (micalike minerals)
  • Si8(Al,Mg, Fe)4~6O20(OH)4·(K,H2O)2. Flaky shape.
  • The basic structure is very similar to the mica, so it is sometimes referred to as hydrous mica. Illite is the chief constituent in many shales.
  • Some of the Si4+ in the tetrahedral sheet are replaced by the Al3+, and some of the Al3+ in the octahedral sheet are substituted by the Mg2+ or Fe3+. Those are the origins of charge deficiencies.
  • The charge deficiency is balanced by the potassium ion between layers. Note that the potassium atom can exactly fit into the hexagonal hole in the tetrahedral sheet and can form a strong interlayer bonding.
  • The basal spacing is fixed at 10 Å in the presence of polar liquids. 7.5 μm •Width: 0.1~ several μm, Thickness: ~ 30 Å Vermiculite - correct answer 2:1 Minerals (micalike minerals)
  • The octahedral sheet is brucite.
  • The basal spacing is from 10 Å to 14 Å. •It contains exchangeable cations such as Ca2+ and Mg2+ and two layers of water within interlayers. •It can be an excellent insulation material after dehydration Chlorite - correct answer 2:1:1 Minerals
  • The Basal spacing is fixed at 14 Å.
  • Gibbsite or Brucite interlayers Methods for Identification of Clay Minerals - correct answer - X-ray Diffraction Technique
  • Differential Thermal Analysis (DTA)
  • Electron Microscopy
  • Specific Surface Area (Ss)
  • Cation Exchange Capacity (CEC)
  • Plasticity Chart X-ray Diffraction Technique (XRD) - correct answer - XRD is the primary, non-destructive tool for identifying and quantifying the mineralogy of crystalline compounds in rocks, soils and particulates.
  • Modern computer controlled diffraction systems can interpret the diffraction traces produced by individual constituents and highly complex mixtures.
  • The distance of atomic planes d can be determined based on the Bragg's equation.
