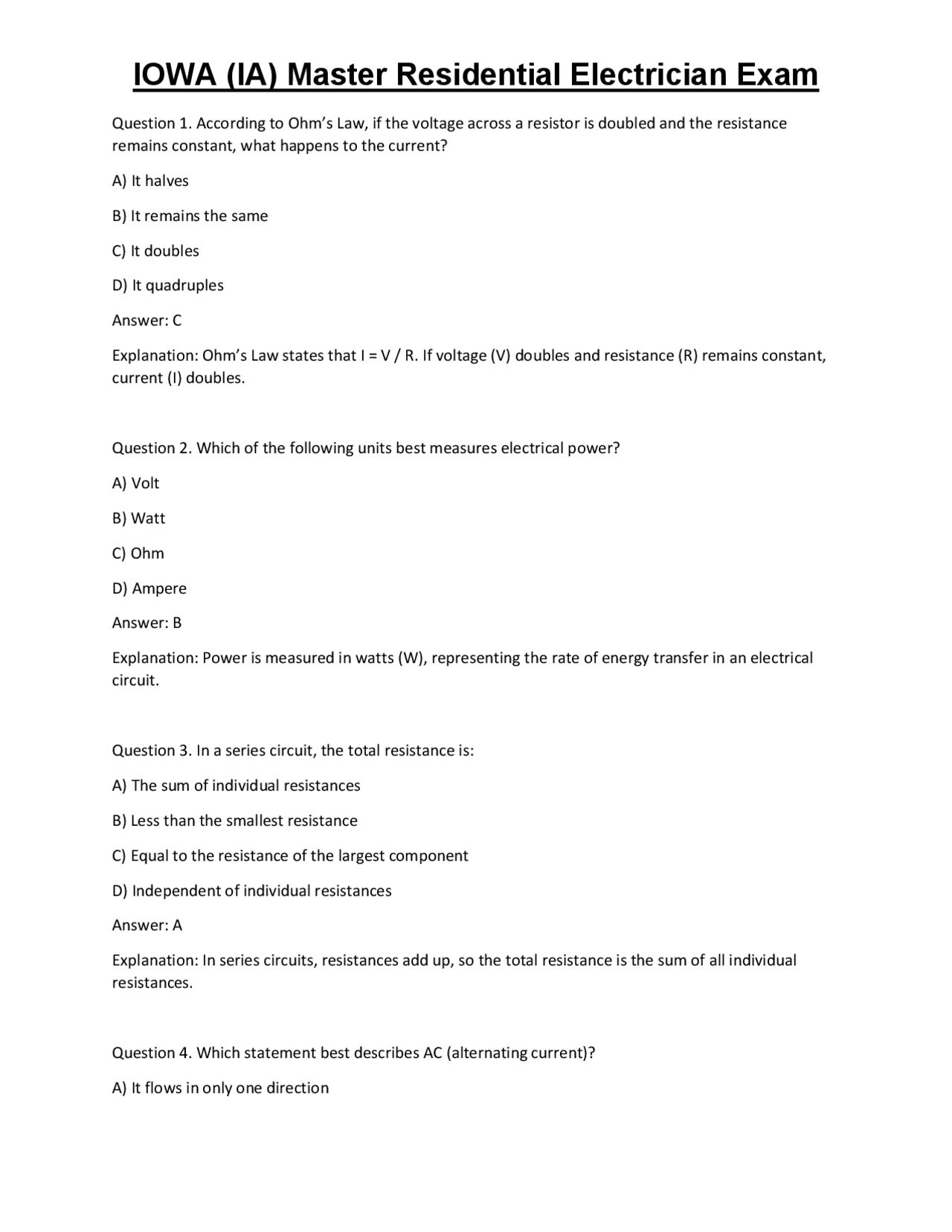

Question 1. According to Ohm’s Law, if the voltage across a resistor is doubled and the resistance remains constant, what happens to the current? A) It halves B) It remains the same C) It doubles D) It quadruples Answer: C Explanation: Ohm’s Law states that I = V / R. If voltage (V) doubles and resistance (R) remains constant, current (I) doubles. Question 2. Which of the following units best measures electrical power? A) Volt B) Watt C) Ohm D) Ampere Answer: B Explanation: Power is measured in watts (W), representing the rate of energy transfer in an electrical circuit. Question 3. In a series circuit, the total resistance is: A) The sum of individual resistances B) Less than the smallest resistance C) Equal to the resistance of the largest component D) Independent of individual resistances Answer: A Explanation: In series circuits, resistances add up, so the total resistance is the sum of all individual resistances. Question 4. Which statement best describes AC (alternating current)? A) It flows in only one direction
B) Its direction reverses periodically C) It is only used in low-voltage applications D) It is produced by batteries Answer: B Explanation: AC reverses direction periodically, unlike DC, which flows in one direction. Question 5. Magnetism and electromagnetism are fundamental principles used in: A) Circuit breaker operation B) Inductive devices like transformers C) Conductor insulation D) Grounding methods Answer: B Explanation: Electromagnetism underpins the operation of transformers and inductors, essential in electrical systems. Question 6. Which device converts AC to DC? A) Transformer B) Rectifier C) Inductor D) Capacitor Answer: B Explanation: A rectifier converts AC to DC by allowing current to flow in only one direction. Question 7. Lockout/Tagout procedures are primarily used to: A) Prevent unauthorized access to blueprints B) Protect workers from electrical hazards during maintenance C) Test circuit continuity D) Measure voltage levels safely Answer: B
A) Resistor B) Battery C) Capacitor D) Switch Answer: C Explanation: Parallel lines in schematics typically represent a capacitor. Question 12. To convert 12 volts to millivolts, you should multiply by: A) 1, B) 10, C) 100 D) 1,000, Answer: A Explanation: 1 volt equals 1,000 millivolts, so 12 V equals 12,000 mV, which involves multiplying by 1,000. Question 13. In residential wiring, the minimum conductor size for 20-amp branch circuits is usually: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: According to NEC, 12 AWG copper conductors are rated for 20 amps. Question 14. Which type of conduit is most suitable for outdoor exposure and corrosion resistance? A) EMT B) RMC (Rigid Metal Conduit) C) PVC D) FMC
Answer: C Explanation: PVC conduit is highly resistant to corrosion and suitable for outdoor use. Question 15. The purpose of a bonding jumper is to: A) Connect grounding electrodes to each other B) Connect grounding conductors to equipment C) Connect neutral conductors to ground D) Connect two circuit breakers Answer: B Explanation: Bonding jumpers connect grounding conductors to equipment, ensuring a continuous grounding path. Question 16. A 15-amp circuit breaker is rated to protect conductors rated up to: A) 10 amps B) 15 amps C) 20 amps D) 30 amps Answer: B Explanation: A 15-amp breaker protects conductors rated up to 15 amps, per NEC standards. Question 17. The main purpose of grounding is to: A) Prevent overloads B) Provide a path for fault current C) Isolate live parts D) Increase circuit capacity Answer: B Explanation: Grounding provides a low-resistance path for fault current, facilitating safe operation and protection.
D) Only in commercial installations Answer: B Explanation: NEC requires junction boxes to be accessible for inspection, maintenance, and future alterations. Question 22. Open wiring is typically permitted in: A) Dry, protected locations B) Wet and damp locations C) Exposed areas in residential garages without protection D) All of the above Answer: A Explanation: Open wiring is permitted only in dry, protected locations; NEC restricts its use in wet or damp areas. Question 23. Which of the following is a common use of flexible cords? A) Permanent wiring in walls B) Portable appliances and tools C) Underground feeders D) Fixed lighting installations Answer: B Explanation: Flexible cords are used for portable appliances and tools due to their flexibility. Question 24. A luminaire with a built-in ballast is used for: A) Incandescent lighting B) Fluorescent lighting C) LED lighting only D) Halogen lighting Answer: B Explanation: Fluorescent fixtures contain ballasts to regulate current through the lamps.
Question 25. The disconnecting means for a household refrigerator must be: A) Located in a dedicated circuit B) Accessible and within sight of the appliance C) Located in the basement D) Installed outside the home Answer: B Explanation: NEC requires disconnecting means to be readily accessible and within sight of the appliance. Question 26. For a motor rated at 1 horsepower, the overcurrent protection device should be rated approximately: A) 15 amps B) 20 amps C) 30 amps D) 10 amps Answer: A Explanation: A 1 HP motor typically requires a 15-amp circuit breaker, considering NEC motor circuit sizing rules. Question 27. The primary function of a transformer in residential wiring is to: A) Convert AC to DC B) Step voltage up or down as needed C) Provide overcurrent protection D) Isolate circuits Answer: B Explanation: Transformers change voltage levels, either stepping voltage up or down for specific applications. Question 28. A three-way switch is used to:
Answer: B Explanation: UF (Underground Feeder) cable is suitable for direct burial underground. Question 32. The purpose of a fuse in an electrical circuit is to: A) Provide a permanent connection B) Protect the circuit from overcurrent by melting and opening the circuit C) Regulate voltage D) Isolate the circuit during maintenance Answer: B Explanation: Fuses protect circuits by melting and disconnecting the circuit when overcurrent occurs. Question 33. Which of the following is a typical application of a metal-clad (MC) cable? A) Indoor branch circuits in dry locations B) Outdoor or exposed locations requiring protection against physical damage C) Underground direct burial D) Low-voltage control wiring only Answer: B Explanation: MC cable is armored and suitable for outdoor or exposed locations where physical damage may occur. Question 34. The main function of a circuit breaker is to: A) Step down voltage B) Interrupt overcurrent conditions automatically C) Convert AC to DC D) Protect against ground faults only Answer: B Explanation: Circuit breakers automatically disconnect power when overcurrent or short circuit conditions are detected.
Question 35. The purpose of a grounding electrode conductor is to connect: A) The neutral to the load B) The grounding system to the earth C) The hot wire to the appliance D) The circuit breaker to the panel Answer: B Explanation: It connects the grounding system to the earth, providing a path for fault current. Question 36. Which material is most commonly used for residential grounding conductors? A) Copper B) Aluminum C) Steel D) Brass Answer: A Explanation: Copper is commonly used due to its excellent conductivity and durability. Question 37. A panelboard is typically installed: A) Outside the building only B) In accessible locations, providing circuit control and distribution C) Only in commercial buildings D) In underground vaults Answer: B Explanation: Panelboards are installed in accessible locations for circuit control, distribution, and maintenance. Question 38. Which NEC chapter covers wiring methods and materials? A) Chapter 1 B) Chapter 2 C) Chapter 3
Question 42. A residential service panel must be installed: A) At least 10 feet above the ground B) Accessible and within 6 feet of the point of entry C) In a dry, accessible location with proper clearance D) Outside the building only Answer: C Explanation: NEC requires panels to be installed in accessible, dry locations with adequate working space. Question 43. The main purpose of a disconnect switch for a residential service is to: A) Reduce voltage B) Isolate the entire electrical system for maintenance or emergency C) Step down the voltage for appliances D) Provide surge protection Answer: B Explanation: A disconnect switch allows the entire system to be safely de-energized for maintenance or emergencies. Question 44. The minimum size for an equipment grounding conductor in a 15-amp circuit is generally: A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 16 AWG copper Answer: A Explanation: For 15-amp circuits, a 14 AWG copper grounding conductor is typically sufficient per NEC. Question 45. Which of the following is a requirement for a receptacle installed in a bathroom? A) It must be GFCI protected
B) It must be 20 feet away from the sink C) It can be ungrounded D) It must be a 15-amp receptacle only Answer: A Explanation: NEC requires all bathroom receptacles to be GFCI protected for safety. Question 46. The typical voltage used for residential lighting circuits in the US is: A) 120 volts B) 240 volts C) 277 volts D) 480 volts Answer: A Explanation: Residential lighting circuits in the US are commonly 120 volts. Question 47. A 3-phase transformer in residential applications is typically used for: A) Reducing voltage for household appliances B) Supplying commercial or industrial loads C) Powering single-phase lighting D) Isolating ground faults Answer: B Explanation: 3-phase transformers are mainly used in commercial or industrial settings, not typical residential applications. Question 48. The main purpose of a panelboard’s main breaker is to: A) Protect individual circuits B) Disconnect all power to the panel and circuits C) Step down voltage D) Regulate current flow Answer: B
A) Resistance B) Power factor C) Reactance D) Impedance Answer: B Explanation: Power factor reflects the phase difference between voltage and current in an AC circuit. Question 53. Which device uses electromagnetism to operate as a switch or relay in electrical circuits? A) Transformer B) Electromagnetic relay C) Circuit breaker D) Resistor Answer: B Explanation: Electromagnetic relays use electromagnetism to switch circuits electronically or mechanically. Question 54. The primary hazard associated with arc flash is: A) Electromagnetic interference B) Thermal burns and blast injuries C) Electric shock only D) Radiofrequency interference Answer: B Explanation: Arc flashes release intense heat and pressure, causing burns and injuries. Question 55. When using a clamp-on ammeter, the instrument measures: A) Resistance of a component B) AC current without breaking the circuit C) DC voltage D) Continuity of wiring
Answer: B Explanation: Clamp-on ammeters measure AC current by clamping around a conductor without breaking the circuit. Question 56. The standard electrical symbol for a switch is a: A) Open circle B) A break in a line with a lever or line intersecting C) Solid rectangle D) Zigzag line Answer: B Explanation: Switch symbols typically depict a break in the line with a lever or contact that can open or close. Question 57. To convert 120 volts to volts per millimeter for a specific measurement, you should: A) Divide by 1, B) Multiply by 1, C) Divide by 1,000, D) Multiply by 1,000, Answer: A Explanation: To convert volts to millivolts (or volts per mm), divide by 1,000 for millivolts; for other conversions, context-specific calculations are needed. Question 58. For a 20-amp branch circuit, the minimum size conductor in copper is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: NEC specifies 12 AWG copper conductors for 20-amp circuits.
B) 40% of cross-sectional area C) 53% of cross-sectional area D) 75% of cross-sectional area Answer: C Explanation: NEC limits conduit fill to about 53% of the cross-sectional area for multiple conductors. Question 63. An open wiring system is commonly used in: A) Commercial outdoor environments B) Residential attics and basements where protected C) Wet locations outdoors D) Underwater installations Answer: B Explanation: Open wiring is permitted in dry, protected locations like attics and basements. Question 64. In residential wiring, the purpose of a GFCI is primarily to: A) Protect against overcurrent B) Protect against ground faults and reduce shock hazard C) Protect against overloads D) Regulate voltage fluctuations Answer: B Explanation: GFCIs detect ground faults and quickly disconnect power to prevent shocks. Question 65. The typical color for grounding conductors in the NEC is: A) Black B) Red C) Green or bare copper D) White Answer: C Explanation: Grounding conductors are identified by green insulation or are bare copper.
Question 66. A motor's overcurrent protection device must be rated to protect: A) The motor's starting current only B) The motor's full load current C) The circuit's maximum voltage D) The conductor's insulation rating Answer: B Explanation: Overcurrent protection must be rated to handle the motor's full load current, preventing damage during overloads. Question 67. Transformers in residential applications are primarily used for: A) Powering industrial machinery B) Step down voltage for specific appliances or circuits C) Powering large HVAC units D) Isolating circuits from ground faults only Answer: B Explanation: Transformers reduce voltage levels to safer or more suitable levels for certain appliances or circuits. Question 68. An example of a three-way switch circuit is used to control: A) A light fixture from two different locations B) Multiple lights from one switch C) A motor's direction of rotation D) An outdoor landscape lighting system Answer: A Explanation: Three-way switches enable control of a single light from two separate locations. Question 69. The minimum working space in front of a panelboard rated over 600 volts is generally: A) 3 feet
