Electrician Ultimate Exam

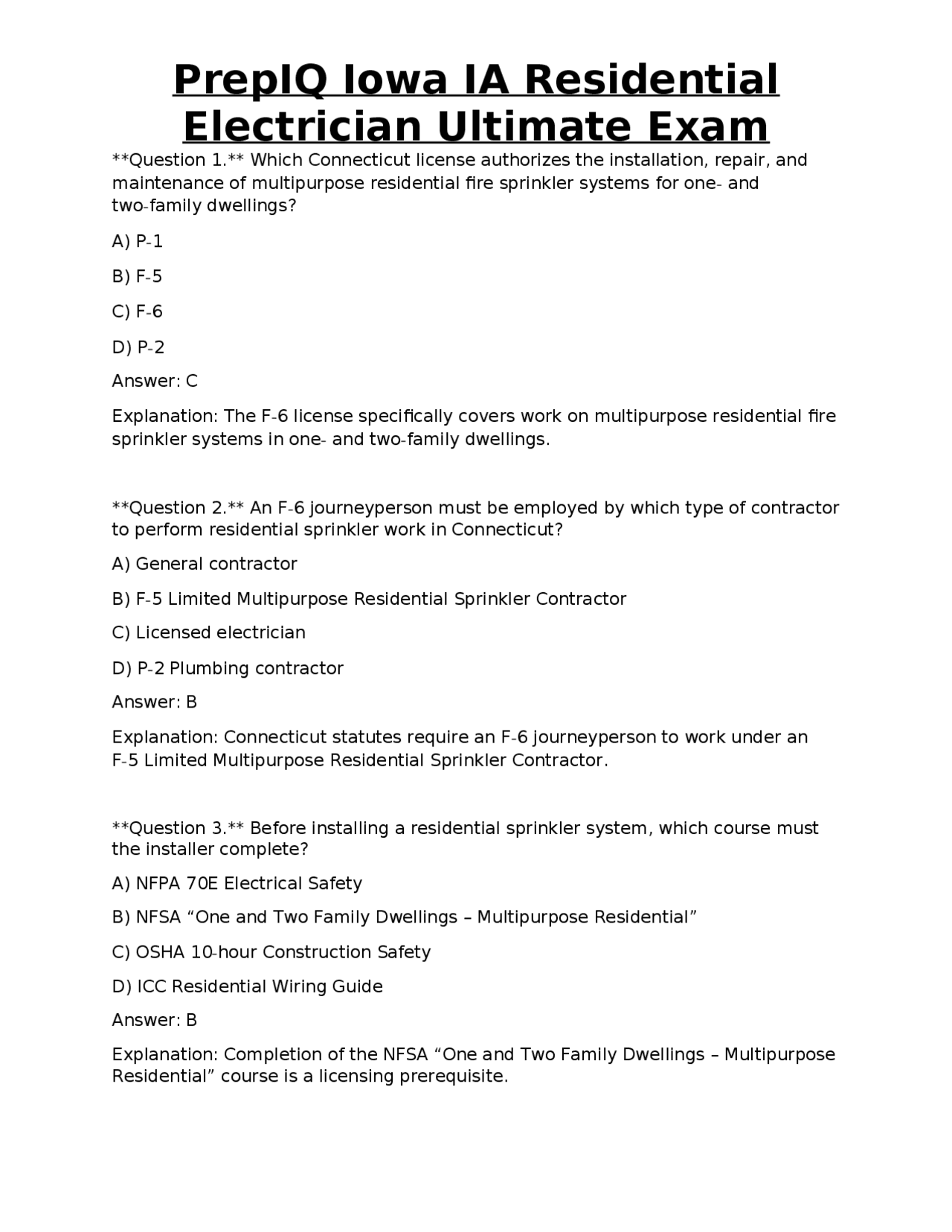

Question 1. Which Connecticut license authorizes the installation, repair, and maintenance of multipurpose residential fire sprinkler systems for one- and two-family dwellings? A) P- 1 B) F- 5 C) F- 6 D) P- 2 Answer: C Explanation: The F-6 license specifically covers work on multipurpose residential fire sprinkler systems in one- and two-family dwellings. Question 2. An F-6 journeyperson must be employed by which type of contractor to perform residential sprinkler work in Connecticut? A) General contractor B) F-5 Limited Multipurpose Residential Sprinkler Contractor C) Licensed electrician D) P-2 Plumbing contractor Answer: B Explanation: Connecticut statutes require an F-6 journeyperson to work under an F-5 Limited Multipurpose Residential Sprinkler Contractor. Question 3. Before installing a residential sprinkler system, which course must the installer complete? A) NFPA 70E Electrical Safety B) NFSA “One and Two Family Dwellings – Multipurpose Residential” C) OSHA 10-hour Construction Safety D) ICC Residential Wiring Guide Answer: B Explanation: Completion of the NFSA “One and Two Family Dwellings – Multipurpose Residential” course is a licensing prerequisite.
Electrician Ultimate Exam
Question 4. The primary purpose of a residential sprinkler system per NFPA 13D is: A) Total property protection B) Life safety and escape time C) Minimizing water damage to flooring D) Reducing insurance premiums only Answer: B Explanation: NFPA 13D focuses on providing occupants with a safe escape, requiring at least a 10-minute water supply discharge. Question 5. According to NFPA 13D, the minimum water supply discharge time required for a residential sprinkler system is: A) 5 minutes B) 10 minutes C) 15 minutes D) 20 minutes Answer: B Explanation: NFPA 13D mandates a minimum of 10 minutes of water discharge to ensure safe egress. Question 6. When calculating water supply for a residential sprinkler, which demand is typically larger? A) Domestic water demand B) Fire sprinkler demand C) Both are equal D) Neither; only irrigation demand matters Answer: B Explanation: The fire sprinkler demand usually exceeds domestic demand, dictating pipe sizing and pressure requirements.
Electrician Ultimate Exam
Question 10. A residential sprinkler head with a temperature rating of 135 °F is appropriate for: A) Unheated attics only B) Areas where ambient temperatures never exceed 130 °F C) All residential spaces regardless of temperature D) Only outdoor installations Answer: B Explanation: The 135 °F rating is suitable where ambient temperatures stay below that threshold to avoid accidental discharge. Question 11. According to obstruction rules, a sprinkler head must be installed at least how many inches away from a ceiling fan? A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: C Explanation: NFPA 13D requires a minimum clearance of 24 inches from ceiling fans to prevent airflow interference. Question 12. Which piping material is NOT permitted for use in a multipurpose residential sprinkler system in Connecticut? A) PEX B) CPVC C) Galvanized steel D) Copper Answer: C Explanation: Galvanized steel is not listed for potable water and sprinkler use; PEX, CPVC, and copper are acceptable if UL/NSF listed. Question 13. For a residential sprinkler system, the main shut-off valve must:
Electrician Ultimate Exam
A) Control only the fire water supply B) Be located within 6 feet of the water meter C) Control both domestic and fire water supplies with a single valve D) Be a ball valve only Answer: C Explanation: A single valve must isolate both domestic and fire water to simplify operation and testing. Question 14. The pressure gauge for a residential sprinkler system should be installed: A) Directly on the sprinkler head B) At the fire department connection only C) On the downstream side of the main shut-off valve D) Inside the utility room, away from water lines Answer: C Explanation: Placing the gauge downstream of the main valve provides an accurate reading of system pressure. Question 15. A fire department connection (FDC) is optional for a residential sprinkler system when: A) The water supply is a municipal main with adequate pressure. B) The dwelling has more than four stories. C) The system uses a dedicated fire pump. D) The homeowner requests it. Answer: A Explanation: An FDC is not required if the municipal supply meets flow and pressure demands. Question 16. According to IRC Section P2904, the maximum spacing between supports for PEX piping in a residential sprinkler system is: A) 3 feet
Electrician Ultimate Exam
C) The flow required by the two largest-capacity sprinklers in the system. D) The combined flow of the two nearest sprinklers to the water source. Answer: A Explanation: NFPA 13D requires the system to supply the combined demand of the two most remote (or most demanding) sprinklers. Question 20. The maximum coverage area for a single residential sprinkler head is: A) 100 sq ft B) 144 sq ft C) 180 sq ft D) 225 sq ft Answer: B Explanation: NFPA 13D limits each residential head to a maximum of 144 sq ft of floor area. Question 21. Hydrostatic testing of a residential sprinkler system is performed at: A) 30 psi above the static pressure B) 50 psi above the static pressure C) Exactly the design pressure D) The pressure recorded during the first flow test Answer: B Explanation: Hydrostatic testing typically requires 50 psi above the static pressure to verify system integrity. Question 22. During flow testing, the measured flow at the most remote sprinkler head must be at least: A) 80 % of the calculated demand B) 90 % of the calculated demand C) 100 % of the calculated demand
Electrician Ultimate Exam
D) 110 % of the calculated demand Answer: C Explanation: The system must meet 100 % of the calculated demand at the farthest head to ensure adequate supply. Question 23. Which of the following is NOT a required maintenance activity for a residential sprinkler system? A) Checking heads for paint buildup B) Re-pressurizing the system weekly C) Testing flow switches annually D) Verifying the location of the main shut-off valve Answer: B Explanation: Routine re-pressurization is not required; regular inspections and testing are. Question 24. Record-keeping for a residential sprinkler system must include: A) The homeowner’s credit score B) Detailed as-built drawings and valve locations C) The installer’s personal phone number only D) A list of all paint colors used in the home Answer: B Explanation: Documentation must contain as-built drawings and locations of key components like the main valve. Question 25. A backflow prevention device is required when: A) The sprinkler system is installed on a slab-on-grade foundation. B) The fire sprinkler supply is separate from the domestic water supply. C) The system shares piping with the domestic water supply. D) The dwelling has a well water source. Answer: C
Electrician Ultimate Exam
Question 29. The term “multipurpose” in residential sprinkler systems refers to: A) Systems that provide both fire suppression and irrigation B) Shared use of piping for domestic water and fire sprinkler water C) Sprinklers that can also function as smoke detectors D) Systems that can be upgraded to commercial standards later Answer: B Explanation: “Multipurpose” indicates that the same piping supplies both domestic and fire sprinkler demands. Question 30. Which of the following is the correct method for determining the friction loss in a residential sprinkler pipe run? A) Use a flat-rate loss of 2 psi per 100 ft regardless of pipe size B) Apply the Hazen-Williams equation with the appropriate C-value for the material C) Assume zero loss because residential systems are low-flow D) Use the Darcy-Weisbach equation with a roughness factor of 0. Answer: B Explanation: The Hazen-Williams formula is standard for water-based sprinkler hydraulic calculations. Question 31. The minimum pipe size for a residential sprinkler system serving a design flow of 150 gpm is: A) ½ in. B) ¾ in. C) 1 in. D) 1-¼ in. Answer: C Explanation: NFPA 13D tables show that 1-in. pipe is required for flows around 150 gpm to limit friction loss.
Electrician Ultimate Exam
Question 32. In a residential sprinkler layout, the “equivalent length” of a 90° elbow is: A) 0.5 ft B) 1.5 ft C) 3 ft D) 5 ft Answer: C Explanation: NFPA 13D assigns an equivalent length of 3 ft to a standard 90° elbow for hydraulic calculations. Question 33. Which of the following is a required feature of a residential sprinkler system’s alarm notification? A) Audible alarm audible throughout the dwelling B) Visual strobe light in each bedroom only C) SMS notification to the homeowner’s phone D) None; alarms are optional in residential systems Answer: A Explanation: NFPA 13D requires an audible alarm that can be heard throughout the residence. Question 34. The maximum allowable temperature for a residential sprinkler head in a kitchen with a range hood is: A) 135 °F B) 155 °F C) 175 °F D) 200 °F Answer: B Explanation: Kitchens may have higher ambient temperatures; a 155 °F rating accommodates typical range hood heat.
Electrician Ultimate Exam
Question 38. Which of the following statements about the “two-sprinkler” design rule is true? A) It only applies to commercial systems. B) It ensures the system can supply the flow of the two most demanding sprinklers simultaneously. C) It allows designers to ignore friction loss in the pipe. D) It requires installing exactly two sprinkler heads per room. Answer: B Explanation: The rule ensures adequate water supply for the two most demanding (usually most remote) sprinklers. Question 39. For a residential sprinkler system, the required water supply pressure at the most remote head must be at least: A) 20 psi B) 30 psi C) 40 psi D) 50 psi Answer: C Explanation: NFPA 13D typically requires a minimum of 40 psi at the farthest head to achieve proper discharge. Question 40. Which of the following is NOT a permissible material for a residential sprinkler system’s main shut-off valve body? A) Brass B) Bronze C) Cast iron D) Plastic (PVC) Answer: D Explanation: PVC is not approved for fire sprinkler shut-off valves due to temperature and pressure concerns.
Electrician Ultimate Exam
Question 41. The required hydraulic calculation for a residential sprinkler system must consider: A) Only the flow of the largest sprinkler head. B) The cumulative demand of the two most remote heads. C) The total number of heads regardless of location. D) Only domestic water demand. Answer: B Explanation: NFPA 13D uses the “two-sprinkler” method, focusing on the two most remote heads. Question 42. When installing PEX piping in an attic, the pipe must be protected from UV exposure by: A) Painting the pipe black B) Wrapping it in UV-resistant tape C) Installing it only in the ceiling space D) No protection is needed Answer: B Explanation: PEX is vulnerable to UV; UV-resistant tape or conduit is required in exposed attic areas. Question 43. The standard minimum flow rate for a residential sprinkler head under NFPA 13D is: A) 5 gpm B) 10 gpm C) 15 gpm D) 20 gpm Answer: B Explanation: Residential heads are typically rated at a minimum of 10 gpm. Question 44. Which of the following is a correct statement about the location of the main shut-off valve in a residential sprinkler system?
Electrician Ultimate Exam
B) Annually C) Every 5 years D) Only after a fire event Answer: B Explanation: Annual inspections are recommended to ensure continued functionality. Question 48. Which of the following best describes “potable water” in the context of residential sprinkler systems? A) Water that is treated for irrigation only B) Water that meets drinking-water standards and is safe for human consumption C. Water that is stored in a fire-pump tank D. Water that is recycled from gray-water systems Answer: B Explanation: Potable water must meet drinking-water standards; sprinkler systems using it must not contaminate it. Question 49. The use of lead-based solder in residential sprinkler piping is: A) Allowed if the pipe is not used for drinking water B) Prohibited under the Safe Drinking Water Act C. Allowed in decorative applications only D. Permitted if the system is inspected annually Answer: B Explanation: Lead-based solder is banned for any potable water system components. Question 50. A residential sprinkler head installed directly beneath a recessed light must be located at least how many inches away from the light’s trim? A) 2 inches B) 4 inches
Electrician Ultimate Exam
C) 6 inches D) 8 inches Answer: C Explanation: Minimum clearance of 6 inches prevents heat from the light affecting the head. Question 51. Which of the following is an acceptable method for verifying that a residential sprinkler system meets hydraulic design criteria? A. Visual inspection of pipe sizes only B. Conducting a flow test at the farthest sprinkler head C. Measuring temperature of water at the main valve D. Checking only the static pressure at the water meter Answer: B Explanation: A flow test confirms that the system can deliver the required flow at the most remote head. Question 52. The term “dual-use” piping in residential sprinkler systems refers to: A. Piping that carries both hot and cold water for domestic use B. Piping that serves both domestic water and fire sprinkler demands C. Piping that is both insulated and uninsulated D. Piping that can be used for gas as well as water Answer: B Explanation: Dual-use piping supplies both domestic water and fire sprinkler water. Question 53. The maximum allowable pipe length between supports for CPVC in a residential sprinkler system is: A. 3 feet B. 4 feet C. 6 feet
Electrician Ultimate Exam
Answer: B Explanation: A 155 °F rating accommodates ambient temperatures up to 150 °F with a safety margin. Question 57. Which factor does NOT affect the hydraulic calculation for a residential sprinkler system? A. Pipe roughness B. Elevation change between pump and head C. Color of the pipe insulation D. Equivalent length of fittings Answer: C Explanation: Pipe color is irrelevant to hydraulic performance. Question 58. According to NFPA 13D, the “minimum discharge time” of 10 minutes is measured from: A. The moment the fire alarm sounds B. The moment the water reaches the sprinkler head C. The moment the flow alarm activates D. The moment the homeowner opens the main valve Answer: B Explanation: Discharge time begins when water first reaches the sprinkler head. Question 59. The required clearance between a sprinkler head and a wall-mounted air-conditioning vent is: A. 12 inches B. 18 inches C. 24 inches D. 30 inches Answer: B Explanation: A 18-inch clearance prevents airflow interference from the vent.
Electrician Ultimate Exam
Question 60. When a residential sprinkler system uses PEX piping, the installer must verify that the pipe is: A. Rated for temperatures up to 250 °F B. Certified for both potable water and fire protection use C. Installed only in cold-water lines D. Connected with mechanical fittings only Answer: B Explanation: PEX must be listed for both potable water and fire sprinkler applications. Question 61. The most common cause of a false alarm in a residential sprinkler system’s flow switch is: A. A clogged sprinkler head B. A pressure surge from the domestic water heater C. An improperly sized valve D. A low-temperature environment causing pipe contraction Answer: B Explanation: Pressure surges from domestic water heaters can inadvertently trigger flow switches. Question 62. The minimum pipe diameter for a residential sprinkler system serving a design flow of 120 gpm is: A. ¾ in. B. 1 in. C. 1-¼ in. D. 1-½ in. Answer: B Explanation: 1-in. pipe is required to keep friction loss within acceptable limits for 120 gpm.
