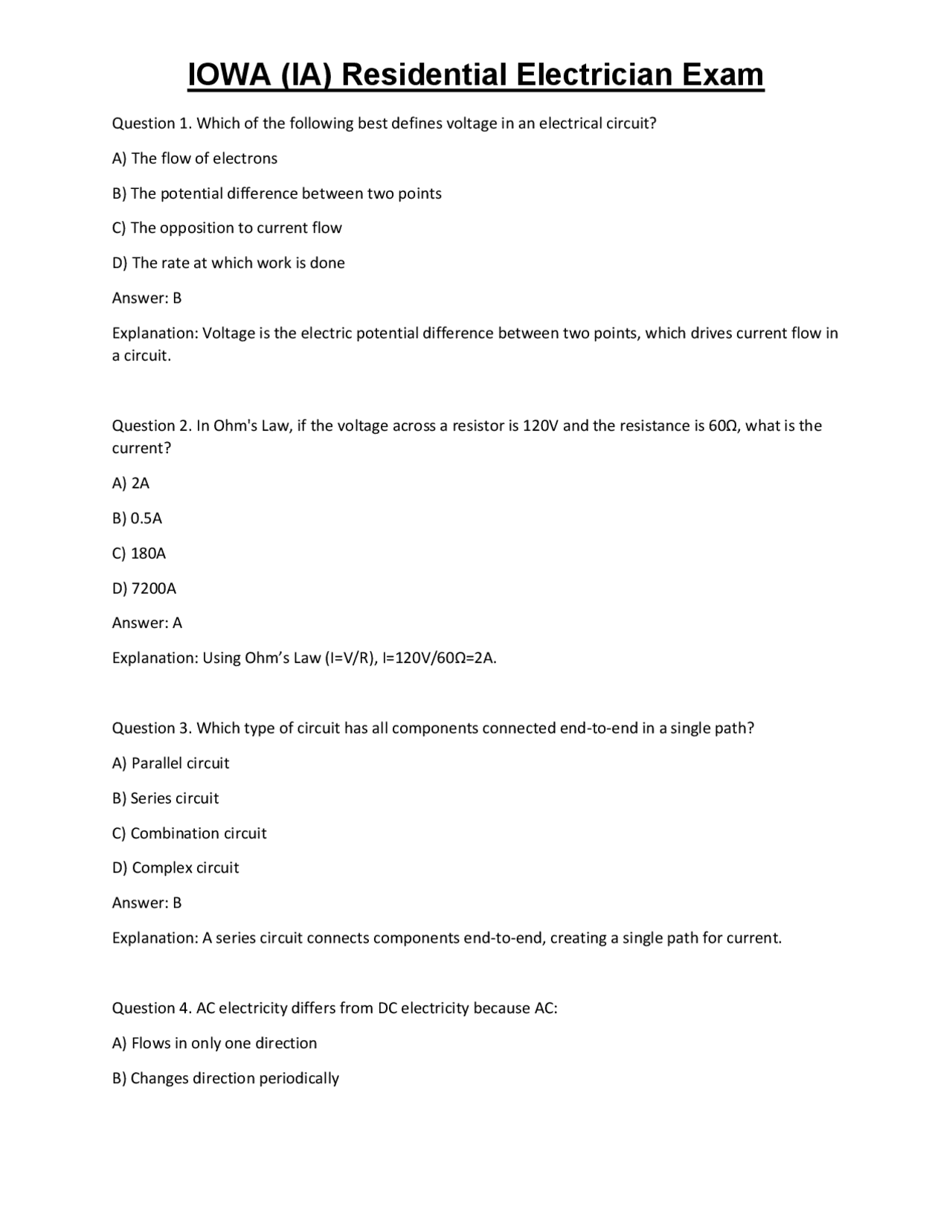

Question 1. Which of the following best defines voltage in an electrical circuit? A) The flow of electrons B) The potential difference between two points C) The opposition to current flow D) The rate at which work is done Answer: B Explanation: Voltage is the electric potential difference between two points, which drives current flow in a circuit. Question 2. In Ohm's Law, if the voltage across a resistor is 120V and the resistance is 60Ω, what is the current? A) 2A B) 0.5A C) 180A D) 7200A Answer: A Explanation: Using Ohm’s Law (I=V/R), I=120V/60Ω=2A. Question 3. Which type of circuit has all components connected end-to-end in a single path? A) Parallel circuit B) Series circuit C) Combination circuit D) Complex circuit Answer: B Explanation: A series circuit connects components end-to-end, creating a single path for current. Question 4. AC electricity differs from DC electricity because AC: A) Flows in only one direction B) Changes direction periodically
C) Is only used in residential systems D) Is unaffected by transformers Answer: B Explanation: Alternating current (AC) periodically reverses direction, unlike DC which flows in one constant direction. Question 5. Magnetism is primarily associated with which of the following? A) Voltage B) Resistance C) Moving electric charges D) Static charges Answer: C Explanation: Magnetism results from moving electric charges, such as currents in conductors. Question 6. The property of an inductor to oppose changes in current is called: A) Capacitance B) Resistance C) Inductance D) Conductance Answer: C Explanation: Inductance opposes changes in current flow, storing energy in a magnetic field. Question 7. When calculating the total load of a residential circuit, which of the following is typically used? A) Power factor B) Wattage of connected devices C) Resistance of conductors D) Capacitance of wiring Answer: B
A) Multimeter B) Continuity tester C) Non-contact voltage tester D) Insulation resistance tester Answer: C Explanation: A non-contact voltage tester detects voltage presence without direct contact. Question 12. The primary purpose of a GFCI tester is to verify the proper operation of: A) Overcurrent devices B) Ground fault circuit interrupters C) Arc-fault circuit interrupters D) Surge protectors Answer: B Explanation: GFCI testers check the functionality of ground fault circuit interrupters to ensure safety. Question 13. Which PPE is most appropriate when working on live electrical circuits? A) Cotton gloves B) Insulated rubber gloves C) Leather gloves only D) No PPE is necessary Answer: B Explanation: Insulated rubber gloves protect against electrical shock during live work. Question 14. Arc flash hazards primarily involve which of the following risks? A) Electromagnetic interference B) Intense heat and molten metal C) Electric shock at low voltage D) Magnetic field exposure Answer: B
Explanation: Arc flashes release intense heat, light, and molten metal, posing severe burn risks. Question 15. The first step in lockout/tagout procedures is to: A) Notify the supervisor B) De-energize the equipment C) Remove all tools D) Test for voltage Answer: B Explanation: Lockout/tagout starts with de-energizing equipment to prevent accidental energization. Question 16. The purpose of the NEC is to: A) Enforce electrical safety standards B) Provide minimum requirements for safe electrical installations C) Certify electrical contractors D) Design electrical schematics Answer: B Explanation: The NEC establishes minimum safety standards for electrical installations. Question 17. Which of the following best describes the purpose of grounding in an electrical system? A) To increase voltage B) To prevent overcurrent C) To provide a path for fault currents to the earth D) To reduce resistance Answer: C Explanation: Grounding provides a safe path for fault currents, reducing shock risk. Question 18. A grounding electrode system typically includes which of the following? A) Ground rods B) Neutral conductors
Explanation: The service disconnect allows the entire electrical supply to be safely shut off for maintenance or emergencies. Question 22. Which of the following conductor types is commonly used in residential wiring for circuits? A) Copper B) Aluminum C) Both copper and aluminum D) Steel Answer: C Explanation: Both copper and aluminum conductors are used in residential wiring, with copper being most common. Question 23. The insulation temperature rating indicates: A) The maximum temperature the insulation can withstand without damage B) The operating temperature of the conductor C) The ambient temperature of the circuit D) The temperature at which the conductor melts Answer: A Explanation: The temperature rating shows the maximum temperature the insulation can safely handle. Question 24. Which conduit type is most resistant to corrosion and suitable for outdoor use? A) EMT B) PVC C) RMC D) FMC Answer: B Explanation: PVC conduit is highly resistant to corrosion and suitable for outdoor and wet locations. Question 25. A device designed to protect against arc faults is called:
A) GFCI
B) AFCI
C) Circuit breaker D) Surge protector Answer: B Explanation: AFCIs are designed to detect and disconnect Arc Faults, preventing fires. Question 26. Receptacles rated as GFCIs are primarily intended to protect against: A) Overcurrent B) Ground faults causing electrocution C) Voltage surges D) Overvoltage Answer: B Explanation: GFCIs detect ground faults and shut off power to prevent shock hazards. Question 27. Which of the following is a typical application for AFCI protection in a dwelling? A) Kitchen receptacles only B) Bedroom circuits and living areas C) Outdoor outlets exclusively D) Garage circuits only Answer: B Explanation: AFCIs are required in bedrooms and living spaces to protect against arc faults. Question 28. When installing smoke detectors interconnected throughout a dwelling, they should be connected: A) Only to the lighting circuit B) To the general electrical system with battery backup C) Only to the GFCI circuit D) To the data wiring system
Question 32. The purpose of a lockout/tagout procedure is to: A) Prevent unauthorized access to electrical systems B) Ensure equipment is de-energized during maintenance C) Limit circuit capacity D) Protect against electromagnetic interference Answer: B Explanation: Lockout/tagout procedures ensure equipment remains de-energized during servicing to prevent shocks. Question 33. The primary reason for using PPE when working on electrical systems is to: A) Improve work efficiency B) Protect against electrical shocks and arc flashes C) Comply with OSHA regulations only D) Prevent physical injuries only Answer: B Explanation: PPE protects workers from electrical shocks, burns, and arc flash hazards. Question 34. Which of the following materials is most suitable for conductors in residential wiring? A) Copper B) Aluminum C) Steel D) Both copper and aluminum Answer: D Explanation: Copper and aluminum are both suitable conductors; copper is most common due to its conductivity and durability. Question 35. The purpose of a conduit fill calculation is to determine: A) The number of conductors in a raceway B) The voltage drop in a circuit
C) The maximum length of conduit D) The current capacity of conductors Answer: A Explanation: Conduit fill calculation ensures the number of conductors does not exceed the conduit’s capacity. Question 36. A typical residential service entrance includes: A) Service conductors, meter socket, and main disconnect B) Only the main breaker panel C) Distribution transformers D) Grounding rods only Answer: A Explanation: The service entrance comprises conductors, a meter, and a main disconnect for the residence. Question 37. Which type of overcurrent protection device is most common in residential circuits? A) Fuses B) Circuit breakers C) Surge protectors D) Ground fault relays Answer: B Explanation: Circuit breakers are most common in residential systems due to ease of reset and reliability. Question 38. The typical conductor size used for a 20A branch circuit in residential wiring is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B
C) Equal to or less than the conductor’s ampacity D) Based solely on the load device Answer: C Explanation: Fuse ratings should match or be below the conductor’s ampacity for safety. Question 43. A conductor's ampacity is primarily affected by: A) Length of the conductor B) Ambient temperature C) Color of insulation D) Voltage rating Answer: B Explanation: Ambient temperature affects conductor ampacity; higher temperatures reduce capacity. Question 44. Which of the following is a typical application for a three-way switch? A) Single lighting fixture B) Stairway lighting with two switches C) GFCI outlet D) Dimmer switch for a fan Answer: B Explanation: Three-way switches control lighting from two locations, such as stairways. Question 45. The purpose of a disconnecting means on an appliance is to: A) Prevent overcurrent B) Allow safe disconnection for service or maintenance C) Reduce noise D) Increase voltage Answer: B Explanation: Disconnecting means enable safe servicing by isolating the appliance from power.
Question 46. Which type of wiring method is most suitable for underground residential feeders? A) NM cable B) UF cable C) EMT conduit D) FMC Answer: B Explanation: UF (Underground Feeder) cable is designed for direct burial and underground installation. Question 47. Which of the following is a key safety feature of AFCIs? A) Detects ground faults B) Detects arc faults C) Protects against overcurrent D) Provides surge suppression Answer: B Explanation: AFCIs detect arc faults, which can cause fires, and disconnect power to prevent hazards. Question 48. When installing a receptacle in a bathroom, it must be protected by: A) An AFCI B) A GFCI C) A standard circuit breaker D) A fuse Answer: B Explanation: GFCIs are required in bathrooms to protect against ground faults and reduce shock risk. Question 49. Which of the following best describes the function of a transformer in a residential application? A) Converts high voltage to low voltage or vice versa B) Stores electrical energy C) Breaks circuit when overloaded
Question 53. Which of the following is a typical requirement for hot tubs and spas? A) Use of GFCI protection B) No special wiring required C) Use of only aluminum conductors D) No bonding needed Answer: A Explanation: GFCI protection is mandated for hot tubs and spas to prevent electrical shock. Question 54. When installing an AFCI in a dwelling, it should be connected: A) To all branch circuits serving bedrooms and living areas B) Only to outdoor circuits C) Only to kitchen outlets D) To the main service panel only Answer: A Explanation: AFCIs are required in circuits serving bedrooms and living spaces to protect against arc faults. Question 55. Which of the following best describes the function of a neutral conductor? A) Conducts current back to the source B) Provides a grounding path C) Carries only fault current D) Is insulated at all times Answer: A Explanation: The neutral conductor completes the circuit by returning current to the source. Question 56. The main purpose of a load calculation in residential wiring is to: A) Determine the size of conductors and overcurrent devices B) Find the total number of outlets
C) Calculate voltage drops D) Decide on conduit size Answer: A Explanation: Load calculations ensure conductors and protective devices are properly rated for the expected load. Question 57. Which of the following is a common method for grounding a residential electrical system? A) Grounding through a water pipe B) Grounding through a ground rod C) Grounding through the neutral conductor only D) No grounding is required Answer: B Explanation: A common method involves installing a grounding rod or electrode and connecting it to the system. Question 58. The maximum number of conductors allowed in a standard 4-inch square box for device wiring is primarily determined by: A) Box fill calculations based on conductor volume B) The amperage of the circuit C) The type of conductors used D) The length of conductors Answer: A Explanation: Box fill calculations ensure the box is not overcrowded, based on conductor volume and devices. Question 59. Which of the following is the correct way to size a conductor for a motor circuit? A) Based on the motor’s full load current B) Based on the circuit breaker size only C) Using a standard 12 AWG conductor D) Using the length of wire only
Question 63. Which of the following types of wiring is most suitable for a damp basement environment? A) NM cable B) UF cable C) RMC conduit D) FMC Answer: C Explanation: Rigid metal conduit (RMC) provides durable, corrosion-resistant wiring suitable for damp locations. Question 64. The purpose of a motor overload relay is to: A) Protect the motor from overheating due to overload conditions B) Increase motor speed C) Reduce voltage to the motor D) Provide a current path for starting Answer: A Explanation: Overload relays disconnect power if the motor overheats due to excessive current. Question 65. Which of the following is true about a step-down transformer? A) It reduces voltage from higher to lower levels B) It increases voltage from low to high C) It converts AC to DC D) It stores electrical energy Answer: A Explanation: Step-down transformers decrease voltage levels for low-voltage applications. Question 66. A portable generator used as a backup power source should be equipped with: A) Transfer switch B) GFCI outlet C) Overcurrent device
D) Surge protector Answer: A Explanation: Transfer switches safely connect portable generators to the building’s electrical system. Question 67. For a detached garage, the wiring must generally be: A) Installed with underground feeders or dedicated circuits B) Connected directly to the house wiring C) Run with exposed conductors D) Not protected by GFCI Answer: A Explanation: Wiring to detached garages must be protected and often requires underground feeders or dedicated circuits. Question 68. The primary function of a transfer switch in a generator system is to: A) Automatically switch power sources between utility and generator B) Increase circuit capacity C) Protect against overcurrent D) Convert AC to DC Answer: A Explanation: Transfer switches automatically or manually switch the power source from utility to generator. Question 69. When installing a new lighting fixture, which grounding method is typically used? A) Connecting the fixture’s grounding terminal to the junction box ground B) Connecting the fixture to the neutral conductor C) No grounding is necessary D) Connecting the fixture to the hot wire Answer: A Explanation: The fixture’s grounding terminal must be connected to the grounding system for safety.
