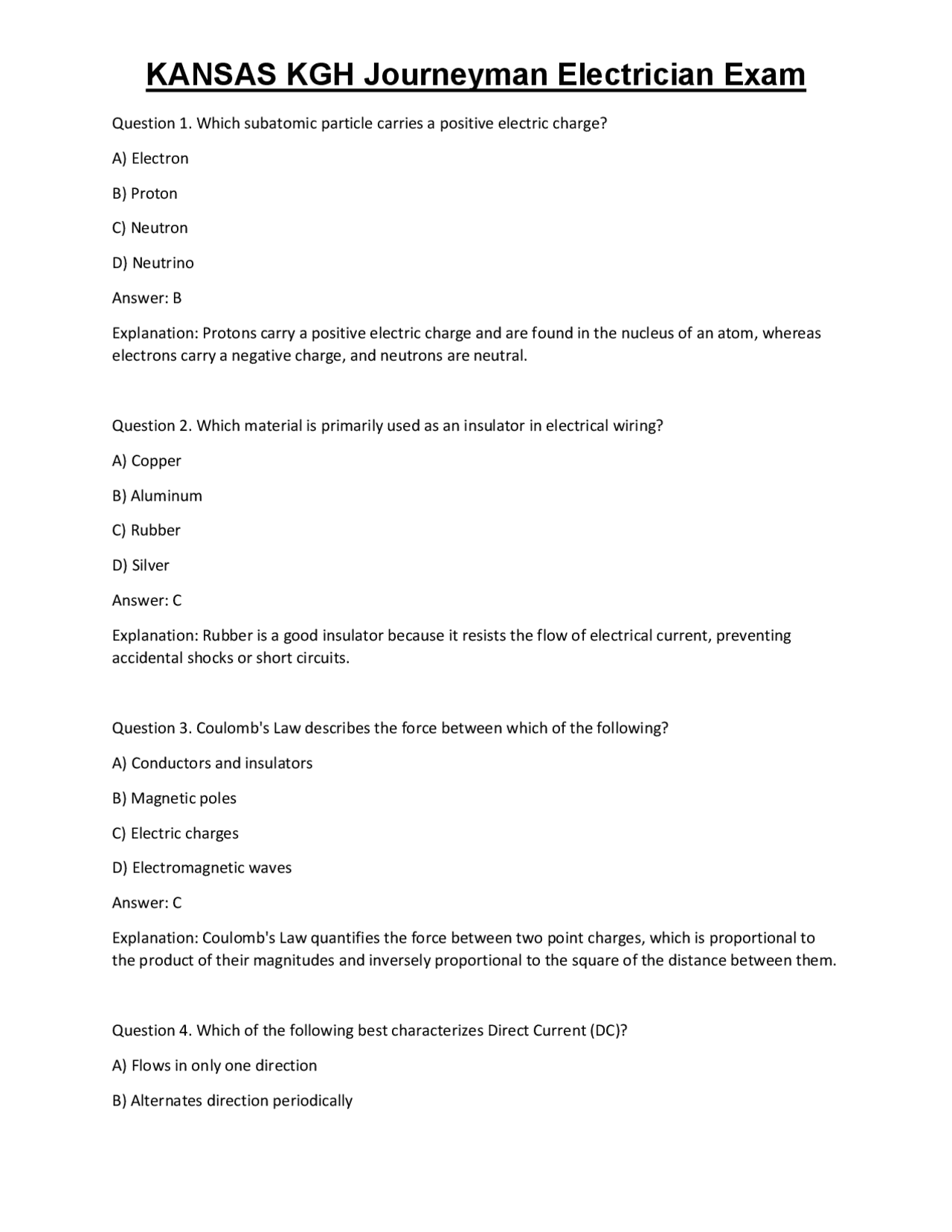

Question 1. Which subatomic particle carries a positive electric charge? A) Electron B) Proton C) Neutron D) Neutrino Answer: B Explanation: Protons carry a positive electric charge and are found in the nucleus of an atom, whereas electrons carry a negative charge, and neutrons are neutral. Question 2. Which material is primarily used as an insulator in electrical wiring? A) Copper B) Aluminum C) Rubber D) Silver Answer: C Explanation: Rubber is a good insulator because it resists the flow of electrical current, preventing accidental shocks or short circuits. Question 3. Coulomb's Law describes the force between which of the following? A) Conductors and insulators B) Magnetic poles C) Electric charges D) Electromagnetic waves Answer: C Explanation: Coulomb's Law quantifies the force between two point charges, which is proportional to the product of their magnitudes and inversely proportional to the square of the distance between them. Question 4. Which of the following best characterizes Direct Current (DC)? A) Flows in only one direction B) Alternates direction periodically
C) Has a sinusoidal waveform D) Is generated by generators only Answer: A Explanation: DC flows in a constant direction and is typically produced by batteries, whereas AC alternates direction periodically. Question 5. Voltage is best described as: A) The rate at which energy is used B) Electromotive force or potential difference C) The resistance to current flow D) The flow of electrons in a circuit Answer: B Explanation: Voltage, also called electromotive force, is the potential difference that drives current through a circuit. Question 6. Which material has a high resistivity and is typically used as an insulator? A) Copper B) Silver C) Glass D) Aluminum Answer: C Explanation: Glass has high resistivity, making it an effective insulator, unlike metals like copper and silver which are good conductors. Question 7. Power is calculated in an electrical circuit as: A) Voltage divided by resistance B) Resistance times current C) Voltage times current D) Voltage plus resistance Answer: C
Question 11. The RMS value of a sine wave is approximately: A) 0.707 times the peak value B) Equal to the peak value C) 1.414 times the peak value D) Half of the peak value Answer: A Explanation: RMS (Root Mean Square) value for a sine wave is about 0.707 times the peak value, representing the equivalent DC value. Question 12. Inductive reactance (XL) increases with: A) Increasing capacitance B) Increasing frequency C) Increasing resistance D) Increasing voltage Answer: B Explanation: XL = 2πfL; it increases with higher frequency, as inductive reactance opposes changes in current more strongly at higher frequencies. Question 13. Capacitive reactance (XC) decreases as: A) Frequency increases B) Capacitance increases C) Voltage increases D) Resistance decreases Answer: B Explanation: XC = 1/(2πfC); it decreases as capacitance C increases, allowing more current to pass at higher capacitance. Question 14. Impedance (Z) in an AC circuit is: A) Equal to resistance only B) The vector sum of resistance and reactance
C) Always purely resistive D) The same as resistance in all cases Answer: B Explanation: Impedance combines resistance and reactance (inductive and capacitive) as a vector sum, accounting for both magnitude and phase difference. Question 15. Power factor in an AC circuit is defined as: A) The ratio of reactive power to true power B) The phase difference between voltage and current C) The ratio of true power to apparent power D) The ratio of apparent power to reactive power Answer: C Explanation: Power factor = True (real) power / Apparent power; it indicates how effectively the circuit uses electrical power. Question 16. In a three-phase Wye (Y) system, the line-to-line voltage is: A) Equal to the phase voltage B) √3 times the phase voltage C) Half of the phase voltage D) The same as the phase current Answer: B Explanation: Line-to-line voltage in a Wye system is √3 times the phase (line-to-neutral) voltage. Question 17. Which law states that a changing magnetic flux induces an electromotive force? A) Coulomb's Law B) Faraday's Law C) Ohm's Law D) Lenz's Law Answer: B
Question 21. The purpose of the NEC is to: A) Specify wiring colors B) Ensure safe electrical installations C) Provide detailed circuit diagrams D) Regulate utility company operations Answer: B Explanation: The NEC establishes safety standards for electrical installations to prevent hazards. Question 22. Which term refers to the approved electrical equipment or wiring method that has been tested and meets safety standards? A) Listed B) Labeled C) Approved D) Recognized Answer: A Explanation: "Listed" indicates equipment has been tested and meets specific safety standards. Question 23. The term "Authority Having Jurisdiction" (AHJ) refers to: A) The electrical inspector or authority responsible for code enforcement B) The manufacturer of electrical equipment C) The local utility company D) The homeowner installing the system Answer: A Explanation: AHJ is the official responsible for code enforcement and approval of electrical work. Question 24. Which of the following is NOT a typical requirement for electrical equipment installation under the NEC? A) Proper mounting and cooling B) Adequate overcurrent protection
C) Use of unlisted components D) Clearances and accessible space Answer: C Explanation: The NEC requires equipment to be properly listed and approved; using unlisted components is non-compliant. Question 25. In wiring methods, the minimum bending radius for a conduit is generally: A) 10 times the conduit diameter B) Equal to the conduit diameter C) 2 times the conduit diameter D) 5 times the conduit diameter Answer: A Explanation: To prevent damage and maintain integrity, the minimum bending radius is typically 10 times the conduit diameter. Question 26. Which conduit type is known for its corrosion resistance and is suitable for underground use? A) EMT B) RMC C) PVC conduit D) IMC Answer: C Explanation: PVC conduit offers excellent corrosion resistance and is suitable for underground installations. Question 27. The purpose of a junction box is to: A) House connections and splices safely B) Support lighting fixtures only C) Reduce voltage D) Protect against electromagnetic interference
A) Flush with the ceiling surface B) Hanging below the ceiling C) Embedded within the ceiling or wall D) Outside the building structure Answer: C Explanation: Recessed luminaires are embedded within the ceiling or wall to provide a flush finish. Question 32. When installing an appliance, which NEC requirement must be considered? A) Use of the highest rated circuit breaker regardless of load B) Proper grounding and adherence to clearances C) Wiring with unlisted equipment is acceptable D) Connecting directly to the utility without overcurrent protection Answer: B Explanation: Proper grounding and maintaining appropriate clearances are critical NEC requirements for appliance installations. Question 33. Flexible cords and cables are typically used for: A) Permanent wiring in walls B) Portable appliances and temporary setups C) Underground service feeders D) Lighting fixtures only Answer: B Explanation: They are used for portable or temporary wiring, not for permanent installations. Question 34. Which type of motor protection device is designed to protect against both short-circuits and ground faults? A) Overload relay B) Circuit breaker C) Motor branch-circuit short-circuit and ground-fault protective device
D) Fused link Answer: C Explanation: Motor protection devices are specifically designed to protect against short circuits and ground faults, ensuring motor safety. Question 35. When selecting conductors for motor circuits, the conductor size must be based on: A) The motor's horsepower only B) The full load current and conductor ampacity tables C) The length of the circuit only D) The smallest available wire size Answer: B Explanation: Proper conductor sizing for motors considers the full load current and NEC ampacity tables to prevent overheating. Question 36. The NEC requires overcurrent protection for motors to be rated at: A) 125% of the motor's full load current B) Exactly the full load current of the motor C) 150% of the motor's full load current D) 200% of the motor's full load current Answer: A Explanation: Overcurrent protection is typically set at 125% of the motor's full load current to prevent nuisance trips while protecting the motor. Question 37. An approved disconnecting means for a motor must be: A) Capable of manually disconnecting power and located within sight of the motor B) Located in a separate building C) Always a fuse D) Installed downstream of the controller only Answer: A
Question 41. The main function of the NEC is to: A) Regulate utility tariffs B) Ensure safety and proper installation of electrical systems C) Design electrical circuits for manufacturers D) Certify electrical inspectors Answer: B Explanation: The NEC provides safety standards and guidelines to ensure electrical systems are installed safely and correctly. Question 42. The term "listed" in the NEC means: A) The equipment has been tested and meets safety standards B) The equipment is approved by the local authority C) The equipment is new D) The equipment is made domestically Answer: A Explanation: "Listed" indicates the equipment has passed testing by a recognized testing laboratory and meets safety standards. Question 43. Which term describes the metal piping or conduit system used to protect conductors? A) Raceway B) Feeder C) Junction box D) Circuit breaker Answer: A Explanation: Raceway is the general term for conduit, tubing, or other enclosed pathways used to protect conductors. Question 44. The minimum clearance from a conduit to a building's edge is typically specified by: A) The NEC and local codes
B) The manufacturer's instructions only C) The electrician’s preference D) The building's foundation code Answer: A Explanation: The NEC and local codes specify minimum clearances for safety and accessibility. Question 45. Box fill calculations are necessary to determine: A) The number of conductors and devices in a box B) The voltage drop across conductors C) The load on a circuit D) The size of overcurrent devices Answer: A Explanation: Box fill calculations ensure the box has enough space for all conductors, devices, and fittings according to NEC standards. Question 46. The purpose of a conduit support is to: A) Prevent physical damage and maintain conduit alignment B) Reduce electrical resistance C) Increase current capacity D) Connect different types of conduits Answer: A Explanation: Supports stabilize the conduit, prevent sagging, and protect against physical damage. Question 47. The function of a "pull box" is to: A) Provide access for pulling conductors through conduit runs B) Serve as a junction point for multiple circuits C) Act as a fuse holder D) Protect against overcurrent Answer: A
Question 51. Which term describes the potential difference required to move electrons through a conductor? A) Resistance B) Voltage C) Current D) Power Answer: B Explanation: Voltage is the potential difference that causes electrons to flow, creating current in a circuit. Question 52. Which material has the lowest resistivity and is commonly used for electrical wiring? A) Copper B) Aluminum C) Silver D) Iron Answer: C Explanation: Silver has the lowest resistivity among metals, but copper is most commonly used due to cost and availability. Question 53. The unit of electric charge is the: A) Coulomb B) Volt C) Watt D) Ohm Answer: A Explanation: The Coulomb (C) is the SI unit of electric charge, representing the quantity of electricity transferred. Question 54. Which of the following best describes alternating current (AC)? A) Flows in only one direction
B) Changes direction periodically C) Is produced only by batteries D) Has a constant magnitude Answer: B Explanation: AC changes direction periodically, typically in a sinusoidal waveform, used in household power supplies. Question 55. What does the abbreviation "V" stand for in electrical formulas? A) Voltage B) Voltage drop C) Velocity of electrons D) Variance Answer: A Explanation: "V" stands for voltage, representing potential difference in an electrical circuit. Question 56. Resistance in a conductor is primarily affected by: A) The length and cross-sectional area of the conductor B) The number of electrons in the conductor C) The type of insulator used D) The voltage applied Answer: A Explanation: Resistance increases with length and decreases with larger cross-sectional area; material also influences resistance. Question 57. Power in an electrical circuit is expressed as: A) P=VI B) P=I²R C) P=V²/R D) All of the above
A) XL = 2πfL B) XL = 1/(2πfC) C) XL = R D) XL = V/I Answer: A Explanation: XL = 2πfL, indicating reactance increases with frequency and inductance. Question 62. Capacitive reactance (XC) decreases as: A) Frequency increases B) Capacitance decreases C) Resistance increases D) Inductance increases Answer: A Explanation: XC = 1/(2πfC); as frequency increases, XC decreases, allowing more current. Question 63. Impedance (Z) in an AC circuit is: A) The vector sum of resistance and reactance B) Equal to resistance only C) Always purely reactive D) Independent of frequency Answer: A Explanation: Z combines resistance and reactance as a vector, considering their magnitude and phase. Question 64. Power factor correction aims to: A) Reduce reactive power and improve efficiency B) Increase reactive power C) Decrease true power D) Increase system resistance Answer: A
Explanation: Correcting power factor reduces reactive power, improving system efficiency and reducing losses. Question 65. In a three-phase Wye system, the phase voltage is related to line-to-line voltage by: A) V_phase = V_line / √ B) V_phase = V_line * √ C) V_phase = V_line / 2 D) V_phase = V_line Answer: A Explanation: In a Wye system, phase voltage equals line-to-line voltage divided by √3. Question 66. Which law states that a changing magnetic flux induces an emf in a conductor? A) Coulomb's Law B) Faraday's Law C) Ohm's Law D) Lenz's Law Answer: B Explanation: Faraday’s Law explains the induction of emf due to changing magnetic flux. Question 67. Lenz's Law indicates that the direction of induced current: A) Opposes the change in magnetic flux B) Supports the change in magnetic flux C) Is always clockwise D) Is independent of flux change Answer: A Explanation: Lenz's Law states that the induced current opposes the cause of its creation. Question 68. A transformer step-up increases voltage by: A) Increasing the number of turns in the secondary coil
