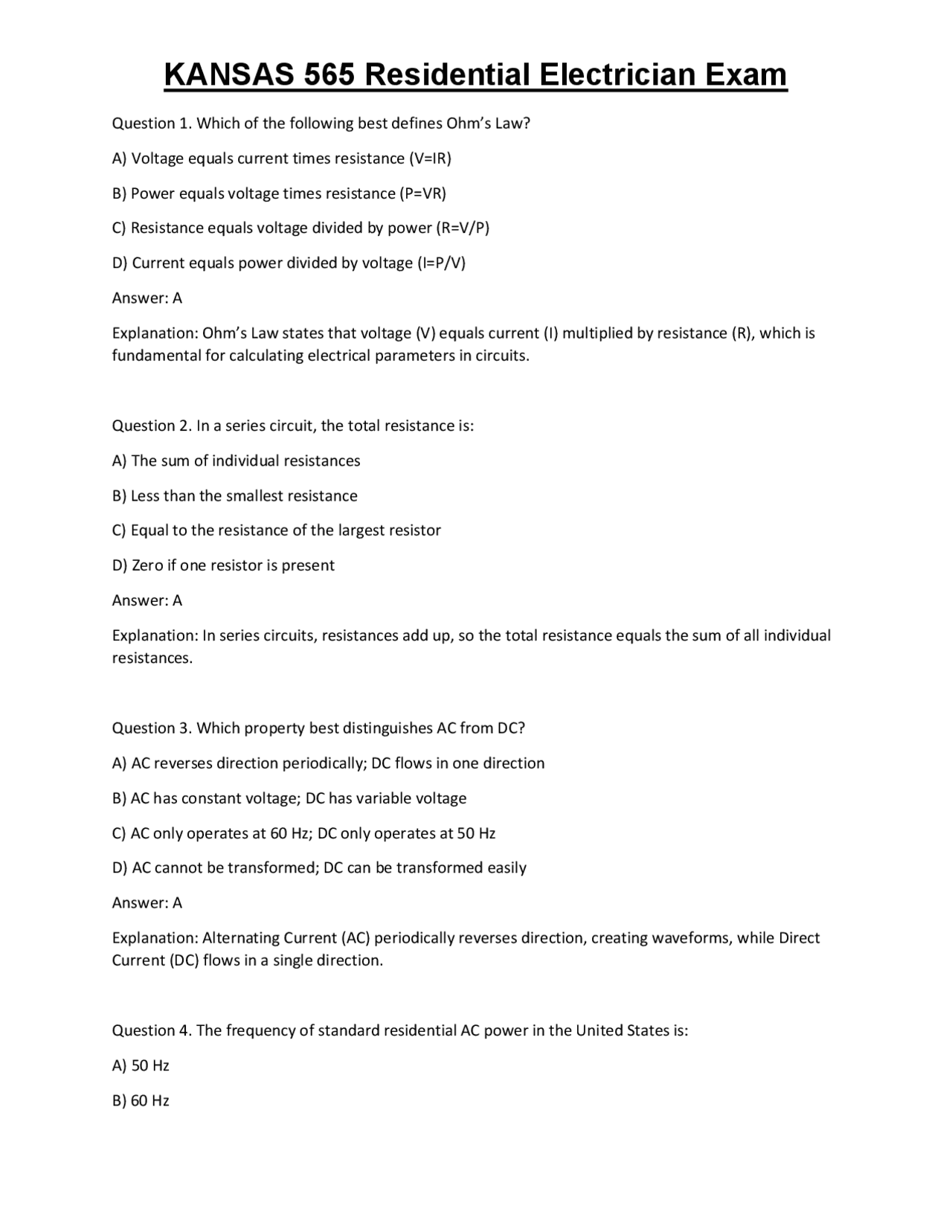

Question 1. Which of the following best defines Ohm’s Law? A) Voltage equals current times resistance (V=IR) B) Power equals voltage times resistance (P=VR) C) Resistance equals voltage divided by power (R=V/P) D) Current equals power divided by voltage (I=P/V) Answer: A Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R), which is fundamental for calculating electrical parameters in circuits. Question 2. In a series circuit, the total resistance is: A) The sum of individual resistances B) Less than the smallest resistance C) Equal to the resistance of the largest resistor D) Zero if one resistor is present Answer: A Explanation: In series circuits, resistances add up, so the total resistance equals the sum of all individual resistances. Question 3. Which property best distinguishes AC from DC? A) AC reverses direction periodically; DC flows in one direction B) AC has constant voltage; DC has variable voltage C) AC only operates at 60 Hz; DC only operates at 50 Hz D) AC cannot be transformed; DC can be transformed easily Answer: A Explanation: Alternating Current (AC) periodically reverses direction, creating waveforms, while Direct Current (DC) flows in a single direction. Question 4. The frequency of standard residential AC power in the United States is: A) 50 Hz B) 60 Hz
C) 100 Hz D) 120 Hz Answer: B Explanation: In the U.S., standard residential power operates at 60 Hz, meaning the current completes 60 cycles per second. Question 5. Which material is generally a good insulator? A) Copper B) Aluminum C) Rubber D) Silver Answer: C Explanation: Rubber is an insulator, preventing the flow of electrical current, whereas metals like copper and silver are conductors. Question 6. Which of the following hazards is most directly associated with an arc flash? A) Electric shock B) Fire and burns C) Mechanical injury D) Chemical exposure Answer: B Explanation: Arc flash releases intense heat and light, causing burns and fires, and is a serious arc- related hazard. Question 7. Which PPE is most essential when working on energized circuits? A) Welding helmet B) Insulated gloves and safety glasses C) Hard hat only D) Steel-toe boots only Answer: B
A) The wiring from the utility pole to the service point B) The internal wiring of the main panel C) The conductors from the meter to the main disconnect D) The conductors from the main panel to branch circuits Answer: A Explanation: A service drop is the overhead wiring from the utility’s pole to the service point on a building. Question 12. The main purpose of grounding in electrical systems is to: A) Provide a return path for current B) Reduce electrical noise C) Protect people and equipment by directing faults safely to ground D) Increase circuit capacity Answer: C Explanation: Grounding provides a low-resistance path for fault current, helping protect people and equipment from electrical faults. Question 13. Which of the following is an appropriate size for a grounding electrode conductor in a typical residence with a 200-amp service? A) 8 AWG copper B) 4 AWG copper C) 1/0 AWG copper D) 14 AWG copper Answer: B Explanation: According to NEC, a 4 AWG copper grounding electrode conductor is suitable for a 200-amp service. Question 14. When calculating the load for a dwelling’s general lighting, which NEC table is primarily referenced? A) Table 220.
B) Table 220. C) Table 220. D) Table 310. Answer: B Explanation: NEC Table 220.42 provides the standard load per square foot for general lighting in dwellings. Question 15. The size of service conductors is primarily determined by: A) The total connected load and NEC tables B) The number of outlets only C) The length of the conductors only D) The type of insulation only Answer: A Explanation: Service conductor sizing is based on the calculated load and NEC tables that specify conductor sizes for different loads. Question 16. A service disconnect must be located: A) At the point of entrance of service conductors to the building B) Inside the main panel only C) In the basement only D) In the utility meter only Answer: A Explanation: NEC requires the service disconnect to be located at the point where service conductors enter the building for safety and accessibility. Question 17. Which of the following is NOT a common type of service entrance conductor? A) Rigid metal conduit (RMC) B) Service entrance cable (SE cable) C) Flexible metal conduit (FMC) D) Nonmetallic-sheathed cable (NM cable)
Explanation: Offset, saddle, and kick bends are techniques used to make precise bends in conduit for proper alignment and clearance. Question 21. The purpose of a pull box in wiring systems is to: A) Protect conductors from damage and facilitate pulling conductors through conduits B) Support the weight of the conduit C) Serve as a junction point for grounding D) Reduce electrical noise Answer: A Explanation: Pull boxes provide access points for pulling conductors and protect wiring from damage during installation. Question 22. Which of the following is a common application of armored cable (Type AC)? A) Indoor branch circuits in residential buildings B) Underground direct burial C) External lighting only D) Overhead service entrance wiring Answer: A Explanation: Type AC (armored cable) is often used for indoor branch circuits due to its durability and protection. Question 23. A GFCI receptacle is required in which of the following locations? A) Kitchen countertop outlets B) Living room receptacles C) Bedroom outlets D) Garage outlets only Answer: A Explanation: NEC mandates GFCI protection for kitchen countertops, bathrooms, garages, and other wet or damp locations for safety.
Question 24. The maximum spacing of receptacles in a kitchen countertop according to NEC is: A) 24 inches B) 48 inches C) 36 inches D) 12 inches Answer: B Explanation: Receptacles should be no more than 48 inches apart on kitchen countertops to ensure adequate coverage and safety. Question 25. Which of the following best describes a “demand factor” in electrical load calculations? A) A reduction in the estimated load based on typical usage patterns B) An increase in load due to simultaneous appliance operation C) A safety margin added to load calculations D) The maximum possible load in a circuit Answer: A Explanation: Demand factors are used to reduce the calculated load based on typical usage, preventing over-sizing of conductors and equipment. Question 26. The purpose of a main disconnect in a residential service is to: A) Isolate all power to the entire building for maintenance or emergency B) Protect individual circuits from overload C) Control lighting only D) Serve as a meter socket Answer: A Explanation: The main disconnect provides a means to shut off power to all circuits in the building for safety and maintenance. Question 27. When sizing overcurrent devices for feeders, which of the following is a primary consideration? A) The continuous load plus 125% of non-continuous load
Answer: A Explanation: NEC Article 210 details requirements for branch circuits, including outlet locations and protection. Question 31. What is the primary purpose of AFCI protection in residential wiring? A) To prevent fires caused by arcing faults B) To prevent electrical shock C) To regulate voltage fluctuations D) To reduce electromagnetic interference Answer: A Explanation: AFCI (Arc-Fault Circuit Interrupter) protects against arcing faults that could cause electrical fires. Question 32. Which of the following conductors is most suitable for high-temperature environments? A) THHN B) NM-B C) UF cable D) AWG 14 wire Answer: A Explanation: THHN conductors are designed for high-temperature environments and are suitable for conduit wiring. Question 33. When installing conduit, the fill percentage should not exceed: A) 40% for multiple conductors B) 60% for a single conductor C) 80% for all installations D) 100% in all cases Answer: A Explanation: NEC recommends that conduit fill should not exceed 40% for multiple conductors to allow for heat dissipation and ease of pulling.
Question 34. Which device is used to protect a branch circuit from overcurrent? A) Circuit breaker or fuse B) GFCI outlet C) Voltage tester D) Grounding rod Answer: A Explanation: Circuit breakers or fuses serve as overcurrent protective devices (OCPDs) for branch circuits. Question 35. In wiring, the term “circuit fill” refers to: A) The number of conductors in a conduit or box B) The amount of current flowing through conductors C) The voltage drop across a circuit D) The insulation thickness of conductors Answer: A Explanation: Circuit fill describes how many conductors and devices are present in a conduit or box, affecting code compliance. Question 36. The purpose of a weatherproof enclosure is to: A) Protect electrical components from environmental elements B) Increase electrical conductivity C) Reduce electromagnetic interference D) Prevent accidental contact with live parts Answer: A Explanation: Weatherproof enclosures shield electrical components from moisture, dirt, and other environmental factors. Question 37. Which wiring method is commonly used for indoor residential lighting circuits? A) NM (nonmetallic-sheathed) cable
Answer: C Explanation: While length affects voltage drop, it does not directly influence the ampacity or current- carrying capacity of a conductor. Question 41. The NEC requires receptacles in bathrooms to be protected by: A) GFCI B) AFCI C) Overcurrent device only D) Surge protector only Answer: A Explanation: NEC mandates GFCI protection for bathroom receptacles to prevent electrical shock hazards. Question 42. The term “conduit fill” refers to: A) The percentage of conduit cross-sectional area occupied by conductors B) The number of conductors in a circuit C) The total length of conduit in a wiring system D) The amount of electrical current a conduit can carry Answer: A Explanation: Conduit fill measures how much of the conduit’s cross-section is occupied by conductors, affecting heat dissipation and installation ease. Question 43. Which of the following is a typical application for MC cable? A) Indoor residential wiring with added mechanical protection B) Underground burial C) External lighting in wet locations D) Overhead service conductors Answer: A Explanation: MC (Metal-Clad) cable is used indoors where additional protection is desired, such as in unfinished basements or garages.
Question 44. The correct method for splicing conductors in a box is: A) Using approved wire connectors and twisting wires together securely B) Soldering wires directly without connectors C) Taping conductors together with electrical tape only D) Bending wires tightly without connectors Answer: A Explanation: Approved wire connectors, such as wire nuts, provide a secure and code-compliant splice. Question 45. Which of the following is true about tamper-resistant (TR) receptacles? A) They prevent insertion of foreign objects B) They are only used outdoors C) They are not required in residential buildings D) They provide surge protection Answer: A Explanation: TR receptacles have a safety shutter mechanism that prevents insertion of foreign objects, reducing shock hazards. Question 46. The term “overcurrent protection” refers to: A) Devices that limit the current flow to safe levels B) Protective devices that shut off power during overloads or faults C) Devices that regulate voltage fluctuations D) Protective clothing worn by electricians Answer: B Explanation: Overcurrent protection devices like circuit breakers and fuses shut off power during overloads or short circuits to prevent damage. Question 47. Which wire gauge is typically used for a 20-amp circuit? A) 14 AWG
Answer: A Explanation: Faceplates cover openings in boxes, protect wiring, and give a neat appearance. Question 51. Which type of conduit is most suitable for outdoor exposed applications? A) EMT B) PVC conduit C) FMC D) RMC Answer: B Explanation: PVC conduit is durable, weather-resistant, and suitable for outdoor exposed applications. Question 52. Which of the following is an acceptable method for securing conduit? A) Using approved straps or clamps at regular intervals B) Bending conduit without support C) Attaching conduit directly to drywall without supports D) Using only adhesive for support Answer: A Explanation: NEC requires conduit to be securely fastened with approved straps or clamps at specified intervals. Question 53. When installing a junction box, the number of conductors and devices must not exceed: A) The box’s fill capacity as per NEC box fill tables B) The length of the conductors C) The number of grounding conductors only D) 10 conductors regardless of size Answer: A Explanation: NEC specifies maximum fill capacities for boxes based on their size and configuration to prevent overcrowding.
Question 54. Which of the following is a characteristic of flexible cords? A) Used for portable appliances and tools B) Suitable for permanent wiring in walls C) Cannot be used outdoors D) Designed for high-temperature environments only Answer: A Explanation: Flexible cords are intended for portable use, extension cords, or appliances, not permanent wiring. Question 55. The primary function of a terminal connector in wiring devices is to: A) Secure conductors to device terminals for reliable electrical connection B) Insulate conductors from each other C) Convert AC to DC D) Reduce voltage levels Answer: A Explanation: Terminal connectors provide secure, low-resistance connections between conductors and device terminals. Question 56. A “service entrance” conductor is best described as: A) Conductors that run from the utility to the service point B) Conductors from the main panel to branch circuits C) Conductors used for interior wiring only D) Conductors used solely for grounding Answer: A Explanation: Service entrance conductors run from the utility connection to the building’s main service equipment. Question 57. Which of the following conductors is rated for wet and dry locations and suitable for direct burial? A) NM cable
Answer: A Explanation: THHN wire is commonly used in conduit systems for dry locations due to its high- temperature and insulation characteristics. Question 61. The purpose of a splice connector is to: A) Join two or more conductors securely and electrically B) Provide insulation for conductors C) Protect conductors from mechanical damage D) Measure electrical current Answer: A Explanation: Splice connectors, such as wire nuts, join conductors to ensure a safe and reliable electrical connection. Question 62. Which of the following is a safety feature of AFCI devices? A) Detects arcing faults and disconnects power B) Protects against overloads C) Provides surge suppression D) Prevents ground faults only Answer: A Explanation: AFCI devices detect arcing faults that could lead to fires and disconnect power when detected. Question 63. The purpose of a “main bonding jumper” in a residential system is to: A) Connect the neutral to the grounding system at the main service B) Isolate the neutral from ground C) Provide overcurrent protection only D) Connect the grounding electrode directly to the load center Answer: A Explanation: The main bonding jumper connects the system neutral to grounding to establish a reference point and safe operation.
Question 64. The maximum height for receptacles in residential kitchens from the floor is typically: A) 48 inches B) 12 inches C) 36 inches D) 60 inches Answer: A Explanation: NEC recommends receptacles in kitchens be mounted no higher than 48 inches above the floor for accessibility. Question 65. Which of the following is a typical feature of a GFCI device? A) It trips when a difference in current between hot and neutral conductors is detected B) It provides surge protection C) It prevents arcing faults D) It automatically resets after tripping Answer: A Explanation: GFCIs trip when they detect leakage current, preventing electrical shock hazards. Question 66. Which type of conduit is most suitable for direct burial in underground installations? A) PVC conduit B) EMT C) FMC D) RMC Answer: A Explanation: PVC conduit is suitable for underground direct burial because it is resistant to moisture and corrosion. Question 67. The purpose of a “box fill calculation” is to determine: A) The number of conductors and devices that can safely fit in a box
