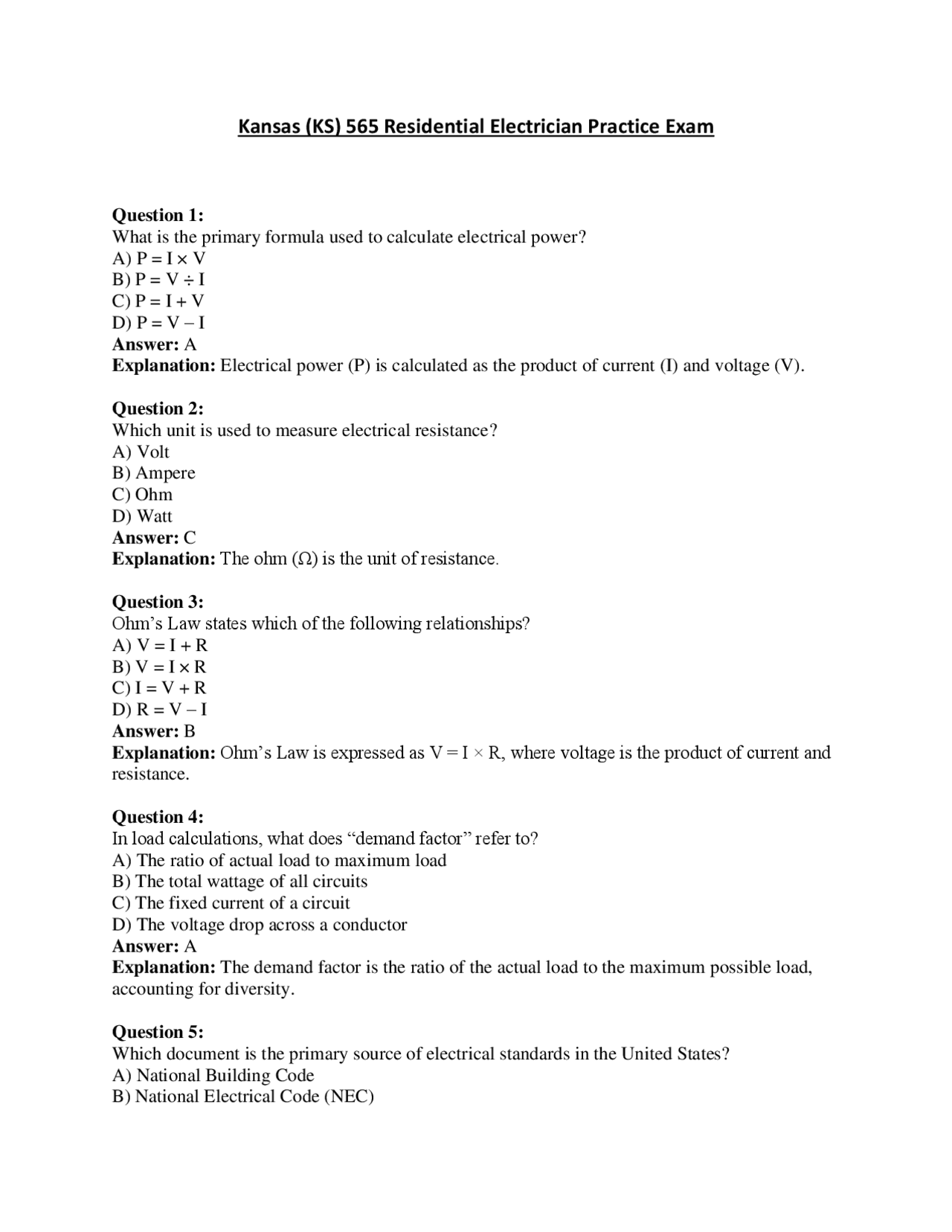

Kansas (KS) 565 Residential Electrician Practice Exam
Question 1: What is the primary formula used to calculate electrical power? A) P = I × V B) P = V ÷ I C) P = I + V D) P = V – I Answer: A Explanation: Electrical power (P) is calculated as the product of current (I) and voltage (V). Question 2: Which unit is used to measure electrical resistance? A) Volt B) Ampere C) Ohm D) Watt Answer: C Explanation: The ohm (Ω) is the unit of resistance. Question 3: Ohm’s Law states which of the following relationships? A) V = I + R B) V = I × R C) I = V + R D) R = V – I Answer: B Explanation: Ohm’s Law is expressed as V = I × R, where voltage is the product of current and resistance. Question 4: In load calculations, what does “demand factor” refer to? A) The ratio of actual load to maximum load B) The total wattage of all circuits C) The fixed current of a circuit D) The voltage drop across a conductor Answer: A Explanation: The demand factor is the ratio of the actual load to the maximum possible load, accounting for diversity. Question 5: Which document is the primary source of electrical standards in the United States? A) National Building Code B) National Electrical Code (NEC)
C) International Fire Code D) Occupational Safety Code Answer: B Explanation: The NEC sets the standards for safe electrical design, installation, and inspection. Question 6: What is the typical voltage provided in a standard North American residential service? A) 120/240 V B) 120/208 V C) 240/480 V D) 240/600 V Answer: A Explanation: Residential services are usually provided at 120/240 V split-phase. Question 7: When reading electrical blueprints, what symbol usually represents a junction box? A) A circle B) A square with an “X” C) A triangle D) A dashed line Answer: B Explanation: Junction boxes are typically shown as squares (or rectangles) with an “X” to indicate connection points. Question 8: Which color is most commonly used to indicate the neutral conductor in wiring? A) Black B) Red C) White D) Green Answer: C Explanation: White (or gray) is the standard color for neutral conductors. Question 9: What does a schematic diagram typically show? A) The physical layout of components B) A simplified representation of electrical connections C) A detailed list of materials D) The wiring installation manual Answer: B Explanation: Schematics provide a simplified representation of electrical circuits and connections. Question 10: In residential load calculations, which factor is most important when sizing conductors? A) Wire color
Question 15: Which symbol on a blueprint typically represents a light fixture? A) A circle with rays B) A square with a diagonal line C) A triangle with a dot D) A rectangle with a wave Answer: A Explanation: Light fixtures are often indicated by a circle with rays or a similar symbol representing illumination. Question 16: When performing load calculations, which term describes the simultaneous operation of multiple loads? A) Continuous load B) Noncontinuous load C) Simultaneity factor D) Diversity factor Answer: D Explanation: The diversity factor accounts for the probability that not all loads will be operating at the same time. Question 17: Which of the following is a common mistake in reading electrical plans? A) Verifying conductor ampacity B) Misinterpreting schematic symbols C) Calculating voltage drop D) Reviewing load calculations Answer: B Explanation: Misinterpreting schematic symbols is a frequent error that can lead to incorrect installations. Question 18: In NEC terminology, a “raceway” is best defined as: A) A metal enclosure for wiring B) A path for electrical conductors C) A type of flexible cord D) A grounding rod system Answer: B Explanation: A raceway is an enclosed channel designed specifically for holding wires and cables. Question 19: The term “grounding” means: A) Connecting a circuit to the neutral B) Connecting the electrical system to earth C) Increasing the voltage in a circuit
D) Insulating conductors from each other Answer: B Explanation: Grounding involves connecting the electrical system to the earth to safely dissipate fault currents. Question 20: What is the purpose of a “bond” in electrical wiring? A) To insulate conductors B) To connect conductive parts together C) To increase voltage D) To separate circuits Answer: B Explanation: Bonding ensures that all metal parts maintain the same electrical potential, reducing shock hazards. Question 21: Which calculation is used to size conductors for a branch circuit? A) Load calculation B) Conduit fill calculation C) Voltage drop calculation D) Ampacity calculation Answer: D Explanation: Conductor ampacity calculations ensure that the wiring can safely carry the branch circuit current. Question 22: A “single–phase” system in residential wiring means: A) Only one circuit is present B) Power is delivered using one AC waveform C) The system uses three conductors D) The voltage is constant Answer: B Explanation: Single-phase power is delivered using a single AC waveform, typical of residential systems. Question 23: Which factor does NOT affect conductor ampacity? A) Ambient temperature B) Conduit material C) Conductor insulation type D) Bundling of wires Answer: B Explanation: While ambient temperature, insulation type, and bundling affect ampacity, the conduit material itself typically does not.
Answer: B Explanation: The legend explains the symbols and abbreviations used on the drawing. Question 29: Which is an example of a general electrical load calculation? A) Sizing a transformer for a motor B) Calculating the amperage required for lighting circuits C) Determining the type of insulation for a cable D) Selecting a conduit size Answer: B Explanation: Calculating the current requirements for lighting circuits is a common load calculation. Question 30: The term “NEC” stands for: A) National Electrical Committee B) National Energy Code C) National Electrical Code D) National Equipment Code Answer: C Explanation: NEC stands for National Electrical Code, which sets standards for safe electrical installations.
Services and Service Equipment (55 Questions – 22%)
Question 31: Which of the following best describes a “service entrance”? A) The location where power is distributed to branch circuits B) The point where the utility’s power enters the building C) The main disconnect inside the building D) The grounding system of a structure Answer: B Explanation: The service entrance is the point where the utility power is introduced into the building’s electrical system. Question 32: When performing service load calculations, which load is typically given a demand factor? A) Lighting load B) Motor load C) Heating load D) All of the above Answer: D Explanation: Demand factors are applied to various loads—including lighting, motors, and heating—to account for diversity.
Question 33: In calculating the service load, which factor is essential for determining conductor size? A) Ambient light level B) Full-load current C) Frequency of usage D) Color coding of wires Answer: B Explanation: Conductor sizing is based on the full-load current and the required safety margins. Question 34: What is the typical rating for residential service equipment? A) 100 Amps, 200 Amps, or 400 Amps B) 50 Amps only C) 600 Amps D) 30 Amps Answer: A Explanation: Residential service equipment is commonly rated at 100, 200, or 400 amps depending on the building’s load. Question 35: The term “service conductors” refers to: A) Wires that branch off from the main panel B) The conductors that connect the service drop to the service equipment C) Grounding wires inside a circuit D) Flexible cords used for appliances Answer: B Explanation: Service conductors carry power from the utility’s service drop to the service equipment. Question 36: Which of the following is critical when selecting service equipment? A) The manufacturer’s logo B) The ambient temperature rating C) The ampacity and interrupting rating D) The color of the enclosure Answer: C Explanation: Service equipment must be rated for the expected current (ampacity) and have an adequate interrupting rating for fault conditions. Question 37: When calculating service loads, which load is considered “continuous”? A) A refrigerator B) A lighting circuit operating for several hours C) A hair dryer D) A toaster Answer: B
Answer: B Explanation: Service load calculations determine the size and rating of service equipment needed for safe operation. Question 43: What does the term “grounding electrode” refer to? A) A conductor that connects branch circuits to the panel B) A rod or other electrode driven into the earth for grounding C) A device that regulates current D) A type of circuit breaker Answer: B Explanation: A grounding electrode is a rod or similar device driven into the earth that connects the electrical system to the ground. Question 44: In residential service equipment, what is “bonding”? A) Connecting the neutral to the ground B) Isolating circuits from each other C) Separating hot wires D) Routing wiring through conduit Answer: A Explanation: Bonding connects non–current carrying metal parts (such as the neutral and ground) to ensure safety. Question 45: Which of the following factors is NOT directly used in service load calculations? A) Lighting wattage B) Appliance demand factors C) Conductor insulation color D) Motor starting currents Answer: C Explanation: Conductor insulation color does not affect load calculations; wattage, demand factors, and starting currents do. Question 46: When calculating a service load, why is it important to consider the “demand factor”? A) To determine the insulation type B) To account for the fact that not all loads operate at maximum simultaneously C) To increase the overall system voltage D) To reduce the number of circuits required Answer: B Explanation: Demand factors lower the calculated load based on the probability that all connected loads will not operate simultaneously. Question 47: Service equipment must be installed in accordance with which document?
A) Local building ordinance only B) National Electrical Code (NEC) C) Manufacturer’s installation guide exclusively D) International Residential Code (IRC) only Answer: B Explanation: The NEC sets the standards for the safe installation of service equipment. Question 48: What is a “service drop”? A) A downward–sloping section of conduit B) The overhead or underground cable from the utility to the building C) The final branch circuit in a home D) A protective device for circuits Answer: B Explanation: The service drop is the cable or wires that bring power from the utility to the building’s service entrance. Question 49: In sizing service conductors, which NEC table is most often referenced? A) Table for conductor insulation types B) Table for ambient temperature corrections C) Table for ampacity ratings D) Table for voltage drop percentages Answer: C Explanation: Ampacity tables in the NEC provide the current–carrying capacities needed for service conductor sizing. Question 50: What role does the main service panel play in a residential electrical system? A) It serves as the central distribution point for branch circuits B) It converts AC to DC C) It grounds the entire system D) It protects individual appliances Answer: A Explanation: The main panel distributes power to individual branch circuits while incorporating overcurrent protection. Question 51: Which type of service equipment is most common in single–family residences? A) Pad–mounted switchgear B) Indoor main service panels C) Outdoor switchgear D) Underground distribution boxes Answer: B Explanation: Single–family homes typically use indoor main service panels for ease of access and protection.
D) To connect the neutral to the ground Answer: B Explanation: Overcurrent protection devices at the service entrance prevent dangerous current levels from damaging the electrical system. Question 57: Which of the following is a common method for grounding service equipment? A) Using insulated conduits only B) Installing a ground rod or electrode system C) Bonding to the neutral bus D) Relying solely on circuit breakers Answer: B Explanation: A ground rod or other grounding electrode system provides a direct connection to earth for fault currents. Question 58: When reviewing service equipment installation, which factor is least likely to be a concern? A) Clearance requirements B) Accessibility of disconnects C) Aesthetic appearance of the panel D) Proper conductor sizing Answer: C Explanation: While aesthetics may be a minor consideration, clearance, accessibility, and conductor sizing are critical safety concerns. Question 59: In service load calculations, which appliance typically has the highest demand factor? A) Lighting circuits B) Electric ranges C) Refrigerators D) Small power tools Answer: B Explanation: Electric ranges usually require higher demand factors due to their heavy load requirements. Question 60: Why is it important to verify that the service equipment has an adequate interrupting rating? A) To ensure the panel fits in the space provided B) To safely clear fault currents without damage C) To reduce the overall system cost D) To increase energy efficiency Answer: B Explanation: An adequate interrupting rating ensures that the service equipment can safely interrupt high fault currents without catastrophic failure.
Question 61: Which component in a service equipment installation directly connects to the grounding electrode conductor? A) The hot conductor B) The neutral bus C) The grounding bus D) The circuit breaker Answer: C Explanation: The grounding bus connects directly to the grounding electrode conductor, ensuring a proper earth connection. Question 62: What is the significance of “service continuity” in an electrical installation? A) It ensures uninterrupted lighting B) It maintains a reliable connection from the utility to the building’s system C) It provides energy savings D) It prevents voltage drop Answer: B Explanation: Service continuity means that all connections from the utility to the building’s electrical system are secure and reliable. Question 63: In a split–phase service, the voltage between the two hot conductors is typically: A) 120 V B) 240 V C) 208 V D) 480 V Answer: B Explanation: In a split–phase system, the voltage between the two hot conductors is typically 240 V. Question 64: When sizing service conductors, which factor is adjusted for high ambient temperatures? A) Conductor color B) Correction factors from the NEC C) Conduit diameter D) Wire gauge markings Answer: B Explanation: NEC correction factors adjust the ampacity of conductors in high–ambient temperature environments. Question 65: Which practice ensures proper installation of service equipment? A) Using any available metal box B) Following manufacturer’s instructions along with NEC requirements C) Installing conductors without support
Explanation: Ampacity tables help determine the proper conductor size based on the expected current. Question 70: Which of the following is a common error in feeder calculations? A) Overestimating demand factors B) Underestimating continuous load C) Correctly sizing conductors D) Ignoring conductor insulation color Answer: B Explanation: Underestimating continuous loads can lead to undersized feeder conductors and potential overheating. Question 71: Feeder conductors must be protected by: A) Fuses only B) Appropriate overcurrent protection devices C) Conduit color coding D) Special bonding devices Answer: B Explanation: Overcurrent protection devices are required to protect feeder conductors from excessive current. Question 72: In a feeder circuit, what is the primary purpose of equipment grounding? A) To reduce conductor size B) To ensure that metal enclosures remain at the same potential C) To provide additional power D) To separate neutral conductors Answer: B Explanation: Grounding the feeder equipment ensures all metal parts remain at the same potential, reducing shock hazards. Question 73: Which of the following best describes a “feeder” in the context of residential wiring? A) A flexible cord used for portable appliances B) A circuit that directly powers lights C) A main circuit running from the service panel to a sub–panel D) A branch circuit for receptacles Answer: C Explanation: A feeder is a circuit that runs from the main service panel to another panel or large equipment load. Question 74: What must be considered when selecting the size of a feeder conductor? A) The color of the conductor
B) The anticipated load and the length of the run C) The building’s architectural style D) The manufacturer’s name Answer: B Explanation: Both the expected load and the run length (affecting voltage drop) are important factors in selecting feeder conductor size. Question 75: Which is an acceptable method for supporting feeder conductors? A) Leaving them unsecured in a ceiling cavity B) Securing them with approved cable ties or clamps C) Running them loosely along walls D) Bundling them without separation Answer: B Explanation: Feeders must be properly secured using approved methods to prevent damage and maintain code compliance. Question 76: In feeder calculations, what is the significance of “voltage drop”? A) It determines the physical size of the conductor B) It affects the efficiency and performance of connected loads C) It only applies to service conductors D) It is negligible in all cases Answer: B Explanation: Excessive voltage drop can reduce the performance of connected equipment, so it must be minimized. Question 77: When feeders supply power to a sub–panel, what additional protection is usually required? A) A secondary neutral conductor B) A feeder disconnect switch C) An extra grounding rod D) A voltage stabilizer Answer: B Explanation: A feeder disconnect provides a means to isolate the sub–panel for maintenance or emergency shutdown. Question 78: The term “feeder tap” refers to: A) A connection that branches off from a feeder circuit B) A device used to measure current C) A type of flexible cord D) A grounding method Answer: A Explanation: A feeder tap is a branch connection taken from a feeder conductor to supply a smaller circuit.
D) To adjust voltage levels Answer: B Explanation: A feeder jumper is used as a temporary connection during maintenance or system reconfiguration. Question 84: Which of the following best describes “feeder load diversity”? A) The variety of conductor sizes in a feeder B) The fact that not all loads on the feeder are used simultaneously C) The different colors of conductors D) The mixture of AC and DC circuits Answer: B Explanation: Load diversity refers to the likelihood that not all connected loads will operate at the same time, affecting feeder sizing. Question 85: Why is proper equipment grounding essential for feeder circuits? A) It minimizes the number of conductors needed B) It protects against electrical shock and equipment damage C) It improves voltage levels D) It eliminates the need for circuit breakers Answer: B Explanation: Proper grounding protects both people and equipment by ensuring fault currents are safely directed to ground.
Branch Circuits and Conductors (62 Questions – 25%)
Question 86: What is a branch circuit? A) A circuit that supplies power directly from the service entrance B) A circuit that originates from the panel and feeds individual loads C) A circuit used only for lighting D) A circuit dedicated solely to motors Answer: B Explanation: Branch circuits extend from the service panel to supply power to various outlets, lighting, and appliances. Question 87: When calculating branch circuit requirements, which factor is most critical? A) Conduit diameter B) Load current and continuous load factors C) Conductor color D) The number of outlets only Answer: B
Explanation: Sizing branch circuits requires calculating the total load current and applying continuous load factors when necessary. Question 88: What does “overcurrent protection” for a branch circuit typically involve? A) Installing a transformer B) Using fuses or circuit breakers C) Increasing conductor size D) Applying voltage regulators Answer: B Explanation: Overcurrent protection devices like fuses or breakers protect branch circuits from currents above safe limits. Question 89: Which device is required to protect outlets in bathrooms from shock hazards? A) AFCI B) GFCI C) Standard receptacle D) Surge protector Answer: B Explanation: Ground Fault Circuit Interrupters (GFCI) are required in wet locations like bathrooms to prevent electrical shock. Question 90: AFCI protection is primarily used to protect against: A) Voltage drop B) Ground faults C) Arc faults D) Overvoltage conditions Answer: C Explanation: Arc Fault Circuit Interrupters (AFCI) detect and interrupt arcing conditions that could lead to fires. Question 91: In branch circuit conductor sizing, what must be taken into account? A) The conductor’s insulation material only B) The load current, ambient temperature, and conduit fill C) The building’s age D) The color coding of the conductors Answer: B Explanation: Conductor sizing considers load current, ambient conditions, and installation factors like conduit fill. Question 92: What is the typical voltage rating for branch circuits in residential applications? A) 12 V
