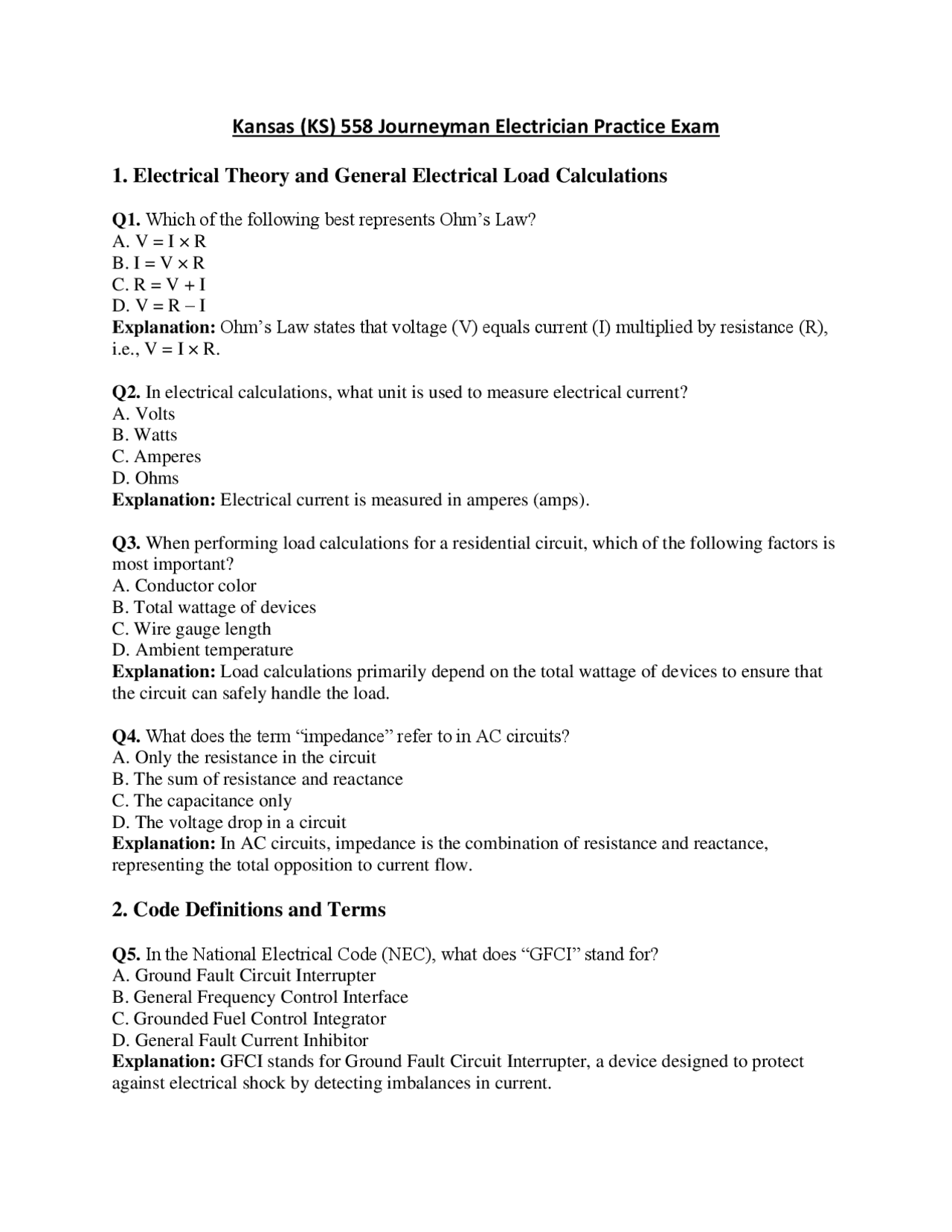

Kansas (KS) 558 Journeyman Electrician Practice Exam
1. Electrical Theory and General Electrical Load Calculations
Q1. Which of the following best represents Ohm’s Law? A. V = I × R B. I = V × R C. R = V + I D. V = R – I Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R), i.e., V = I × R. Q2. In electrical calculations, what unit is used to measure electrical current? A. Volts B. Watts C. Amperes D. Ohms Explanation: Electrical current is measured in amperes (amps). Q3. When performing load calculations for a residential circuit, which of the following factors is most important? A. Conductor color B. Total wattage of devices C. Wire gauge length D. Ambient temperature Explanation: Load calculations primarily depend on the total wattage of devices to ensure that the circuit can safely handle the load. Q4. What does the term “impedance” refer to in AC circuits? A. Only the resistance in the circuit B. The sum of resistance and reactance C. The capacitance only D. The voltage drop in a circuit Explanation: In AC circuits, impedance is the combination of resistance and reactance, representing the total opposition to current flow.
2. Code Definitions and Terms
Q5. In the National Electrical Code (NEC), what does “GFCI” stand for? A. Ground Fault Circuit Interrupter B. General Frequency Control Interface C. Grounded Fuel Control Integrator D. General Fault Current Inhibitor Explanation: GFCI stands for Ground Fault Circuit Interrupter, a device designed to protect against electrical shock by detecting imbalances in current.
Q6. Which NEC article primarily deals with wiring methods? A. Article 100 B. Article 300 C. Article 400 D. Article 500 Explanation: Article 300 of the NEC covers wiring methods, including the installation of conductors and cables. Q7. What is the purpose of a “disconnecting means” as defined in the NEC? A. To reduce electrical noise B. To allow a circuit to be opened for service or maintenance C. To increase the efficiency of the circuit D. To convert AC to DC Explanation: A disconnecting means is used to safely open a circuit for service or maintenance.
3. Plan Reading
Q8. When reading an electrical blueprint, which symbol typically represents a circuit breaker? A. A rectangle with a diagonal line B. A circle with a “B” inside C. A zigzag line D. A square with “CB” written on it Explanation: Circuit breakers are often shown as rectangles or squares with the abbreviation “CB” to denote their function. Q9. In a schematic drawing, what does a dashed line usually indicate? A. A permanent connection B. An optional or temporary connection C. A high-voltage line D. A ground connection Explanation: Dashed lines in schematics often indicate connections that are not permanent or are optional in the design. Q10. Which document is essential for determining the required clearances in electrical installations? A. The National Electrical Code B. The local building ordinance C. The manufacturer’s installation guide D. The electrical load calculation sheet Explanation: The NEC provides detailed requirements for clearances in electrical installations.
4. General Electrical Load Calculations
Q11. When calculating the total load on a circuit, which of the following is most important to consider? A. The voltage rating of each device
1. Services and Fault Current
Q16. What is the primary purpose of service equipment in an electrical system? A. To disconnect circuits during maintenance B. To provide the point of entry for electrical power C. To convert AC to DC D. To reduce voltage for appliances Explanation: Service equipment is the point where electrical power enters the building and is distributed. Q17. Fault current is best described as: A. The current in normal operating conditions B. The current that flows during a fault condition C. The resistance in a circuit D. The voltage drop across a load Explanation: Fault current is the surge of current that occurs during a fault condition, such as a short circuit. Q18. Which device is used to interrupt fault current in service equipment? A. Fuse B. Transformer C. Circuit breaker D. Capacitor Explanation: Circuit breakers are designed to interrupt fault currents and protect the circuit.
2. Service Load Calculations
Q19. In calculating service load, which of the following is most critical? A. The length of the service entrance cable B. The total connected load in kilowatts C. The color of the service panel D. The type of meter used Explanation: The total connected load in kilowatts is key to determining the service capacity required. Q20. Which of the following best describes a “demand load” calculation? A. A calculation based on maximum simultaneous use B. A calculation based on the rated load of equipment C. A calculation based on typical or expected usage D. A calculation based on future load predictions Explanation: Demand load calculations estimate typical or expected usage rather than the absolute maximum.
3. Service Equipment & Service Conductors
Q21. Service conductors are sized based on which of the following? A. The distance from the utility pole B. The expected current and installation conditions C. The color of the building exterior D. The type of electrical devices used Explanation: The size of service conductors depends on the expected current load and installation conditions such as ambient temperature. Q22. Which component is considered part of the service equipment? A. Branch circuit wiring B. Service disconnect switch C. Flexible cord D. Lighting fixture Explanation: The service disconnect switch is a critical component of service equipment. Q23. What is the function of a main bonding jumper? A. To connect branch circuits to the panelboard B. To bond the neutral and grounding conductors at the service equipment C. To measure fault current D. To isolate circuits during maintenance Explanation: The main bonding jumper bonds the neutral and grounding conductors, ensuring a proper path for fault current.
4. Transformers
Q24. In a step-down transformer, which of the following occurs? A. Voltage is increased B. Voltage is decreased C. Current is completely blocked D. Frequency is altered Explanation: A step-down transformer decreases the voltage while increasing the current proportionally. Q25. What is the primary purpose of a transformer in service equipment? A. To isolate circuits B. To convert high voltage to a usable lower voltage C. To regulate temperature D. To filter electrical noise Explanation: Transformers reduce the high voltage supplied by utilities to a level that can be safely used in a building. Q26. Which type of transformer is most common in residential applications? A. Autotransformer B. Isolation transformer C. Step-down transformer D. Instrument transformer
Q32. When installing temporary service wiring, which NEC section should be closely followed? A. NEC Article 210 B. NEC Article 250 C. NEC Article 590 D. NEC Article 400 Explanation: NEC Article 590 covers the requirements for temporary installations, including temporary service wiring. Q33. What is the primary hazard associated with improperly installed temporary service wiring? A. Excessive heat generation B. Increased voltage drop C. Electrocution and fire risk D. Lower system efficiency Explanation: Improper installation of temporary wiring can lead to electrocution and fire hazards. Q34. For temporary service wiring, which type of conductor insulation is generally preferred? A. Rigid metal conduit only B. Weather-resistant insulation C. Uninsulated conductors D. Flexible rubber without UV protection Explanation: Weather-resistant insulation is preferred to withstand temporary outdoor or construction conditions. Q35. Which component is essential in a temporary wiring setup to quickly shut off power if needed? A. A flexible cord B. A temporary disconnect switch C. A grounding rod D. A permanent receptacle Explanation: A temporary disconnect switch is essential for quickly cutting power in emergency situations. Q36. What is a common method to secure temporary wiring in an outdoor environment? A. Leaving it loosely coiled B. Fastening it with approved clamps and supports C. Burying it directly in the ground D. Using duct tape for all connections Explanation: Approved clamps and supports ensure that temporary wiring remains secure and protected outdoors. Q37. How often should temporary service wiring be inspected during extended use? A. Once a year B. Daily or before each use C. Only after an incident occurs D. Every five years
Explanation: Regular inspection—daily or before each use—is necessary to maintain safety standards for temporary wiring. Q38. Which of the following is not recommended for temporary service wiring? A. Overloading the wiring beyond its ampacity B. Using weatherproof connectors C. Securing wiring away from high-traffic areas D. Following manufacturer guidelines Explanation: Overloading wiring beyond its ampacity is unsafe and should never be done, even in temporary installations. Q39. What is the key difference between temporary and permanent service wiring? A. Temporary wiring uses a different conductor material B. Temporary wiring is not intended to meet the same long-term durability standards C. Permanent wiring is always underground D. Temporary wiring always uses aluminum conductors Explanation: Temporary wiring is designed for short-term use and does not have the same durability requirements as permanent wiring. Q40. When planning temporary service wiring, which factor is least important? A. Load requirements B. Duration of use C. Color of the wiring D. Environmental conditions Explanation: The color of the wiring is not a functional requirement, unlike load, duration, and environmental considerations. Q41. Which of the following best describes the term “ampacity” as used in service conductor sizing? A. The voltage rating of the conductor B. The maximum current a conductor can safely carry C. The physical strength of the conductor D. The conductor’s resistance to heat Explanation: Ampacity is the maximum amount of current that a conductor can safely carry without overheating. Q42. What must be considered when sizing service conductors for outdoor installations? A. Aesthetic appearance B. Ambient temperature and conduit fill C. The number of switches in the building D. The phase rotation Explanation: Outdoor installations require consideration of ambient temperature and conduit fill, which affect the conductor’s ampacity. Q43. In service equipment installations, the location of the main disconnect is critical because: A. It minimizes voltage drop
D. Three hot conductors Explanation: A typical feeder includes two hots, one neutral, and an equipment grounding conductor to ensure proper operation and safety. Q49. In a feeder system, why is it important to consider the length of the conductors? A. It affects the aesthetic of the installation B. Longer runs can lead to significant voltage drop C. It determines the color coding of wires D. It is not important for feeder sizing Explanation: Longer conductor runs may have significant voltage drop, which must be considered when sizing the feeder. Q50. Which NEC article primarily addresses feeder conductors? A. Article 210 B. Article 230 C. Article 250 D. Article 300 Explanation: Article 230 of the NEC discusses service conductors and feeders in detail. Q51. What is the common consequence of undersizing a feeder? A. Improved energy efficiency B. Excessive voltage drop and potential overheating C. Reduced installation cost with no drawbacks D. Increased circuit breaker sensitivity Explanation: Undersized feeders can lead to excessive voltage drop and overheating, creating safety hazards. Q52. In feeder installations, what role does proper conductor insulation play? A. It ensures accurate voltage measurements B. It prevents physical damage and electrical faults C. It increases the overall load capacity D. It reduces the need for circuit protection Explanation: Proper insulation protects conductors from damage and helps prevent short circuits and other electrical faults.
Section 4. Branch Circuits and Conductors (48 Questions –
Q53. Which of the following best defines a branch circuit? A. The wiring that supplies power to individual outlets or fixtures B. The conductor from the meter to the panelboard C. The cable used in feeders D. The wiring that connects two panels together
Explanation: A branch circuit is the wiring that extends from the panelboard to outlets, fixtures, or equipment. Q54. What is the primary consideration when sizing branch circuit conductors? A. The voltage rating of the panel B. The current load and length of the circuit C. The color of the conductors D. The type of switch used Explanation: Branch circuit conductors are sized based on the expected current load and the length of the circuit to ensure safe operation. Q55. Which device is commonly used for overcurrent protection in branch circuits? A. Capacitor B. Circuit breaker C. Transformer D. Fuse only Explanation: Circuit breakers (or fuses) are used to provide overcurrent protection in branch circuits. Q56. In a typical residential branch circuit, which gauge of copper wire is most commonly used for a 15-amp circuit? A. 14 AWG B. 12 AWG C. 10 AWG D. 8 AWG Explanation: A 15-amp circuit typically uses 14 AWG copper conductors, as specified by the NEC. Q57. For a 20-amp branch circuit, what conductor gauge is required? A. 16 AWG B. 14 AWG C. 12 AWG D. 10 AWG Explanation: A 20-amp circuit normally requires 12 AWG copper conductors. Q58. What does AFCI stand for in the context of branch circuits? A. Alternating Fault Current Interrupter B. Arc Fault Circuit Interrupter C. Automatic Frequency Control Interruptor D. Active Fault Current Isolator Explanation: AFCI stands for Arc Fault Circuit Interrupter, a device that detects and interrupts arcing faults. Q59. GFCI protection is required in which of the following areas? A. Bedrooms B. Kitchens, bathrooms, and outdoor areas
C. The equipment grounding conductor D. None of the above Explanation: Multiwire branch circuits share a neutral conductor between two or more hot circuits. Q66. For a branch circuit feeding receptacles in a kitchen, what additional protection might be required? A. A higher gauge conductor B. GFCI protection C. Larger boxes D. Underground installation Explanation: Kitchens typically require GFCI protection for receptacles to guard against shock hazards. Q67. What is the typical color coding for the neutral conductor in branch circuits? A. Red B. Black C. White or gray D. Green Explanation: The neutral conductor is usually white or gray. Q68. Which branch circuit component is primarily responsible for interrupting overcurrent conditions? A. The neutral conductor B. The circuit breaker C. The grounding system D. The switch Explanation: The circuit breaker serves as the overcurrent protective device. Q69. What does “continuous load” refer to in branch circuit calculations? A. A load that runs for less than 1 hour B. A load expected to run for 3 hours or more continuously C. A load that fluctuates rapidly D. A load that only operates seasonally Explanation: A continuous load is one that is expected to operate for 3 hours or more continuously and must be considered at 125% for sizing. Q70. When sizing conductors for a continuous load, the conductor ampacity should be: A. Equal to the load current B. 125% of the load current C. 75% of the load current D. Twice the load current Explanation: NEC requires that conductors supplying a continuous load be rated at 125% of the load current.
Q71. Which factor is crucial when determining the proper sizing of branch circuit conductors? A. The operating temperature rating of the insulation B. The type of conduit used C. The building’s age D. The number of devices on the circuit Explanation: The insulation’s temperature rating directly affects the ampacity of the conductor. Q72. In branch circuit wiring, what is the role of a receptacle’s mounting strap? A. To connect the hot and neutral conductors B. To secure the receptacle to the electrical box C. To ground the receptacle D. To increase the amperage rating Explanation: The mounting strap physically secures the receptacle to the electrical box. Q73. Which of the following is a proper method to reduce voltage drop in branch circuits? A. Use conductors of a larger gauge B. Increase the length of the circuit C. Decrease the number of outlets D. Use uninsulated conductors Explanation: Using a larger conductor (lower gauge number) reduces voltage drop over the length of the circuit. Q74. What does the term “short-circuit current” refer to? A. The current under normal operating conditions B. The current that flows when a fault causes a low-resistance path C. The current lost due to resistance D. The current supplied by the utility transformer Explanation: Short-circuit current is the high current that flows when a fault occurs, creating a low-resistance path. Q75. Which of the following best describes the term “conductor ampacity”? A. The maximum voltage a conductor can handle B. The maximum current a conductor can carry safely C. The physical size of the conductor D. The insulation type of the conductor Explanation: Conductor ampacity is the maximum current that a conductor can safely carry without overheating. Q76. When wiring branch circuits, what is the purpose of using color coding for conductors? A. To meet aesthetic requirements B. To ensure proper identification of hot, neutral, and grounding conductors C. To reduce installation time D. To increase current capacity Explanation: Color coding is essential for proper identification and safe wiring practices.
Explanation: The duty cycle defines how long a load is expected to operate at full capacity, affecting conductor and device sizing. Q83. Which of the following best describes the term “load diversity”? A. Using multiple colors of wiring B. The variation in load when not all devices operate at full capacity simultaneously C. The installation of different types of devices on one circuit D. The use of both AC and DC loads in one circuit Explanation: Load diversity recognizes that not all connected loads operate at maximum capacity at the same time. Q84. When calculating branch circuit load, which NEC factor is applied for continuous loads? A. 100% B. 125% C. 150% D. 75% Explanation: NEC requires that continuous loads be calculated at 125% of their rating for conductor and device sizing. Q85. What is the typical consequence of failing to provide proper overcurrent protection in a branch circuit? A. Improved efficiency B. Increased risk of fire and equipment damage C. Lower installation cost D. Enhanced system performance Explanation: Without proper overcurrent protection, the circuit is at risk for overheating, fire, and equipment damage. Q86. In branch circuit wiring, what is the purpose of a multiwire branch circuit? A. To reduce the number of neutral conductors required B. To allow sharing of a neutral conductor between circuits C. To supply power to outdoor equipment only D. To eliminate the need for overcurrent devices Explanation: A multiwire branch circuit shares a neutral conductor among two or more hot circuits, reducing wiring and installation complexity. Q87. Which of the following best describes the “saturation point” in conductor performance? A. The maximum voltage rating B. The point where a conductor’s current carrying capacity is exceeded C. The temperature at which insulation melts D. The physical limit of conductor length Explanation: The saturation point is reached when the current exceeds the conductor’s safe ampacity. Q88. In branch circuits, what is the purpose of using a pigtail connection? A. To extend the conductor length
B. To connect multiple devices to a single circuit without overloading the terminal C. To change the circuit’s phase D. To provide extra grounding Explanation: Pigtail connections allow multiple wires to be connected to a single terminal safely.
Section 5. Wiring Methods and Materials (65 Questions –
Q89. Which of the following is considered a wiring method? A. Flexible cord B. Underground conduit C. Raceways and cables D. All of the above Explanation: All options are considered wiring methods depending on the installation application. Q90. What is the primary purpose of a raceway in electrical installations? A. To act as a conductor B. To provide a protected pathway for conductors C. To reduce the electrical load D. To dissipate heat Explanation: Raceways provide mechanical protection and a defined pathway for electrical conductors. Q91. In wiring methods, which material is most commonly used for rigid metal conduit? A. PVC B. Aluminum C. Steel D. Copper Explanation: Steel is most commonly used for rigid metal conduit due to its strength and durability. Q92. Which wiring method is most appropriate for wet locations? A. Nonmetallic-sheathed cable B. Armored cable C. Liquidtight flexible metal conduit D. Flexible cord Explanation: Liquidtight flexible metal conduit is designed for wet or corrosive environments. Q93. What is the purpose of using an electrical box in wiring installations? A. To provide a mounting point for devices and protect wire connections B. To increase voltage capacity
C. To ground the cable D. To insulate the cable further Explanation: Cable clamps secure the cable and protect against abrasion where the cable enters an enclosure. Q100. Which of the following is a key consideration when selecting boxes and enclosures? A. The color of the box B. The volume required for conductor fill C. The manufacturer’s logo D. The ambient noise level Explanation: The box must have sufficient volume to accommodate conductors, devices, and connections per NEC requirements. Q101. What is the purpose of a panelboard cabinet? A. To house circuit breakers and disconnect devices B. To serve as a load center for branch circuits C. Both A and B D. To serve as a transformer Explanation: Panelboard cabinets house circuit breakers and serve as the load center for distributing power. Q102. Which wiring method is typically used for flexible cords? A. Rigid conduit B. Cable tray C. Listed flexible cord assemblies D. Nonmetallic-sheathed cable Explanation: Flexible cords are manufactured as listed assemblies designed for portability and flexibility. Q103. When installing flexible cords, what is a primary safety requirement? A. They must be permanently attached B. They must be rated for the application and not used as a substitute for fixed wiring C. They must be painted for visibility D. They must be run through conduits Explanation: Flexible cords are not meant to replace permanent wiring and must be used only in approved applications. Q104. Which type of wiring is most appropriate for use in a location subject to vibrations? A. Rigid metal conduit B. Flexible metal conduit C. NM cable D. Direct burial cable Explanation: Flexible metal conduit is designed to accommodate movement and vibration. Q105. In raceway installations, why is it important to use proper fittings? A. To improve electrical efficiency
B. To ensure a continuous and secure pathway for conductors C. To increase the overall conductor ampacity D. To reduce the cost of the installation Explanation: Proper fittings maintain the integrity and protection of the wiring system by ensuring a secure and continuous pathway. Q106. What does “seismic bracing” refer to in wiring installations? A. A method to secure wiring against ground movement during an earthquake B. A technique to increase voltage capacity C. A method to install wiring underwater D. A technique to reduce electromagnetic interference Explanation: Seismic bracing secures wiring and equipment to minimize movement during seismic events. Q107. Which of the following is an example of a wiring enclosure for lighting fixtures? A. Junction box B. Cable tray C. Panelboard cabinet D. Raceway cover Explanation: A junction box is commonly used to house wiring connections for lighting fixtures. Q108. What is the primary function of a cable tray in wiring installations? A. To provide a pathway for cables in large installations B. To insulate cables C. To house overcurrent devices D. To serve as a backup conductor Explanation: Cable trays support and organize cables in commercial or industrial installations. Q109. When installing wiring in damp or wet locations, which material is most suitable for conduit? A. Nonmetallic conduit B. Rigid metal conduit with a corrosion-resistant coating C. Uncoated steel conduit D. Flexible metal conduit without coating Explanation: Rigid metal conduit with corrosion-resistant coatings is appropriate for damp or wet environments. Q110. Which of the following is a primary benefit of using a preassembled wiring harness? A. It increases the conductor’s ampacity B. It reduces installation time and potential wiring errors C. It eliminates the need for overcurrent protection D. It is used only in temporary installations Explanation: Preassembled wiring harnesses simplify installation and reduce the likelihood of wiring errors.
