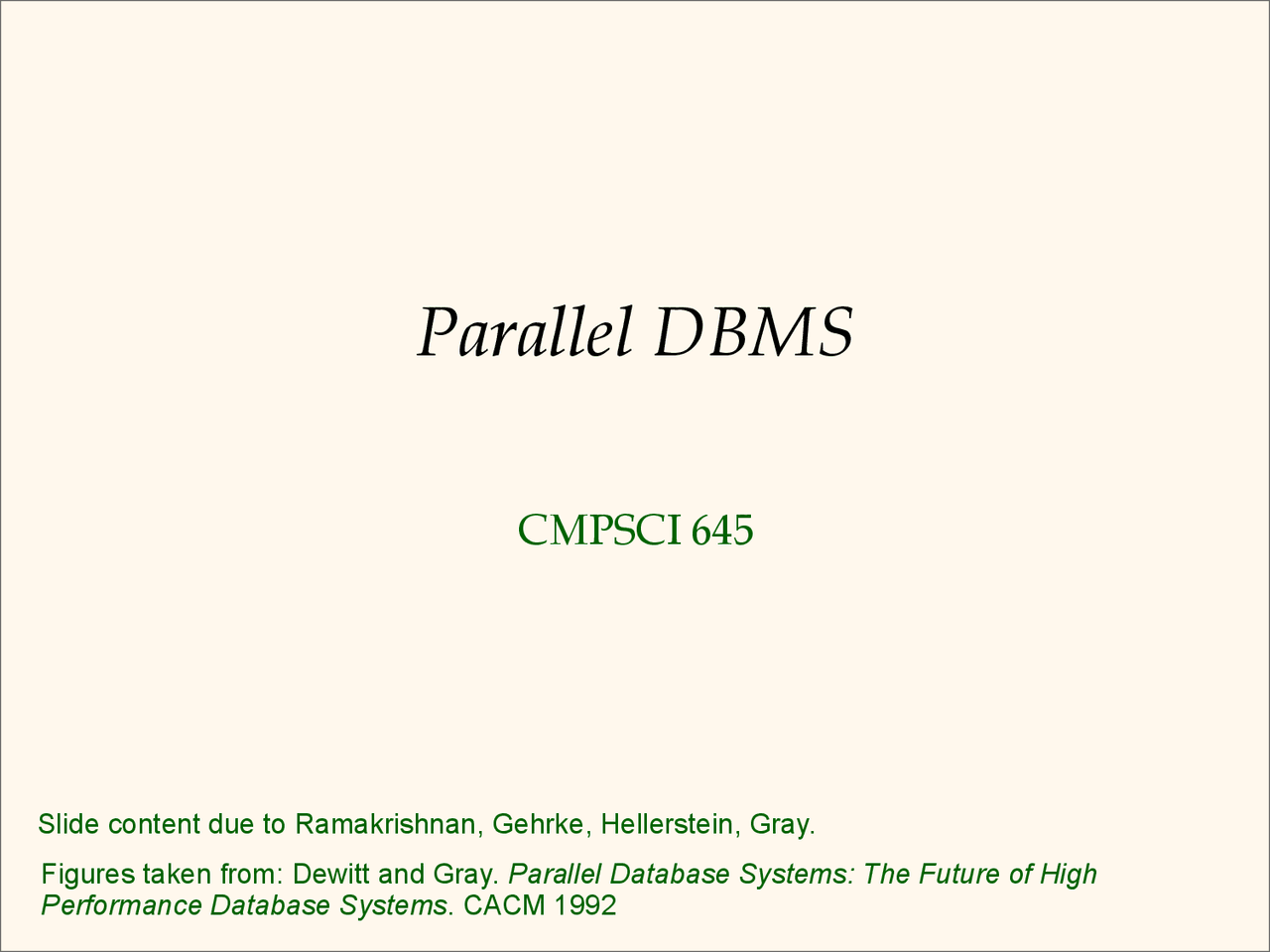

Parallel DBMS
CMPSCI 645
Slide content due to Ramakrishnan, Gehrke, Hellerstein, Gray. Figures taken from: Dewitt and Gray. Parallel Database Systems: The Future of High Performance Database Systems. CACM 1992
Parallel vs. Distributed DBs
Parallel database systems
- Improve performance through parallelizing various operations: loading data, indexing, query evaluation. Data may be distributed, but purely for performance reasons.
Distributed database systems
- Data is physically stored across various sites, each of which runs DBMS and can function independently. Data distribution determined by local ownership and availability, in addition to performance. 2
Parallel DBMS: Intro
Parallelism is natural to DBMS processing
- Pipeline parallelism: many machines each doing one step in a multi-step process.
- Partition parallelism: many machines doing the same thing to different pieces of data.
- Both are natural in DBMS!
Pipeline
Partition
Any Sequential Program Any Sequential Program Sequential Sequential Sequential Sequential Any Sequential Program Any Sequential Program
DBMS: The || Success Story
DBMSs are the most (only?) successful
application of parallelism.
- Teradata, Tandem vs. Thinking Machines, KSR..
- Every major DBMS vendor has some || server
Reasons for success:
- Bulk-processing (= partition ||-ism).
- Natural pipelining.
- Inexpensive hardware can do the trick!
- Users/app-programmers don’t need to think in ||
Enemies of good speed-up / scale-up
Start up work
- If thousands of processes must be started, this can dominate actual computation time
Interference
- The slowdown each new process imposes on all others when accessing shared resources
Skew
- Variance in the size of jobs for each process. Service time for whole job is the service time of slowest step of job. 7
Architecture Issue: Shared What?
Alternative architectures:
- Shared memory: all processors shared common global memory and access to all disks.
- Shared disk: all processors have private memory, but direct access to all disks.
- Shared nothing: each memory/disk owned by processor which acts as server for data. 8 Shared memory Shared disk Shared nothing
Different Types of DBMS ||-ism
Intra-operator parallelism
- get all machines working to compute a given operation (scan, sort, join)
Inter-operator parallelism
- each operator may run concurrently on a different site (exploits pipelining)
Inter-query parallelism
- different queries run on different sites
We’ll focus on intra-operator ||-ism
Limits of pipelined parallelism in
DBMS
Relational pipelines usually not very long
Some relational operators block (e.g. sorting,
aggregation)
Execution cost of one operator may be much
higher than another (example of skew)
As a result, partitioned parallelism is key to
achieving speed-up and scale-up
10
Parallel query processing
12 Two relational scans consuming two input relations, A and B, and feeding their outputs to a join operator that in turn produces a data stream C.
Parallel Scans
Scan in parallel, and merge.
Selection may not require all sites for range or
hash partitioning.
Indexes can be built at each partition.
Dataflow Network for || Join
Good use of split/merge makes it easier to
build parallel versions of sequential join code.
Complex Parallel Query Plans
Complex Queries: Inter-Operator parallelism
- Pipelining between operators: (^) note that sort and phase 1 of hash-join block the pipeline!!
- Bushy Trees A B R S Sites 1-4 Sites 5- Sites 1-
Best serial plan != Best || plan!
Trivial counter-example:
- Table partitioned with local secondary index at two nodes
- Range query: all of node 1 and 1% of node 2.
- Node 1 should do a scan of its partition.
- Node 2 should use secondary index.
SELECT *
FROM telephone_book
WHERE name < “NoGood”;
Sequential vs. Parallel Optimization
N..Z Table Scan A..M Index Scan
Parallel DBMS Summary
||-ism natural to query processing:
- Both pipeline and partition ||-ism!
Shared-Nothing vs. Shared-Mem
- Shared-disk too, but less standard
- Shared-mem easy, costly. Doesn’t scaleup.
- Shared-nothing cheap, scales well, harder to implement.
