1

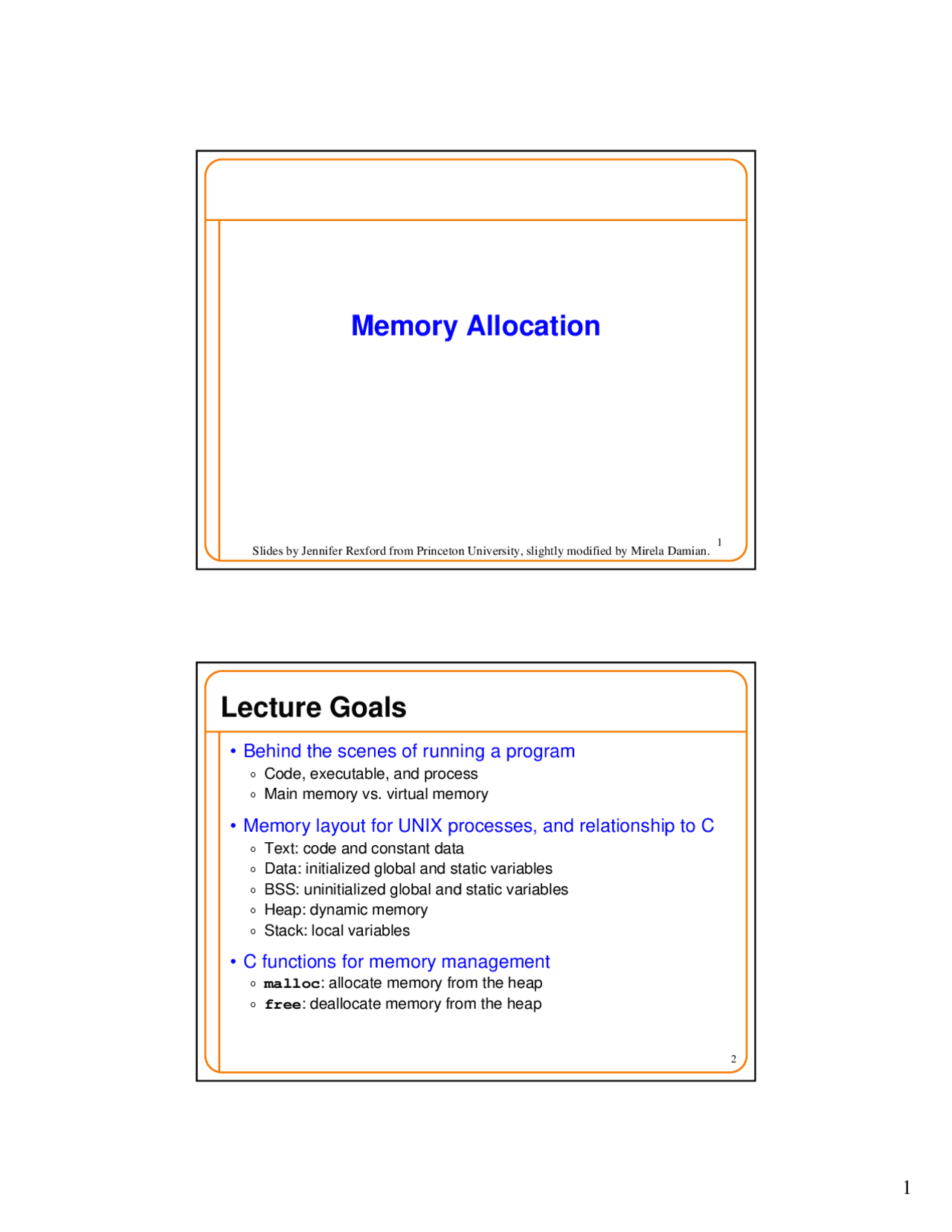

Memory Allocation
Slides by Jennifer Rexford from Princeton University, slightly modified by Mirela Damian.
2
Lecture Goals
- Behind the scenes of running a program o Code, executable, and process o Main memory vs. virtual memory
- Memory layout for UNIX processes, and relationship to C o Text: code and constant data o Data: initialized global and static variables o BSS: uninitialized global and static variables o Heap: dynamic memory o Stack: local variables
- C functions for memory management o malloc: allocate memory from the heap o free: deallocate memory from the heap
3
Code vs. Executable vs. Process
- C source code o C statements organized into functions o Stored as a collection of files (.c and .h)
- Executable module o Binary image generated by compiler o Stored as a file (e.g., a.out )
- Process o Instance of a program that is executing - With its own address space in memory - With its own id and execution state o Managed by the operating system
executable
C source code
process
compiling
running
4
Main Memory on a Computer
o Storage for variables, data, code, etc.
o May be shared among many processes
CPU
Memory
Disk
Network
Video
Audio
Data Bus
7
What to Store: “Static” Data
- Variables that exist for the entire program o Global variables, and “static” local variables o Amount of space required is known in advance
- Data: initialized in the code o Initial value specified by the programmer - E.g., “int x = 97;” o Memory is initialized with this value
- BSS: not initialized in the code o Initial value not specified - E.g., “int x;” o All memory initialized to 0 (on most OS’s) o BSS stands for “Block Started by Symbol”
0
0xffffffff
Text
Data
BSS
8
What to Store: Dynamic Memory
- Memory allocated while program is running o E.g., allocated using the malloc() function - And deallocated using the free() function
- OS knows nothing in advance o Doesn’t know the amount of space o Doesn’t know the contents
- So, need to allow room to grow o Known as the “heap” o Detailed example in a few slides o More in programming assignment #
0
0xffffffff
Text
Data
BSS
Heap
9
What to Store: Temporary Variables
- Temporary memory during lifetime of a function or block o Storage for function parameters and local variables
- Need to support nested function calls o One function calls another, and so on o Store the variables of calling function o Know where to return when done
- So, must allow room to grow o Known as the “stack” o Push on the stack as new function is called o Pop off the stack as the function ends
- Detailed example later on
0
0xffffffff
Text
Data
BSS
Heap
Stack
10
Memory Layout: Summary
- Text: code, constant data
- Data: initialized global & static variables
- BSS: uninitialized global & static variables
- Heap: dynamic memory
- Stack: local variables
0
0xffffffff
Text
Data
BSS
Heap
Stack
13
Memory Layout Example: Data
char* string = “hello”; int iSize;
char* f(void) { char* p; iSize = 8; p = malloc(iSize); return p; }
Text
Data
BSS
Stack
Heap
14
Memory Layout Example: BSS
char* string = “hello”; int iSize;
char* f(void) { char* p; iSize = 8; p = malloc(iSize); return p; }
Text
Data
BSS
Stack
Heap
15
Memory Layout Example: Heap
char* string = “hello”; int iSize;
char* f(void) { char* p; iSize = 8; p = malloc(iSize); return p; }
Text
Data
BSS
Stack
Heap
16
Memory Layout Example: Stack
char* string = “hello”; int iSize;
char* f(void) { char* p; iSize = 8; p = malloc(iSize); return p; }
Text
Data
BSS
Stack
Heap
19
Memory Deallocation Example
char* string = “hello”;
int iSize;
char* f(void)
char* p;
iSize = 8;
p = malloc(iSize);
return p;
Available till termination
Deallocate on return from f
Deallocate on free()
Available till termination
20
Memory Initialization
- Local variables have undefined values int count;
- Memory allocated by malloc() has undefined values char* p = (char *) malloc(8);
- Must explicitly initialize if you want a particular initial value
int count = 0; p[0] = ’\0’;
- Global and static variables are initialized to 0 by default static int count = 0; is the same as static int count; (^) It is bad style to depend on this
21
Heap: Dynamic Memory
#include <stdlib.h> void *malloc(size_t size); void free(void *ptr); 0
0xffffffff
Text Data BSS
Stack
Heap
Heap
char *p1 = malloc(3); char *p2 = malloc(1); char *p3 = malloc(4); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);
p
22
Heap: Dynamic Memory
#include <stdlib.h> void *malloc(size_t size); void free(void *ptr); 0
0xffffffff
Text Data BSS
Stack
Heap
Heap
char *p1 = malloc(3); char *p2 = malloc(1); char *p3 = malloc(4); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);
p p
25
Heap: Dynamic Memory
#include <stdlib.h> void *malloc(size_t size); void free(void *ptr); 0
0xffffffff
Text Data BSS
Stack
Heap
Heap
char *p1 = malloc(3); char *p2 = malloc(1); char *p3 = malloc(4); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);
p p p
p
26
Heap: Dynamic Memory
#include <stdlib.h> void *malloc(size_t size); void free(void *ptr); 0
0xffffffff
Text Data BSS
Stack
Heap
Heap
char *p1 = malloc(3); char *p2 = malloc(1); char *p3 = malloc(4); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);
p p p
p
27
Heap: Dynamic Memory
#include <stdlib.h> void *malloc(size_t size); void free(void *ptr); 0
0xffffffff
Text Data BSS
Stack
Heap
Heap
char *p1 = malloc(3); char *p2 = malloc(1); char *p3 = malloc(4); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);
p p5, p p
p
28
Heap: Dynamic Memory
#include <stdlib.h> void *malloc(size_t size); void free(void *ptr); 0
0xffffffff
Text Data BSS
Stack
Heap
Heap
char *p1 = malloc(3); char *p2 = malloc(1); char *p3 = malloc(4); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);
p p5, p p
p
31
Using Malloc and Free
- Types o void*: generic pointer to any type (can be converted to other types) o size_t: unsigned integer type returned by sizeof()
- void* malloc(size_t size) o Returns a pointer to space of size size o … or NULL if the request cannot be satisfied o E.g., int* x = (int *) malloc(sizeof(int));
- void* calloc(size_t nobj, size_t size) o Returns a pointer to space for array of nobj objects of size size o … or NULL if the request cannot be satisfied o Bytes are initialized to 0
- void free(void* p) o Deallocate the space pointed to by the pointer p o Pointer p must be pointer to space previously allocated o Do nothing if p is NULL
32
Using realloc and (never) alloca
- void* realloc(void* ptr, size_t size) o “Grows” the allocated buffer o Moves/copies the data if old space insufficient o … or NULL if the request cannot be satisfied
- void* alloca(size_t size) o Not guaranteed to exist (not in any official standard) o Allocates space on local stack frame o Space automatically freed when function exits o Particularly useful for following: int calc(int numItems) { int items[numItems]; int *items = alloca(numItems * sizeof(int)); }
33
Examples Motivating Realloc()
- Example programming tasks o Read text consisting of multiple lines (ending in ‘\n’) o Print the lines in alphabetical order
- Suppose you don’t know the maximum line size in advance o Could pick a maximum line size in advance o E.g., #define MAXCHAR 200 o But, what if you need to read and store a longer line?
- And you don’t know the number of lines in advance o Could pick a maximum number of lines in advance o E.g., #define MAXLINE 10000 o But, what if the input has more lines than this?
- Better to (re)allocate more memory as you go along
34
Printing Chars in Reverse Order
#define MAXCHAR 1000
int main(void) { char a[MAXCHAR]; int i, c; for (i=0; i<MAXCHAR && ((c=getchar()) != EOF); i++) a[i] = c;
while (i > 0) putchar(a[--i]); putchar('\n'); }
37
Avoid Dangling Pointers
- Dangling pointers point to data that’s not there anymore
char *f(void)
char p[8];
return p;
int main(void) {
char *res = f();
38
Debugging Malloc Problems
- Symptom: “random” failures, especially on call return o Corrupted the stack frame return info
- Symptom: calls to malloc/free fail o Corrupted the malloc bookkeeping data
- Symptom: program magically works if printf inserted o Corrupted storage space in stack frame
- “Debugging” mallocs exist o Doing “man malloc” on Linux reveals MALLOC_CHECK_ o Searching “debug malloc” yields dmalloc, other libraries o Larger problems: valgrind, electric fence, etc.
39
Summary
- Five types of memory for variables o Text: code, constant data (constant data in rodata on hats) o Data: initialized global & static variables o BSS: uninitialized global & static variables o Heap: dynamic memory o Stack: local variables
- Important to understand differences between o Allocation: space allocated o Initialization: initial value, if any o Deallocation: space reclaimed
- Understanding memory allocation is important o Make efficient use of memory o Avoid “memory leaks” from dangling pointers
