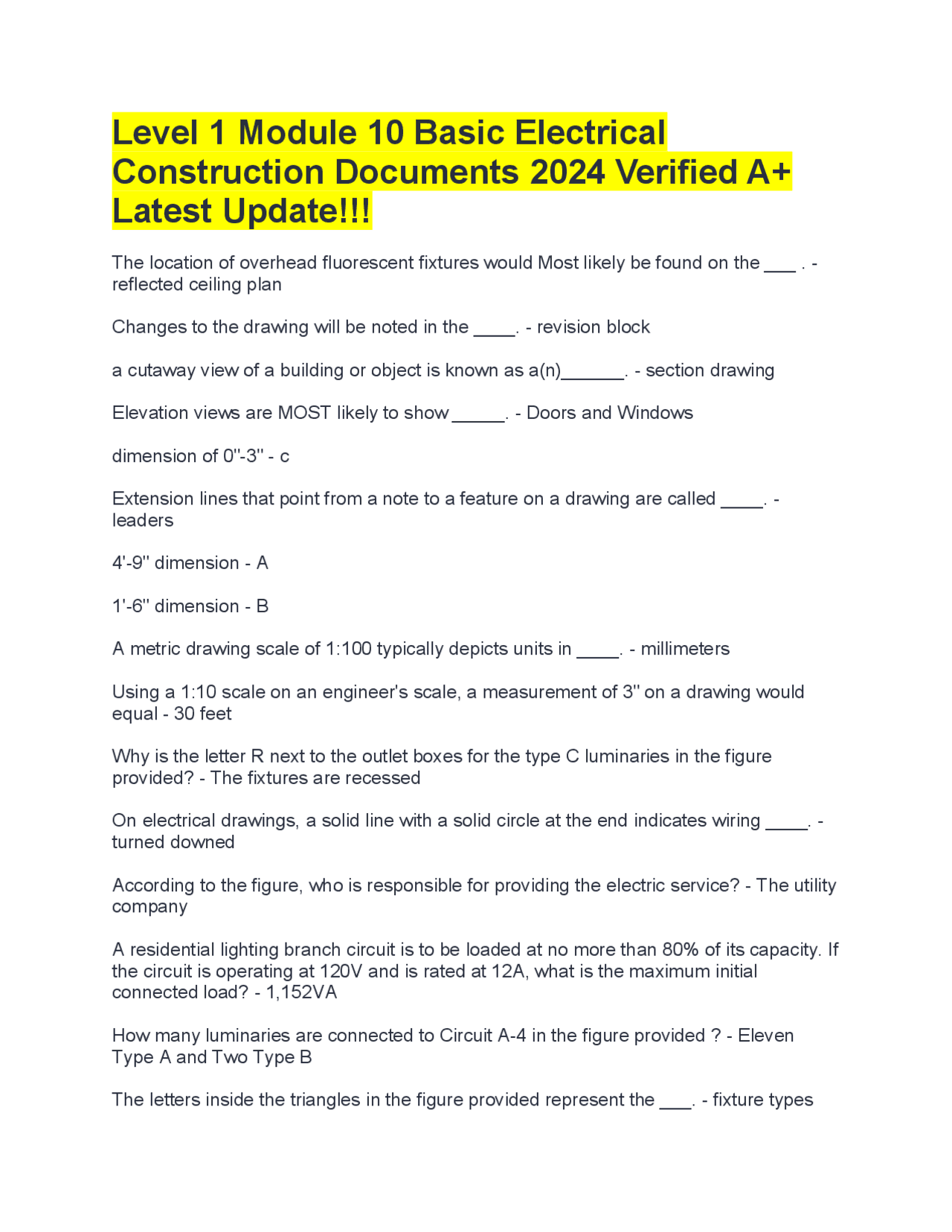

Level 1 Module 10 Basic Electrical
Construction Documents 2024 Verified A+
Latest Update!!!
The location of overhead fluorescent fixtures would Most likely be found on the ___ . -
reflected ceiling plan
Changes to the drawing will be noted in the ____. - revision block
a cutaway view of a building or object is known as a(n)______. - section drawing
Elevation views are MOST likely to show _____. - Doors and Windows
dimension of 0"-3" - c
Extension lines that point from a note to a feature on a drawing are called ____. -
leaders
4'-9" dimension - A
1'-6" dimension - B
A metric drawing scale of 1:100 typically depicts units in ____. - millimeters
Using a 1:10 scale on an engineer's scale, a measurement of 3" on a drawing would
equal - 30 feet
Why is the letter R next to the outlet boxes for the type C luminaries in the figure
provided? - The fixtures are recessed
On electrical drawings, a solid line with a solid circle at the end indicates wiring ____. -
turned downed
According to the figure, who is responsible for providing the electric service? - The utility
company
A residential lighting branch circuit is to be loaded at no more than 80% of its capacity. If
the circuit is operating at 120V and is rated at 12A, what is the maximum initial
connected load? - 1,152VA
How many luminaries are connected to Circuit A-4 in the figure provided ? - Eleven
Type A and Two Type B
The letters inside the triangles in the figure provided represent the ___. - fixture types
