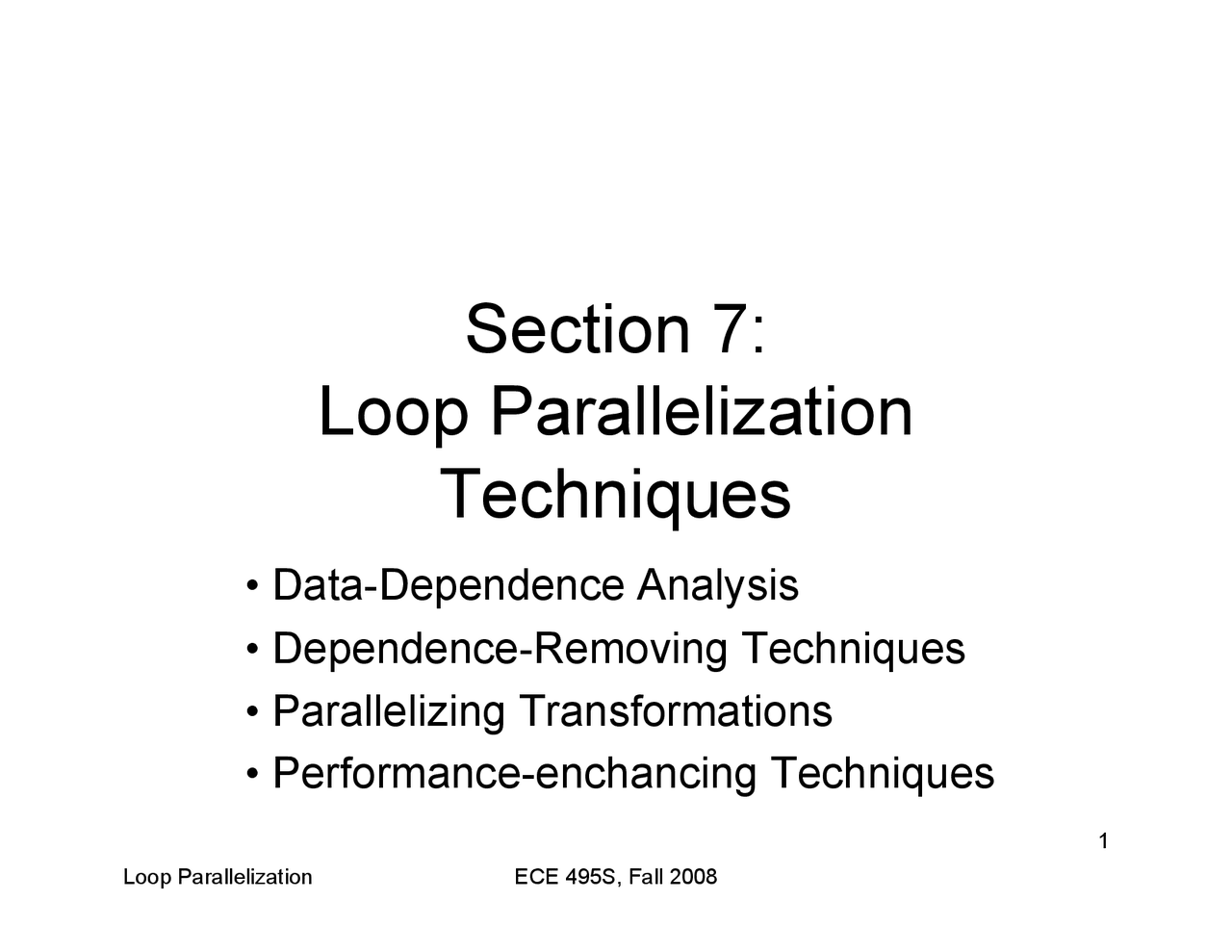

1
Section 7:
Loop Parallelization
Techniques
• Data-Dependence Analysis
• Dependence-Removing Techniques
• Parallelizing Transformations
• Performance-enchancing Techniques
Loop Parallelization ECE 495S, Fall 2008
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Loop Parallelization: Eliminating Dependences and Data Dependence Tests - Prof. Rudolf Eig, Study notes of Electrical and Electronics Engineering
Loop parallelization techniques, focusing on eliminating dependences and performing data dependence tests. It covers concepts such as iteration space graphs, distance vectors, and loop-carried dependences. The document also mentions various tests like the gcd test, banerjee test, omega test, and range test for detecting dependences.
Typology: Study notes
Pre 2010
1 / 49
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Loop Parallelization: Eliminating Dependences and Data Dependence Tests - Prof. Rudolf Eig and more Study notes Electrical and Electronics Engineering in PDF only on Docsity!
1
Section 7:
Loop Parallelization
Techniques
• Data-Dependence Analysis
• Dependence-Removing Techniques
• Parallelizing Transformations
• Performance-enchancing Techniques
2
Some motivating examples
Do i = 1, n a(i) = b(i) S 1 c(i) = a(i-1) S 2 End do Is it legal to
- Run the i loop in parallel?
- Put S 2 first in the loop? Do I = 1, n a(i) = b(i) End do Do I = 1, n c(i) = a(i-1) End do Is it legal to
- Fuse the two i loops? In general, it is desirable to determine if two references access the same memory location, and the order they execute, so that we can determine if the references might execute in a different order after some transformation.
4
Can this loop be run in parallel?
Do i = 1, n a(i) = b(i) S 1 c(i) = a(i-1) S 2 End do i = 1 b(1) a(1) a(0) c(1) i = 2 b(2) a(2) a(1) c(2) i = 3 b(3) a(3) a(2) c(3) i = 4 b(4) a(4) a(3) c(4) i = 5 b(5) a(5) a(4) c(5) i = 6 b(6) a(6) a(5) c(6) Assume 1 iteration per processor, then if for some reason some iterations execute out of lock-step, bad things can happen In this case, read of a(2) in i=3 will get an invalid value! time
5
Can we change the order of the
statements?
Do i = 1, n a(i) = b(i) S 1 c(i) = a(i-1) S 2 End do Do i = 1, n c(i) = a(i-1) S 2 a(i) = b(i) S 1 End do
a(0) c(1) b(1) a(1) || a(1) c(2) b(2) a(2) || a(2) c(3) b(3) a(3) || a(3) c(4) b(4) a(4)
No problem with a serial execution.
b(1) a(1) a(0) c(1) || b(2) a(2) a(1) c(2) || b(3) a(3) a(2) c(3) || b(4) a(4) a(3) c(4)
Access order before statement reordering i=1 i=2 i=3 i= i=1 i=2 i=3 i= Access order after statement reordering
7
Eliminating anti-dependence
… = a(2) a(2) = … Anti-dependence – write to a location cannot occur before a previous read is finished Let the program in be: a(2) = … … = a(2) a(2) = … = … a(2) Create additional storage to eliminate the anti- dependence The new program is: a(2) = … … = a(2) aa(2) = … = … aa(2) No more anti-dependence!
8
Getting rid of output dependences
a(2) = … a(2) = … Output dependence – write a location must wait for a previous write to finish Let the program be: a(2) = … … = a(2) a(2) = … … = a(2) Again, by creating new storage we can eliminate the output dependence. The new program is: a(2) = … … = a(2) aa(2) = … … = aa(2)
10
An example of when it is messy to
create new storage
Do i = 1, n a(3i-1) = … a(2i) = … = … a(i) End do A(3i) writes locations 2, 5, 8, 11, 14, 17, 20, 23 A(2i) writes locations 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 A(i) reads from outside the of loop when i = 1, 3, 7, 9, 13, 15, 19, 21 A(i) reads from a(3i-1) when I = 5, 11, 17, 23 A(i) reads from a(2i) when I = 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22
11
Can we fuse the loop?
Do i = 1, n a(i) = b(i) S 1 End do Do i c(i) = a(i-1) S 2 End do Do i = 1, n a(i) = b(i) S 1 c(i) = a(i-1) S 2 End do In original execution of the unfused loops :
- A(i-1) gets value assigned in a(i)
- Can’t overwrite value assigned to a(i) or c(i)
- B(i) value comes from outside the loop
- Is ok after fusing, because get a(i-1) from the value assigned in the previous iteration
- No “output” dependence on a(i) or c(i), not overwritten
- No input flow, or true dependence on a b(i), so value comes from outside of the loop nest
13
Dependence sources and sinks
• The sink of a
dependence is the
statement at the
head of the
dependence arrow
• The source is the
statement at the tail
of the dependence
arrow
for (i=1; i < nl i++) { a[i] = … … = a[i-1] } a[1] = = a[0] a[2] = = a[1] a[3] = = a[2] a[4] = = a[3]
14 Data Dependence Tests: Concepts Terms for data dependences between statements of loop iterations.
- Distance (vector): indicates how many iterations apart are source and sink of dependence.
- Direction (vector): is basically the sign of the distance. There are different notations: (<,=,>) or (+1,0,-1) meaning dependence (from earlier to later, within the same, from later to earlier) iteration.
- Loop-carried (or cross-iteration) dependence and non-loop-carried (or loop-independent) dependence: indicates whether or not a dependence exists within one iteration or across iterations. - For detecting parallel loops, only cross-iteration dependences matter. - equal dependences are relevant for optimizations such as statement reordering and loop distribution.
- Iteration space graphs: the un-abstracted form of a dependence graph with one node per statement instance.
16 Data Dependence Tests: Distance Vectors Distance (vector): indicates how many iterations apart are the source and sink of dependence. i 2 = 1 i 2 = 3 i 2 = 2
I 2 = 4
i 2 = 5 i 1 = 1 2 3 4 5 6
I=(1,4) I’ = (3,1)
I’ – I = (2,-3)
do i 1 = 1, n do i 2 = 1, n a(i 1 ,i 2 ) = a(i 1 -2,i 2 +3) end do end do
17 Data Dependence Tests: Direction Vectors Direction (vector): is basically the sign of the distance. There are different notations: (<,=,>) or (-1,0,+1) meaning dependence (from earlier to later, within the same, from later to earlier) iteration. do i 1 = 1, n do i 2 = 1, n a(i 1 ,i 2 ) = a(i 1 -2,i 2 +3) end do end do i 1 = 1 2 3 4 5 6 I=(1,4) I’ = (3,1) I’ – I = d = (2,-3) Direction = (<,>) (or (sign(2),sign(-3) == (+1,-1) in some works I 2 = 1 i 2 = 3 i 2 = 2
I 2 = 4
i 2 = 5
19 Data Dependence Tests: Loop Carried
- Loop-carried (or cross-iteration) dependence and non-loop-carried (or loop-independent) dependence: indicates whether or not a dependence exists within one iteration or across iterations. do i 1 = 1, n dopar i 2 = 1, n a(i 1 ,i 2 ) = end dopar i’ 2 = 1, n = a(i 1 ,i’ 2 -1) end do end do This is legal since loop splitting enforces the loop carried dependences i 1 = 1 2 3 4 5 I’ 2 = 2 I’ 2 = 3 i 2 = 5 I’ 2 = 1 i 2 = 3 i 2 = 4 i 2 = 1 i 2 = 2 I’ 2 = 4 I’ 2 = 5
Lower bound 20
A quick aside
A loop do i = 4 , n, 3 a(i) end do Can be always be normalized to the loop do i = 0, (n-1)/ 3 -1, 1 a( 3 i+ 4 ) end do This makes discussing the data-dependence problem easier since we only worry about loops from 0, n, 1 More precisely, do i = lower, upper, stride { a(i)} becomes do i’ = 0, (upper – lower + incre)/stride – 1, 1 {a(i’stride + lower)} Stride Upper bound
