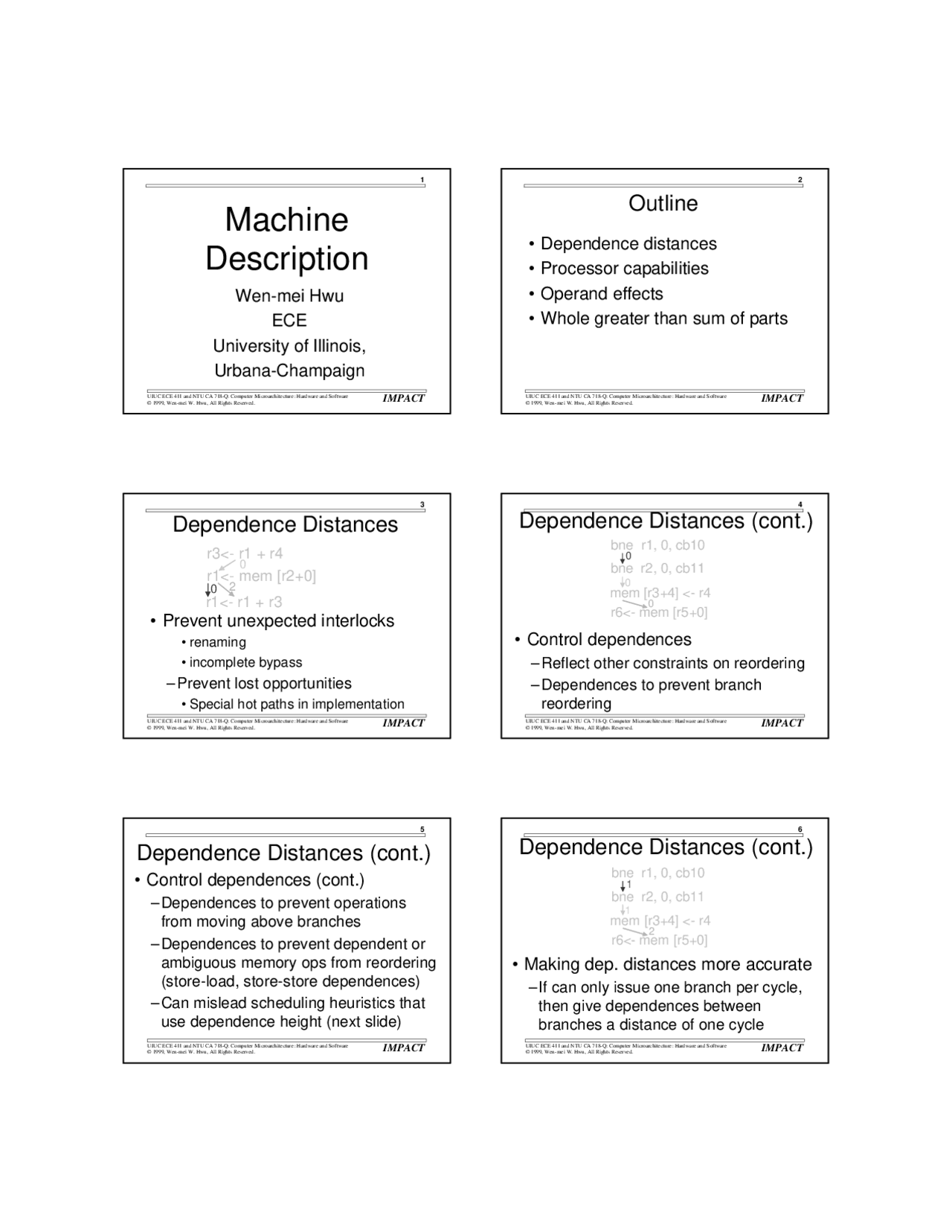

UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Machine
Description
Wen-mei Hwu
ECE
University of Illinois,
Urbana-Champaign
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Outline
• Dependence distances
• Processor capabilities
• Operand effects
• Whole greater than sum of parts
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
3
Dependence Distances
• Prevent unexpected interlocks
•renaming
•incomplete bypass
–Prevent lost opportunities
•Special hot paths in implementation
r1<- mem [r2+0]
r3<- r1 + r
r1<- r1 + r
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
4
Dependence Distances (cont.)
• Control dependences
–Reflect other constraints on reordering
–Dependences to prevent branch reordering
mem [r3+4] <- r
bne r2, 0, cb
r6<- mem [r5+0]
bne r1, 0, cb
5
Dependence Distances (cont.)
• Control dependences (cont.)
–Dependences to prevent operations from moving above branches
–Dependences to prevent dependent or ambiguous memory ops from reordering (store-load, store-store dependences)
–Can mislead scheduling heuristics that use dependence height (next slide)
6
Dependence Distances (cont.)
• Making dep. distances more accurate
–If can only issue one branch per cycle, then give dependences between branches a distance of one cycle
mem [r3+4] <- r
bne r2, 0, cb
r6<- mem [r5+0]
bne r1, 0, cb
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Dependence Distances (cont.)
- Making dependence distances more accurate (cont.)
–If nothing can issue after a branch, then give dependences to operations held below branch a distance of 1
–If store ties up memory for 2 cycles, then give store-load and store-store control dependences a distance of 2 UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Dependence Distances (cont.)
- Could use laundry list approach
–List operation latency (register flow distance) of each opcode
–List distance for other type of dependences
•Globally or for each opcode
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
9
Dependence Distance (cont.)
- Weaknesses of laundry list approach
–Distance may also depend on the operands of the operation
•Addressing mode of memory operation
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
10
Dependence Distance (cont.)
–Distance may also depend on which operation is using the result
•Special hot paths
- Can chain two dependent Ialu ops
•Early operand usage
- Address generation operands must be ready one cycle before use
•Incomplete bypass across clusters
11
Operand Usage Approach
- Define time 0 as just before an operation begins execution
OL_shft (dest(2) src(0 0) br_dest(0) br_src(0))
OL_cbr ( src(0 0 0) br_dest(1) br_src(0))
OL_st ( src(-1 -1 1) br_dest(1) br_src(0) mem_dest(2) mem_src(0))
12
Operand Usage Approach
- Enumerate the time(s) that the dest operand(s) are written
–Physical destinations (to set register dependence distances)
•A two cycle shift operation writes
destination at time 2
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Processor’s Capability
- Could use laundry list of machine’s characteristics
–Target a particular style of processor implementation
–Machine model commonly hard coded into the scheduler/simulator
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Processor’s Capabilities
•Can build to exact processor
specification
- The approach used by industry to model new implementations
- Allows fine-tuning final design parameters
- Allows early generation of performance estimates
•Can use generic machine model with
a few high-level parameters
- The approach taken by gcc’s instruction scheduler
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
21
Processor’s Capabilities
–Difficult to precisely reflect large implementation changes
•Each knob usually allows only
variation around a specific design
point
•Knobs usually do not change major
machine characteristics
•Can hamper high-level evaluations of
new implementations
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
22
Processor’s Capabilities
- The resource modeling approach
–Enumerate the relevant processor resources:
•The instruction decode units
- Three general-purpose decoders
- One complex and two simple decoders
- One int, one branch, and one float decoder
23
Processor’s Capabilities
•Register file read and write ports
- Need to model only if port configuration constrains execution
•The function units or execution pipes
•The result buses and/or any other
limited resource that affects execution
•Use a detail level appropriate for the
processor’s constraints
- Reservation Tables vs. FSA
24 Reservation Tables
- Describe how operations use resources as they flow through the processor
Decoder Read Port Ialu 1 2 3 1 2 3 4 1 2
Cycle
X
X
X
Wr Pt
X
- Table usually bit encoded for efficiency
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Reservation Tables
–Table of which resources are used and at what times
–Fix usage times relative to some point in operation execution
•Arbitrarily define time 0 as just before
an operation begins execution
–For example, one table for a RISC Ialu op with one register source: UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Reservation Tables
- Usage by the instruction scheduler
–Use processor resource information to create a resource usage table
•Keep track of what processor resources
are available each cycle
•Record the resources used by scheduled
operations
•Initially all resources available
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
27
Reservation Tables
–Operation can be scheduled if...
•Dependences have been are satisfied
•Execution resources required by
operation are available
- Check resource usage table for resource availability
- If resources available, mark resources as used and schedule op
- If resources unavailable, operation cannot be scheduled in that cycle UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
28
Reservation Tables
- Typically there are multiple ways a
operation can use resources
–For example, that Ialu op with one register src might be:
•Allowed to use decoder 1 or 2 but not 3
•Allowed to use any read port, Ialu, and
write port
29
Reservation Tables
–Enumeration solution: enumerate all of the reservation table variations
•Works well if just a few variations
- One reason that a minimal set of resources should be used in model
30
Reservation Tables
–Counter-based solution: use counters for interchangeable resources
•Efficiently handles the “any of a
resource” cases
- Use any read port, any of set of identical FUs, etc.
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Operand Effects
–Sign bit in branch target can affect branch behavior
–Literal width can affect grouping logic constraints
–Number of literals can affect grouping logic constraints
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
Operand Effects
- Could expand opcode repertoire
to capture relevant operand information
–Adds complexity to rest of compiler
–Relevant operand info can change with each implementation
UIUC ECE 411 and NTU CA 718-Q: Computer Microarchitecture: Hardware and Software© 1999, Wen-mei W. Hwu, All Rights Reserved. IMPACT
39
Operand Effects (cont.)
- Another approach: describe
operation formats separately
–Specify what each operand may be for each format
•For example, three sample formats for an
Ialu operation (Using one read port, two
read ports, or writing to a control register)
