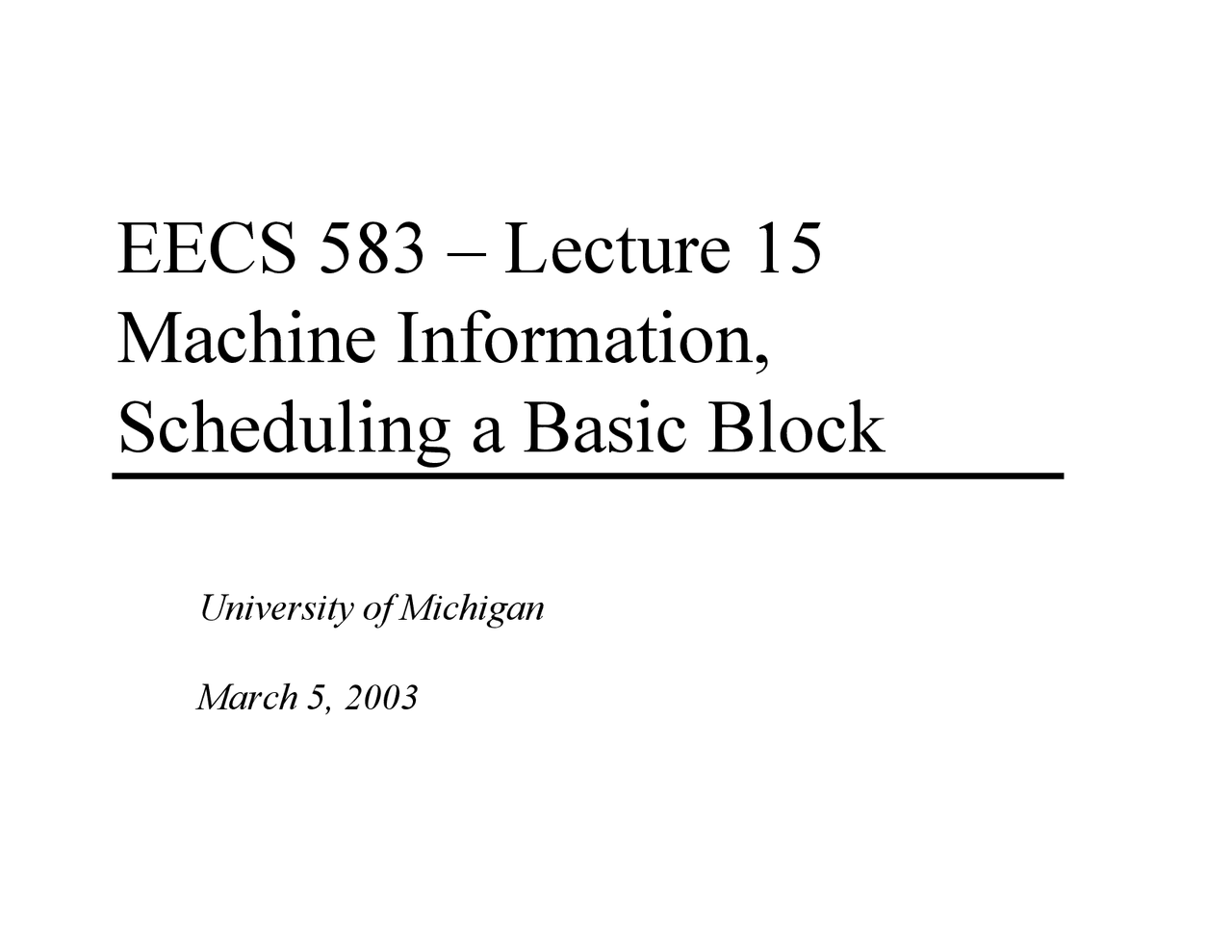

EECS 583 – Lecture 15 Machine Information,Scheduling a Basic Block

University of Michigan March 5, 2003

• 1 -

Machine Information^ Y

Each step of code generation requires knowledge of themachine

»^ Hard code it? – used to be common practice »^ Retargetability, then cannot

Y^

What does the code generator need to know about thetarget processor?^ »^

Structural information?^ y^

No

»^ For each opcode

y^ What registers can be accessed as each of its operands y^ Other operand encoding limitations

»^ Operation latencies

y^ Read inputs, write outputs

»^ Resources utilized

y^ Which ones, when

• 3 -

IO Format^ Y

Registers, register files

»^ Number, width, static or rotating »^ Read-only (hardwired 0) or read-write

Y^

Operation^ »^

Number of source/dests » Predicated or not » For each source/dest/pred^ y^

What register file(s) can be read/written y Literals, if so, how big^ Multicluster machine example:

ADD_W.

gpr1, gpr1 : gpr

ADD_W_L.

gpr1, lit6 : gpr

ADD_W.

gpr2, gpr2 : gpr

• 4 -

Latency Information^ Y^

Multiply takes 3 cycles^ »^

No, not that simple!!! Y^

Differential input/outputlatencies^ »^

Earliest read latency for eachsource operand » Latest read latency for eachsource operand » Earliest write latency for eachdestination operand » Latest write latency for eachdestination operand Y^

Why all this?^ »^

Unexpected events may makeoperands arrive late or beproduced early

Y^

Compound op: part may finishearly or start late

Y^

Instruction re-execution by^ »^

Exception handlers » Interupt handlers Y^

Ex: mpyadd(d1, d2, s1, s2, s3)^ »^

d1 = s1 * s2, d2 = d1 + s

s^

s2 d

s

E/L

s1: 0/

s2: 0/

s3: 2/

d1: 2/3 d2: 2/

d

• 6 -

Branch Latency^ Y

Time relative to the initiation time of a branch at whichthe target of the branch is initiated Y What about branch prediction?

»^ Can reduce branch latency »^ But, may not make it 1

Y^

We will assume branch latency is 1 for this class (ie nodelay slots!)

0: branch 1: xxx 2: yyy 3: target

Example:

branch latency = k (3) delay slots = k – 1 (2) Note xxx and yyy are multiOps

• 7 -

Resources^ Y

A machine resource

is any aspect of the target processor

for which over-subscription is possible if not explicitlymanaged by the compiler^ »^

Scheduler must pick conflict free combinations

Y^

3 kinds of machine resources^ »^

Hardware resources

are hardware entities that would be occupied

or used during the execution of an opcode^ y^

Integer ALUS, pipeline stages, register ports, busses, etc.

»^ Abstract resources

are conceptual entities that are used to model

operation conflicts or sharing constraints that do not directlycorrespond to any hardware resource^ y^

Sharing an instruction field

»^ Counted resources

are identical resources such that k are required

to do something^ y^

Any 2 input busses

• 9 -

Now, Lets Get Back to Scheduling…^ Y

Scheduling constraints

»^ What limits the operations that can be concurrently executed orreordered? »^ Processor resources – modeled by mdes »^ Dependences between operations

y^ Data, memory, control Y^

Processor resources^ »^

Manage using resource usage map (RU_map) » When each resource will be used by already scheduled ops » Considering an operation at time t^ y^

See if each resource in reservation table is free

»^ Schedule an operation at time t

y^ Update RU_map by marking resources used by op busy

• 10 -

Data Dependences^ Y

Data dependences

»^ If 2 operations access the same register, they are dependent »^ However, only keep dependences to most recentproducer/consumer as other edges are redundant »^ Types of data dependences

Output

Anti

Flow

r1 = r2 + r3r1 = r4 * 6

r1 = r2 + r3r2 = r5 * 6

r1 = r2 + r3r4 = r1 * 6

• 12 -

Dependence Graph^ Y

Represent dependences between operations in a block viaa DAG

»^ Nodes = operations »^ Edges = dependences

Y^

Single-pass traversal required to insert dependences

Y^

Example

1: r1 = load(r2) 2: r2 = r1 + r4 3: store (r4, r2) 4: p1 = cmpp (r2 < 0) 5: branch if p1 to BB3 6: store (r1, r2)

BB3:

• 13 -

Dependence Edge Latencies^ Y

Edge latency

= minimum number of cycles necessary

between initiation of the predecessor and successor inorder to satisfy the dependence

Y^

Register flow dependence, a

Æ

b

»^ Latest_write(a) – Earliest_read(b)

Y^

Register anti dependence, a

Æ

b

»^ Latest_read(a) – Earliest_write(b) + 1

Y^

Register output dependence, a

Æ

b

»^ Latest_write(a) – Earliest_write(b) + 1

Y^

Negative latency^ »^

Possible, means successor can start before predecessor » We will only deal with latency >= 0, so MAX any latency with 0

• 15 -

Class Problem

1. Draw dependence graph 2. Label edges with type and latencies

machine modelmin/max read/writelatenciesadd:

src 0/1dst 1/ mpy:

src 0/2dst 2/ load:

src 0/0dst 2/2sync 1/ store: src 0/

dst -sync 1/

r1 = load(r2) r2 = r2 + 1 store (r8, r2) r3 = load(r2) r4 = r1 * r3 r5 = r5 + r4 r2 = r6 + 4 store (r2, r5)

• 16 -

Dependence Graph Properties - Estart^ Y

Estart = earliest start time, (as soon as possible - ASAP)

»^ Schedule length with infinite resources (dependence height) »^ Estart = 0 if node has no predecessors »^ Estart = MAX(Estart(pred) + latency) for each predecessor node »^ Example

1

2 2 3 3

2

2 4

3

• 18 -

Slack^ Y

Slack = measure of the scheduling freedom

»^ Slack = Lstart – Estart for each node »^ Larger slack means more mobility »^ Example

1

2 2 33

2

2 4

3

• 19 -

Critical Path^ Y

Critical operations = Operations with slack = 0

»^ No mobility, cannot be delayed without extending the schedulelength of the block »^ Critical path = sequence of critical operations from node with nopredecessors to exit node, can be multiple crit paths

1

2 2 3 3

2

2 4

3
