Electrician (Part 1) Exam

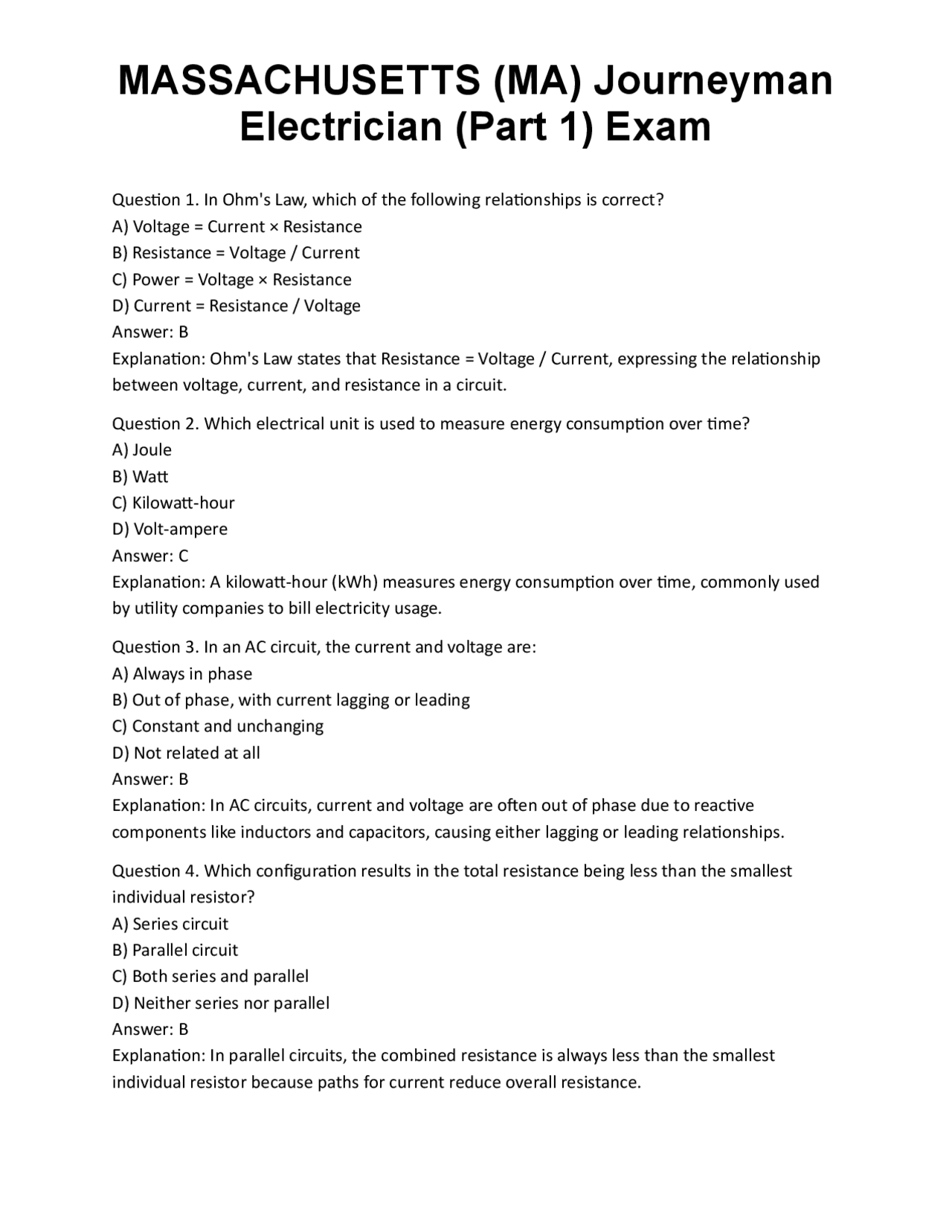

Question 1. In Ohm's Law, which of the following relationships is correct? A) Voltage = Current × Resistance B) Resistance = Voltage / Current C) Power = Voltage × Resistance D) Current = Resistance / Voltage Answer: B Explanation: Ohm's Law states that Resistance = Voltage / Current, expressing the relationship between voltage, current, and resistance in a circuit. Question 2. Which electrical unit is used to measure energy consumption over time? A) Joule B) Watt C) Kilowatt-hour D) Volt-ampere Answer: C Explanation: A kilowatt-hour (kWh) measures energy consumption over time, commonly used by utility companies to bill electricity usage. Question 3. In an AC circuit, the current and voltage are: A) Always in phase B) Out of phase, with current lagging or leading C) Constant and unchanging D) Not related at all Answer: B Explanation: In AC circuits, current and voltage are often out of phase due to reactive components like inductors and capacitors, causing either lagging or leading relationships. Question 4. Which configuration results in the total resistance being less than the smallest individual resistor? A) Series circuit B) Parallel circuit C) Both series and parallel D) Neither series nor parallel Answer: B Explanation: In parallel circuits, the combined resistance is always less than the smallest individual resistor because paths for current reduce overall resistance.
Electrician (Part 1) Exam
Question 5. The principle of electromagnetism explains: A) How resistors limit current B) How magnetic fields are generated by electric currents C) The behavior of static charges D) The flow of current in DC circuits only Answer: B Explanation: Electromagnetism describes how electric currents produce magnetic fields, fundamental to devices like transformers and electromagnets. Question 6. An inductor primarily stores energy in which form? A) Electric field B) Magnetic field C) Chemical energy D) Kinetic energy Answer: B Explanation: Inductors store energy in a magnetic field created by current flow through the coil. Question 7. The electrical symbol for a resistor is represented by: A) A zigzag line B) A rectangle C) A circle with a line D) A parallel line Answer: A Explanation: The standard schematic symbol for a resistor is a zigzag line. Question 8. What is the SI unit of capacitance? A) Henry B) Farad C) Ohm D) Volt Answer: B Explanation: The farad (F) is the SI unit of capacitance, representing the ability to store charge. Question 9. According to the formulas, what is the voltage drop across a resistor of 10 ohms with a current of 2 amps? A) 5 volts B) 10 volts C) 20 volts D) 50 volts
Electrician (Part 1) Exam
Explanation: NM cable is commonly used for temporary and permanent indoor wiring due to ease of installation. Question 14. A circuit breaker is rated to trip at a current of 20 amps. If the circuit's load exceeds this, what will happen? A) The breaker will trip to disconnect the circuit B) The breaker will increase current flow C) The breaker will allow overload without tripping D) The breaker will reset automatically Answer: A Explanation: Circuit breakers trip when their rated current is exceeded to protect wiring and prevent fires. Question 15. Which NEC article covers wiring methods for flexible cords and cables? A) Article 300 B) Article 400 C) Article 500 D) Article 600 Answer: B Explanation: Article 400 addresses the use and installation of flexible cords and cables. Question 16. In a hazardous (classified) location, electrical equipment must be: A) Non-metallic B) Suitable for the specific hazard classification C) Installed only outdoors D) Powered by DC only Answer: B Explanation: Equipment in hazardous locations must be rated and approved for the specific classification of the environment. Question 17. Which NEC article addresses the requirements for service conductors and equipment? A) Article 200 B) Article 240 C) Article 230 D) Article 400 Answer: C Explanation: Article 230 covers services, including installation, sizing, and grounding of service conductors.
Electrician (Part 1) Exam
Question 18. What is the primary function of a surge protective device (SPD)? A) Limit current during overload B) Protect equipment from voltage surges C) Reduce electrical noise D) Isolate circuits from ground Answer: B Explanation: SPDs are designed to protect electrical devices from voltage spikes caused by lightning or switching surges. Question 19. Which type of conduit is suitable for use in wet locations and underground? A) EMT B) Rigid metal conduit (RMC) C) Flexible metallic conduit (FMC) D) Liquid-tight flexible conduit Answer: B Explanation: Rigid metal conduit (RMC) is suitable for wet and underground installations due to its durability and protection. Question 20. When installing outlet boxes, the box fill calculation ensures: A) Adequate space for conductor bending B) The box does not exceed weight limits C) The box is grounded properly D) The box has sufficient capacity for conductors and devices Answer: D Explanation: Box fill calculations determine if the box has enough capacity to safely contain all conductors and devices without overcrowding. Question 21. The main purpose of a transformer in electrical systems is to: A) Convert AC to DC B) Change voltage levels C) Store electrical energy D) Limit current flow Answer: B Explanation: Transformers change voltage levels, either stepping up or stepping down voltage for various applications. Question 22. Which component is essential for motor protection? A) Fuse or circuit breaker B) Resistor
Electrician (Part 1) Exam
Answer: B Explanation: Conductor size is selected based on current capacity (ampacity) and voltage drop considerations to ensure safety and efficiency. Question 27. Which type of switch is used to control lighting from multiple locations? A) Single-pole switch B) Three-way switch C) Dimmer switch D) Motion sensor switch Answer: B Explanation: A three-way switch allows control of a lighting fixture from two different locations. Question 28. In the NEC, the term "enclosure" refers to: A) A device that contains electrical components and protects them B) A wire connector C) An electrical conductor D) A circuit breaker Answer: A Explanation: An enclosure is a protective housing for electrical equipment, ensuring safety and organization. Question 29. Which of the following is a characteristic of a Type NM cable? A) Suitable for outdoor wet locations B) Consists of insulated conductors in a plastic sheath C) Used exclusively in industrial settings D) Cannot be installed in thermal insulation Answer: B Explanation: NM cable (non-metallic sheathed cable) has insulated conductors within a plastic outer sheath and is widely used indoors. Question 30. The purpose of a disconnect switch is to: A) Provide overcurrent protection B) Isolate equipment for maintenance or emergency C) Step down voltage D) Increase circuit capacity Answer: B Explanation: Disconnect switches are used to isolate electrical equipment for safety during maintenance or emergencies.
Electrician (Part 1) Exam
Question 31. A grounding electrode conductor must connect the building's electrical system to: A) The main service panel B) A grounding electrode, such as a ground rod C) The neutral bus D) The load center Answer: B Explanation: The grounding electrode conductor connects the system to a grounding electrode to establish a ground reference. Question 32. Which NEC article addresses the requirements for emergency and legally required standby systems? A) Article 700 B) Article 701 C) Article 702 D) Article 705 Answer: A Explanation: Article 700 specifies the installation and safety requirements for emergency systems. Question 33. Which type of conduit is typically used to protect wiring in corrosive environments? A) EMT B) Rigid PVC conduit C) Flexible metallic conduit D) Intermediate metal conduit (IMC) Answer: B Explanation: Rigid PVC conduit is resistant to corrosion and suitable for harsh environments. Question 34. In a wiring diagram, a symbol with two parallel lines indicates: A) A capacitor B) A switch C) A transformer D) A resistor Answer: C Explanation: Two parallel lines typically represent a transformer in schematics. Question 35. Which device is used to protect motors from overloads? A) Fuse B) Overload relay
Electrician (Part 1) Exam
Explanation: Article 620 details the wiring and safety requirements for elevators, dumbwaiters, and lifts. Question 40. In Massachusetts, the local amendments to the NEC often require: A) The use of specific materials or methods not in the NEC B) Ignoring the NEC provisions C) Only using Massachusetts-made equipment D) No additional requirements Answer: A Explanation: Massachusetts amendments may specify additional or modified requirements to ensure safety and compliance with state regulations. Question 41. When reading an electrical blueprint, a symbol with a circle and a cross inside represents: A) A lamp or light fixture B) A motor C) A switch D) A junction box Answer: A Explanation: A circle with a cross typically indicates a lamp or light fixture in electrical schematics. Question 42. The ampacity of a conductor is primarily determined by: A) The conductor's material B) The conductor's insulation type C) The current-carrying capacity without exceeding temperature limits D) The length of the conductor Answer: C Explanation: Ampacity is the maximum current a conductor can carry without exceeding its temperature rating, depending on material and insulation. Question 43. A double-pole switch is used to: A) Control a single circuit from one location B) Control a single circuit from two locations C) Switch two separate circuits simultaneously D) Dim lighting Answer: C Explanation: Double-pole switches control two separate conductors simultaneously, often used for 240V loads.
Electrician (Part 1) Exam
Question 44. The purpose of a GFCI (Ground-Fault Circuit Interrupter) is to: A) Protect against overcurrent B) Detect ground faults and trip to prevent shock C) Limit short circuits D) Control lighting circuits Answer: B Explanation: GFCIs detect imbalance in current flow to ground and trip to prevent electric shock hazards. Question 45. Which of the following is NOT a typical feature of a portable extension cord? A) Has grounding prongs B) Designed for temporary use C) Suitable for outdoor use if rated D) Can be permanently embedded in the wall Answer: D Explanation: Extension cords are intended for temporary use and are not meant to be permanently embedded. Question 46. The main purpose of bonding in electrical systems is to: A) Connect all conductive parts to ground B) Increase the voltage C) Isolate circuits D) Reduce electrical noise Answer: A Explanation: Bonding ensures all conductive parts are connected to ground to prevent shock hazards. Question 47. Which type of overcurrent device provides selective coordination and faster operation? A) Fuses B) Molded-case circuit breakers C) Standard circuit breakers D) Ground-fault interrupters Answer: B Explanation: Molded-case circuit breakers can be designed for selective coordination and faster trip characteristics. Question 48. The NEC requires that working space about electrical equipment must have a minimum width of:
Electrician (Part 1) Exam
Explanation: Article 700 specifies the installation and requirements for emergency and standby lighting systems. Question 53. Which type of circuit configuration provides the most consistent voltage to loads? A) Series circuit B) Parallel circuit C) Series-parallel circuit D) None of the above Answer: B Explanation: Parallel circuits provide the same voltage across each branch, ensuring consistent voltage to loads. Question 54. The primary function of a capacitor in an AC circuit is to: A) Store energy in a magnetic field B) Store energy in an electric field and oppose changes in voltage C) Limit current flow D) Convert AC to DC Answer: B Explanation: Capacitors store energy in an electric field and oppose sudden changes in voltage, influencing reactive power. Question 55. Which device is used to disconnect power in an emergency? A) Circuit breaker B) Emergency disconnect switch C) Fuse D) GFCI Answer: B Explanation: An emergency disconnect switch provides a quick means to shut off power for safety. Question 56. The NEC requires that conductors in a raceway be supported at intervals not exceeding: A) 3 feet B) 4.5 feet C) 6 feet D) 10 feet Answer: C Explanation: Conductors must be supported at intervals not exceeding 6 feet to prevent stress and damage.
Electrician (Part 1) Exam
Question 57. A motor's full load current is 15 amps. The overcurrent protection device should be rated at: A) 15 amps B) 20 amps C) 25 amps D) 30 amps Answer: B Explanation: Overcurrent devices are typically rated at 125% of motor full load current, so 15 A × 1.25 = 18.75 A, rounded up to 20 A. Question 58. The purpose of a transformer’s core is to: A) Conduct current B) Provide a magnetic path for flux transfer C) Store electrical energy D) Dissipate heat Answer: B Explanation: The core provides a low-reluctance magnetic path to efficiently transfer flux between primary and secondary windings. Question 59. Which NEC article addresses the requirements for wiring in hazardous locations? A) Article 500 B) Article 600 C) Article 700 D) Article 720 Answer: A Explanation: Article 500 covers wiring, equipment, and safety requirements for hazardous (classified) locations. Question 60. The term "ampere" is a unit of: A) Voltage B) Resistance C) Current D) Power Answer: C Explanation: An ampere (A) measures electric current, representing the flow of electrons. Question 61. In the context of electrical plans, a symbol with a triangle indicates: A) A ground connection B) A switch
Electrician (Part 1) Exam
Question 66. Which component is used to protect against overvoltage transients? A) Circuit breaker B) Surge protective device (SPD) C) Fuse D) Resistor Answer: B Explanation: SPDs are designed to protect electrical equipment from transient overvoltages like lightning strikes. Question 67. The typical voltage for residential service in Massachusetts is: A) 120/240 volts B) 277/480 volts C) 208 volts D) 600 volts Answer: A Explanation: Residential services in Massachusetts generally use 120/240 V single-phase supply. Question 68. In a three-phase system, the phase sequence refers to: A) The order in which phases reach their peak voltage B) The number of conductors C) The voltage level D) The type of load connected Answer: A Explanation: Phase sequence indicates the order in which the three phases reach their maximum voltage, important for motor rotation. Question 69. Which type of motor controller is typically used for variable-speed applications? A) Direct-On-Line (DOL) starter B) Variable Frequency Drive (VFD) C) Manual switch D) Overload relay Answer: B Explanation: VFDs control motor speed by varying the frequency and voltage supplied to the motor. Question 70. The purpose of a ground-fault circuit interrupter (GFCI) is to: A) Trip during overloads B) Protect against ground faults and reduce shock risk C) Limit short circuit current
Electrician (Part 1) Exam
D) Control motor speed Answer: B Explanation: GFCIs detect imbalance in current flow, trip to prevent electric shocks from ground faults. Question 71. The NEC requires that conductors passing through a fire-rated wall must be: A) Protected with fire-resistant sleeves or fittings B) Allowed without protection C) Insulated with special fireproof coatings D) Buried underground Answer: A Explanation: Conductors passing through fire-rated walls must be protected with fire-resistant sleeves or fittings to maintain fire integrity. Question 72. Which NEC article covers requirements for the installation of luminaires and lighting fixtures? A) Article 410 B) Article 430 C) Article 410 D) Article 430 Answer: A Explanation: Article 410 specifies the installation, wiring, and safety requirements for luminaires and lighting fixtures. Question 73. The main function of a relay in an electrical circuit is to: A) Provide overcurrent protection B) Control a high-current circuit with a low-current signal C) Convert AC to DC D) Store electrical energy Answer: B Explanation: Relays use a low-current control circuit to switch a high-current load, providing electrical isolation. Question 74. A motor overload relay is designed to: A) Protect the motor from excess current B) Limit voltage C) Protect the circuit breaker D) Provide short-circuit protection Answer: A
Electrician (Part 1) Exam
Question 79. Which type of electrical service is most common for residential homes? A) Single-phase, 120/240 V B) Three-phase, 208 V C) Three-phase, 480 V D) Single-phase, 600 V Answer: A Explanation: Residential homes typically receive single-phase, 120/240 V service for standard loads. Question 80. In electrical plans, a dashed line representing a conduit indicates: A) An underground conduit B) A conduit above the ceiling C) An optional conduit D) A conduit that is concealed Answer: D Explanation: Dashed lines often indicate concealed or hidden conduit runs in plans. Question 81. An overcurrent protection device rated at 15 amps is suitable for a circuit with conductors rated at: A) 10 amps B) 15 amps C) 20 amps D) 25 amps Answer: B Explanation: Overcurrent devices should be rated at or slightly above the conductor's ampacity but within safe limits; 15 A device is suitable for conductors rated at 15 A. Question 82. Which of the following best describes the function of a transformer’s secondary winding? A) Converts AC to DC B) Transfers magnetic flux C) Provides the output voltage D) Limits current flow Answer: C Explanation: The secondary winding provides the transformed output voltage based on turns ratio. Question 83. The main purpose of a bonding jumper is to: A) Connect non-current-carrying metal parts to ground
Electrician (Part 1) Exam
